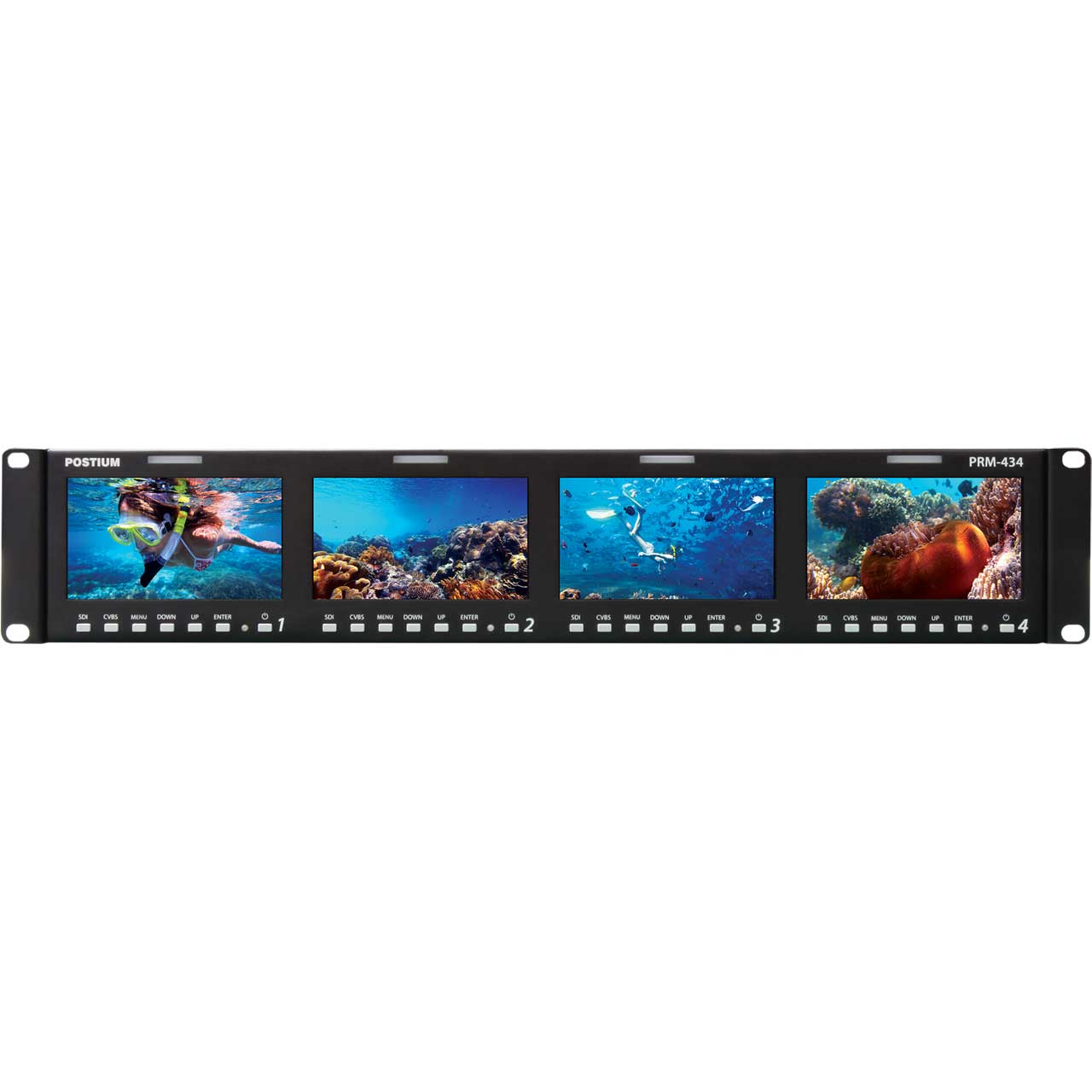

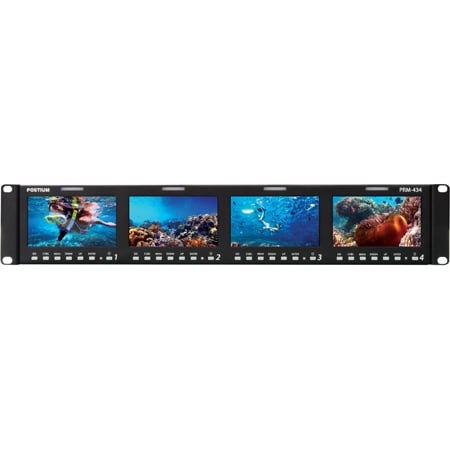

Postium PRM-434 4.3 In Multi-Format Quad LCD Rack Monitor with 3G-SDI

PRM-434 - Overview

• Features:

  • Various Scan Mode
  • Waveform
  • Vector Scope
  • Internal Pattern Display
  • Tally (3 Colors)
  • Gamma
  • Blue Only
  • H/V Delay
  • Zoom
  • Audio Level Meter
  • Key Lock
  • Markers (Custom Marker)
  • Time Code Display
  • UMD (TSL 3.1)


• Specifications:

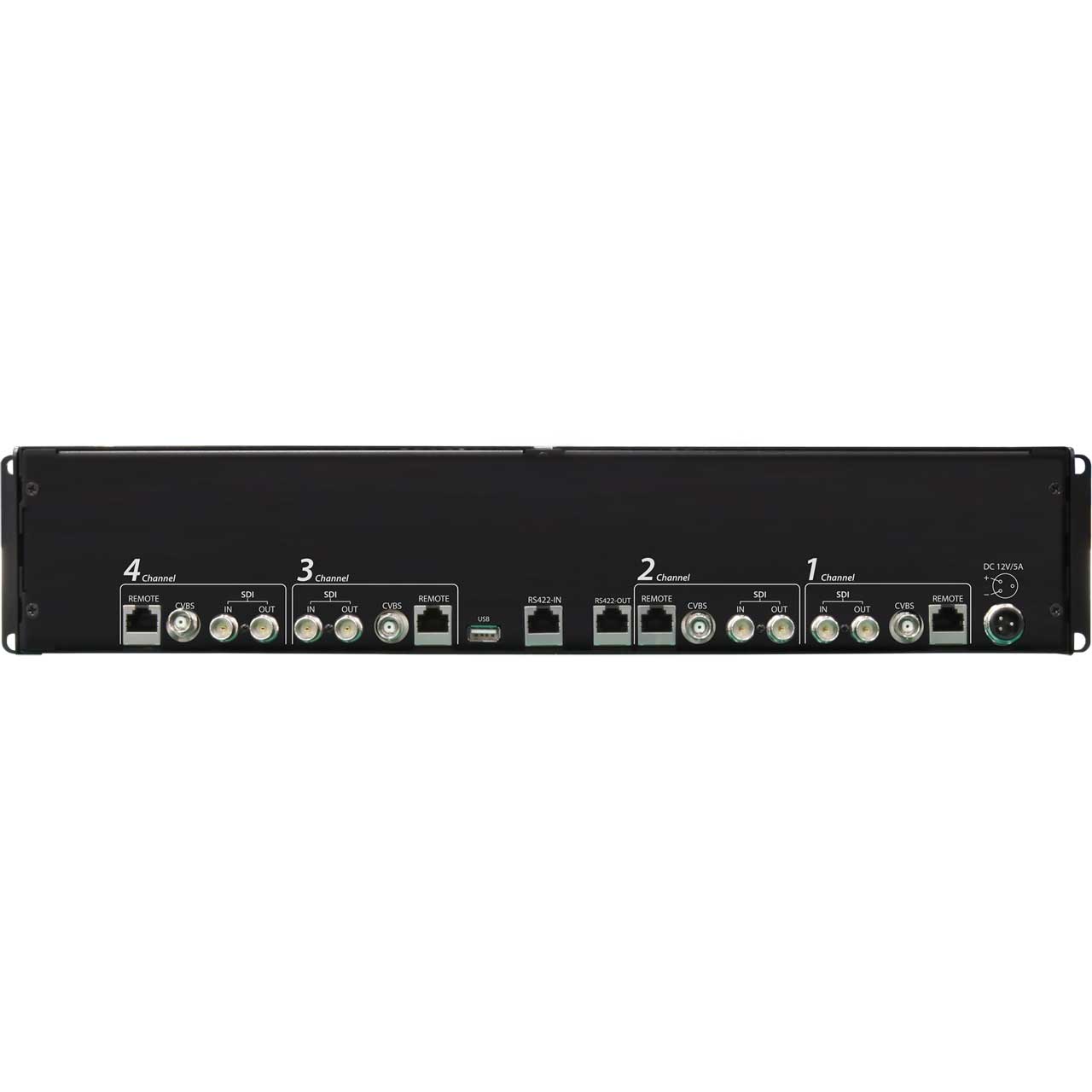

  • Input:
    - SDI: 1x 3G-SDI
    - HDMI: -
    - Analog: 1x BNC(Composite)
  • Output:
    - SDI: 1x 3G SDI
  • Input Signal Format:
    - SMPTE ST 425-AB: 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
    - SMPTE ST 274: 1080p(30/29.97/25/24/23.98/24sF/23.98sF), 1080i (60/59.94/50)
    - SMPTE ST 296: 720p(60/59.94/50)
    - SMPTE ST 260: 1920 x 1035i(60/59.94)
    - SMPTE ST 2048: 2048 x 1080p(24/23.98/24sF/23.98sF)
    - SMPTE ST 125: 480i(59.94)
    - ITU-R BT.656: 576i(50)
  • Audio In/Out:
    - 1x Phone Jack In: Line In(Stereo)
    - 1x phone Jack Out: H/P Out(Front, Stereo)
    - 2x Speaker Out: Stereo

    Display:
  • Size: 4.3"
  • Resolution: 800 x 480 (15:9)
  • Active Area: 95.04mm (W) X53.858(H)mm
  • Pixel Pitch: .11 mm
  • Color: 16.7M colors
  • Viewing Angle: 160(H), 160(V)
  • Luminance of White: 800cd/m²
  • Contrast: 1200 : 1

  • Control:
  • RS-422: 1 x Input, 1 x Output
  • Remote(GPI Control): 4(1 for each screen)
  • USB(Update, Calibration): For Firmware Update, Color Calibration

    General:
  • Power Requirements: DC 12V / 3.5A
  • Power Consumption: 32 W
  • Operating Temperature: 0 ~ 40°C(32~104°F)
  • Operating Humidity: 20 ~ 80% RH
  • Weight: Main Body: 1.94kg / 4.27lbs
  • Dimensions: 480 x 86.5 x 50 mm / 19.89 x 3.40 x 1.96 inch
  • Accessories: DC Power Adapter / Power Cable


• Item Includes:

  • 1x DC Power Adapter
  • 1x Power Cable
