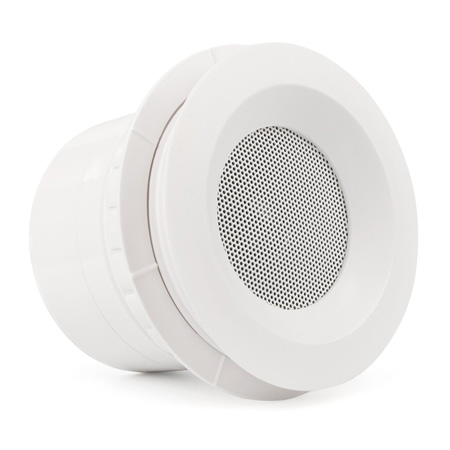

Pure Resonance Audio C3 3 Inch Micro Ceiling Speaker

ITEM #: PRA-C3 MFG #: PRA-C3

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$83.99

Our Price:

$69.99

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    PRA-C3 - Overview

    Intelligent, Compact & Stylish Design
    Intelligently designed, the stylish Pure Resonance Audio C3 3" micro ceiling speaker system is compact and lightweight. An ultra-thin flat bezel allows the C3 to seamlessly blend into ceilings while producing quality sound and excellent dispersion of both music and vocals. Because of its small size, the C3 ceiling speaker is great for installations where architectural or aesthetic considerations require a small format ceiling speaker.

    Versatile & Multi-Function
    The Pure Resonance Audio C3 3" micro ceiling speaker features an 8 Ohm and 70 Volt tap, as well as a power tap transformer switch which allows for selectable inputs of 8 Ohm or 70V/100V applications. It is designed with multiple mounting options that provide amazing multi-functionality. The C3 can be installed as a traditional ceiling speaker with the included easy-mounting ring, as a pendant speaker or drywall mounted speaker (mounts sold separately). The C3 ceiling speaker is perfect for providing background music, paging, and ambient sound masking for offices, retail stores, coffee shops, restaurants, hospitality venues, reception/waiting rooms, lounges, foyers, hallways, and auxiliary spaces.

    Quick And Easy Installation
    The Easy-Mounting threaded mounting ring provides quick, secure, clean installation onto ceiling tiles and many other ceiling types. Simply measure and cut your hole in the ceiling, insert the speaker, place the threaded mounting ring on the back and rotate the mounting ring onto the ceiling speaker until it is tight. Connect the speaker wire and the C3 is securely installed.

    • Features:

      • Compact and lightweight
      • Smallest possible footprint while maintaining powerful quality sound
      • Intelligent, stylish design that seamlessly blends into the ceiling
      • Power tap transformer switch for selectable 8 ohm or 70V/100V
      • Quick & easy installation with threaded mounting ring
      • Perfect for background music in offices, retail stores, restaurants, hotels, foyers

    • Specifications:

      • Frequency Response: 120Hz - 20kHz
      • Low Frequency (-10 dB): 180 Hz - 20 kHz
      • Impedance: 8 Ohms with 70V transformer (built-in)
      • Maximum Input Voltage: 17 dBV (7.1V, 6W into 8Ω)
      • Power Taps @ 70V: 1.5W / 3W / 5W
      • Power Taps @ 100V: 3W / 6W / 10W
      • Transducer: Full-range 3" driver
      • Speaker Cone Material: Paper driver with butyl rubber surround
      • Nominal Coverage Angle: 130° Conical Coverage
      • 180° Coverage Angle:
        -1 dB @ 1.25 kHz
        -5 dB @ 2.5 kHz
      • 140° Coverage Angle: -10 dB @ 10 kHz
      • Sensitivity SPL: 85 dB @ 1W/1 m
      • Maximum SPL: 89.6 dB referenced @ 1m
      • Cutout Size: 4.25" (107.95 mm)
      • Easy-Mounting Ring (Dia): 5.125" (130.18 mm)
      • Bezel (Dia): 4.88" (123.83 mm)
      • Mounting Depth (Dia x D):
        4.125" (104.78 mm) x 3.16" (80.16 mm) without connector
        4.125" (104.78 mm) x 3.88" (98.43 mm) with connector

    • Item Includes:

      • 1x C3 3" Micro Ceiling Speaker
      • 1x Screw on Threaded Easy-Mounting Ring

    • Warranty:

      • Speakers: 2 Years
      • Amplifiers & Electronics: 1 Year
      • Microphones: 1 Year
      • Accessories: 1 Year


    PRA-C3 - Required Accessories

      PRA-C3 - Recommended Accessories
