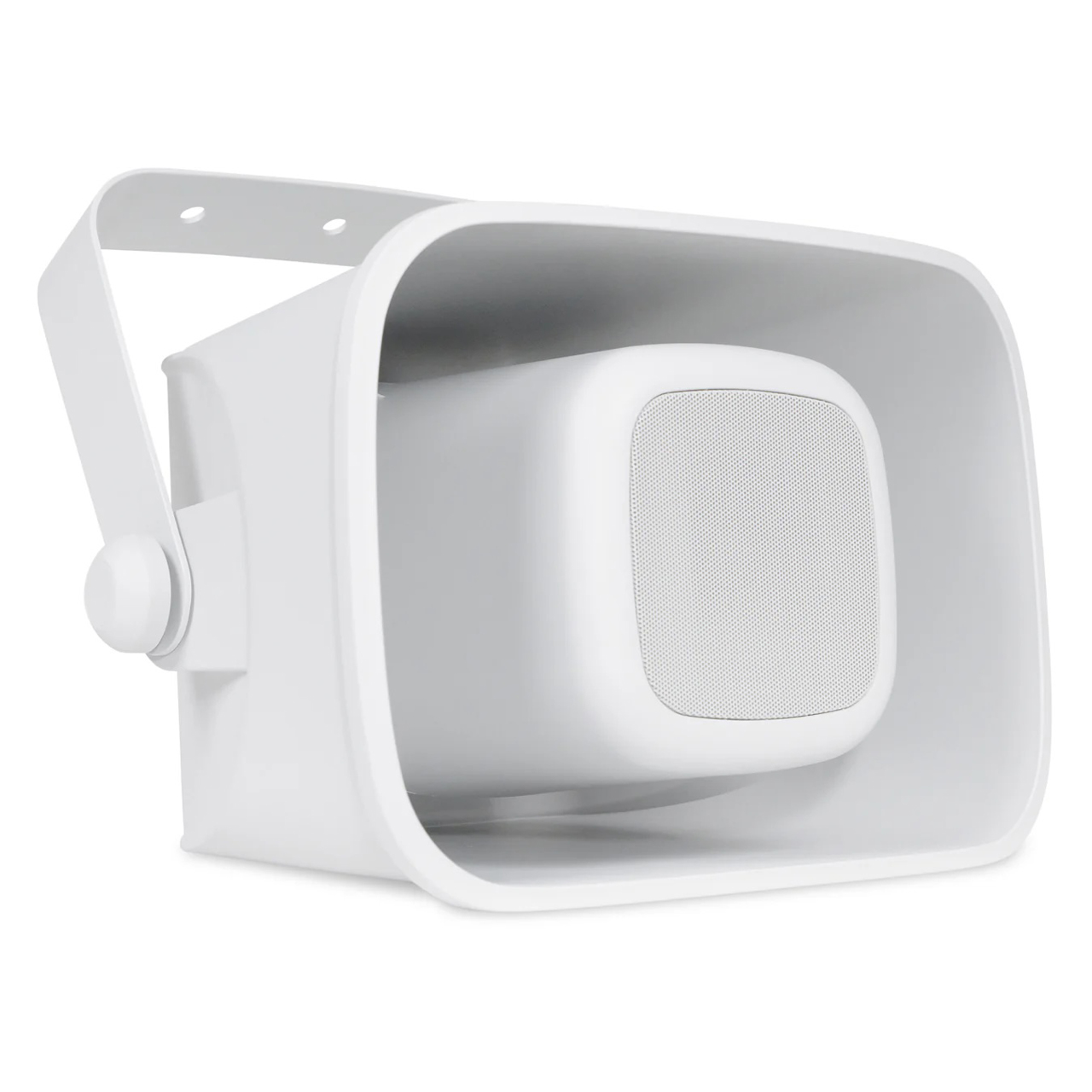

Pure Resonance Audio H6 6.5-Inch 2-Way Full-Range All-Weather Horn Loudspeaker - White

ITEM #: PRA-H6 MFG #: PRA-H6

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$275.99

Our Price:

$229.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PRA-H6 - Overview

The Pure Resonance Audio H6 is a robust 2-way 70V horn loudspeaker designed for exceptional voice reproduction and wide dispersion. Featuring a 6.5" woofer, 1" tweeter, and a built-in 60W transformer, this outdoor horn speaker delivers high-output sound with reliable durability. Built to endure harsh conditions, the H6 boasts an IP66 weatherproof rating, making it perfect for both indoor and outdoor use. Ideal for applications demanding clear intelligibility over long distances, this horn-loaded speaker excels in small stadiums, schools, warehouses, parks, and more. The heavy-duty mounting bracket ensures secure installation, while the recessed terminal block with a waterproof cover guarantees a weather-safe connection.

  • Features:

    • Quality Performance: The 6.5" LF paper and 1" ABS/glass fiber HF drivers produce a frequency response of 120Hz - 18kHz and a max SPL of 110dB for full-range high-output sound.
    • Excellent Paging: Designed to deliver crystal-clear sound, the H6 provides superior voice intelligibility essential for effective communication over long distances.
    • Weatherproof: Built to withstand harsh conditions, the IP66 weatherproof rating and polypropylene calcium carbonate enclosure ensure complete protection against dust, water, and impacts while also providing enhanced thermal conductivity for reliable long-term performance in demanding indoor and outdoor environments.

  • Specifications:

    • Power Rating: 60W RMS; 120W Peak
    • Frequency Response (±10dB): 120Hz - 18kHz
    • Sensitivity (@ 1w/1m): 93dB
    • Max SPL: 110dB
    • Dispersion: 90° x 90°
    • Impedance:
    • Transformer Taps:
      - 70V: 7.5W, 15W, 30W, 60W
      - 100V: 15W, 30W, 60W; 4Ω Bypass
    • Woofer: 6.5" Paper
    • Tweeter: 1" ABS/Glass Fiber
    • Material: Polypropylene + calcium carbonate enclosure
    • Protection Rating: Weatherproof IP66
    • Connection: Bare wire
    • Mount: Aluminum mounting bracket
    • Mounting Holes: 3x 10mm (Distance between each hole is 80mm)
    • Dimensions (HxWxD): 10.71" x 14.37" x 12.91" (272mm x 365mm x 328mm)
    • Weight: 13.78lbs (6.25kg)
    • Shipping Dimensions (HxWxD): 17.52" x 17.52" x 13.39" (445mm x 445mm x 340mm)
    • Shipping Weight: 17.64lbs (8kg)

  • Item Includes:

    • 1x H6 Horn Loudspeaker
    • 1x Mounting Bracket

  • GTIN:

    0810093052516
