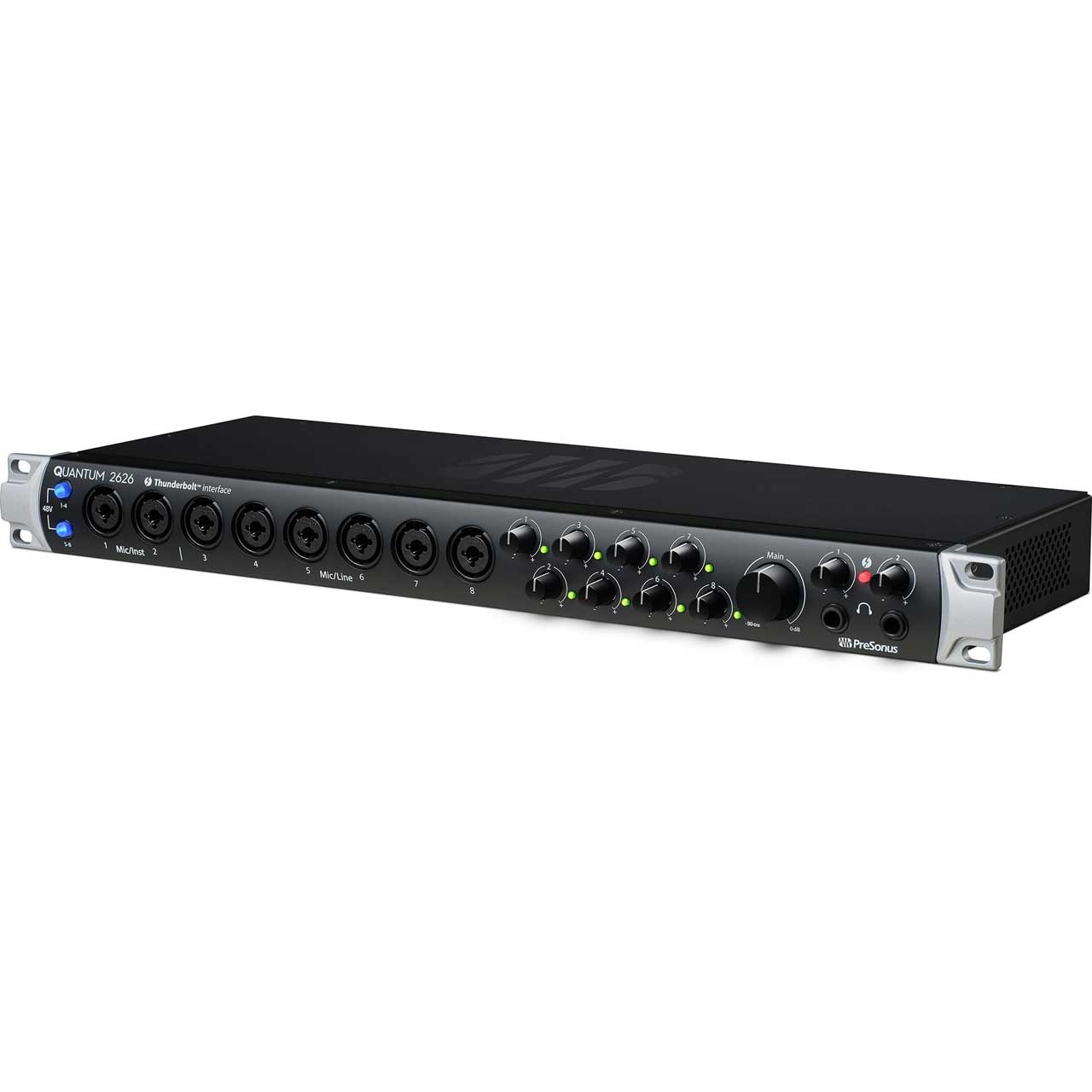

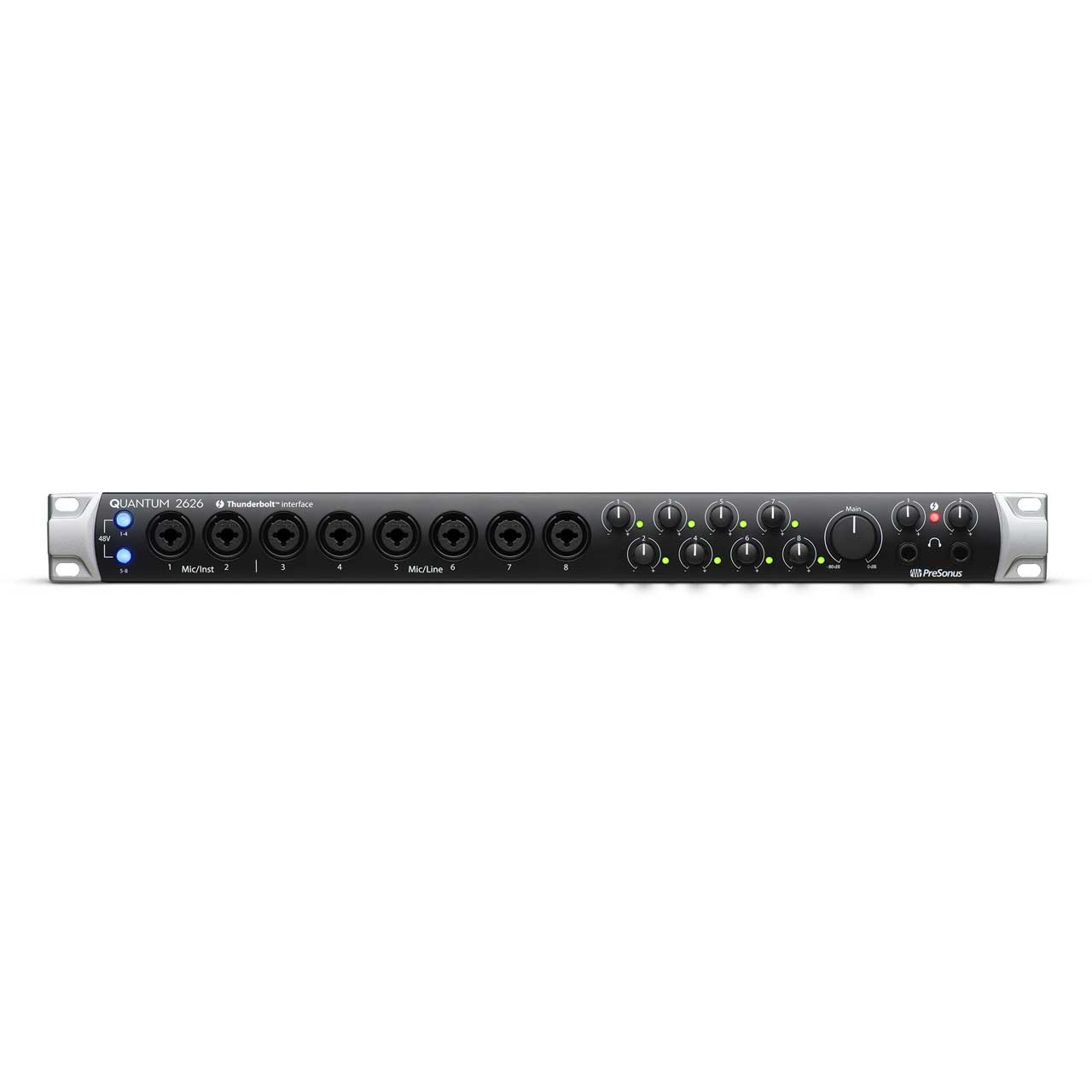

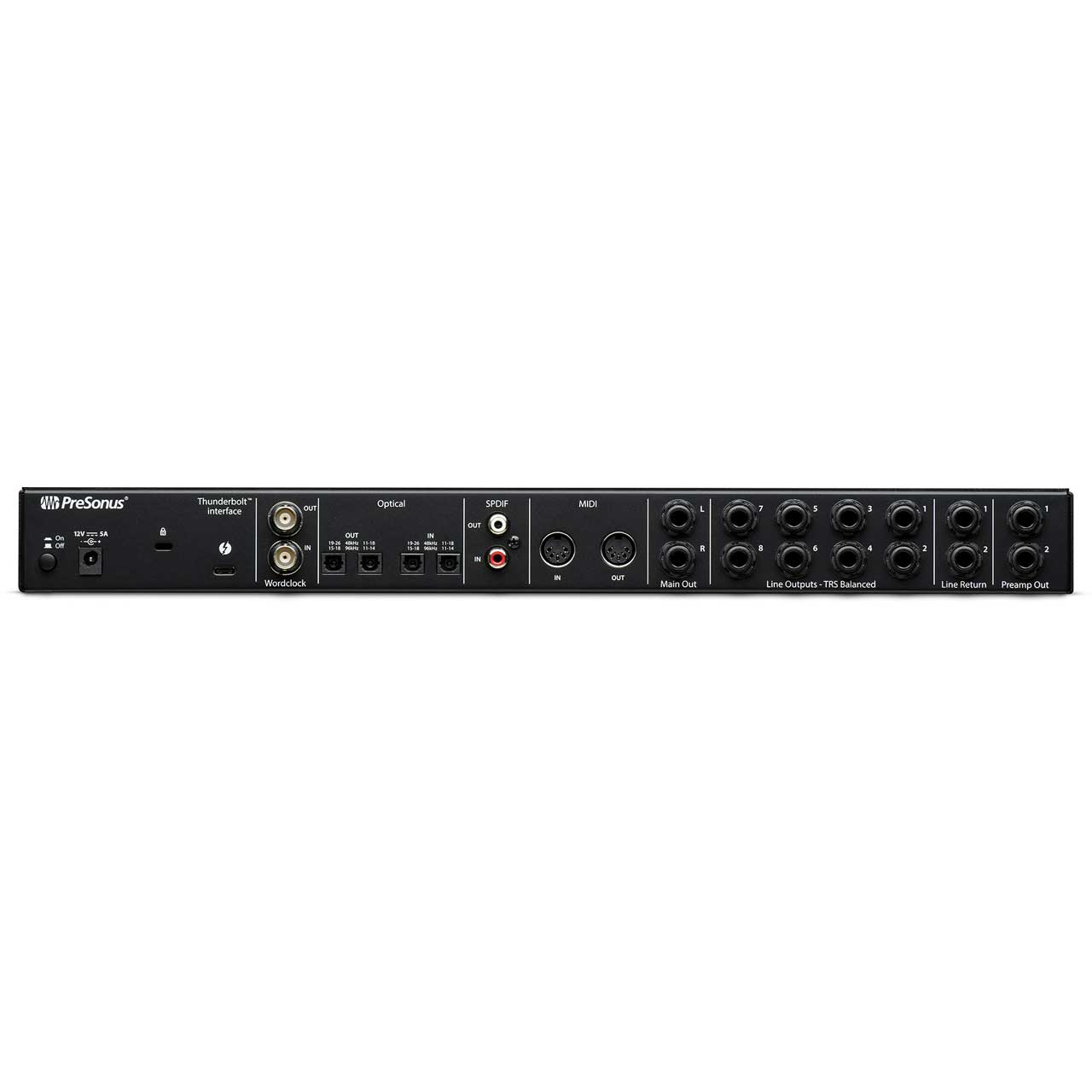

PreSonus Quantum 2626 - 26x26 Thunderbolt 3 Audio Interface

ITEM #: PRE-QUANTUM-2626 MFG #: QUANTUM 2626

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$899.99

Our Price:

$699.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    QUANTUM 2626 - Overview

    The Speed of Sound
    With a barely measurable round-trip latency of less than 1 ms*, it's no wonder Sound on Sound magazine dubbed Quantum-series Thunderbolt™ audio interfaces the "fastest audio interfaces on the planet." Superb high-definition digital conversion and the ultra-transparent analog XMAX mic preamp design mean that your audio will always sound its best--whether you're recording with or without your favorite plug-ins engaged in real-time.

    Timeless audio
    Every design decision during Quantum 2626 audio interface's engineering was made with one goal in mind: blazing-fast speed without any sonic compromise. The Quantum-series proprietary Thunderbolt driver was written from the ground up to deliver ultra-low-latency performance while maximizing efficiency. Cutting-edge 24-bit, 192 kHz converters with 115 dB of dynamic range and superior low-jitter clocking--coupled with our ultra-transparent, pure analog XMAX preamps--result in superb audio quality with the lowest round-trip latency of any audio interface available (< 1 ms*).

    *192 kHz, 64 sample buffer in Studio One 4.5 on a MacBook Pro 2016, 2.7 GHz Intel Core i7 running macOS 10.12.5.

    Superior Sound
    Audiophile-grade digital converters, low-jitter clocking, and transparent preamps add up to a superior recording and listening experience. The Quantum 2626 audio interface operates at up to 192 kHz for ultra-high-definition mixing and recording. High-quality converters on every input and output provide 115 dB of dynamic range to capture complex musical harmonics smoothly and naturally with no audible distortion. And their lauded XMAX Class A analog microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound so you'll hear every breath, transient, and detail in your recordings.

    Expansive audio
    Impressive speed combined with stunning sound quality means that the Quantum Thunderbolt audio interface is an ideal recording solution for any size of studio. Need more mic preamps? Connect the PreSonus DigiMax DP88 to your Quantum interface's ADAT/dual S/MUX ports. Once synced, the DigiMax DP88 preamps can be remotely controlled via Studio One or UC Surface. Want to insert your favorite gear? The Quantum 2626 features two direct preamp outputs with dedicated returns, so you can insert your favorite analog compressor and your favorite plug-ins with ease.

    Award-winning recording software included
    While compatible with any macOS or Windows recording application, the Quantum 2626 ships as a complete recording studio with Studio One Artist music production software included. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools.

    • Features:

      • 26x26 Thunderbolt 3 ultra-low-latency audio interface
      • <1 ms roundtrip latency*; record direct to DAW with your favorite plug-ins engaged
      • 24-Bit/192kHz Operation with high-quality 115 dB A/D/A converters
      • Studio One Artist and Studio Magic plug-in bundle included
      • Simultaneous I/O up to 26 inputs / 26 outputs (at 44.1 or 48 kHz)
      • 8 pristine XMAX preamps
      • 2 Instrument Inputs
      • 8 balanced line inputs
      • Dual headphone outputs with independent level control
      • Eight Balanced Line Outputs
      • Two Preamp Outputs (channels 1 & 2)
      • Two Line Returns (channels 1 & 2)
      • Thunderbolt 3 high-speed bus
      • 24-bit resolution and up to 192 kHz sampling rate

    • Specifications:

      • MicPreamp
      • Type: XLR Female (via Combo), Balanced
      • Max. Input Level: +10 dBu
      • Gain Control Range: 60 dB
      • Frequency Response: 20 Hz to 20 kHz
      • Dynamic Range: > 110 dB (A-wtd, min. gain)
      • Total Harmonic Distortion: < 0.005% (1 kHz, min. gain)
      • EIN: < -131 dBu (max gain, 40Ω, 22 kHz BW, A-wtd)
      • Input Impedance: 1.6 kΩ
      • Phantom Power: +48V, > 8 mA per input

        Instrument Inputs
      • Type: 1/4" TS Female (via Combo), Unbalanced
      • Max. Input Level: +15 dBu (Unbalanced, min. gain)
      • Gain Control Range: 60 dB
      • Frequency Response: 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz)
      • Dynamic Range: > 106 dB (A-wtd, min. gain)
      • Total Harmonic Distortion: < 0.005% (1kHz, min. gain)
      • Input Impedance: > 1 MΩ

        Line Inputs
      • Type: 1/4" TRS Female (via Combo), Balanced
      • Max. Input Level: + 18 dBu (Balanced, min. gain)
      • Frequency Response: 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
      • Dynamic Range: > 118 dB (A-wtd, min. gain)
      • Total Harmonic Distortion: < 0.005% (1 kHz, min. gain)
      • Input Impedance: 10 kΩ

        Main & Line Outputs
      • Type: 1/4" TRS Female, impedance balanced, DC Coupled
      • Max. Output Level: +18 dBu (Balanced)
      • Frequency Response: 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
      • Dynamic Range: > 118 dB (A-wtd)
      • Total Harmonic Distortion: < 0.0035% (1 kHz, +4 dBu)
      • Output Impedance: 51Ω

        Headphone Outputs
      • Type: 1/4" TRS Female, Stereo, Unbalanced, x2
      • Max. Output Level: 175 mW/channel (56Ω load)
      • Frequency Response: 20 Hz to 20 kHz
      • Dynamic Range: > 110 dB (A-wtd)
      • Total Harmonic Distortion: < 0.03% (1 kHz)
      • Headphone Impedance: 16Ω to 300Ω

        Crosstalk
      • Input to Input: < -110 dB
      • Output to Output: < -115 dB
      • Input to Output: < -120 dB
      • Signal Level LEDs
      • Clip: -0.5 dBFS
      • Signal: -50 dBFS

        Digital Audio
      • Connection Type: Thunderbolt 3
      • ADC Dynamic Range: 115 dB (A-wtd)
      • DAC Dynamic Range: 115 dB (A-wtd)
      • Bit Depth: 24 bits
      • Internally Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz

        Clock
      • Jitter: < 70 ps RMS (20 Hz - 20 kHz)
      • Jitter Attenuation: > 60 dB

        Power:
      • 12 VDC, 5A, external power supply

        Physical Dimensions:
      • Height: 1.75"
      • Depth: 7"
      • Width: 19"
      • Weight: 6 lbs

        System Requirements:
      • Mac OS X 10.11.6 64-bit or later
      • Intel CoreT i5 or better
      • 4 GB RAM (8 GB recommended)
      • Windows 10 64-bit or later
      • Intel Core i5 or better
      • 4 GB RAM (8 GB recommended)
      • ThunderboltT 1.0, 2.0, or 3.0 port (NOTE: Your computer must support Thunderbolt. Thunderbolt 1/2 require an adapter, not included.)
      • Internet connection (required for Studio One Activation and Content download)
      • Internal or external 7200 RPM storage drive highly recommended
      • 30 GB hard disk space
      • Monitor with 1366x768 res

    • Item Includes:

      • Road-rugged construction with all-metal chassis and metal knobs
      • 1U rack-mountable
      • 12 VDC external power supply (included)

    • GTIN:

      0673454006739
