PTZCam PTZC-POV-SDI-NDI-30X NDI HX / SDI / HDMI 1080p60 POV X Box Camera with 30x Optical Zoom

PTZC-POV-SDI-NDI-30X - Overview

The Ultimate "Set-and-Forget" Broadcast Solution

• Features:

  • Effortless integration into IP-based workflows. Stream high-quality, low-latency video over your existing local network.
  • Get clear, detailed shots from across the room. Perfect for medium-to-large venues where the camera must be placed far from the subject.
  • Supports 3G-SDI and HDMI 1.4 for lag-free connection to hardware switchers, capture cards, and monitors
  • High-frame-rate video for smooth motion-essential for live sports, fast-paced church services, and professional presentations
  • Designed to work seamlessly with the world's leading streaming software. Control settings remotely via IP or RS-485.


• Specifications:

  • Zoom: 30x Optical
  • Image Sensor: 1/2.8" Exmor CMOS Sensor
  • Effective Pixels: 3.27 Megapixels
  • Lens: f=5.2mm - 148.4mm, F=1.3 (W) - 4.8 (T)
  • Field of View (HOV): 65°
  • Frame Rate:
    - 1080p60/59.94/50/30/29.97/25
    - 1080i60/59.94/50
    - 720p60/59.94/50/30/25
  • Video Output: 3G-SDI/HDMI/IP Streaming (RTSP/RTMP/RTMPS)/ NDI|HX
  • Audio I/O: 3.5mm Audio Input; HDMI+SDI+IP (Audio Output)
  • Communication Interface: RS-485/RJ45
  • Power Input: DC 12V (JEITA type)/PoE
  • Max Power Consumption: 12W, DC12V @1A
  • Zoom/PTZ Control Protocols: VISCA, Pelco P/D, ONVIF

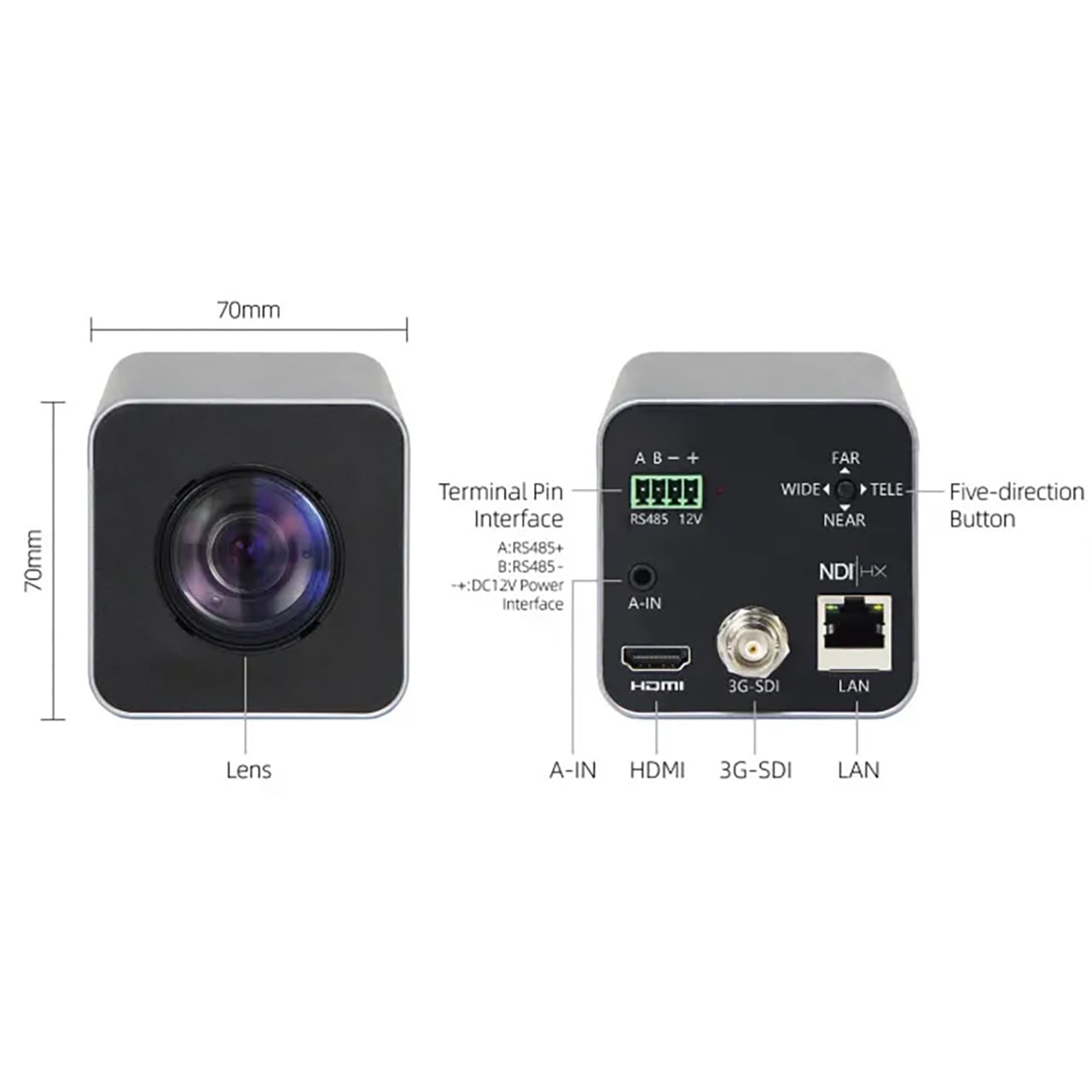

  • Dimensions: 2.75" x 2.75" x 4.56" (70mm x 70mm x 116mm)
  • Weight: 2lbs (0.9kg)
  • Installation: Ceiling/Wall Mount/Tripod/Desk


• Item Includes:

  • 1x POV X Box Camera
  • 1x RS-485 Serial Port Adapter
  • 1x 12V/2.0A DC Power Adapter
  • 1x User Manual


• Warranty:

  • 1 Year Limited Warranty


• GTIN:

  0601946495228
