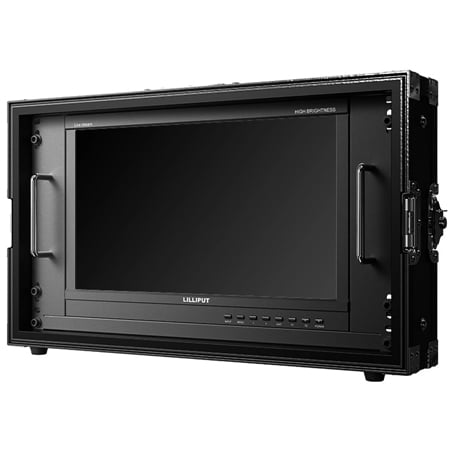

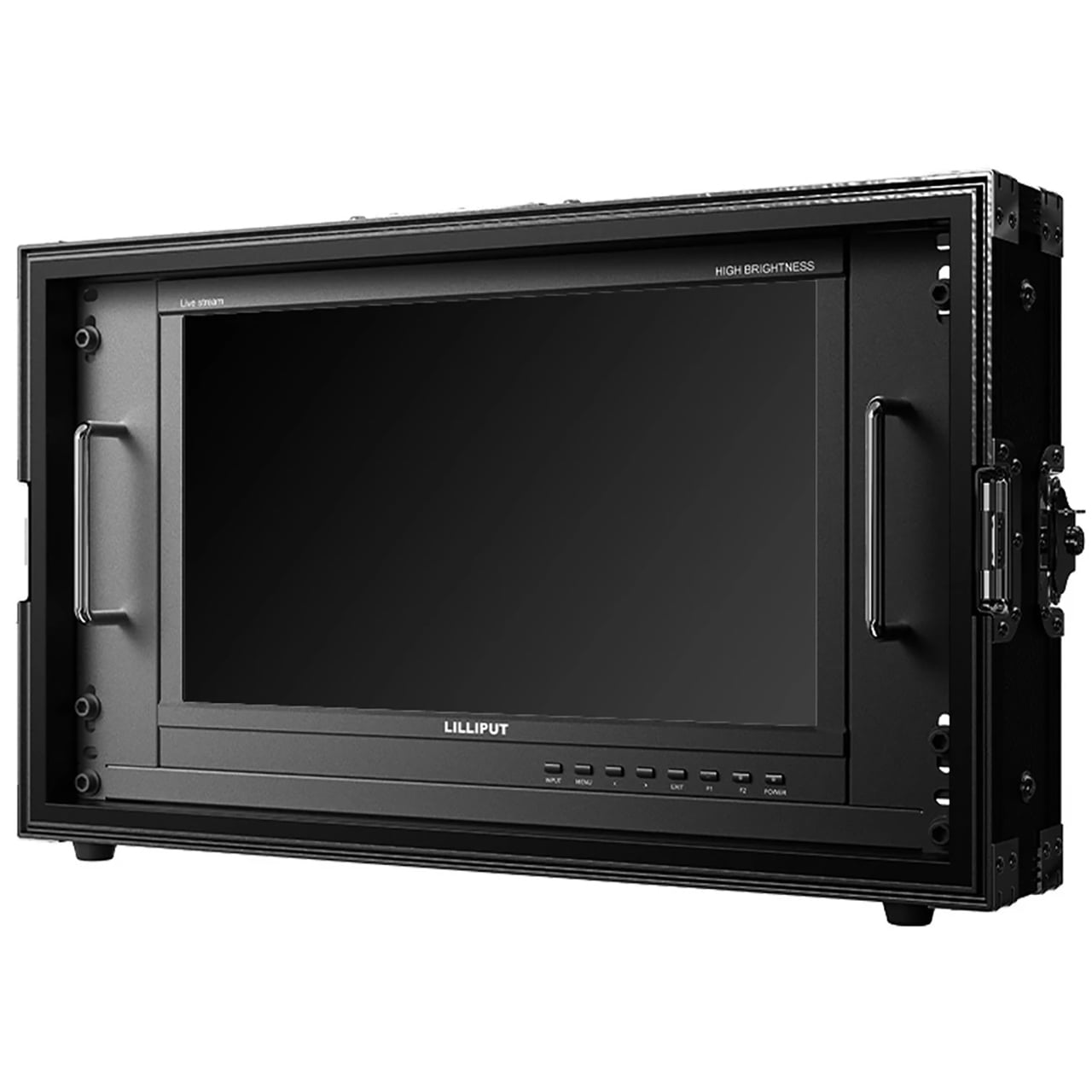

Lilliput PVM160S-E 15.6-Inch 1200 Nits High Brightness Live Stream & Recording Monitor w/ NDI - Gold-Mount Plate & Case

Name: Lilliput PVM160S-E 15.6-Inch 1200 Nits High Brightness Live Stream & Recording Monitor w/ NDI - Gold-Mount Plate & Case
Brand: Lilliput Electronics
SKU: PVM160SEABBPCCND
Price: 999.00 USD
Availability: Backorder

ITEM #: PVM160SEABBPCCND MFG #: PVM160S-E-ABBP-CC-NDI

Lilliput Electronics

List Price:

$1,099.00

Our Price:

$999.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

PVM160S-E-ABBP-CC-NDI - Overview

Professional monitoring and recording powerhouse designed for directors, videographers, and livestreamers!

The LILLIPUT PVM160S-E is an all-in-one 15.6" professional monitoring and recording powerhouse designed for directors, videographers, and livestreamers. Featuring a sunlight-viewable 1200 nits Full HD display, it delivers crystal-clear images in any environment.

It features seamless 3G-SDI and HDMI 2.0 compatibility, versatile live-stream capabilities (3 push/1 pull stream), and direct-to-SD card recording up to 1080p60. Packed with advanced tools like 3D-LUT, HDR, Waveform, and Vectorscope, it gives production teams the professional accuracy they need on set or on the go.

Please Note: An SD card with a maximum capacity of up to 512GB is required for direct on-board video recording (sold seprately).

Features:
- 15.6" broadcast video monitor with 3G-SDI, HDMI 2.0, NDI® and built-in video recording for live events and content creation
- Native NDI®|HX, NDI®|HX2, and NDI®|HX3 with PoE++ for rapid integration into LAN-based workflows
- 1920 x 1080 display, 1200cd/m², 1000:1 contrast; 1x 3G-SDI, 1x HDMI 2.0, 1x LAN 1000M
- Onboard Recording: 1080p/720p/480p to SD card (up to 512GB), H.264, .mkv
- HDR: ST2084 300/1000/10000, HLG; 3D LUT (.cube); Rec.709 calibration
- IP Streaming: Push/Pull YCbCr 4:2:2 (32Mbps @ 1080p60); SRT, RTMP, RTSP
- Waveform and vector scopes; VESA 75mm x 75mm; base brackets included
Specifications:
- Screen Size: 15.6"
- Aspect Ratio: 16:9
- Native Resolution: 1920 x 1080
- Panel Type: LCD
- Brightness: 1200cd/m²
- Contrast: 1000:1
- Viewing Angle: 160°/160° (H/V)
- HDR: ST2084 300/1000/10000, HLG
- Supported Log Formats: SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
- LUT Support: 3D-LUT (.cube format)

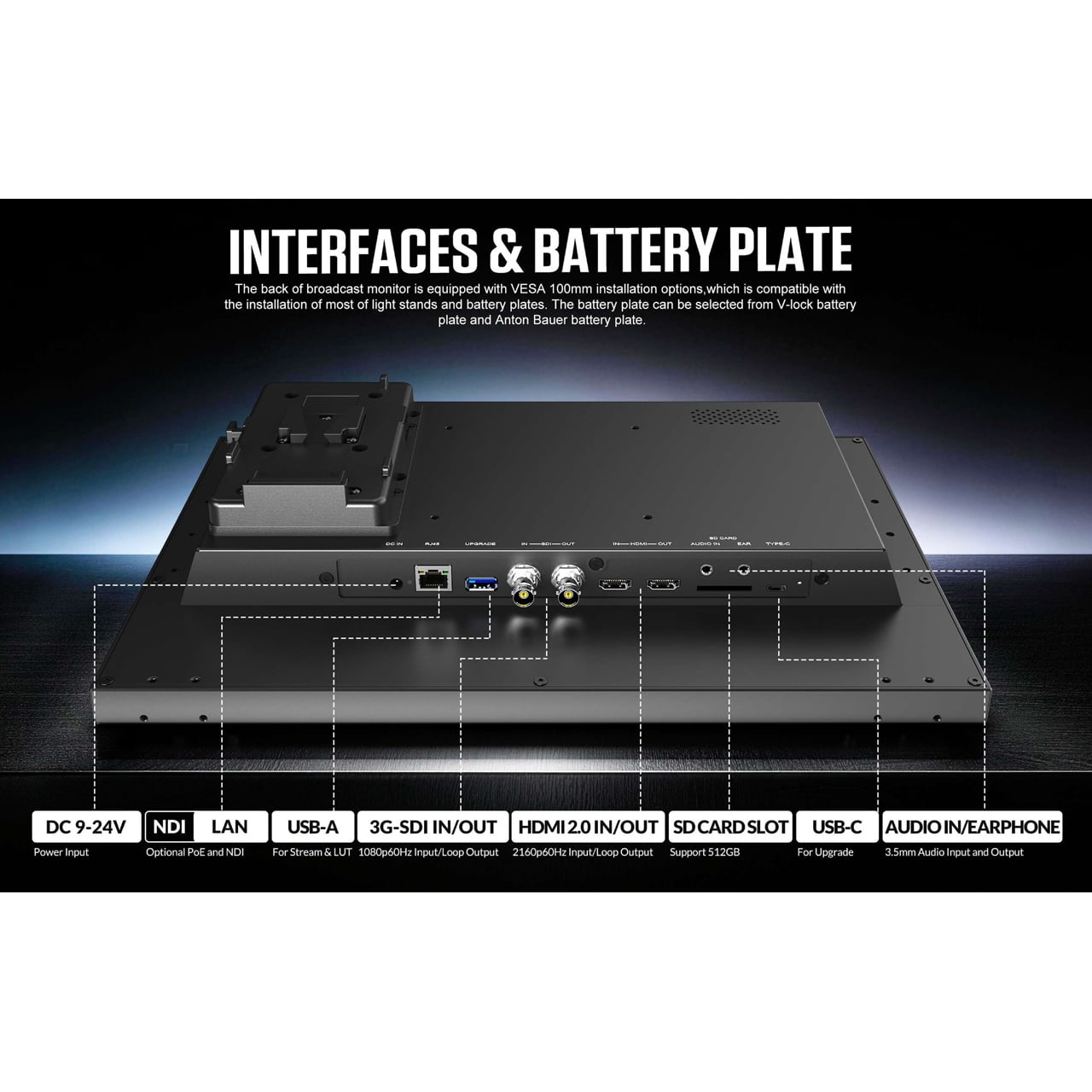

  Connections
- Video Inputs:
  - 1x 3G-SDI
  - 1x HDMI 2.0
  - 1x LAN 1000M
- Video Outputs:
  - 1x 3G-SDI
  - 1x HDMI 2.0
- Audio: 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5mm ear jack, 1x Built-in speaker

  Video Standards
- 3G-SDI: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI 2.0: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- NDI®: NDI®|HX, NDI®|HX2, NDI®|HX3

  Scopes
- Video Analysis: Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False color (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, color bar, Pixel zoom
- Audio Analysis: Audio vector, Level meter

  Operational Features
- Markers - Aspect Markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User
- Markers - Safety Marker: 80%, 85%, 88%, 90%, 93%, 95%
- Markers - Centre Marker: On/Off
- UMD: User-defined text with color coding
- Function Buttons: F1, F2 user-definable
- Color Temperature: 5500K, 6500K, 7500K, 9300K, User
- Gamma: 1.8 to 2.8
- Selectable Color Spaces: Native, SMPTE-C, Rec.709, EBU
- Comparison: Gamma/HDR, color space, Camera LUT
- Peaking: Red, Green, Blue, White, Black
- Time Code: LTC, VITC

  Recording
- Storage: SD card
- File Segment: 1/5/10/20/30/60 min
- Record File Format: H.264
- Video Resolution: 1920 x 1080, 1280 x 720, 720 x 480
- Frame Rates: 60/50/30/25/24fps
- Audio Sample Rate: 44.1kHz/48kHz

  Streaming
- IP Streaming: Push/Pull: YCbCr 4:2:2 (up to 32 Mbps @ 1080p60)
- Streaming Protocols - Push: SRT, RTMP
- Streaming Protocols - Pull: RTMP, RTSP, HTTP, HTTPS, NDI®|HX, NDI®|HX2, NDI®|HX3

  General
- Power:
  - Input Voltage: DC 9V - 24V
  - Power Consumption: ≤39W (15V)
  - PoE: PoE++ IEEE 802.3bt
- Compatible Batteries: V-Lock or Anton Bauer mount (optional)
- Input Voltage (battery): 14.8V nominal
- Operating Temperature: 32°F - 122°F
- Storage Temperature: -4°F - 140°F
- Dimensions: 14.80" x 9.75" x 1.94"
- Weight: 6.95lbs
- VESA Mount: 75mm x 75mm (V-mount/Anton Bauer battery)
Item Includes:
- 1x 15V 4A DC Power Adapter
- 1x Base Bracket
- 1x E-User Manual
GTIN:
6950821604892
