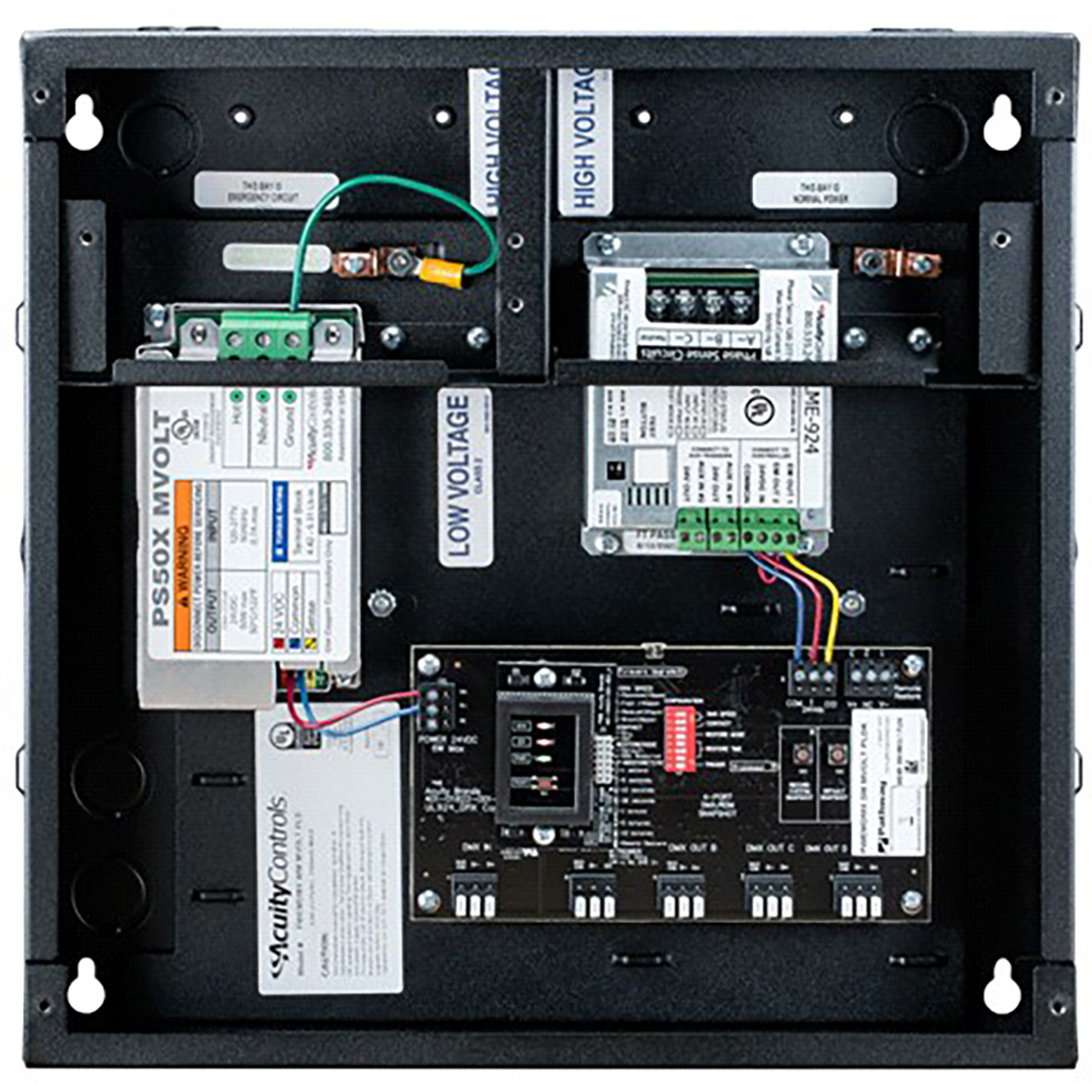

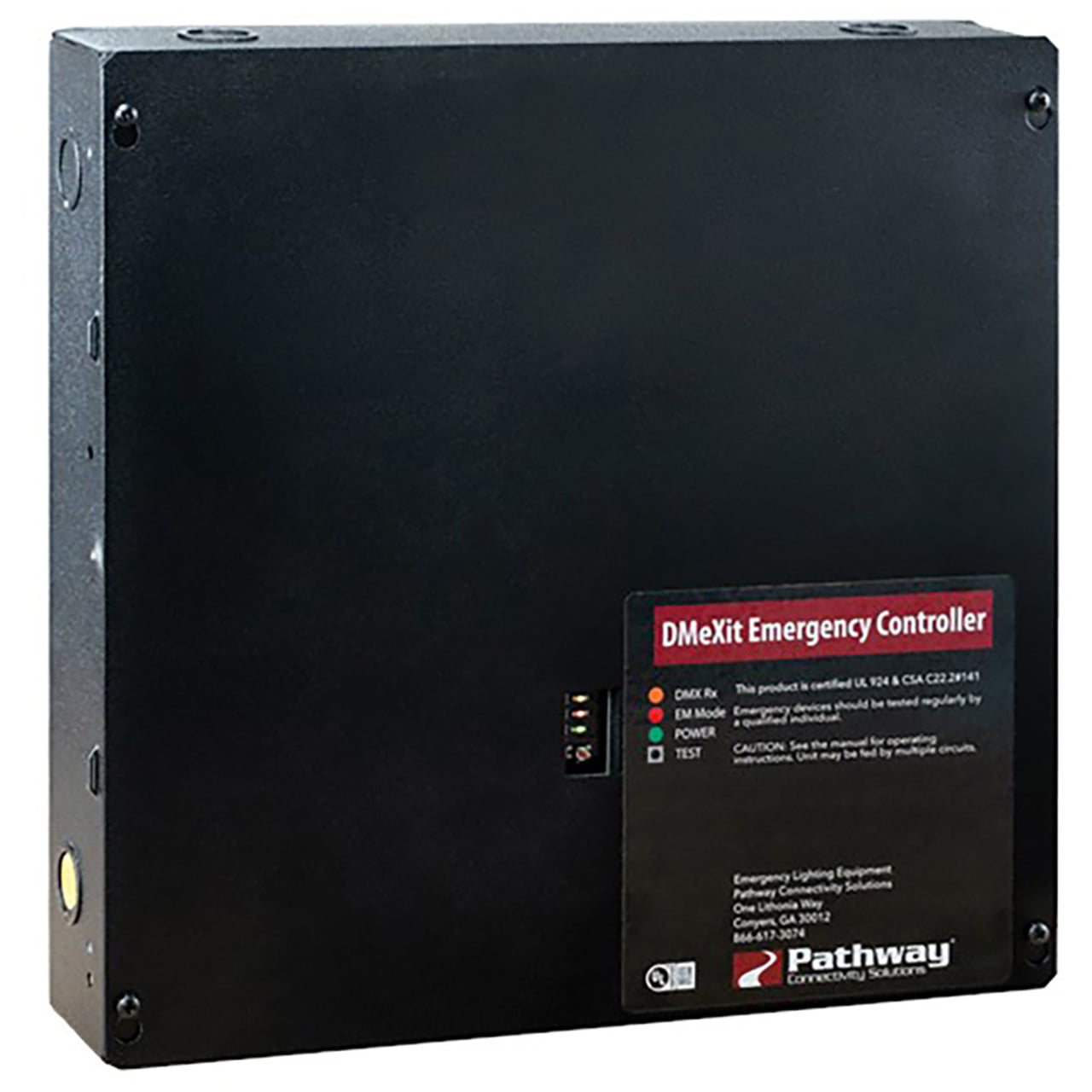

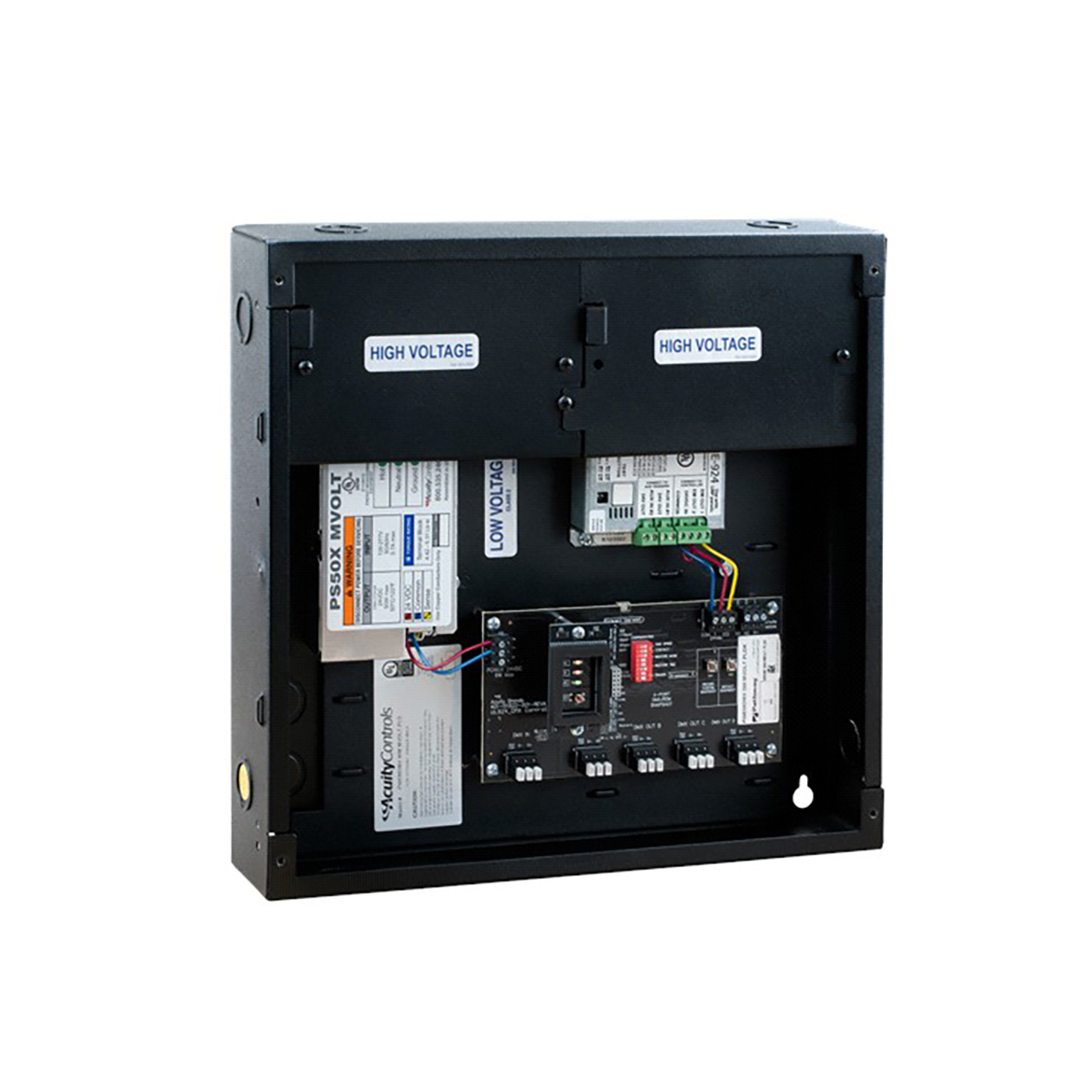

The Pathway Connectivity PWEMDMX-WM-MVOLT-PLD is the DMeXit EMERGENCY CONTROLLER complete Pathway DMeXit Emergency Controller with wall mount & MVOLT (120-277V voltage) & PLD (Phase sense Integral Phase Loss Detection).

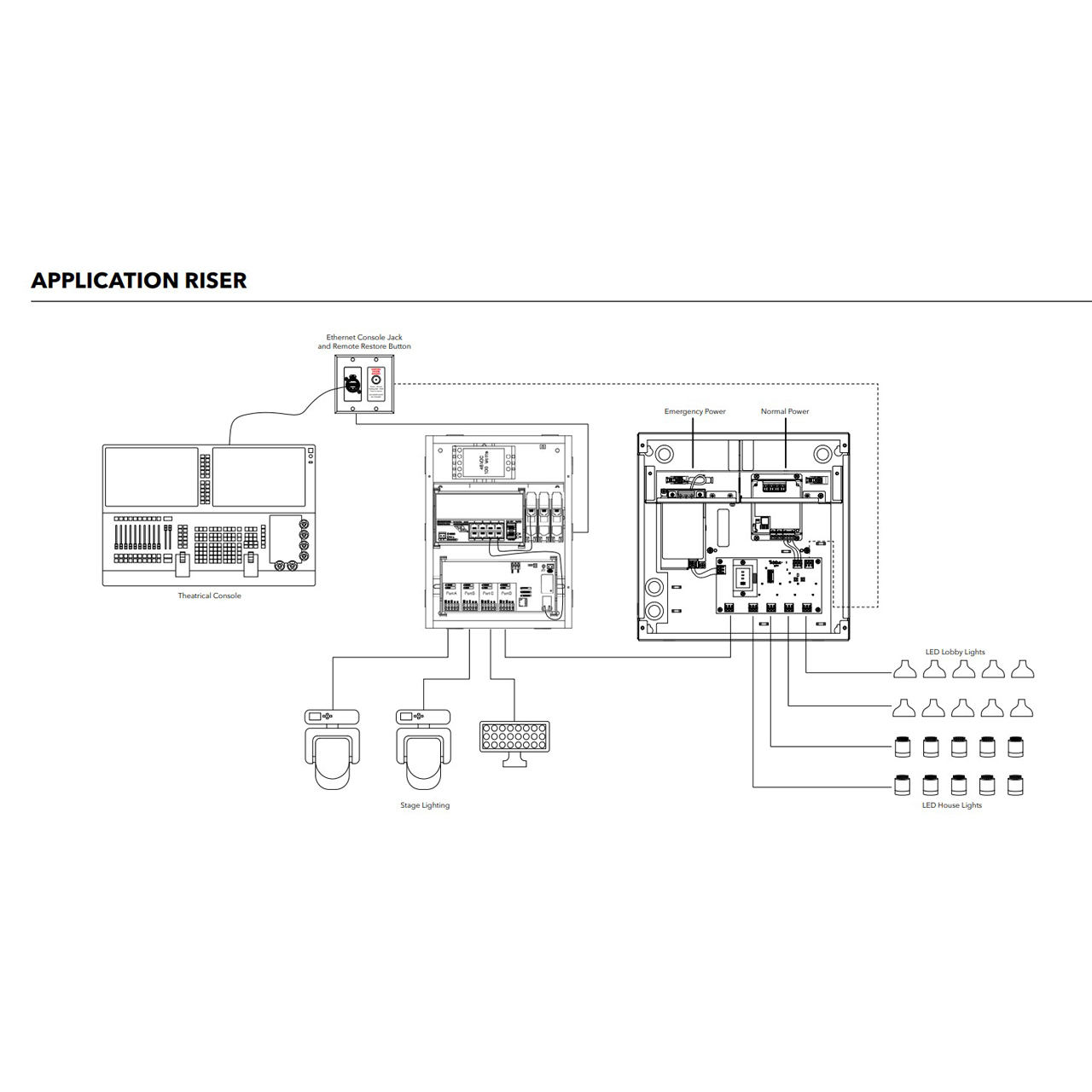

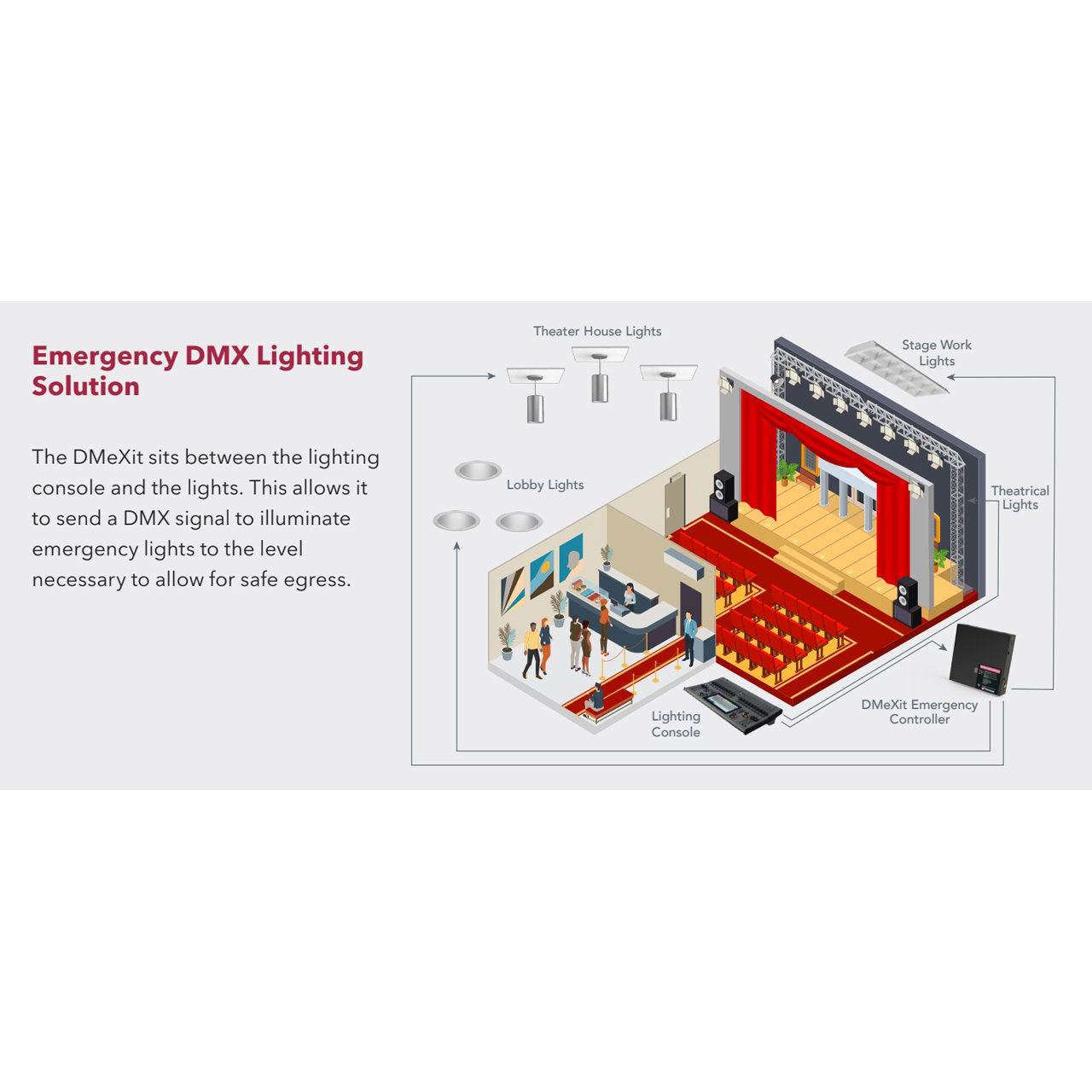

The Pathway DMeXit is a UL924 compliant controller designed to send a control signal to DMX lighting in emergencies to satisfy minimum luminance levels for egress lighting. DMeXit uses a wet or dry contact closure from other building management system, or the optonal integrated phase loss detection device. User Recordable snapshot of
a single universe DMX will be transmitted to four separate data runs. The outputs are optically isolated to ensure maximum reliability and during normal operation are fully RDM compliant so that your entertainment console or architectural controller still has maximum flexibility when it comes to commissioning and monitoring your system
during normal operation. There are multiple options for restoring normal operation after conditions have been cleared, including user programmable time delays, sensing of valid input signal from the normal controller or a remote restore button for facilities or stage managers.
