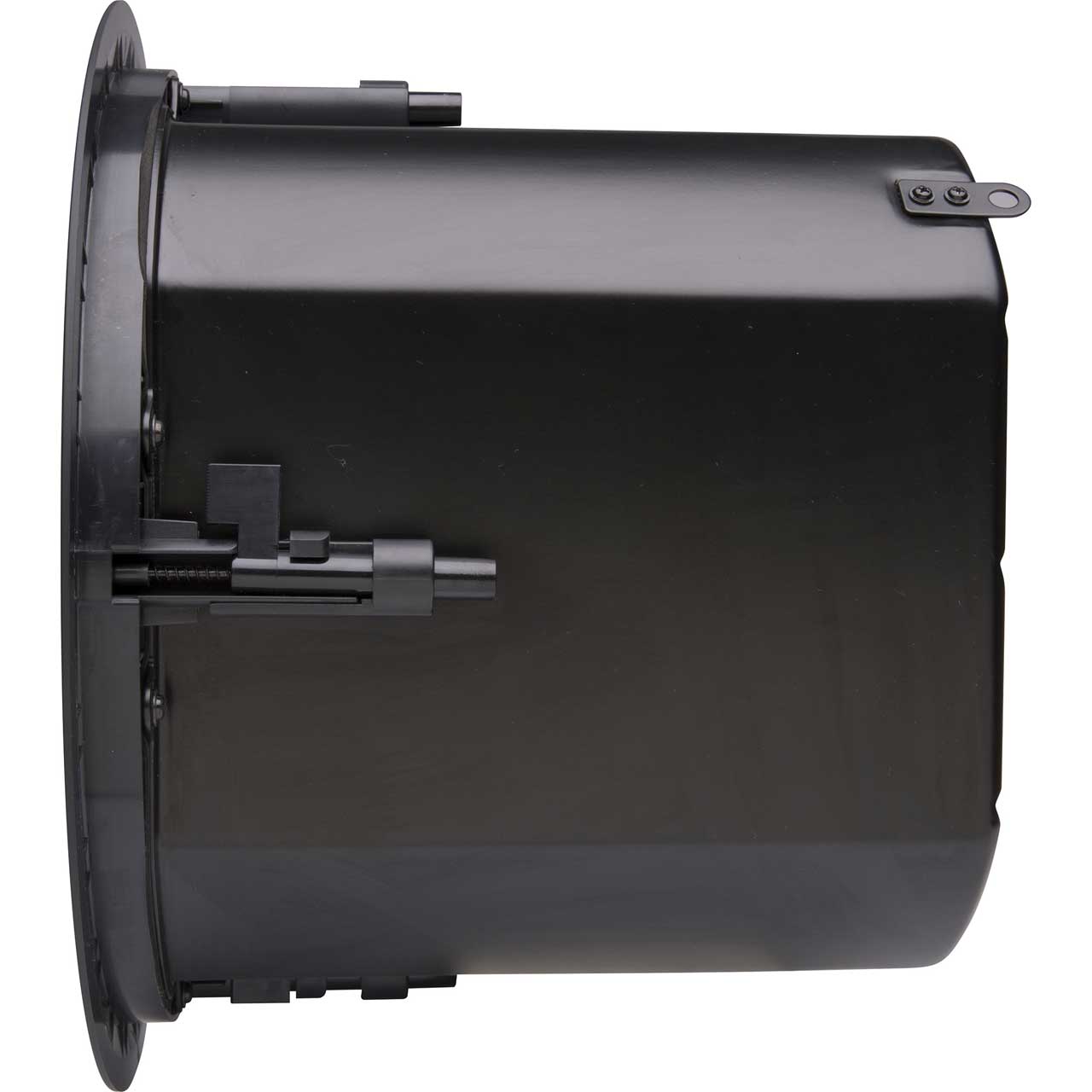

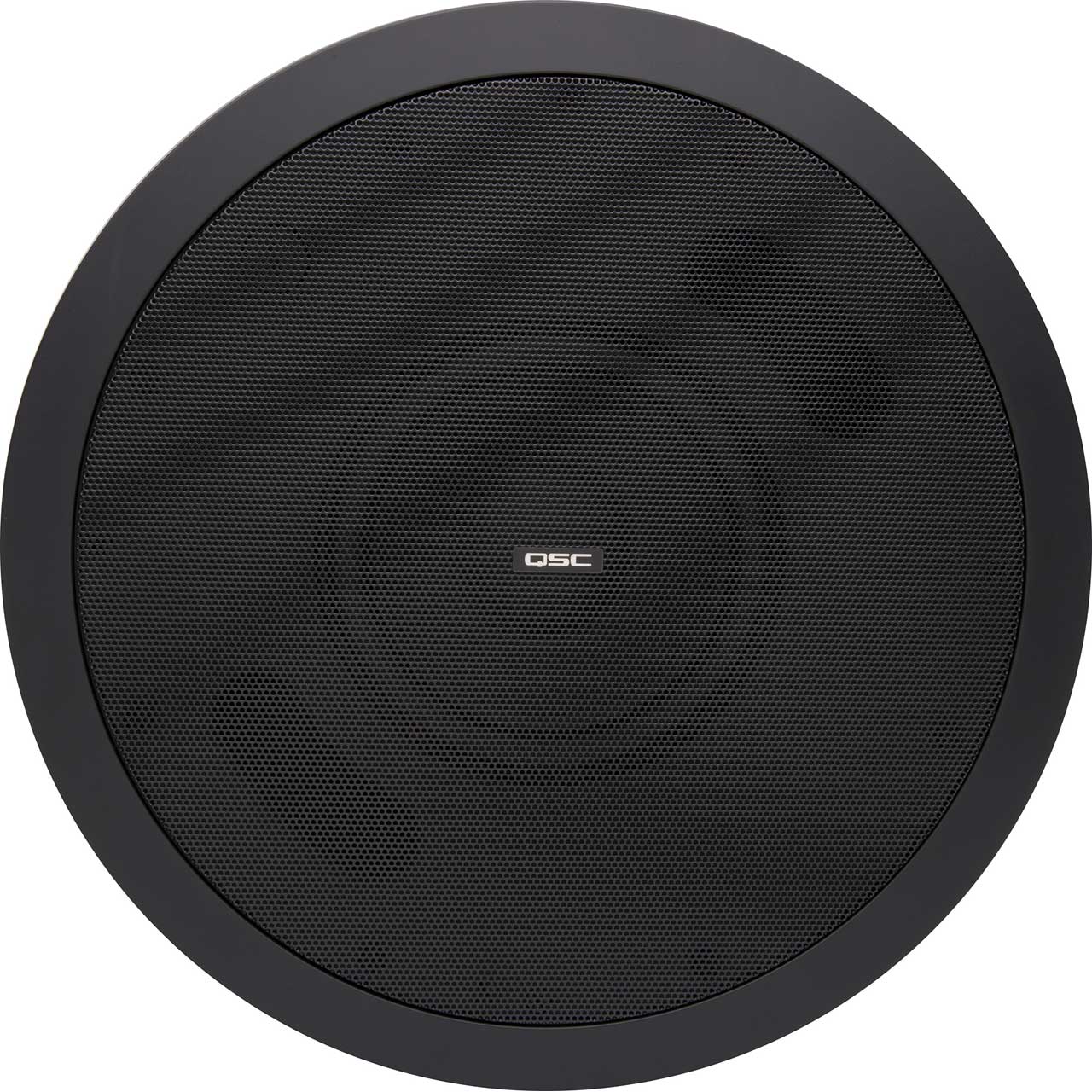

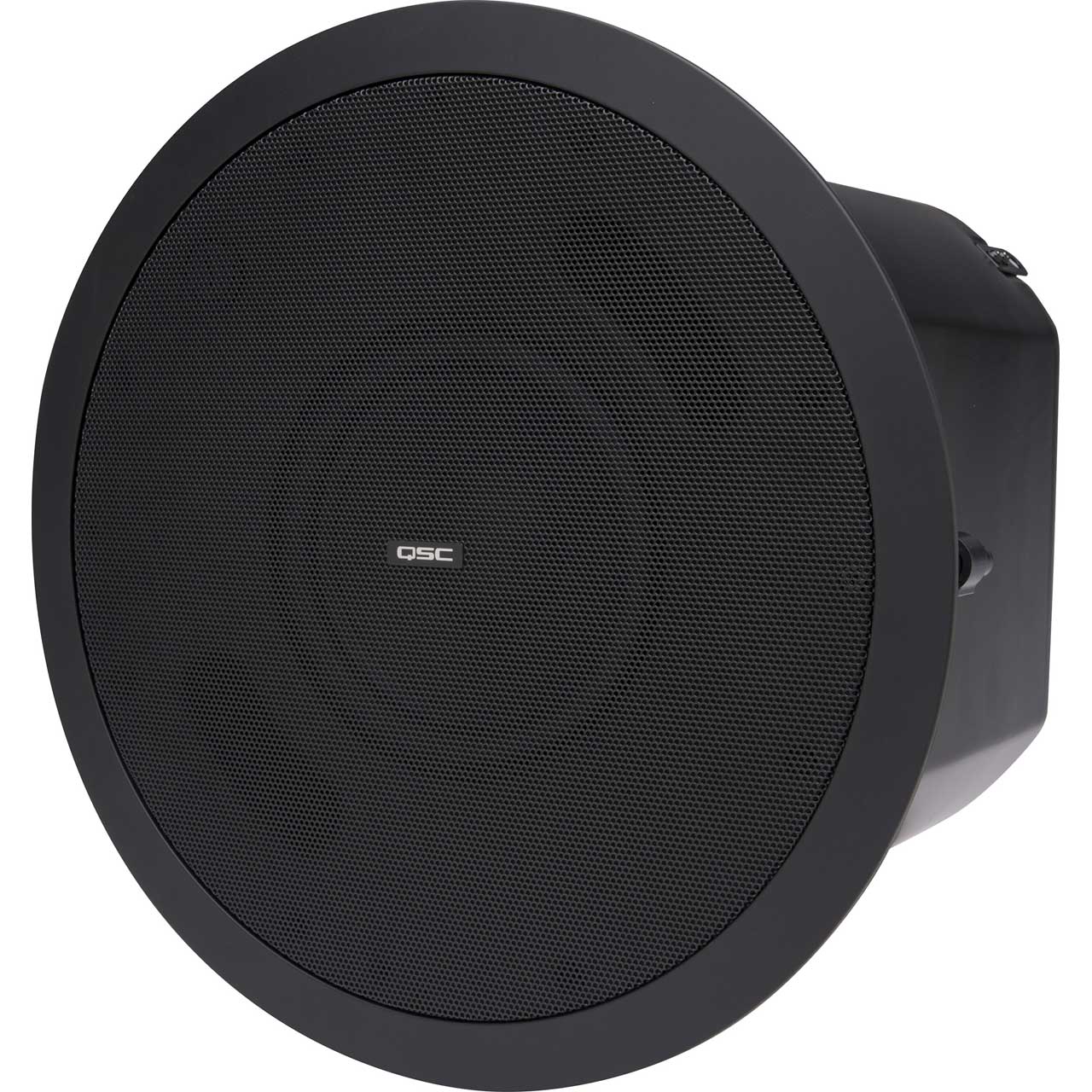

QSC AD-C.SUB 6.5-inch Dual Voice Coil Small Format Ceiling Subwoofer - Black


Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    AD-C.SUB-BK - Overview

    The QSC AD-C.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings.

    The AcousticDesign Series offers integrators a premium quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family in ceiling, surface, and pendant enclosures, the AcousticDesign Series allows integrators seamless transitions within blended installations.

    The AcousticDesign Series SUB/SAT loudspeakers have been specifically designed to be mix-and-match capable. Any combination of satellites may be paired with any subwoofer in the SUB/SAT line.

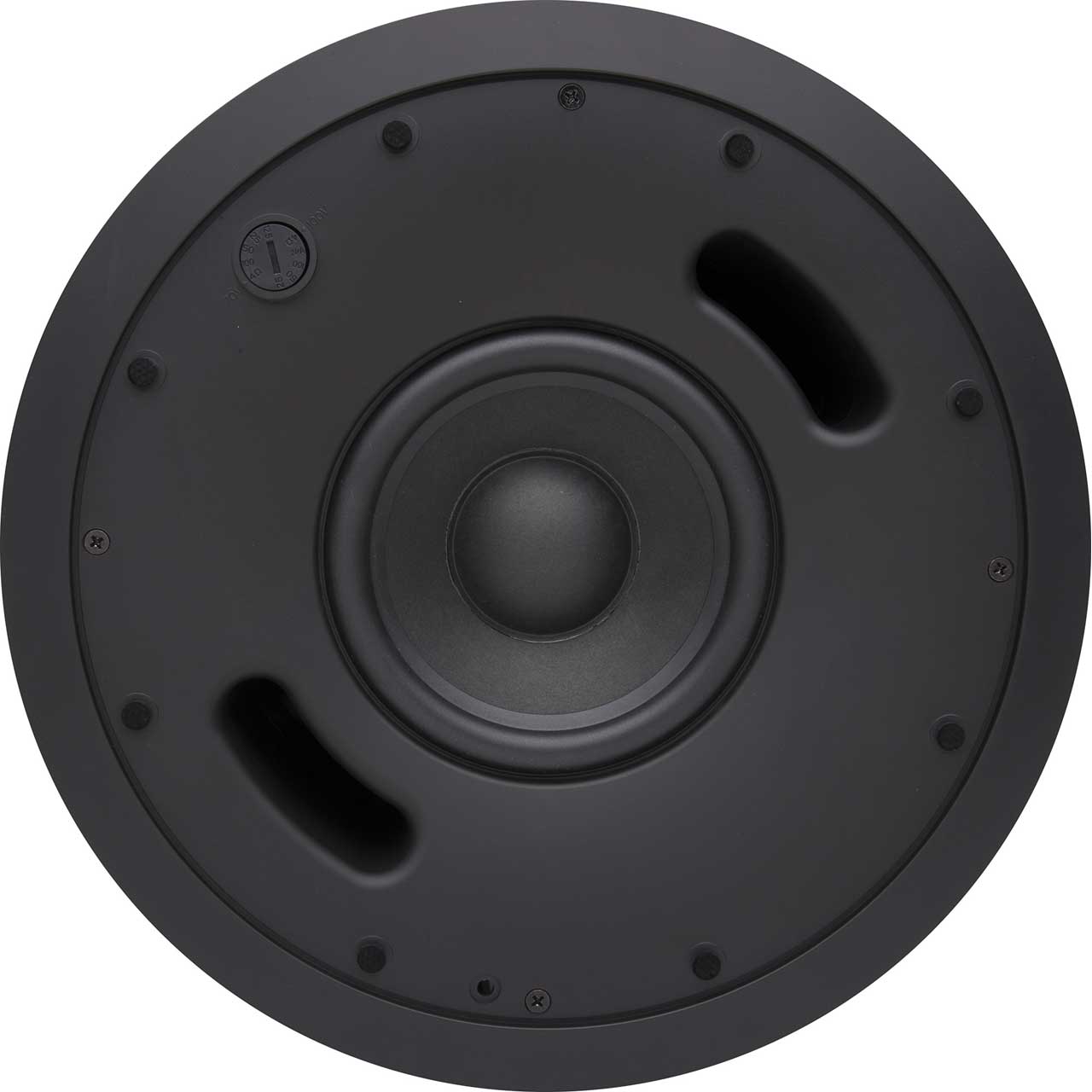

    The AD-C.SUB features a high quality 6.5-inch weather treated paper cone woofer on a dual voice coil for improved thermal dissipation and higher output within a small form factor.

    The accurate frequency response of the AD-C.SUB is maintained even in 70 / 100 V applications by use of a low-loss, lowsaturation 100 W transformer with selectable taps, including 4 Ω bypass, using a rotary selector located under the snap-fit magnetically attached powder coat steel grille.

    • Features:

      • Dual voice-coil for improved thermal dissipation and higher output
      • Low saturation and low-loss 70 / 100 V transformers with 4 Ω bypass
      • 4x built-in high-pass filtered outputs
      • Snap-fit magnetic grills
      • Locking 4-pole Euroblock connectors
      • Removable conduit cover plate
      • 4x double stepped, long travel dog-ear blind mount system
      • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
      • Available in black (RAL 9011) or white (RAL 9010)
      • UL1480 and UL2043 certified
    • Specifications:

      • LF transducer: 6.5-inch (165 mm) dual voice-coil weather treated paper cone woofer
      • Effective frequency range: 45 Hz - 150 Hz
      • Rated noise power / voltage: 100 W / 20 V (rms)
      • Sensitivity [dB] (rated @ 1 W, 1 m): 86
      • Coverage (-6 dB): Omni
      • Maximum SPL [dB] (continuous / peak): 100 / 106
      • Recommended amplifier: 100 W
      • Transformer taps / impedance:
      • Bypass: 4 Ω 100 W (70 V); NA (100 V) Tap: 50 Ω 50 W (70 V); 100 W (100 V) Tap: 100 Ω 25 W (70 V); 50 W (100 V) Tap: 200 Ω 12.5 W (70 V); 25 W (100 V) Tap: 400 Ω
      • Connectors: Mono input: 4-pole Euroblock with thru output
      • Hi-pass mono output: 2x 4-pole Euroblock for 4x satellites
      • Enclosure material: ABS baffle on powder coated steel back can
      • Grill material: Powder coated steel
      • Ingress protection: IP-34
      • Operating environment: Designed for indoor use
      • Operating temperature range: -4 to 122° F (-20 to 50° C)
      • Net weight: 19.2 lb (8.7 kg)
      • Product dimensions (Ø x H): Ø 13.4 x 10-inch (Ø 340 x 254 mm)
      • Included accessories: C-ring and tile rails, rail screws, 3x Euroblock connector, cut-out template, grill
      • Safety agency: UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, CE compliant. Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems.
    • Item Includes:

      • C-ring and tile rails
      • Rail screws
      • 3x Euroblock connector
      • Cut-out template
      • Grill
    • GTIN:
