QSC Restaurant / Store Bundle with AD-C.SAT Loudspeaker x 6/MP-M40 Mixer/MP-A20V Amplifier and MP-MFC Controller

ITEM #: QSC-BUSINESSKIT4 MFG #: BUSINESSKIT4

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


    BUSINESSKIT4 - Overview

    QSC Business Music Solutions make it simple to set up your place of business with the perfect sound system. From a Small Office or Waiting Room to a 1500 square foot Sports Bar these bundles were created by QSC's in-field System Designers to take the guess work out of choosing your in-house audio.

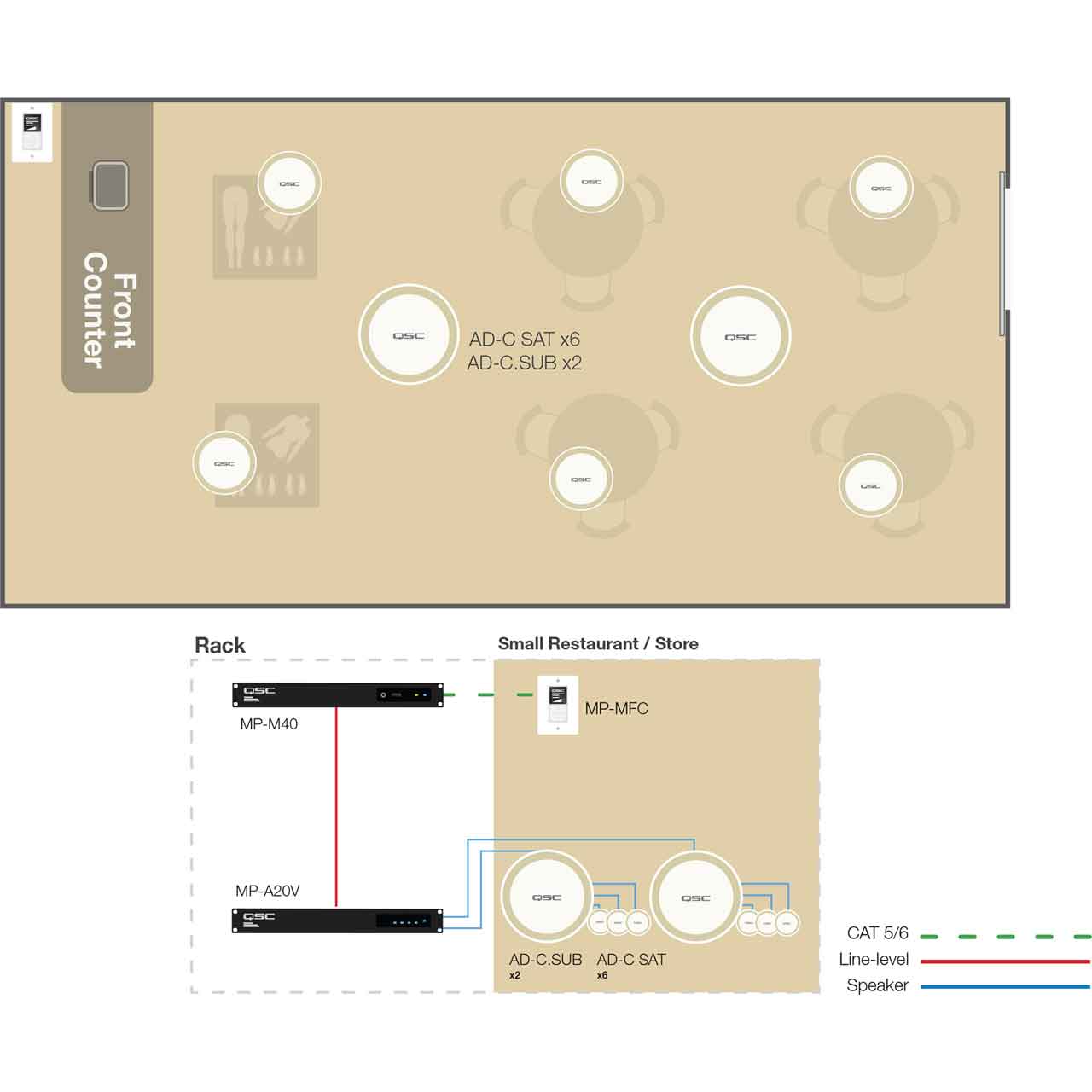

    The BUSINESSKIT-4 was designed for a 1200 Square Feet Restaurant/Store and consists of:

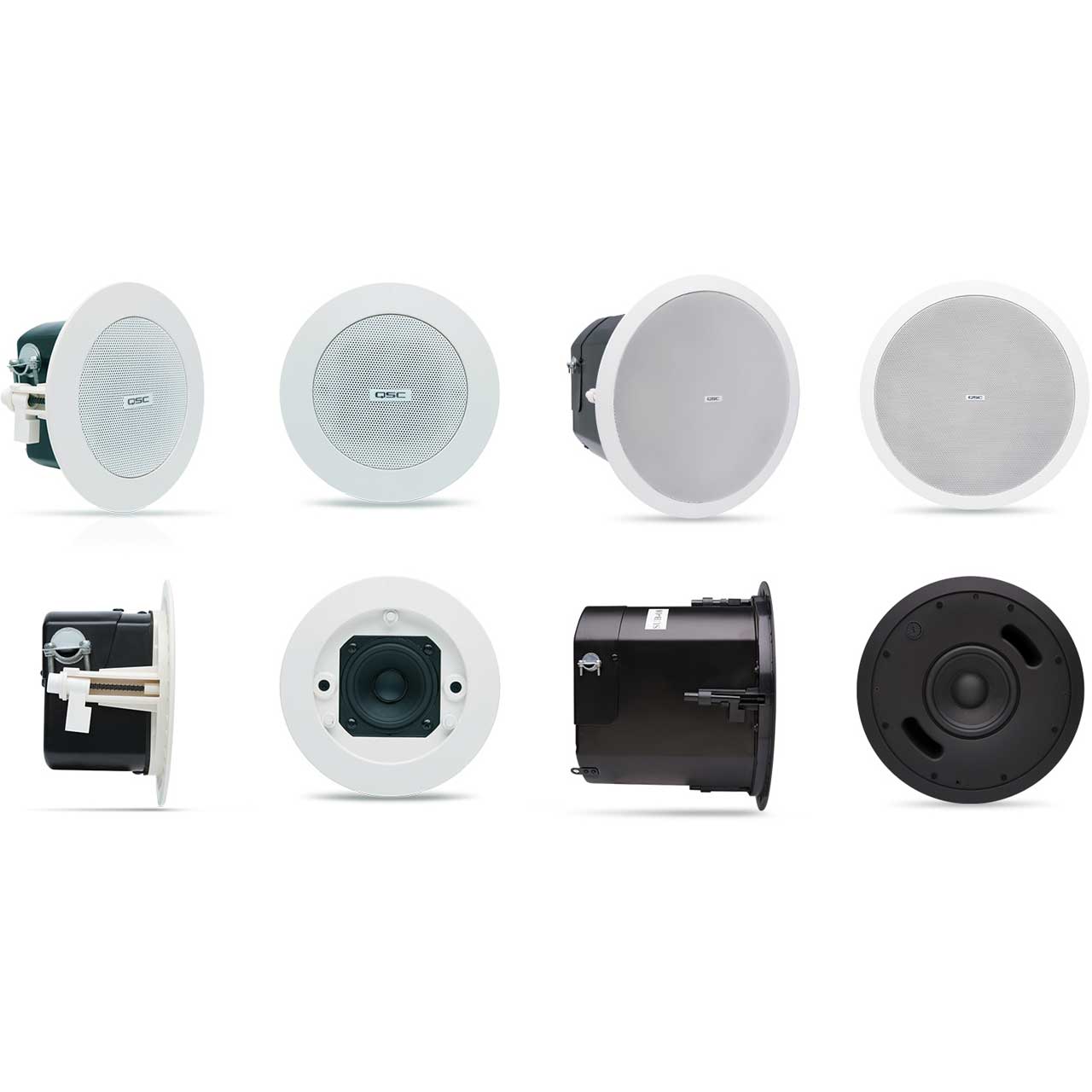

    6x AD-C.SAT Loudspeakers
    The QSC AD-C.SAT is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings.

    1x MP-M40 Mixer
    The MP-M Series music and paging mixers offer unprecedented capabilities for processing and routing high-quality foreground/ background audio for multi-zone retail and hospitality applications, and provides live mixing functionality for business applications that also require live speech reinforcement, including fitness clubs, hotel meeting rooms, banquet halls etc.

    2x AD-C.SUB Subwoofer
    The QSC AD-C.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings.

    1x MP-A20V Amplifier
    The QSC MP-A20V Series music and paging amplifier family builds on a 50 year legacy of QSC amplifier dependability and quality while offering an incredible amount of flexibility for business music and paging applications.

    1x MP-MFC Wall Mount Controller
    The QSC MP-MFC controllers are intuitive wall mount controls to enable customizable system adjustments for the MP-M Series music and paging mixer. Designers can configure these control peripherals to provide end users with as much or as little control over the system as needed.

    • Features:

      • AD-C.SAT
      • Inverted aluminum dome dust cap
      • Rated at 16 Ω
      • Locking 2-pole Euroblock connectors
      • Snap-fit magnetic grills
      • Quick link cable assemblies and slip-lock fasteners supplied
      • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers

        AD-C.SUB
      • Dual voice coil for improved thermal dissipation and higher output
      • Low saturation and low-loss 70 / 100 V transformers with 4 Ω bypass
      • 4x built-in high-pass filtered outputs
      • Snap-fit magnetic grills
      • Locking 4-pole Euroblock connectors
      • 2x quick link cable assemblies and slip-lock fasteners supplied

        MP-M40

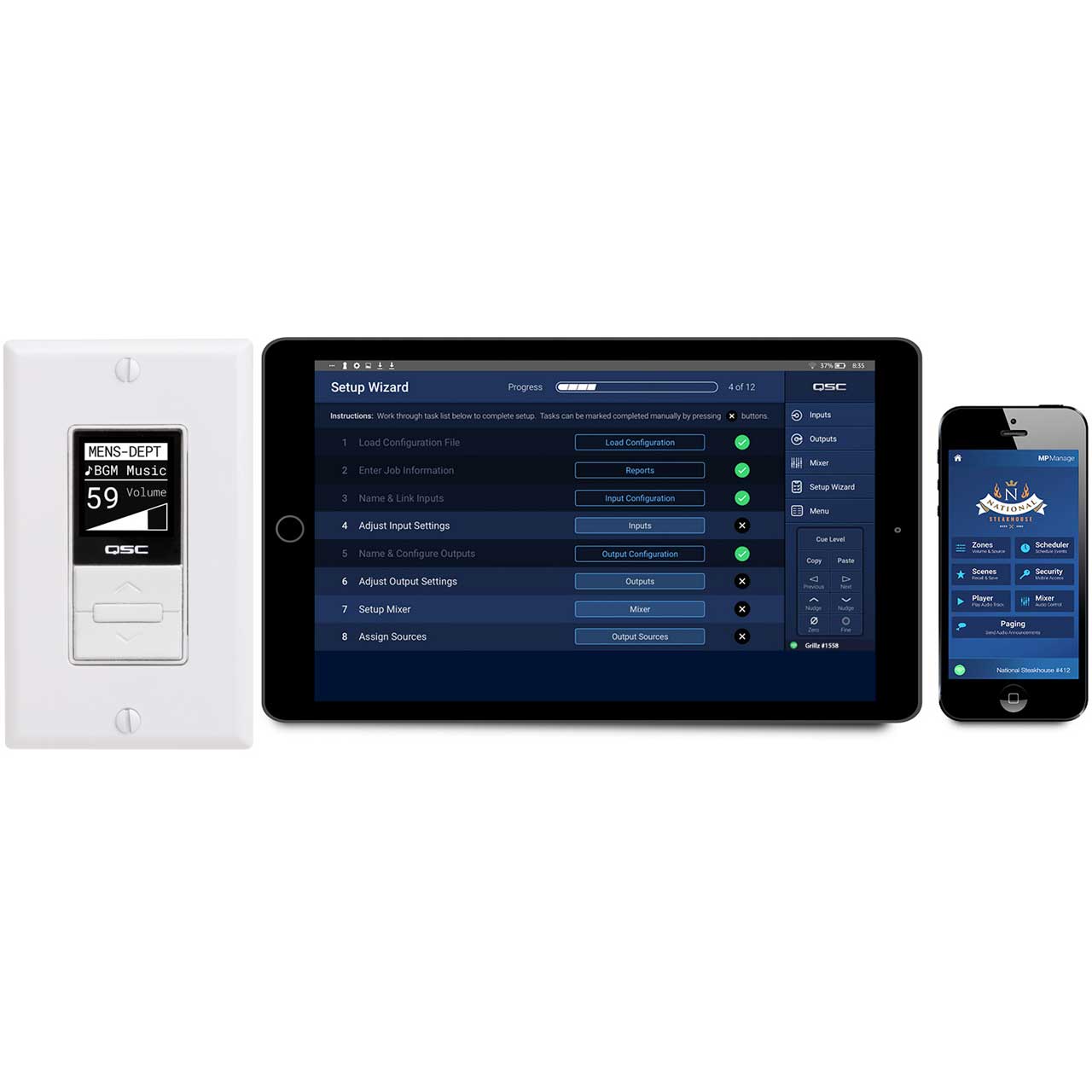

      • Easy configuration and design: MP Install app gives you an attractive graphic user environment with an intuitive workflow and controls that make it simple to manage all the inputs and outputs.
      • Workflow Wizard: Helps the installer keep track of tasks and easily navigate the mixer.
      • QSC loudspeaker voicings: Apply Intrinsic Correction™ (factory FIR/IIR presets) to QSC loudspeakers to maximize the performance and value of the system.

        MP-A20V
      • FlexAmp Technology allows each pair of amplifier channels to deliver up to 400 W total power, in any ratio
      • Class-D output circuitry and switchmode power supply for high efficiency and low cost of ownership
      • 1RU amplifier design for rack space savings
      • Load selector for driving 4 Ω, 8 Ω, 70 V or 100 V on each channel
      • Selectable 80 Hz highpass filter offered on each channel

        MP-MFC
      • For use with the MP-M paging and music mixer/processor only
      • Zone select, source select, scene recall, volume control
      • Crisp 27 mm x 26mm monochrome graphic display and three buttons (increment, decrement, select)
      • Ability to daisy chain up to four MP-MFC controllers
      • Up to 250 m cable length (CAT5)
      • Up to eight MP-MFC controllers per MP-M Series mixer

    • Specifications:

      • AD-C.SAT
      • HF transducer: 2.75-inch (70 mm) weather treated paper cone woofer
      • Effective frequency range: 150 Hz - 20 kHz
      • Rated noise power / voltage: 25 W / 20 V (rms)
      • Sensitivity [dB] (rated @ 1 W, 1 m): 82
      • Coverage (-6 dB): 170° Conical
      • Maximum SPL [dB](continuous / peak): 90 / 96
      • Recommended amplifier: 25 W (with 1st order high-pass filter at 200 Hz)
      • Transformer taps / impedance: Bypass: 16 Ω
      • Connector: 2-pole Euroblock connectors

        AD-C.SUB
      • LF transducer: 6.5-inch (165 mm) dual voice-coil weather treated paper cone woofer
      • Effective frequency range: 45 Hz - 150 Hz
      • Rated noise power / voltage: 100 W / 20 V (rms)
      • Sensitivity [dB] (rated @ 1 W, 1 m): 86
      • Coverage (-6 dB): Omni
      • Maximum SPL [dB] (continuous / peak): 100 / 106
      • Recommended amplifier: 100 W
      • Transformer taps / impedance:
      • Bypass: 4 Ω 100 W (70 V); NA (100 V) Tap: 50 Ω 50 W (70 V); 100 W (100 V)

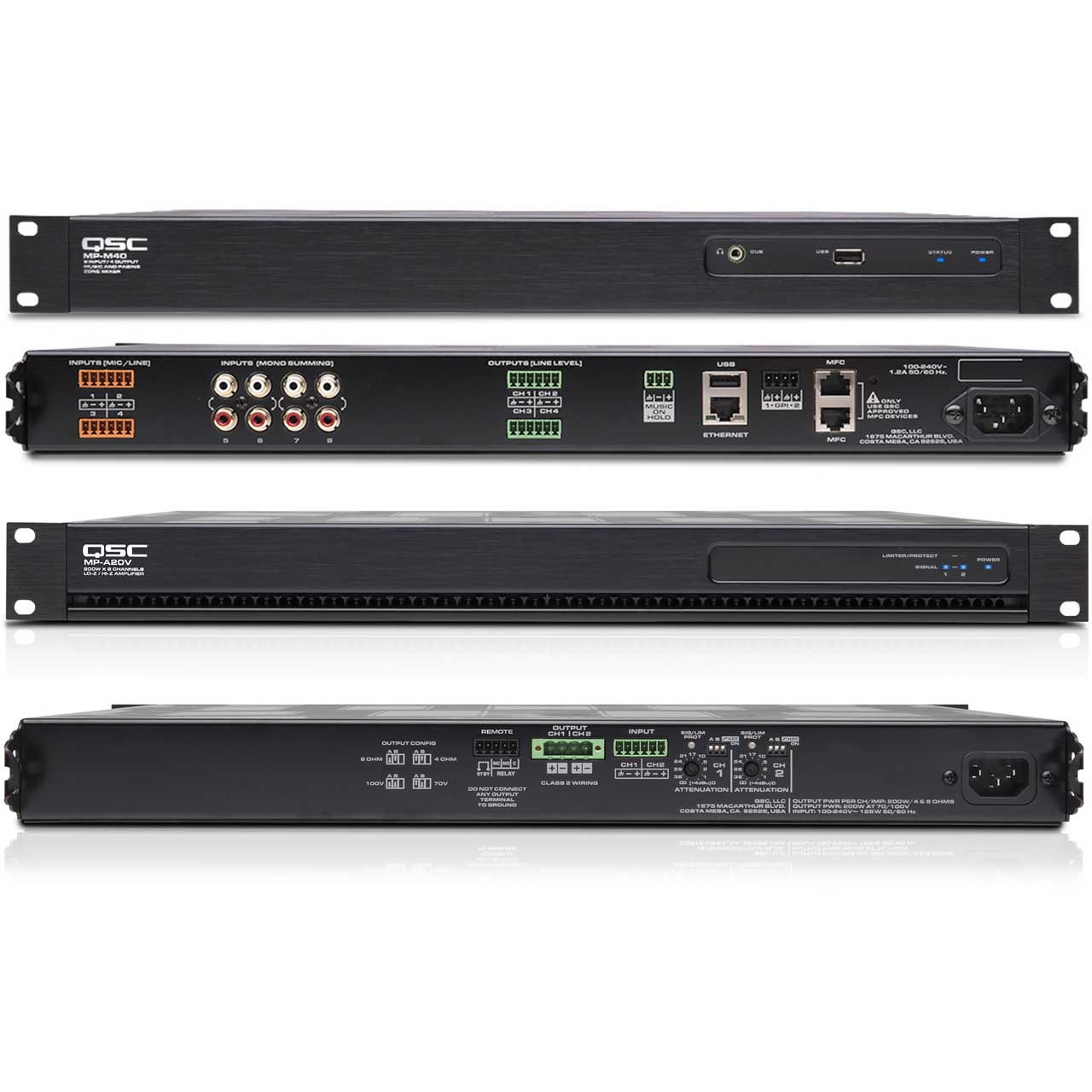

        MP-M40
      • Inputs Total: 8
      • Mic/Line: 4 (Euroblock)
      • RCA: 4 (mono-summed RCA pairs)
      • Outputs Total: 6
      • Line: 4 (Euroblock, balanced)
      • Music on Hold: 1 (Euroblock, transformer balanced)

        MP-A20V
      • Watts: 400
      • Channels: 2
      • Power (All Channels Driven):
        8Ω 4Ω - 200W
        70V - 200W
        100V - 200W
      • FlexAmp Technology: Allows each pair of amplifier channels to deliver up to 400W total power, in any ratio
      • Frequency Response @ 8Ω: 20Hz - 20kHz ± 0.5dB

        MP-MFC
      • Controls: Three buttons (increment, decrement, and select)
      • Connectors: 2x RJ45
      • Display: 128 x 128 pixels, 27 (L) x 26 (W) mm viewing area
      • Available Colors: Black, white
      • Connection Max: Per MFC port: Daisy chain up to 4 MP-MPC controllers, with a 250 m maximum cable length

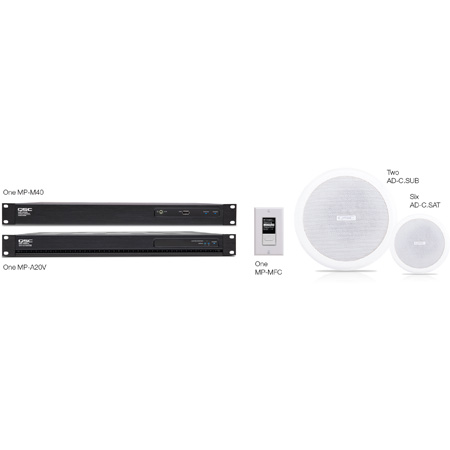

    • Item Includes:

      • 6x AC-C.SAT Loudspeakers
      • 1x MP-A20V Amplifier
      • 1x MP-MFC Wall Mount Controller
      • 1x MP-M40 Mixer
      • 2x AD-C.SUB Subwoofers
