QSC MP-A40V MPA Series 800W FlexAmp Multi-Channel Hi-Z/Lo-Z RackMount Amplifier

ITEM #: QSC-MP-A40V MFG #: MP-A40V

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$1,910.00

Availability: In Stock
iAvailability Description Popup


    MP-A40V - Overview

    The QSC MP-A Series music and paging amplifier family builds on a 50 year legacy of QSC amplifier dependability and quality while offering an incredible amount of flexibility for business music and paging applications.

    FlexAmp Technology
    FlexAmp Technology simplifies system design by allowing a single high channel count amplifier to meet the needs of systems that would typically utilize multiple amplifiers of different power levels. It achieves this by allowing the installer to configure each pair of channels (e.g. ch 1-2, or 3-4, etc.) to deliver up to 400 W combined output power, in any mix. This makes for an amazing amount of flexibility, especially when paired with the output mode switch that offers settings for 4 Ω, 8 Ω, 70 V and 100 V. Additional capabilities of the MP-A series include an 80 Hz highpass filter available on each output, as well as a remote input for putting the amplifier into standby mode for fire safety systems and an amplifier status signal on the remote output for system verification.

    Flexibility
    For an example of versatility of the MP-A Series, imagine the MP-A40V in a typical restaurant scenario. Output A of the amplifier is set up for a 20 W 70 V load for a pair of ceiling loudspeakers in the bathrooms while output B is set up in 4 Ω mode for driving one or two Lo-Z subwoofers with up to 380 W. Output C is set up with the highpass filter engaged for driving 250 W into 70 V ceiling loudspeakers in the main dining room, while output D is driving 150 W into 8 Ω surfacemount loudspeakers on the patio.

    Power and Space Efficiency
    MP-A Series amplifiers are extremely efficient with class-D output circuitry and switchmode power supplies. In addition, all models offer seamless Standby mode when not in use for 28 minutes and auto-ramp circuitry that ensures quiet and fast power up from Standby when signal is present. This combination of output topology and energy saving circuitry make for extreme efficiency and low operational costs. The 1RU chassis means that the MP-A Series amplifiers are perfect for installations with rack space restrictions.

    • Features:

      • FlexAmp Technology allows each pair of amplifier channels to deliver up to 400 W total power, in any ratio
      • Class-D output circuitry and switchmode power supply for high efficiency and low cost of ownership
      • 1RU amplifier design for rack space savings
      • Load selector for driving 4 Ω, 8 Ω, 70 V or 100 V on each channel
      • Selectable 80 Hz highpass filter offered on each channel
      • Power saving features - Auto-standby (after 28 minutes with seamless auto-ramp when signal returns) and remote standby input
      • Amp status remote output
      • Rock-solid QSC amplifier dependability

    • Specifications:

      • Watts: 800
      • Channels: 4
      • Power (All Channels Driven)
        8Ω 4Ω - 200W
        70V - 200W
        100V - 200W
      • FlexAmp Technology: Allows each pair of amplifier channels to deliver up to 400W total power, in any ratio
      • Frequency Response @ 8Ω: 20Hz - 20kHz ±0.5dB
      • Signal To Noise: >103dB
      • Input Sensitivity: 1.23V (4dBu)
      • Gain @ 8Ω: 30.0dB
      • Output Circuitry: Class D
      • Input Impedance: >10k, balanced or unbalanced
      • Maximum Input Level: 12.3V (24dBu)

        Cooling
      • Type: Forced air cooling, thermally regulated fan speed, side/rear-to-front airflow
      • Operating Temperature Range:
        Maximum: 14°F - 122°F (-10°C - 50°C)
        Recommended: 32°F - 95°F (0°C - 35°C)
        *Reduced performance above 104°F (40°C)

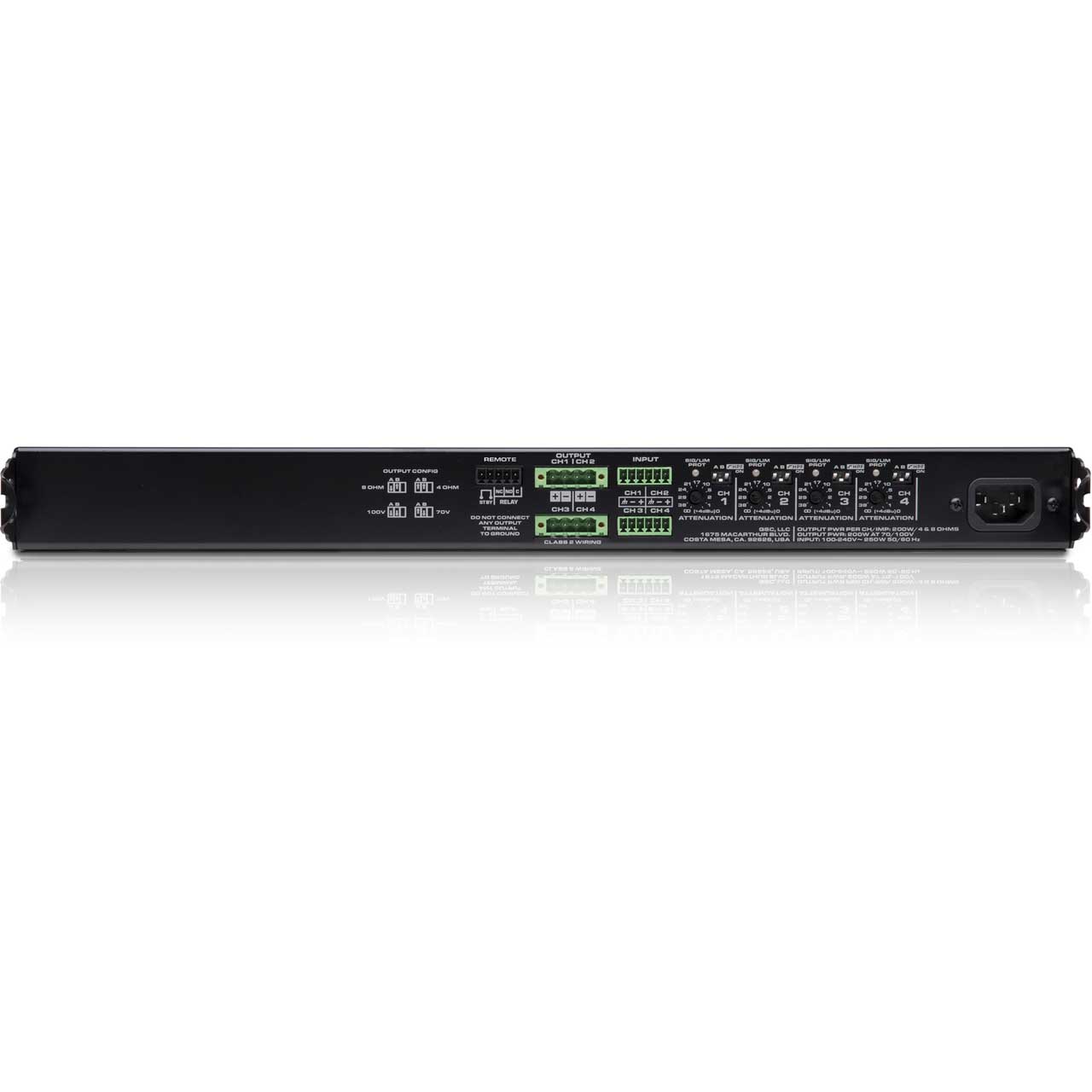

        Connectors
      • Input Connectors: 4x 3.5mm Euro, 3-pin (Green)
      • Remote Connectors: 1x 3.5mm Euro, 5-pin (Black)
      • Output Connectors: 2x 5.0mm Euro, 4-pin (Green)

      • Front Panel Indicators: Power, signal (per channel), limit/mute/protect (per channel)
      • Rear Panel Indicators: Bi-Color LED signal/limit/mute/protect
      • User-Configurable Operating Modes (per channel): DIP switch selectable, low impedance 4Ω or 8Ω, high impedance direct drive 70V or 100V
      • Remote I/O: Remote standby, amplifier status enunciation on 3.5mm connectors
      • Highpass Filter: 80Hz DIP switch engaged per channel
      • Dimensions: 1.75" x 19" x 14.8" (44mm x 483mm x 377mm)
      • Net Weight: 9.3lbs (4.2kg)
      • Shipping Weight: 13.9lbs (6.3kg)
      • Power Requirements: Universal power supply (with active power factor correction), 100 - 240VAC, 50 - 60Hz
      • Agency Approvals: UL, CE, RoHS/WEEE compliant, FCC class B (conducted and radiated emissions)

    • Item Includes:

      • MP-A40V
      • IEC cable
      • Quick start guide
      • Connector pack
      • Warranty guide
      • Safety information

    • GTIN:

      0684284070234
