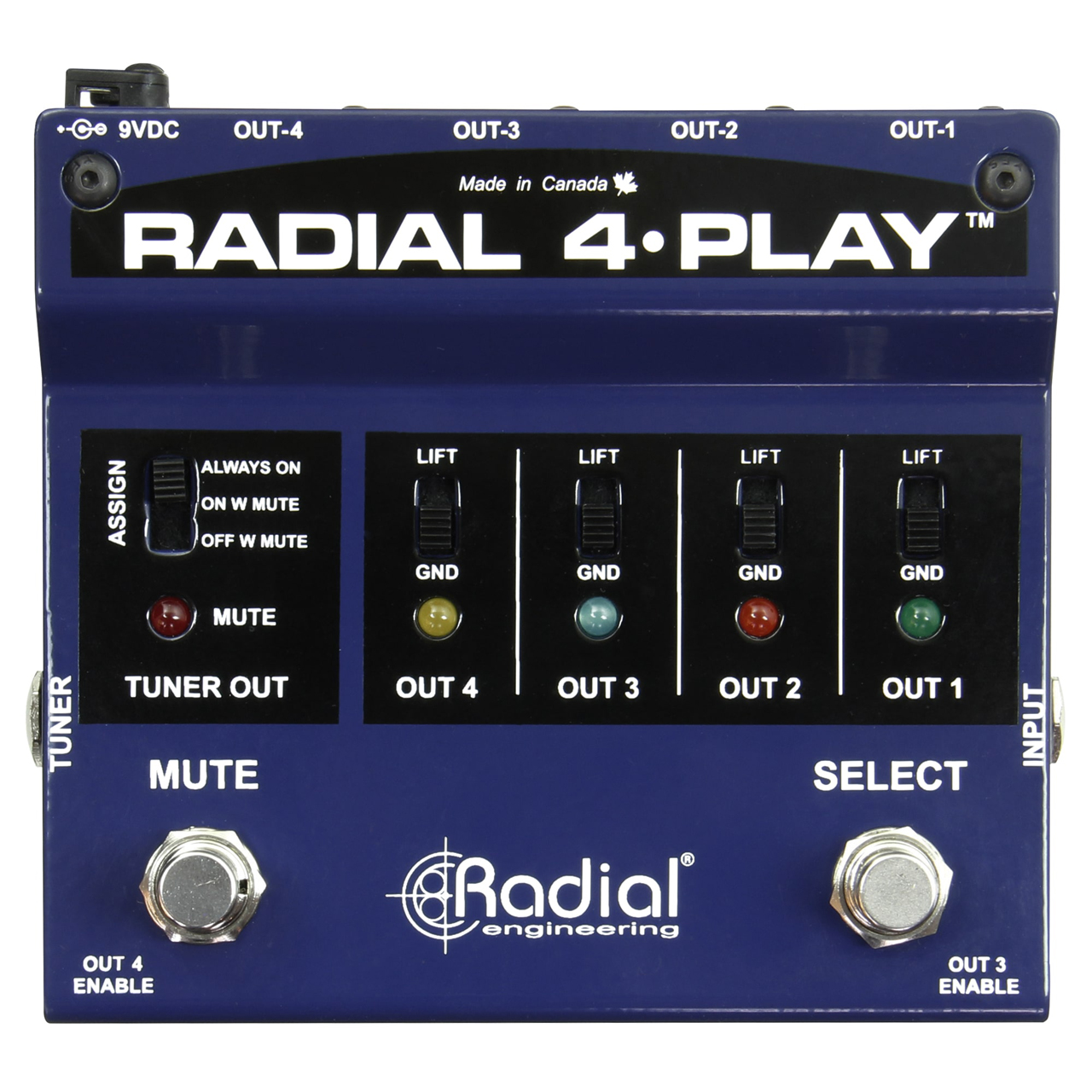

Radial Engineering 4-Play Multi-Output Direct Box with Four Balanced Outputs

ITEM #: RAD-4-PLAY MFG #: R800 1432

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$420.00

Our Price:

$199.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


R800 1432 - Overview

Four DI Boxes In One

The Radial Engineering 4-Play is a DI box specifically designed for multi-instrumentalists, providing the ability to quickly and silently change instruments on stage. With four balanced outputs, each instrument has its own channel in the PA and monitors. Many performing multi-instrumentalists will have each of their instruments feed a separate channel in the PA system, allowing for individual level, EQ, and effects settings. Typically this would require multiple DI boxes and instrument cables, creating a mess on stage that can be difficult to manage. With the 4-Play, you only need to connect one cable to the input of the pedal, and it provides you with four DI outputs to feed the PA system. Not only does this mean fewer cables on stage and less devices to keep track of, but it also eliminates the need to flag down the sound engineer when you need to switch instruments during a performance. The 4-Play puts you in control, while streamlining your setup on stage.

  • Features:

    • Quick changeovers for multi-instrumentalists
    • Switch between four DI outputs using a single footswitch
    • Shared tuner output & mute footswitch
    • Ground lift switches to eliminate hum and buzz

  • Specifications:

    • Audio Circuit Type: Classic Class-A FET input with balanced audio grade opamp output
    • Number of Channels: 4
    • Frequency Response: 20Hz - 20kHz
    • Dynamic Range: 113dBu
    • Gain: 0dBu
    • Clip Level: +13dB
    • Total Harmonic Distortion: 0.03%
    • Intermodulation Distortion: 0.02%
    • Phase Deviation: -0.12° @ -20dBu/1kHz
    • Input Impedance: 10MΩ
    • Output Impedance: 5.4KΩ
    • Noise Floor: -100dBu
    • Maximum Input: +8dBu
    • Input Connectors: ¼"
    • Output Connectors: 4x XLR
    • Extras: Tuner output & Ground lift
    • Construction: 14-gauge steel chassis & outer coat
    • Size (LxWxD): 5" x 4.7" x 2"
    • Weight: 2lbs
    • Shipping Size (LxWxD): 6.5" x 5.1" x 2.5"
    • Shipping Weight: 2.4lbs
    • Power: 9V Adaptor/80mA center pin negative
    • Conditions: For use in dry locations only between 41°F - 104°F (5°C and 40°C)

  • Warranty:

    • 3 Year Warranty, Transferable
