On Stage Stands DB100 Consumer to Pro DI - Laptop DI Box - 3.5 mm Plug to Mic-Level XLR Output

ITEM #: OSS-DB100 MFG #: DB100

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$99.99

Our Price:

$54.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    DB100 - Overview

    The DB100 Laptop DI Box eliminates noise and ground loops that often occur when using consumer audio devices with a PA system. Simply connect its 3.5 mm plug to the headphone jack of a laptop or digital music player, and this compact DI automatically converts the audio signal to a balanced, mic-level XLR output suitable for use with high-powered amplifiers. The volume knob enables additional adjustment of the output level while the ground-lift switch provides control over hum caused by ground loops. Passive and transformer based, this DI does not use a power supply and delivers electrical isolation for convenient, reliable sound preservation.

    • Features:

      • Converts an unbalanced audio input to a balanced, mic-level output signal
      • Integrated 10' cable for ease of reaching audio sources

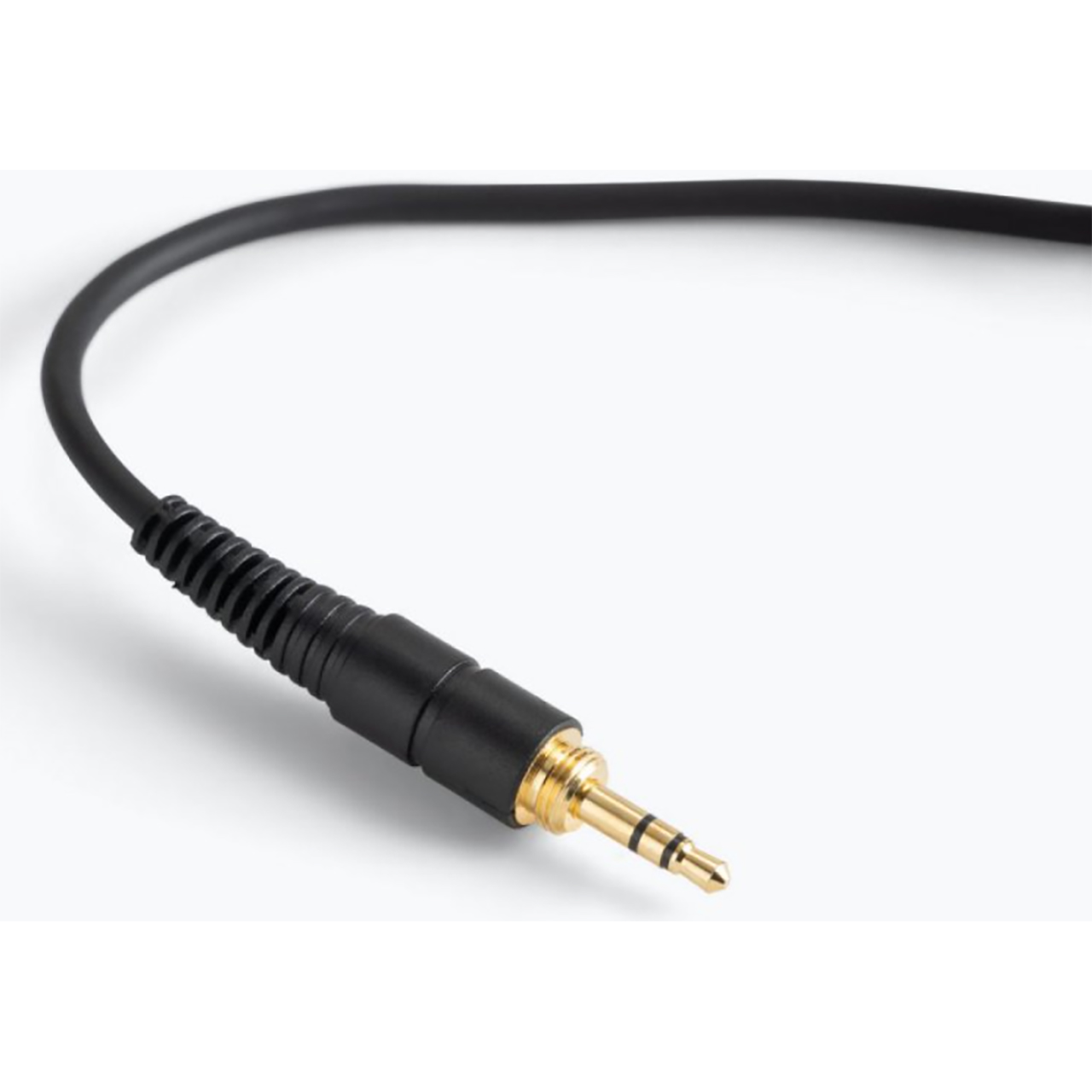

      • 3.5 mm plug connects to common audio sources such as laptops, tablets, and MP3 players

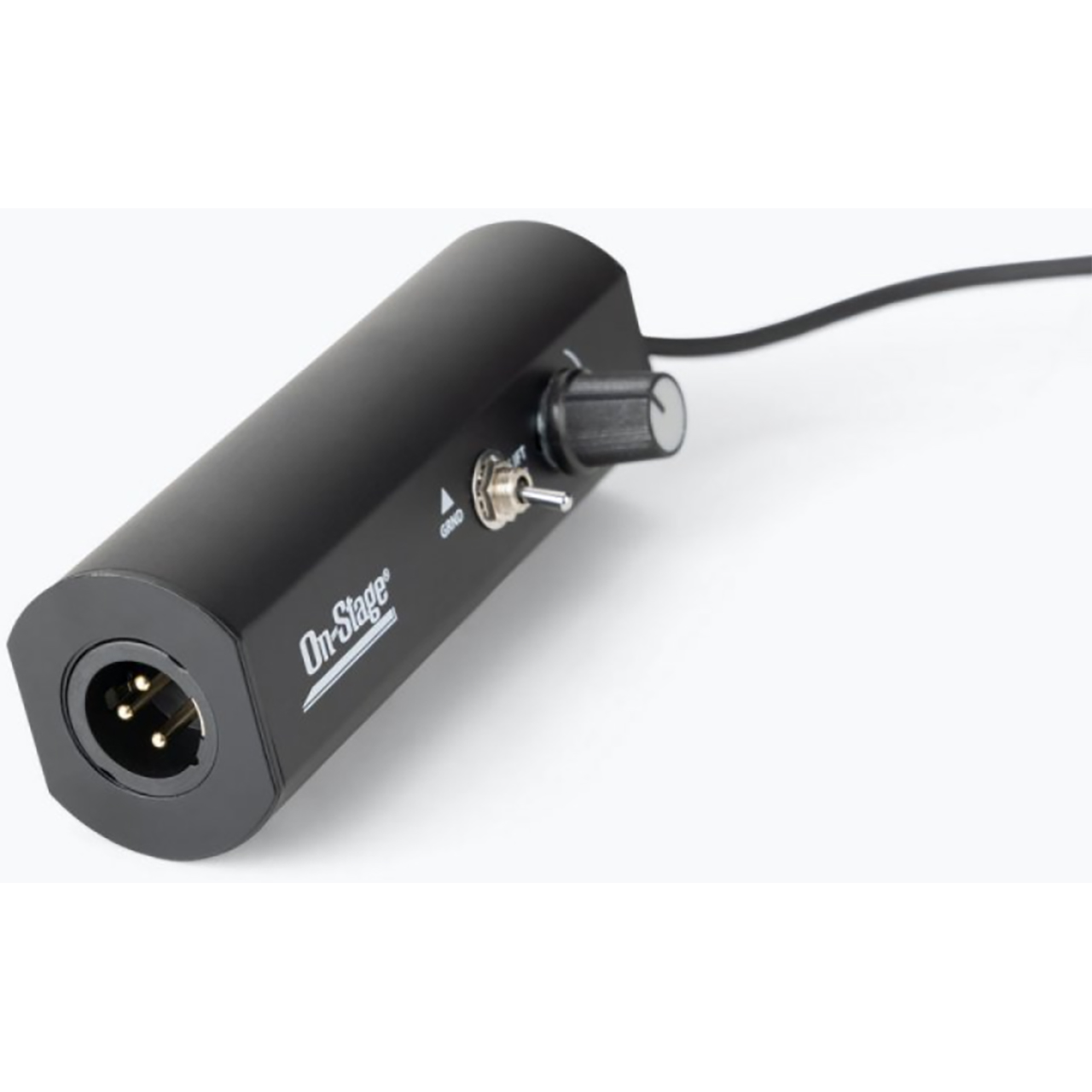

      • XLR output jack for compatibility with stage snakes and PA-system inputs

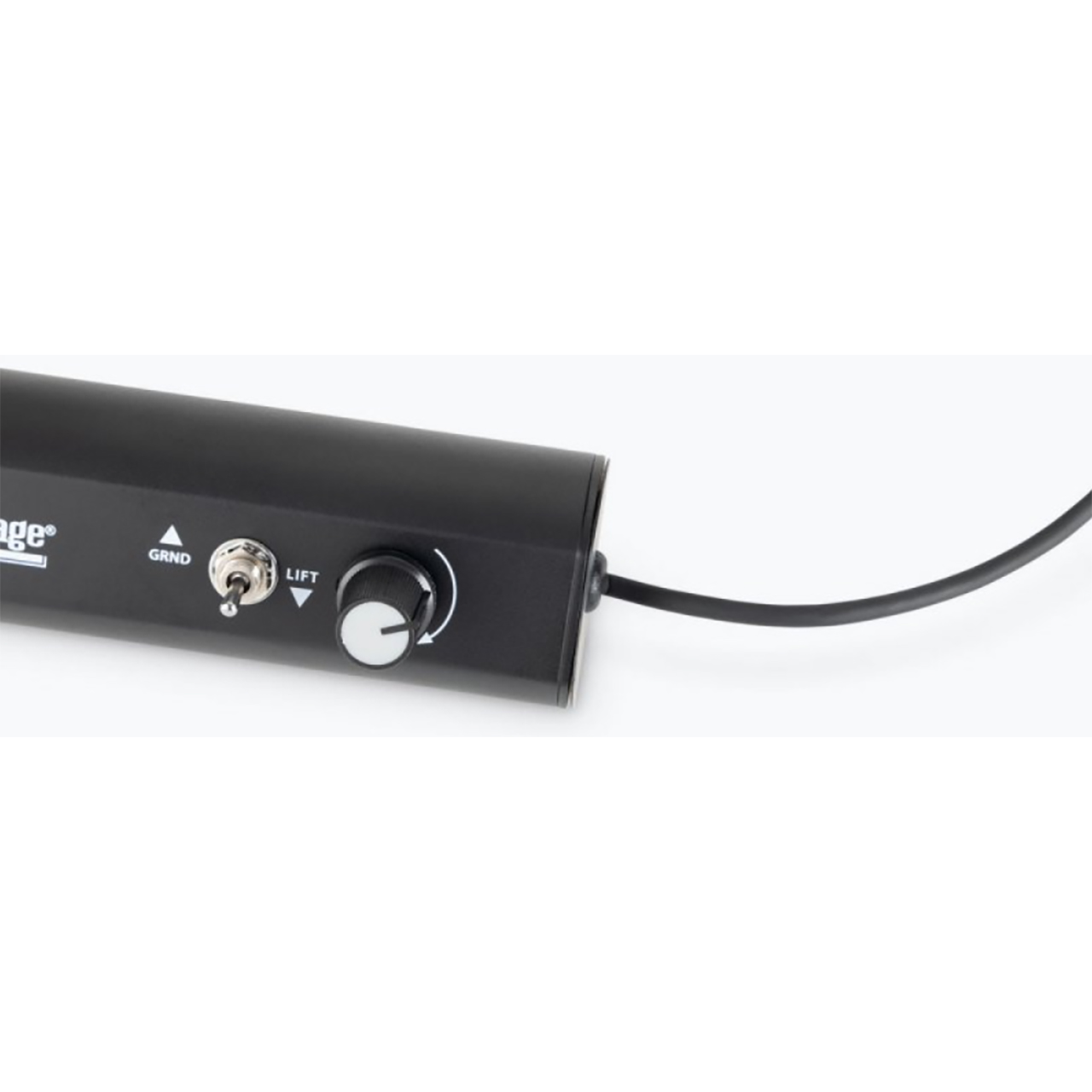

      • Volume knob enables adjustment of the output level between the source and amp
      • Transformer and ground-lift switch eliminate electrical and ground-loop noise
      • Passive operation does not require a power supply
      • Rugged metal enclosure ensures reliable performance

    • Specifications:

      • Application: Convert consumer products to balanced output
      • Input to Output: Stereo to mono
      • Input Attenuation: 20 dB
      • Input Impedance: 47 kΩ / 1 kHz
      • Output Impedance: 53 kΩ / 1 kHz
      • Frequency: 20 Hz-20 kHz
      • Distortion: 0.008%
      • Signal-to-Noise Ratio: 87 dB
      • Dimensions: 4.7" (L) x 1.6" (W) x 1.3" (H)
      • Cable Length: 10'
      • Color: Black

    • GTIN:

      0659814148622
