RCF M20X 20 Channel Desktop Digital Mixer

ITEM #: RCF-M20X MFG #: 17140120

close - X

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:


Our Price:


Availability: Direct Ship from manufacturer, contact us for availability
iAvailability Description Popup

    17140120 - Overview

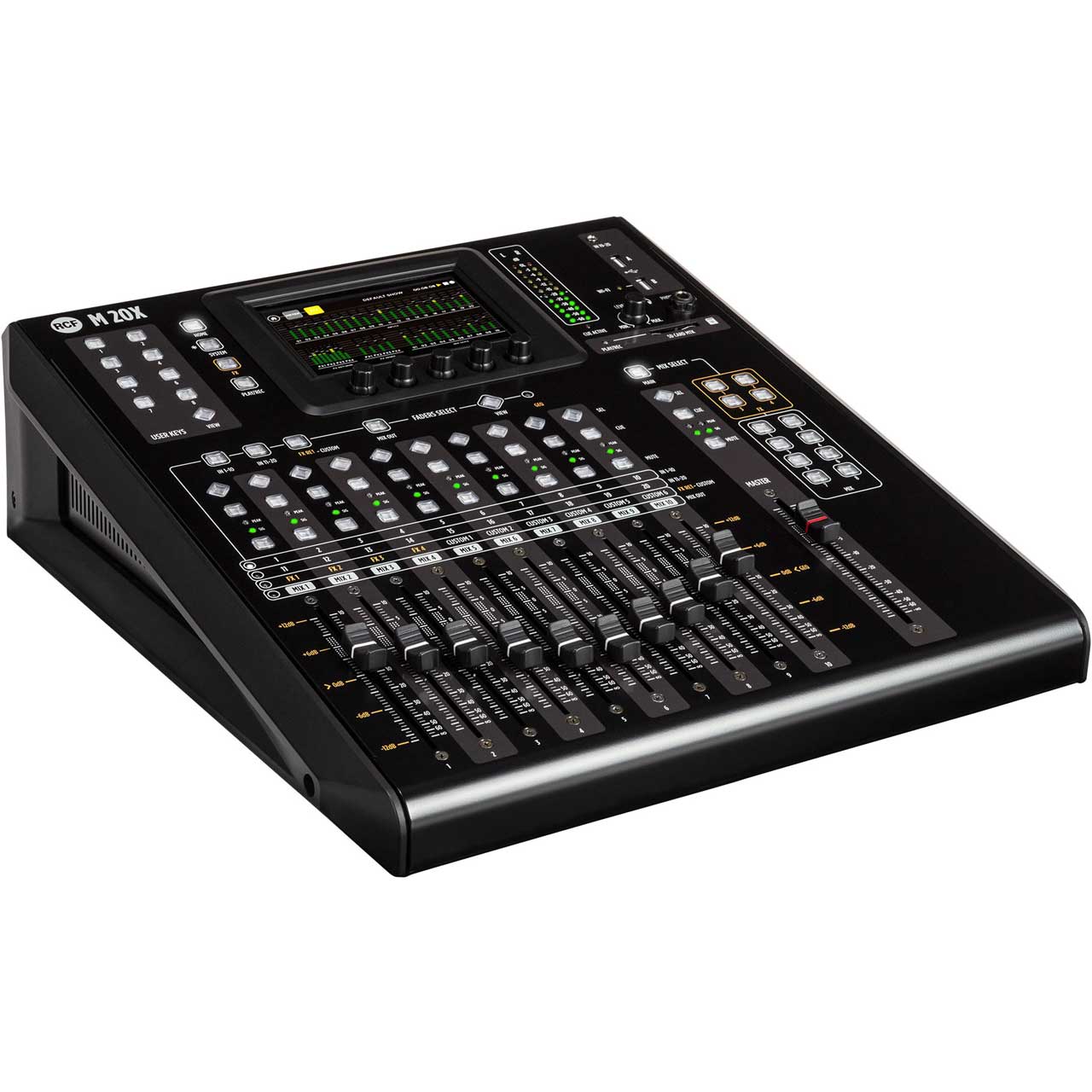

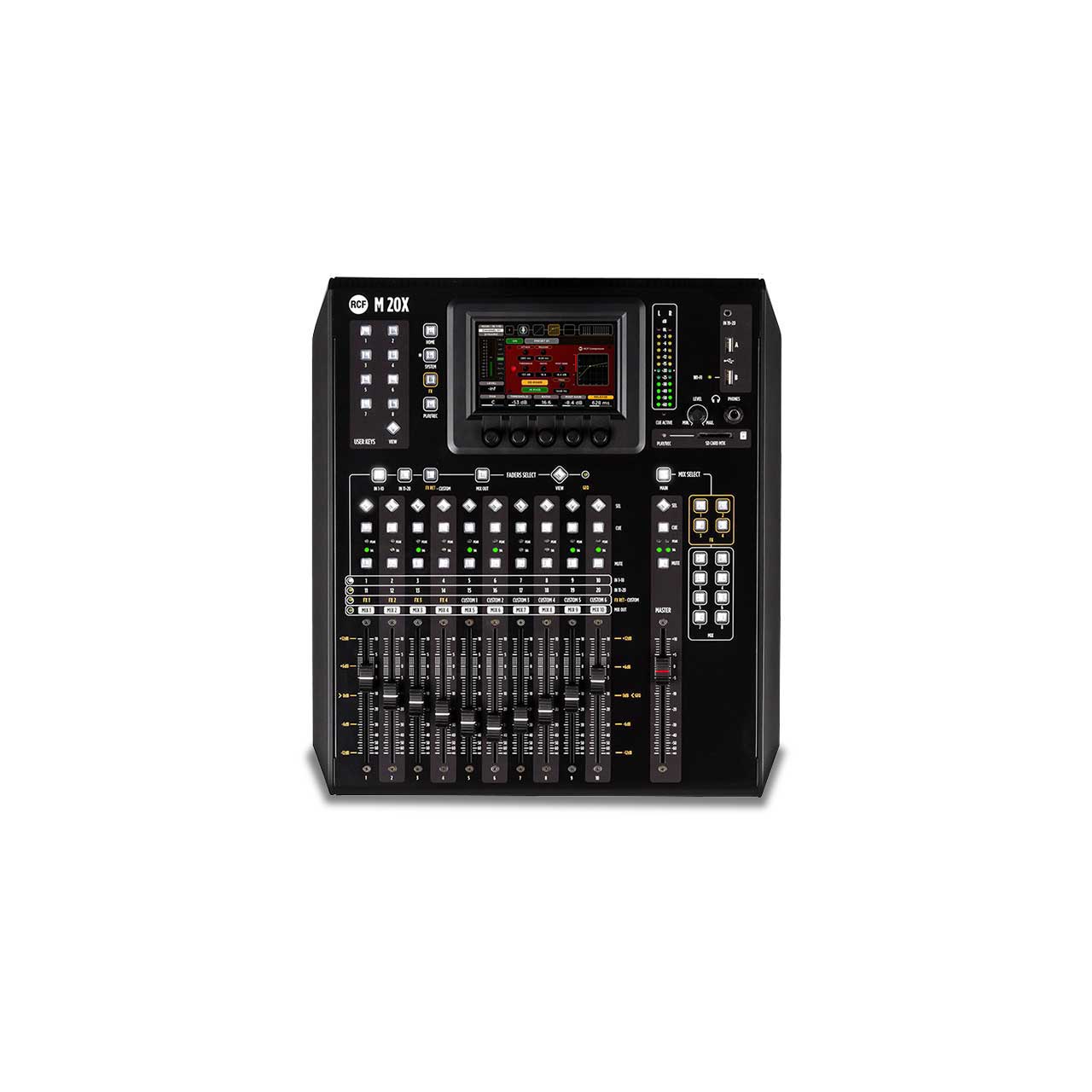

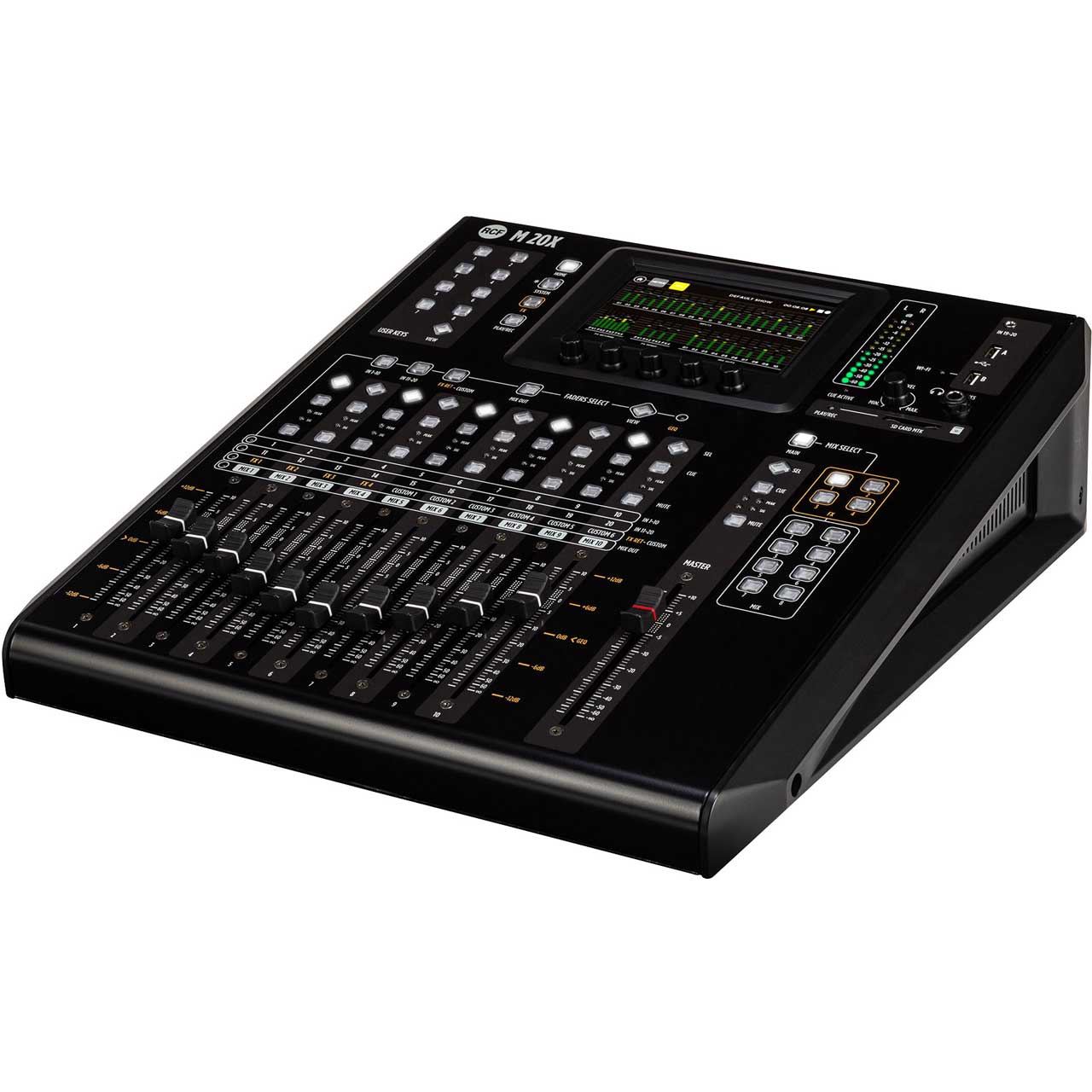

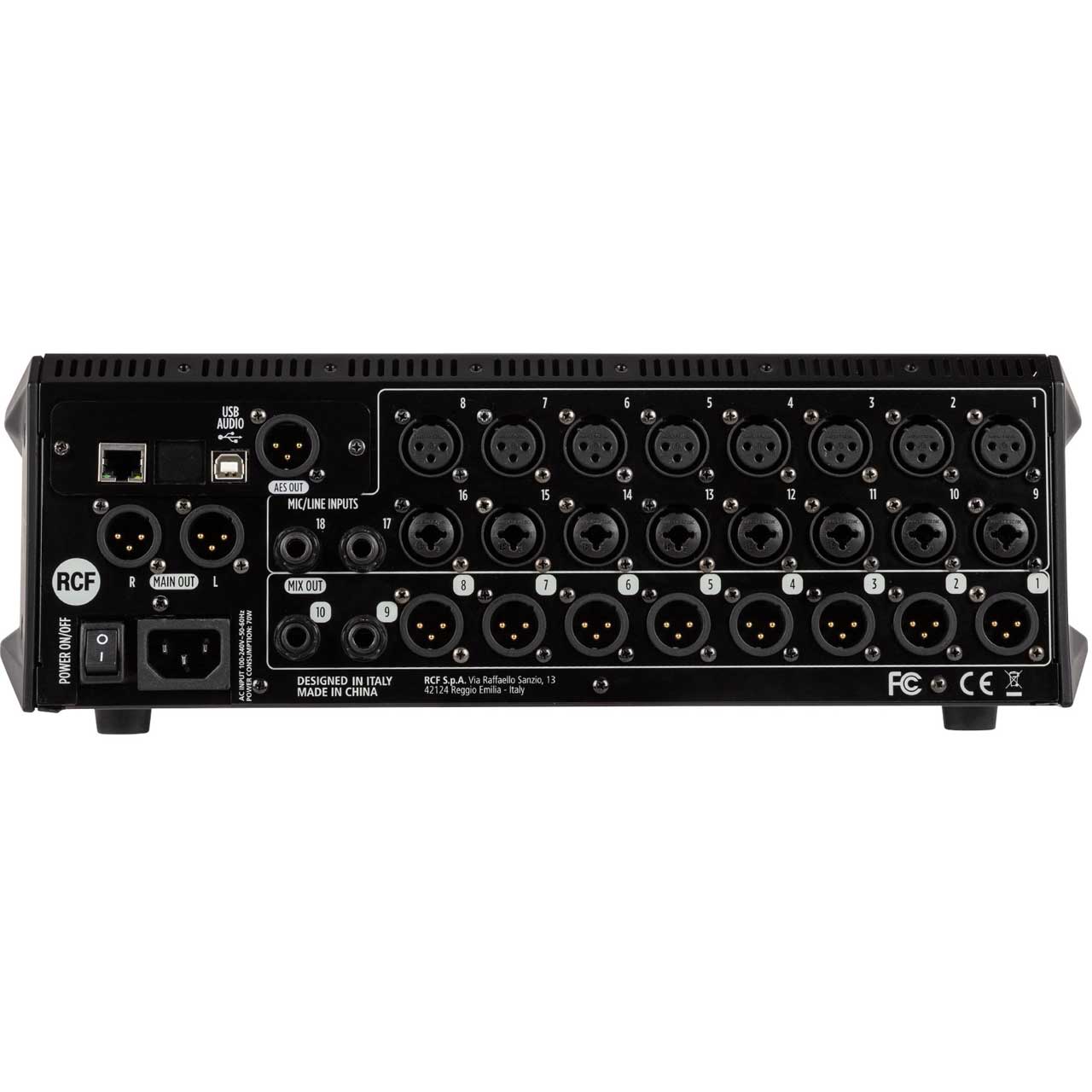

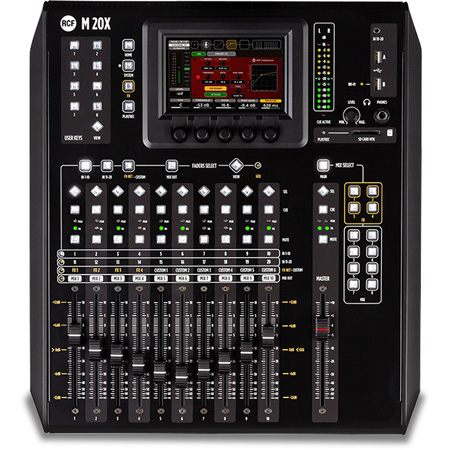

    M 20X is a fully recallable mixer, with 16 remote controlled preamps and 11 motorized faders. Despite its dimensions, the M 20X packs a whole suite of capabilities, such as high-profile preamplifiers, top of class DSP with studio-quality processing, WiFi remote control and a comprehensive set of multitrack recording and playback functions. The mixer offers a total of 20 analog inputs and 14 output channels, between the balanced analog outputs and the AES/EBU digital output.

    M20 MixRemote App

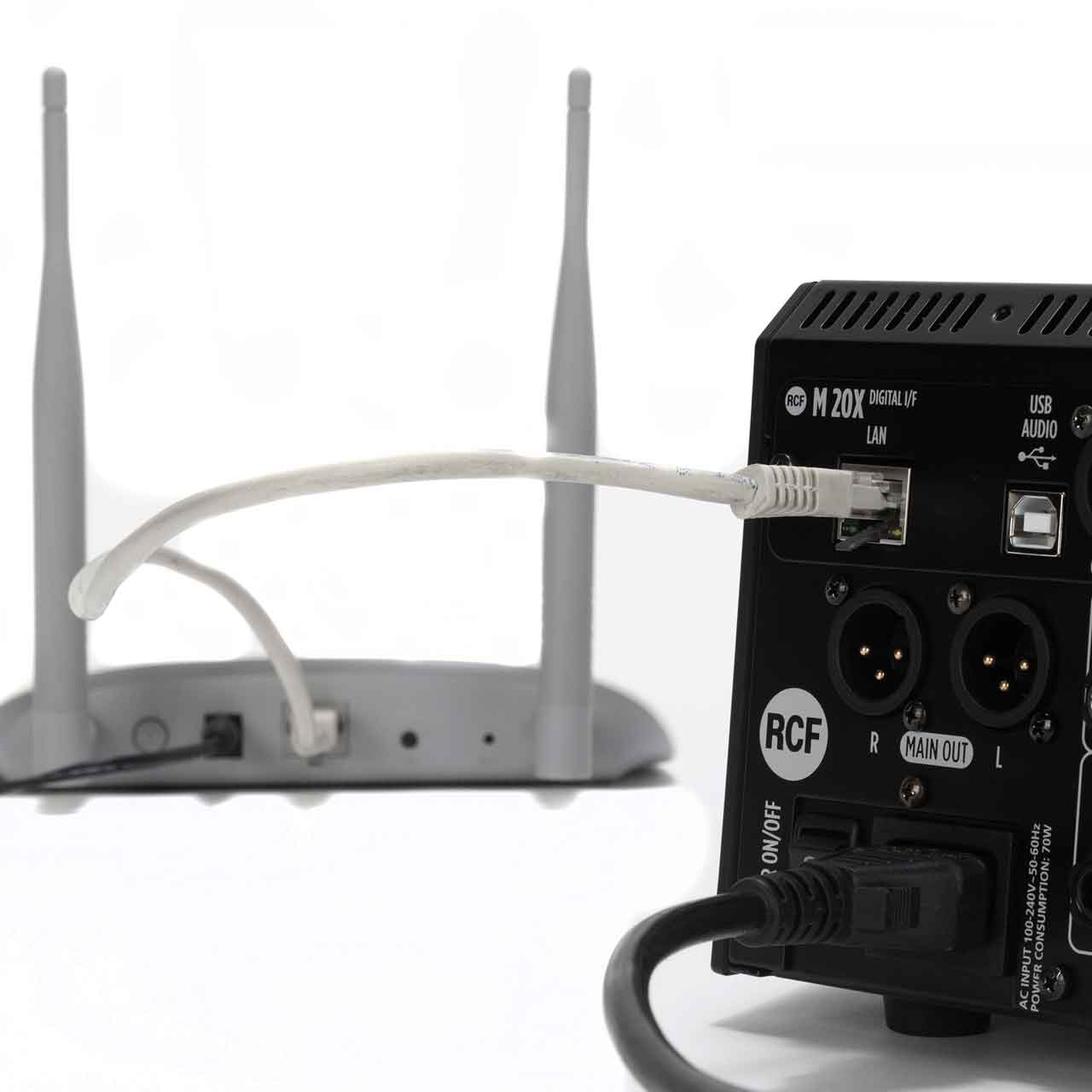

    Complete remote control of all M 20 models is available with M20 MixRemote, a dedicated App developed for both iOS and Android. There are several options to connect with the Digital Mixer.

    Enhanced FX Engines
    Four buses are dedicated to internal FX engines, arranged as two high-quality digital-reverbs, a programmable delay and a fourth FX which can be configured as delay or modulation. All FX engines offer multiple algorithms to match the specific needs of a show. It is possible to reserve one reverb for some inputs and use the second reverb as a general-purpose FX for other sources.

    Three Recording Options
    Capturing multitrack recordings of your shows has never been so easy. Multitrack audio can be handled via the onboard USB 2.0 Digital Audio Interface, for a maximum of 24 x 24 channels, and through the internal SD-card multitrack player/recorder, no computer required. In addition, a USB stereo multimedia player and recorder is available, handling multiple file formats (WAV, MP3, AIFF).
