RF Venue DFIN-IPXD9 9 Channel Wireless Microphone Upgrade Pack with Diversity Fin IPX Antenna - Matte Black

ITEM #: RFV-DFIN-IPXD9BL MFG #: DFIN-IPXD9

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$3,189.00

Availability: In Stock
iAvailability Description Popup


DFIN-IPXD9 - Overview

Rugged, Weather-Resistant, and Reliable

The RF Venue DFIN-IPXD9 9 Channel Wireless Microphone Upgrade Pack with Diversity Fin® IPX Antenna is the ultimate turnkey RF solution for professionals who need rock-solid wireless performance in the most demanding environments. This comprehensive bundle combines the rugged, IP-rated, weather-resistant Diversity Fin IPX Antenna with the high-performance DISTRO9 HDR Antenna Distribution System and premium RG8X cabling.

By integrating patented cross-polarized technology with centralized RF and power distribution, this bundle eliminates the need for multiple "shark fin" paddles and messy "wall wart" power supplies. It is the definitive upgrade for touring rigs, outdoor festival stages, and permanent outdoor installations.

Why Choose This Bundle?
The Diversity Fin IPX Bundle is designed to solve the two biggest headaches in wireless audio: signal dropouts and cable chaos. The IPX antenna is uniquely forgiving of transmitter orientation- the cross-polarized design maintains a constant lock on the signal regardless of a performer's position on stage. Inside the rack, the combination of the DISTRO9 HDR and the OCTO Cable transforms a "rat's nest" of wiring into a clean, reliable power and signal hub, allowing you to focus on the performance rather than the gear.

  • Features:

    • Turnkey RF Management: Provides everything needed to support up to nine wireless receivers from a single antenna position.
    • IP44-Rated Protection: The Diversity Fin IPX features a weather-resistant seal and downward-facing BNC connectors, built to survive rain and dust.
    • Patented Cross-Polarization: Combines LPDA and dipole elements to capture both vertical and horizontal signals, effectively eliminating multi-path dropouts.
    • Reduced Rack Clutter: Replaces 18 individual whip antennas and multiple power adapters with one streamlined, professional system.
    • Expansion Ready: Using dedicated RF cascade ports, any pair of RF outputs can be connected to the RF inputs of a second DISTRO9 HDR.
    • High-Quality Signal Path: Includes two 25ft RG8X coaxial cables to ensure low-loss signal transfer between the antenna and your rack.

  • Specifications:

      Diversity Fin IPX Antenna
    • Dimensions: 16.75" x 14.875" x 3"
    • Weight: 4lbs
    • Operating Frequency: 470MHz - 928MHz
    • Weather Rating: IP44 (Weather-resistant)
    • Connector Type: Downward-facing BNC-F (50Ω)
    • Polarization: Cross-Linear (Vertical & Horizontal)
    • Impedance: 50Ω
    • Type: Passive (No active electronics)
    • Mounting: 5/8"-27 threaded mount (EU adapter included)
    • Finish: Matte Black

      DISTRO9 HDR Antenna Distribution System
    • Frequency Range: 50MHz - 1000MHz (VHF, UHF, +900 bands)
    • RF Output Level (gain): ±3dB
    • Output Connection Isolation:
      - 60dB @ 510MHz
      - 80dB @ 200 MHz
    • Third Order Intercept Point:
      - 15dBm @ VHF
      - 20+ @ UHF
    • Impedance: 50Ω
    • Power Requirements: 50/60Hz, 2A
    • Fuse: T3.15A/250V
    • Input AC Voltage: 100V - 240VAC
    • DC Over Coax (to external antennas): 12VDC, 100mA
    • Output DC Voltage (to receiver jacks): 12V, 5A
    • Output DC Connectors: Anderson Power Pole
    • Dimensions (HxWxD): 2" x 19" x 10" (45mm x 480mm x 250mm)
    • Unit Weight: 6lbs (2.7kg)

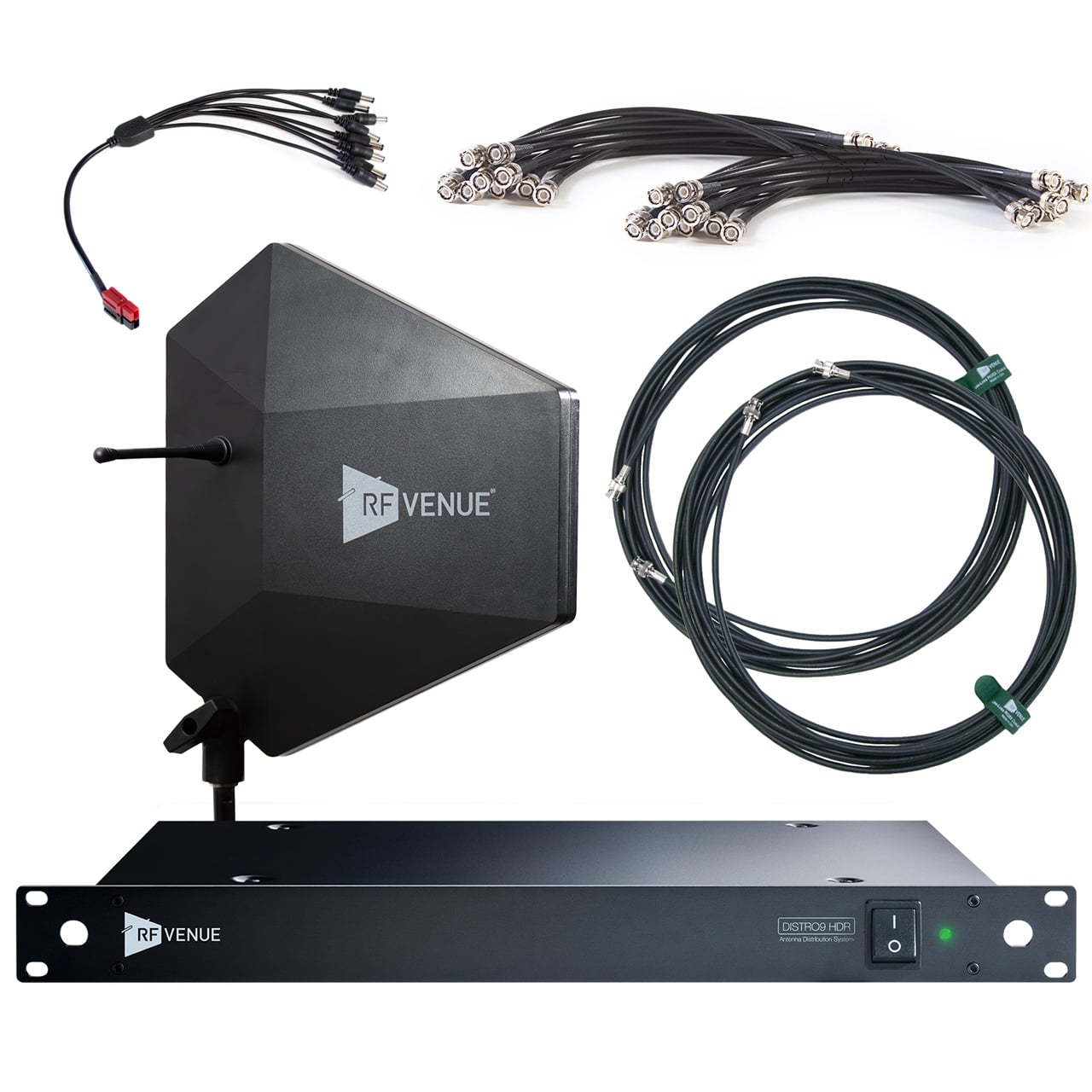

  • Item Includes:

    • 1x Diversity Fin IPX Antenna
    • 1x DISTRO9 HDR Antenna Distribution System
    • 1x OCTO Cable (DC Power Distribution)
    • 2x RG8X 25ft Coaxial Cables (Black)
    • 2x Spare Dipole Antennas for IPX
    • 1x Dipole Storage Case
    • 1x Threaded EU Microphone Stand Adapter

  • GTIN:

    0658580647445
