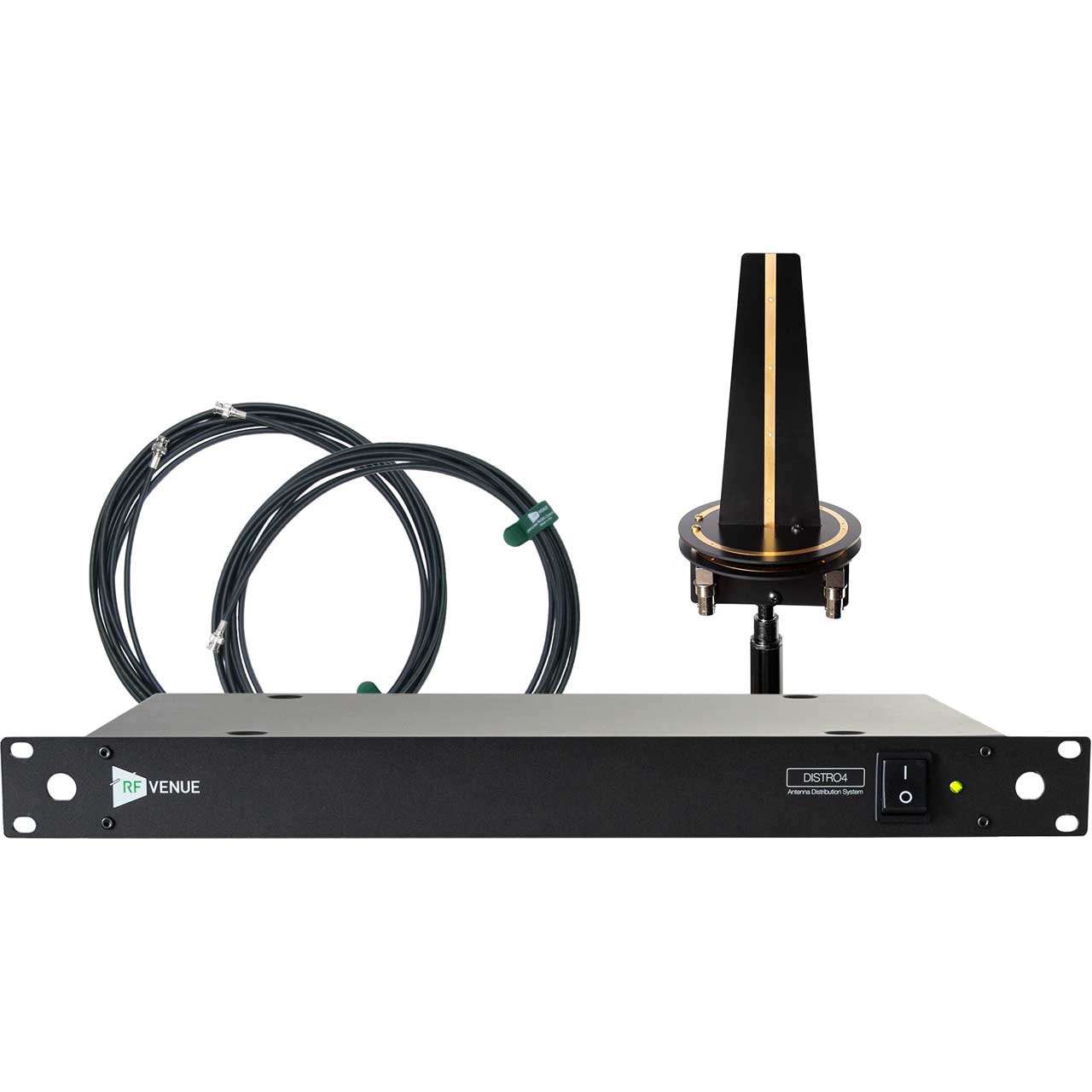

This RF Venue D-OMNIDISTRO4 turnkey bundle includes everything needed to configure up to 5 channels of wireless microphones. This bundle includes the Diversity Omni Antenna, Coaxial Cabling, and DISTRO4.
About the Diversity Omni Antenna
Building on the success of the highly acclaimed Diversity Fin® Antenna, the Diversity Omni Antenna is an all-new antenna system designed for omnidirectional coverage of wireless microphones. The Diversity Omni features two antennas on a single stand, capturing both vertically and horizontally polarized signals and eliminates the most common signal dropouts in a compact size.
The Diversity Omni also offers greater flexibility in antenna placement, since only one is needed in place of two separate antennas. Its weather resistant design allows it to be mounted outdoors by installing simple protection for the connectors and the provided cordura nylon cover.
About the DISTRO4
DISTRO4 is a 4-way active antenna splitter plus cascade port with external power that allows you to share one pair of diversity antennas with up to 5 wireless receivers. Built in a full metal housing it ships with 8 BNC cables and 4 dc power cables to connect up your receivers. Multiple DISTRO4s can be connected together up to 25 receivers to a single diversity pair of antennas.
To utilize directional antennas with more than two receivers, an antenna distributor is the right tool for the job. With a single Diversity Fin and DISTRO4, you can avoid crosstalk bleed from multiple whip antennas, and remove questionable wall warts and unneeded powerstrips that can cause other avoidable issues.
About RF Venue Coaxial Cables
Coaxial cabling can make the difference between flawless RF performance and total system failure. Even the slightest crimp or ding in coaxial cable can cause signals to drop sharply or short out.
RF Venue provides premium made in USA low loss, 50Ω RG8X coaxial cable with BNC male connectors for wireless audio applications. Their cables are custom made to their specifications: double shielded braid over foil with a perfect balance between loss and flexibility. All cables are terminated in-house and QC on calibrated Agilent network analyzers for guaranteed performance. RF Venue stocks a variety of lengths from 5' to 150'.
