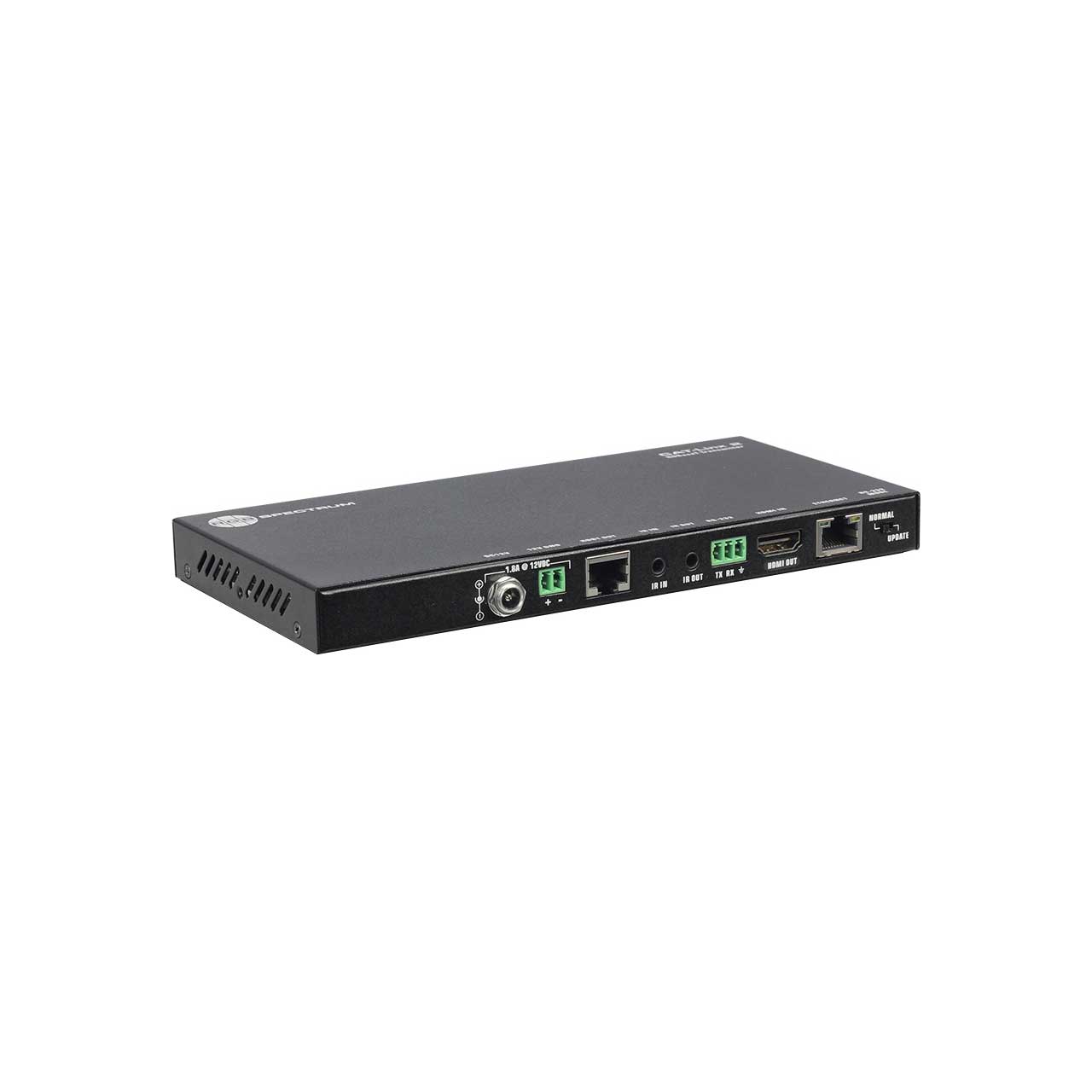

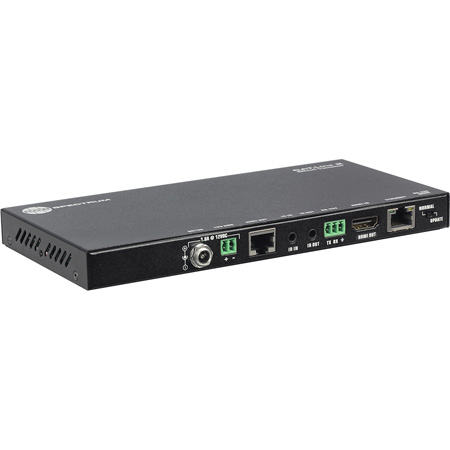

RGB Spectrum CAT-Linx 2 RX Single-Channel CAT-Linx 2 HDBaseT Receiver - Power over HDBaseT (PoH) Capable


Free Shipping with Minimum Order Banner

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    CAT-LINX 2 RX - Overview

    CAT-Linx™ 2 CAT-Linx 2 RX extenders transmit signals up to 4K Ultra HD at 60Hz using conventional CAT 5e/6 cable. CAT-Linx 2 units can transmit HD signals up to 100 meters and 4K Ultra HD signals up to 70 meters. Transmit (TX) and Receive (RX) endpoints are compatible with all RGB Spectrum wall processors, multiviewers, switchers, and AV devices from other manufacturers.

    For installation ease and convenience, CAT-Linx 2 extenders have integrated power (PoH) to supply endpoints over the same CAT5e/6 cable that carries the video and data signals. This eliminates the need for external power connections. A CAT-Linx 2 pair needs only one power supply connected to either the transmitter or the receiver end to power both devices. Compact, space-saving size allows attaching receivers directly to the back of displays.

    CAT-Linx 2 extenders offer a bevy of advanced features, including HDCP 2.2, Dolby and DTS HD audio support, and serial and IR control of display devices. The signal extenders provide a cost-effective way to control signal sources and displays. You can control a source from the display location or control the display from the signal source location via the CAT-Linx 2’s IR pass-through function. Bidirectional RS-232 signal transmission between endpoints is also available for serial control of display devices.

    CAT-Linx 2 extenders meet the specifications of the HDBaseT Alliance and are compatible with other HDBaseT-certified products. A mounting rack which holds 12 RX or TX units is available. CAT-Linx 2 HDBaseT extenders are a high performance, feature-rich, and cost effective solution for signal distribution, for both small-scale and large-scale installations.

    Please Note: This is the Receiver unit only and requires the Transmitter unit to function.

    • Features:

      • 4K Ultra HD (60Hz) signals over conventional CAT 5e/6 cable
      • Signal transmission up to 100 meters for HD signals, up to 70 meters for 4K Ultra HD signals
      • HDCP 2.2 compliant
      • Integrated Power-over-HDBaseT (PoH)
      • Convenient mounting rack for 12 RX or TX units available
      • IR and serial control of displays and other AV devices
    • Specifications:

      • Video and Audio
      • Input Signal Type: HDMI 1.4 with HDCP 2.2
      • Maximum Signal Resolution: [email protected], [email protected]
      • Color Space & Sampling: 4096x2160 & [email protected]: 4:2:0, 4096x2160 & [email protected]: 4:4:4, 2K & HD @60Hz: 4:4:4
      • Input Video Level: 0.5~1.0V p-p
      • Maximum Pixel Clock Rate: 297 MHz
      • Transport Signal Type: HDBT
      • Video Impedance: 100 ohms
      • Transmission Distance: Cat 5e/6 cable: 3840x2160 to 70m; 1080P to 100m; Cat 6a/7 cable: 3840x2160 to 100m; 1080P to 100m
      • Audio Formats: HDMI Embedded Audio: Stereo, LPCM 5.1, LPCM 7.1; Dolby True HD, DTS-HD Master Audio

      • Control Method: RS-232 Ethernet
      • External Device Control: Via IR (IR Emitter & Receivers included) & RS232

      • Operating Temperature: 0 to 45 °C (32 to 113 °F)
      • Storage Temperature: -20 to 70 °C (-4 to 158 °F)
      • Humidity: 10% to 90%, non-condensing
      • Power Supply: 12V, 1.5A DC / PoH
      • Dimensions (W x H x D): 6.8 in. x 3.74 in. x 0.7 inches (173 x 95 x 18mm)
      • Weight: 1.0 lbs / 0.45 kg
      • Safety: CE
      • EMI/EMC CE: FCC Class A
      • ESD Protection: Human-body Model: ±8kV(Air-gap discharge)/±4kV(Contact discharge)
