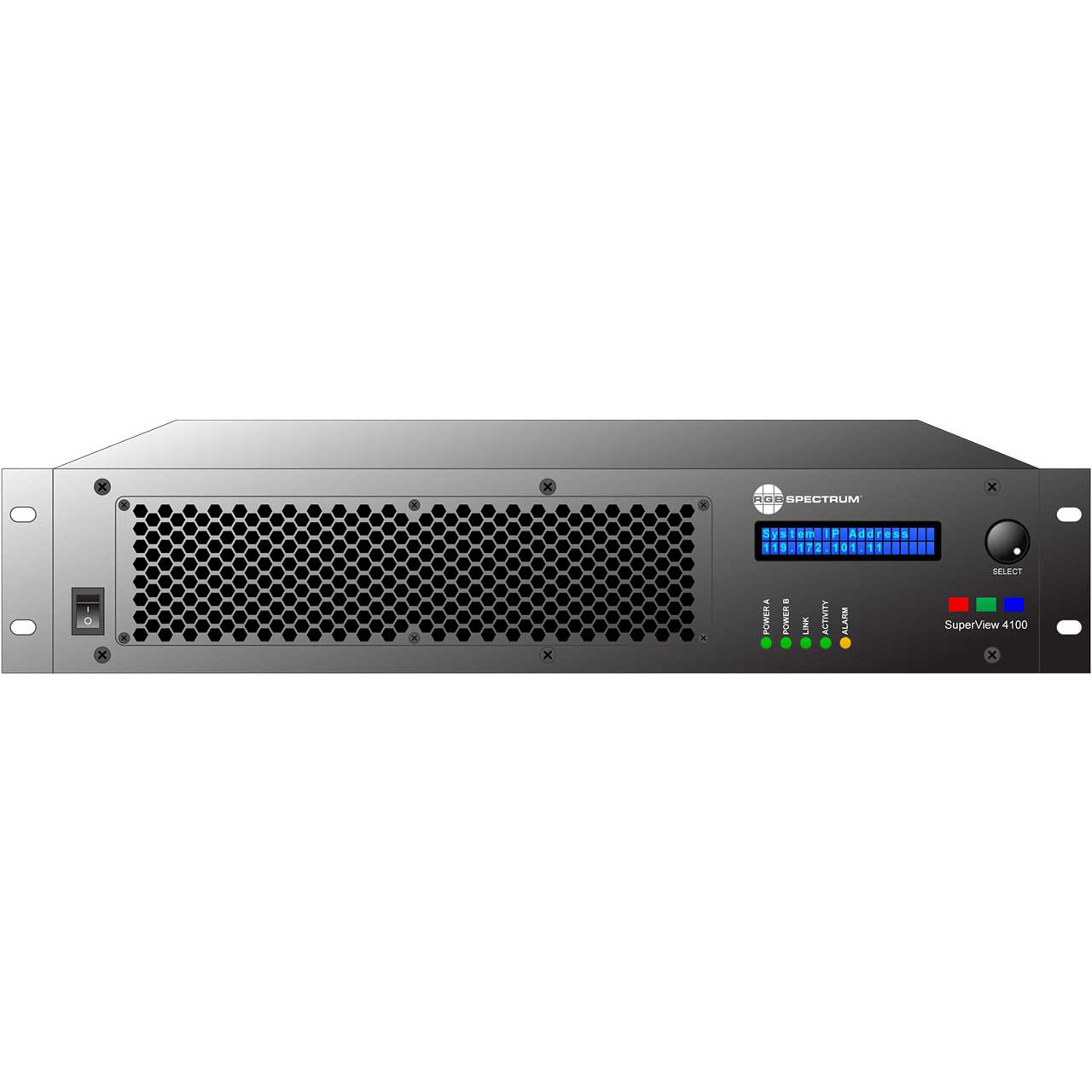

RGB Spectrum SV 4100 SuperView 4100 with 8 DVI/Graphic/HD Inputs 2 Duplicate DVI Outputs HDCP Compliant (2RU)

ITEM #: RGB-SV-4100 MFG #: SV 4100

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
RGB Spectrum
Free Shipping with $49 Minimum Order

Our Price:

$17,170.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    SV 4100 - Overview

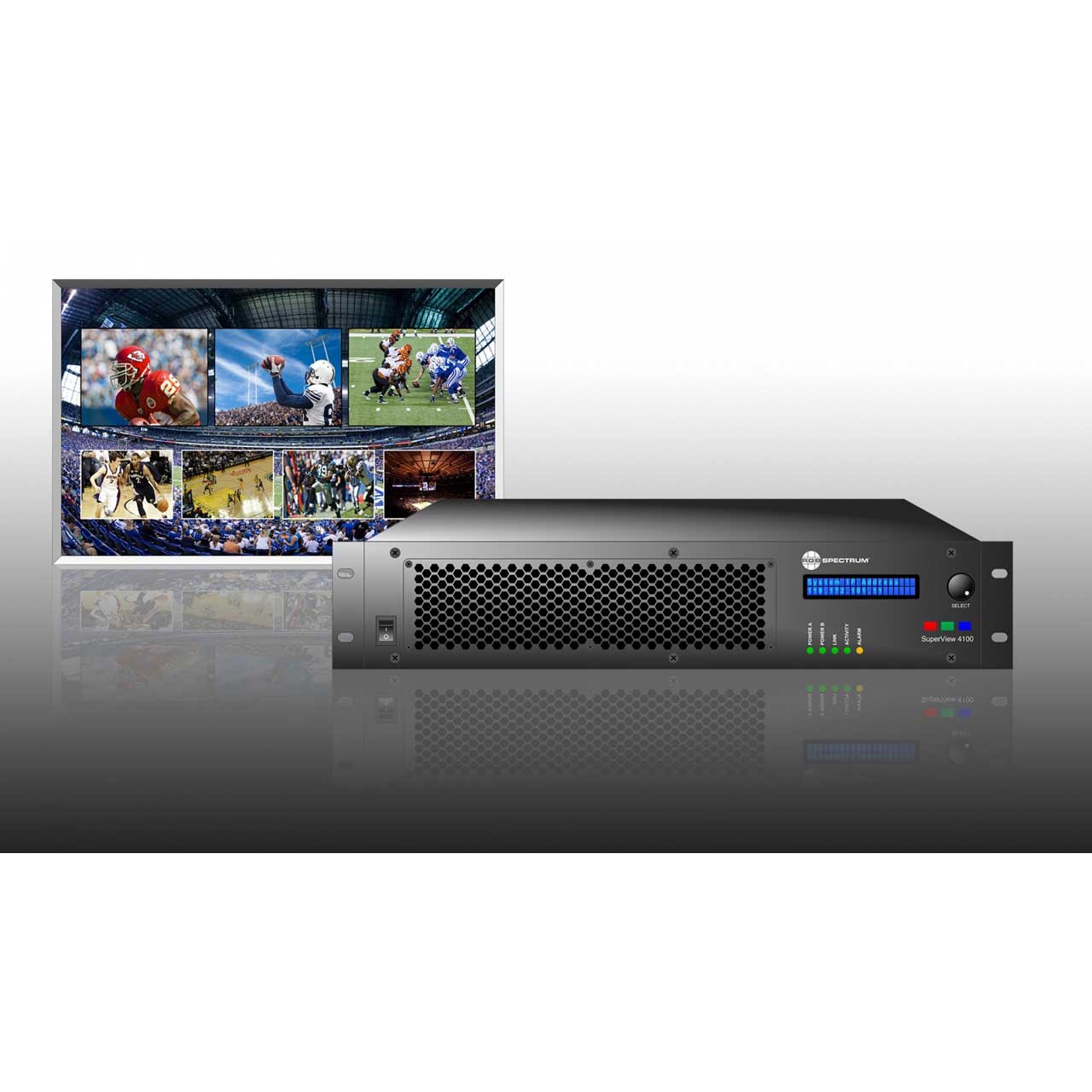

    The SuperView 4100 multiviewer accepts eight DVI, HDMI or RGB inputs. With plug-and-play ease, the multiviewer supports a full range of input and output resolutions. Users can also create custom files for non-standard resolutions.

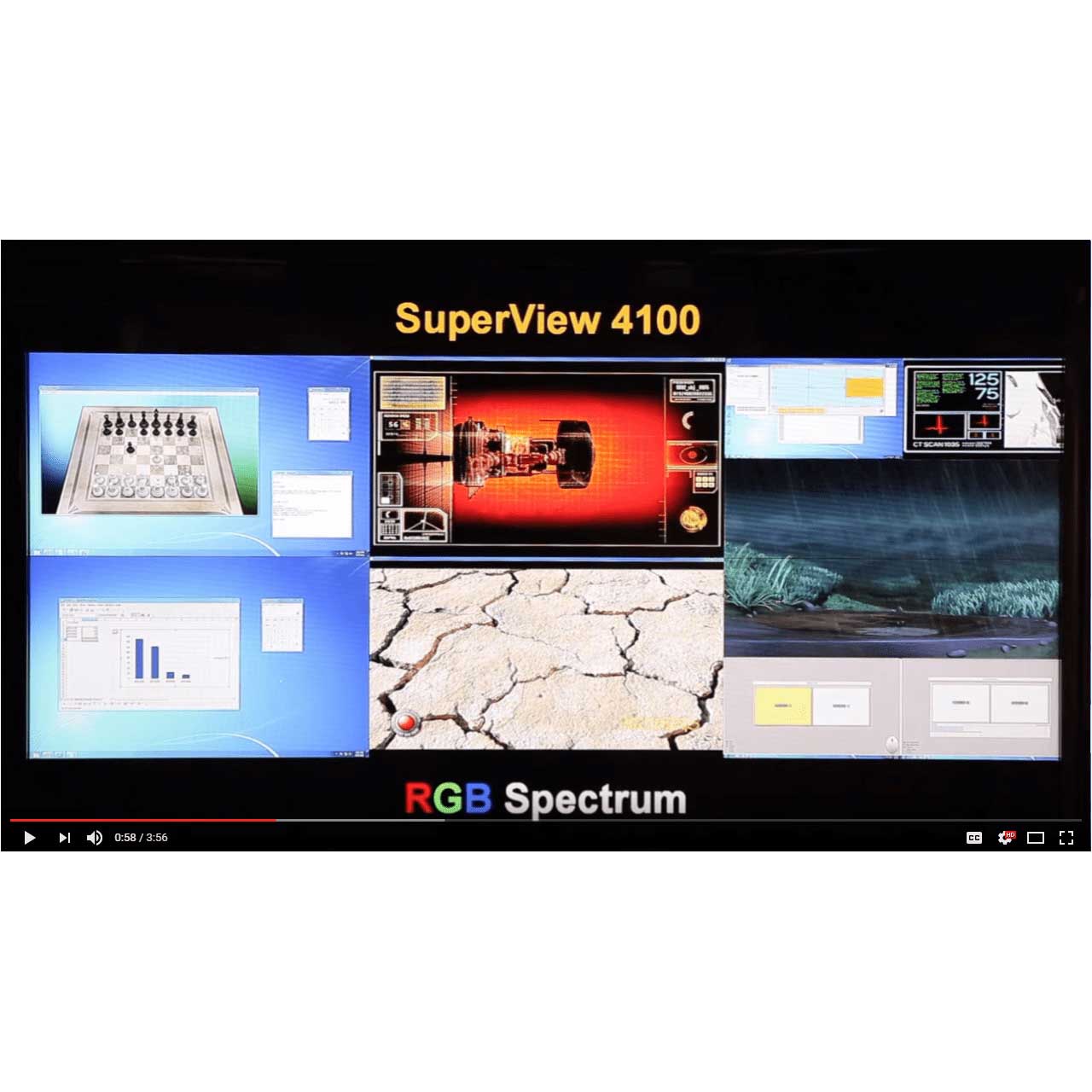

    The SuperView 4100 multiviewer offers a full array of features that include smooth pan and zoom functionality, custom borders, titling, window priority and programmable presets. With superb scaling built-in, images can be displayed anywhere on screen, in any size or aspect ratio.

    In addition to the dual-link output option, other available options for the multi-image display processor include a redundant power supply, HDCP support and RGB Spectrum’s patented SinglePointTM KvM. This unique option builds on traditional KVM technology to enable a single user to control all source computers displayed by the multi-image display processor with a single keyboard and mouse.

    With superb features and 24/7 reliability, the SuperView 4100 multiviewer offers unbeatable quality and value in a full-function multi-image display processor.

    • Features:

      • Up to 24 RGB, DVI or HDMI inputs
      • 1 output with up to 8 scalable windows
      • Full range of input and output formats
      • Single or dual-link DVI outputs
      • Dynamic window scaling
      • DVI input cable equalization
      • Pan and zoom, titles and borders
      • Programmable presets
      • On screen cursor control
      • HDCP compliant
      • Integrated KVM options


    • Specifications:

      • Inputs
      • RGB/YPbPr/HD: 8x (on DVI-I)
      • DVI: 8x (on DVI-I single-link 1.0)
      • HDMI (1.3a): 8x (on HDMI)
      • Resolution: 640x480 to 1920x1200, 2048x1152, 720p, 1080i, 1080p
      • Color depth: 24-bit
      • Horizontal scan rate: 31 kHz to 125 kHz
      • Frame rate: Up to 200 Hz
      • Clock rate: Up to 165 MHz
      • Video levels: 1.0 V p-p for G and Y composite 0.7 V p-p for R, B and PbPr
      • Sync type: RGsB, RGBS, RGBHV, YPbPr, (tri-level or bi-level sync on Y)
      • Cable equalization: Automatic or manual, up to 164 ft (50 m) DVI
      • HDCP: Single-link output mode - Compliant; Dual-link output mode - Non-compliant

        Outputs
      • DVI single-link: 2x (on DVI-I, digital only)
      • DVI dual-link: 1x (option) on DVI-I
      • Resolution: Up to 1920x1200, HD to 2048x1080p Dual-link to 2560x1600p
      • Horizontal scan rate: 12 kHz to 125 kHz
      • Frame rate: 50 to 200 Hz
      • Clock rate: 25 to 165 MHz (single-link) 165 to 330 MHz (dual-link)
      • Pin power: 500 mA at 5 VDC per output
      • Power: 100 - 240 VAC auto ranging 50/60 Hz, 125 W maximum
      • Options SinglePoint KvM, DVI dual-link output, Redundant power supply, BP-16 control panel
      • Physical: Width: 17.0 in, Depth: 18.0 in, Height: 3.5 in (2 RU), Weight: 25 lbs

        Environmental
      • Temperature Operating, nominal: 41° to 104°F
      • Temperature Non-Operating: -4° to 158°F
      • Humidity Operating: 5 to 90%; noncondensing
      • Altitude: Up to 13,123 ft at 104°F or below
