    MX401 - Overview

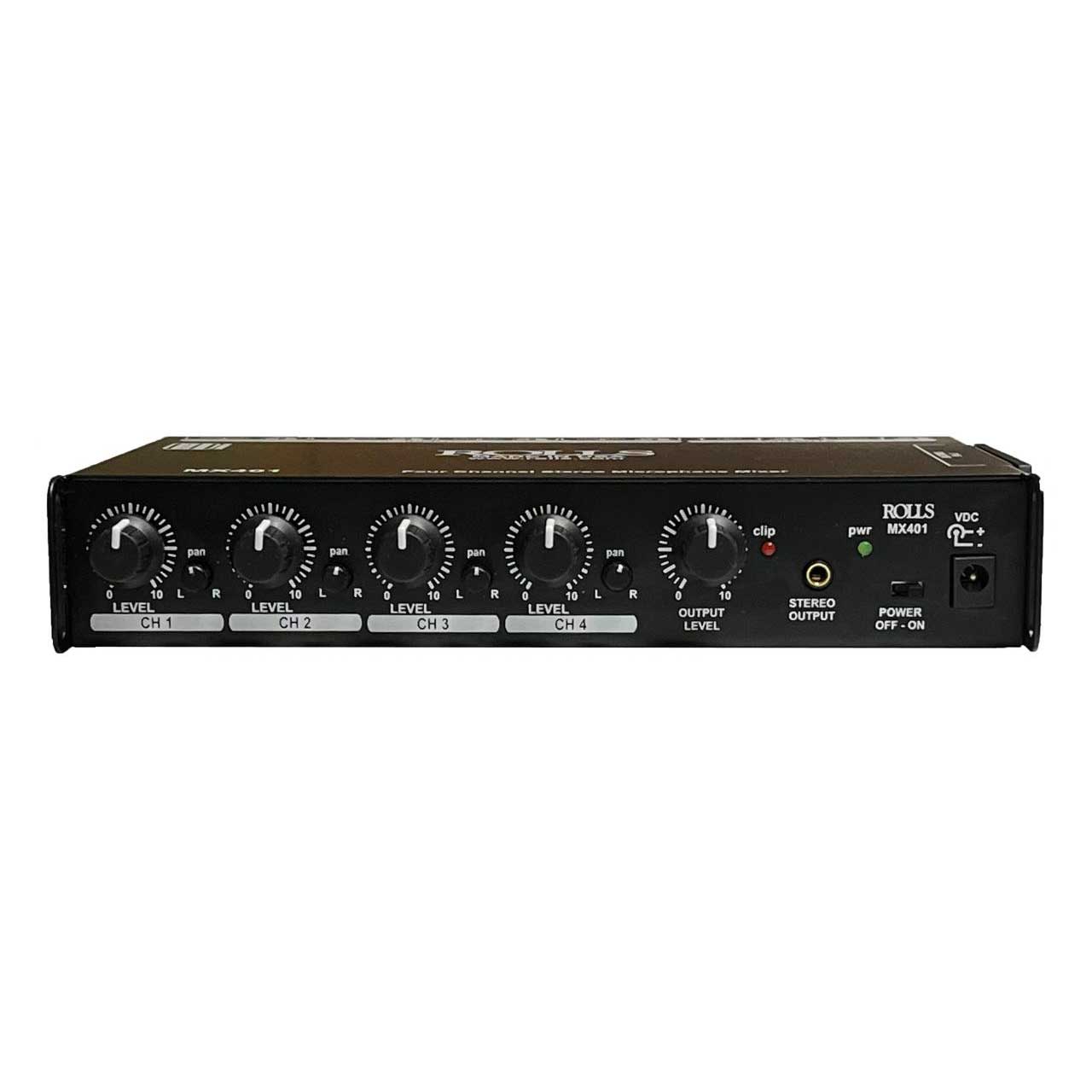

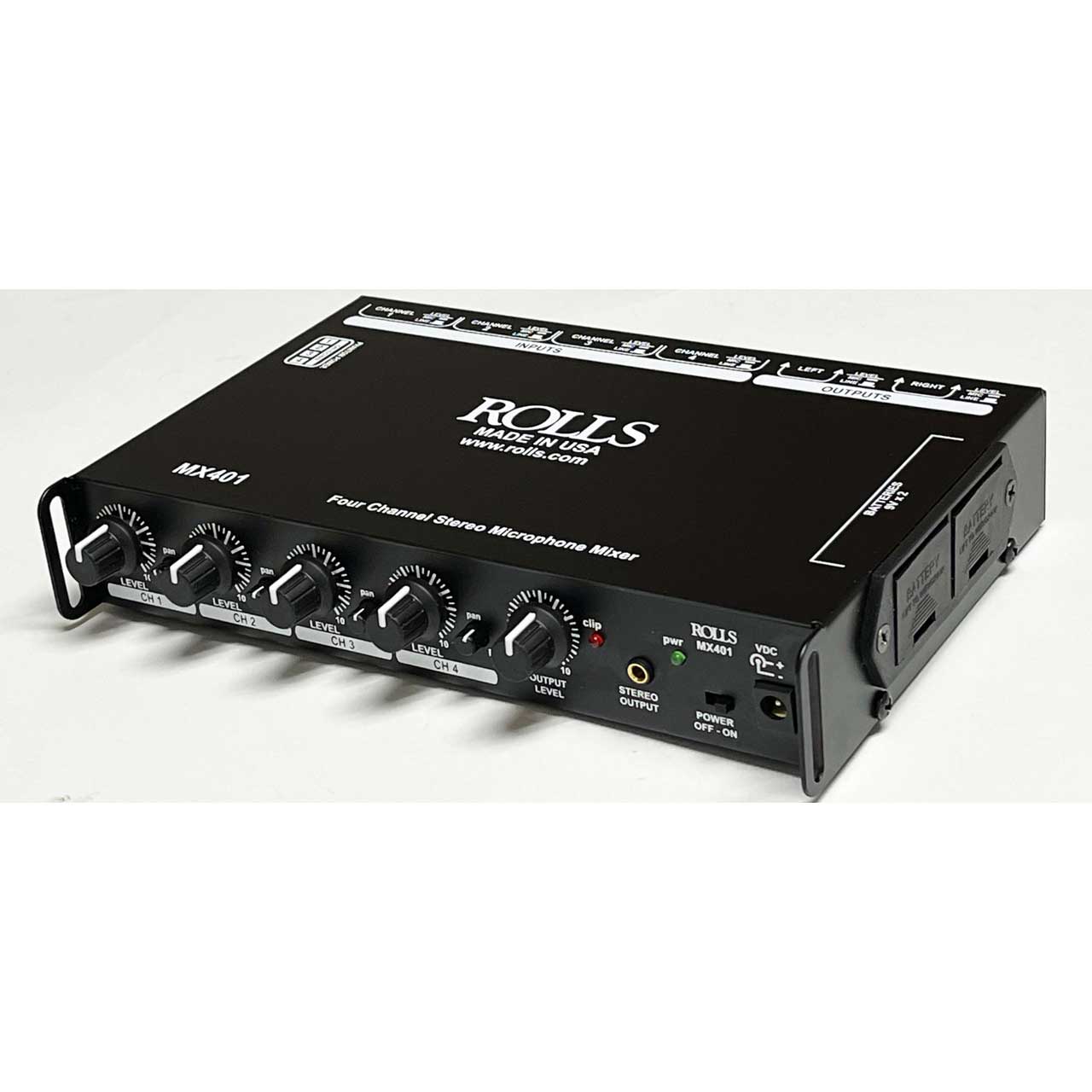

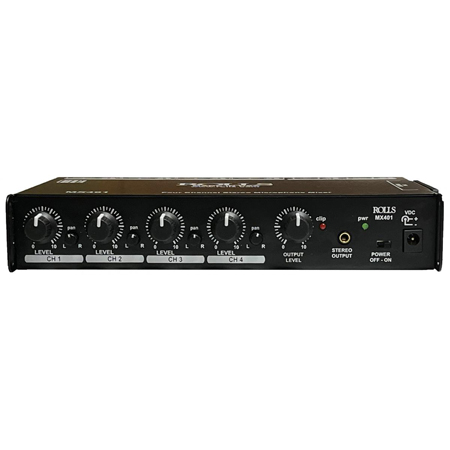

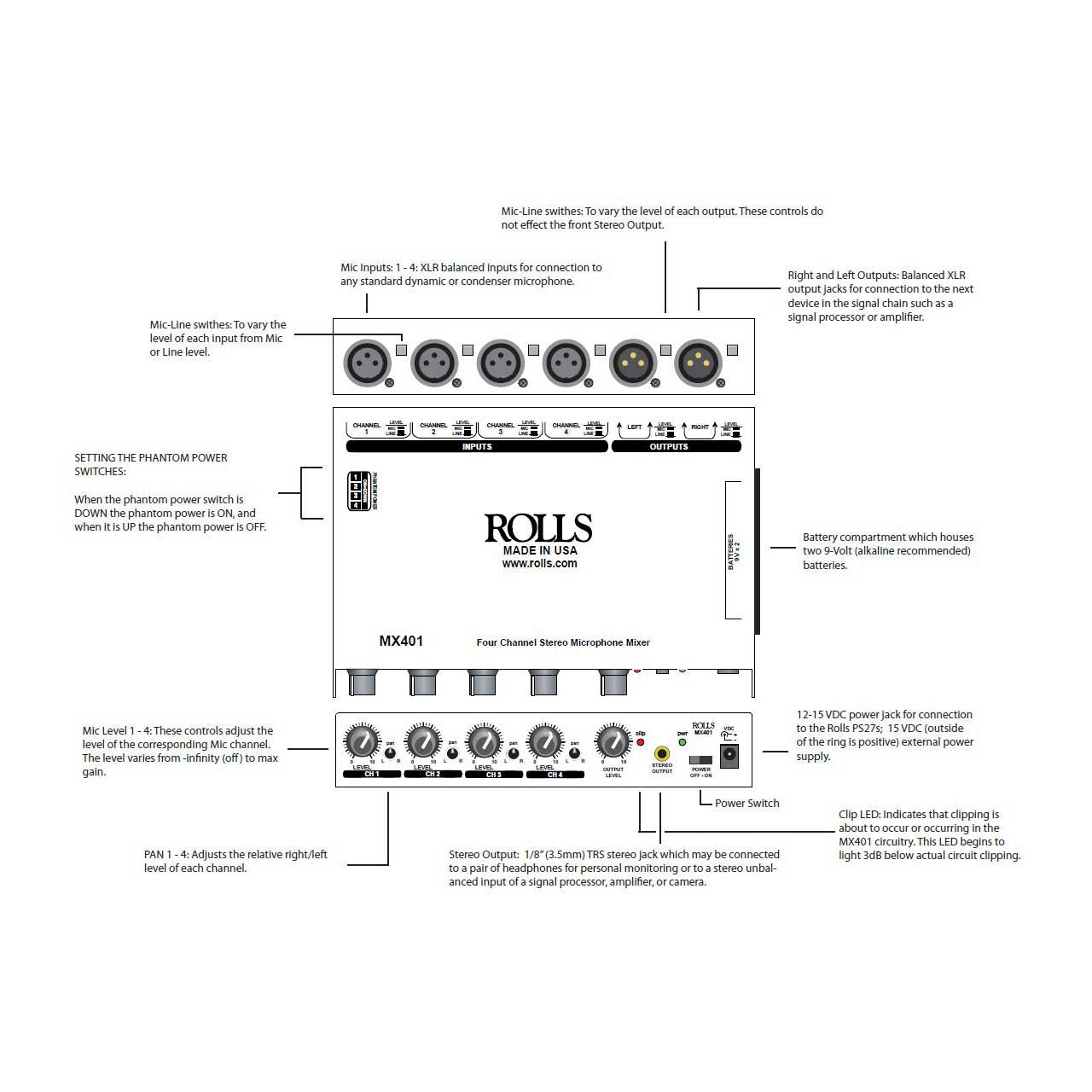

    The Rolls MX401 mixes 4 microphones or line level XLRs into two balanced Stereo outputs. The four XLR inputs, each have individually switchable phantom power, MIC or LINE level switch, Level control, and a Pan control. It features two independant balanced, XLR outputs both with selectable MIC or LINE level. A 1/8" inch Stereo Aux/Headphone output has been provided along with a Clip indicator, Power indicator, and Power switch. The unit is also powered by two 9-Volt alkaline batteries or the included 15VDC power supply. The MX401 replaces the previous MX124.

    • Features:

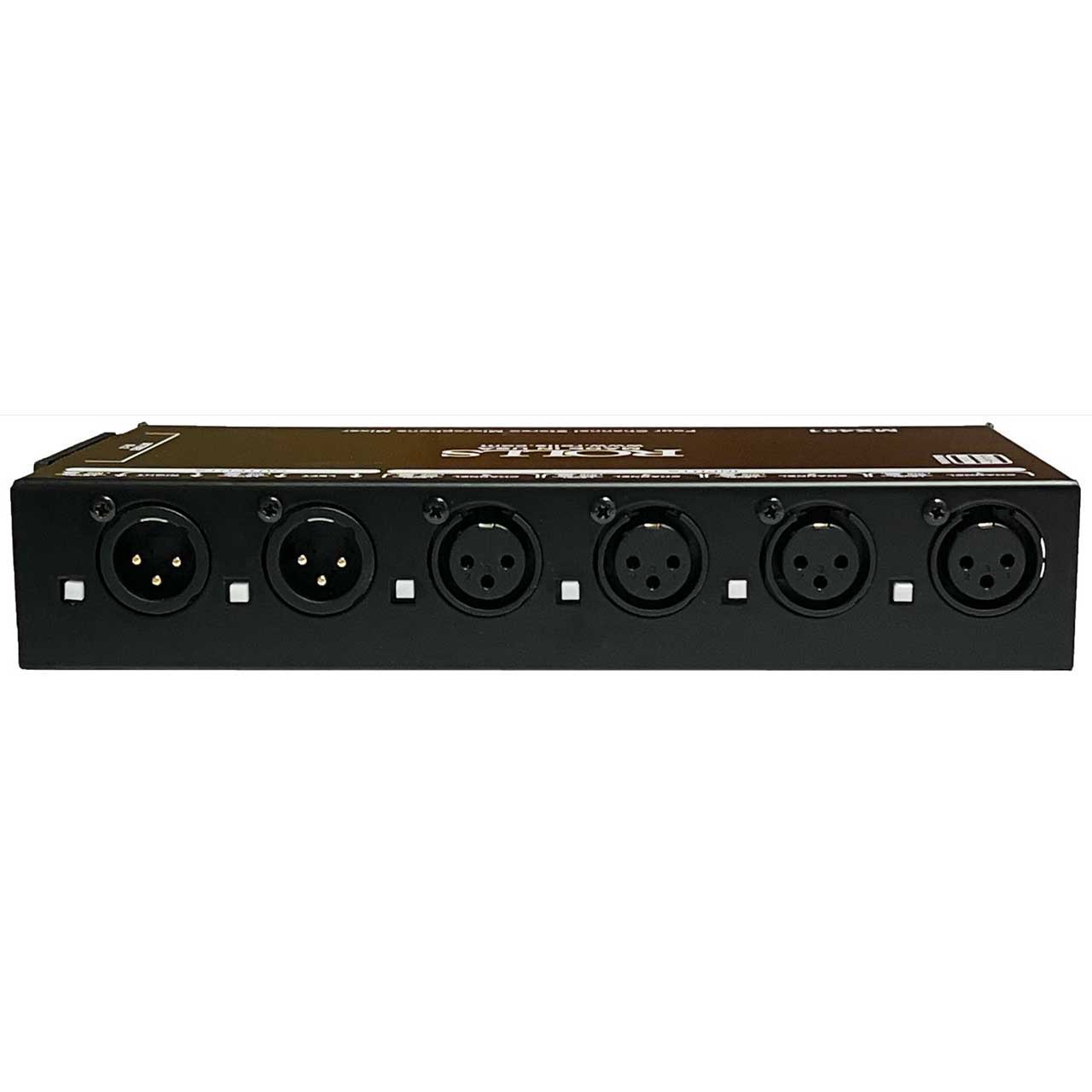

      • Four balanced XLR Inputs
      • Two balanced XLR Outputs
      • Switchable Output Level (Line level, or mic)
      • Switchable Phantom Power for each input
      • Level controls for each channel
      • 3.5mm Stereo Output
      • Rolls PS27s 15 VDC external power supply included
      • Powered by two 9 volt batteries or the included power supply

    • Specifications:

      • Input Impedance: 600 Ohms MIC - 10k Ohms LINE
      • Output Impedance: 600 Ohms MIC - 10k Ohms LINE
      • THD Noise: 0.02%
      • S/N Ratio: 96 dB
      • THD Noise: .02%
      • Self Noise: -65 dB maximum, -90 dB typical
      • Frequency Response: 20 Hz - 20kHz ( 0 / -3 dB)
      • Max Output Level: 14 dB
      • Max Gain: 55 dB
      • Current Draw: 30 mA with no Phantom Power or Signal
      • Phantom Power: 15 VDC
      • Power: 12-15VDC / < 300-500 mA
      • Size (W x D x H): 8.5

    • Item Includes:

      • 1x MX401 Four Channel Stereo Mic Mixer
      • 1x 15V Power Supply
      • 1x Owner's Manual

    • GTIN:

      0675889004014
