REAN RC5M Finger Groove 5-Pin Male XLR Cable Connector - Nickel Plated Housing & Silver Plated Contacts - 100/Pack

ITEM #: RN-RC5M-100 MFG #: RC5M 100/PACK

Primary Image
Rean
Free Shipping with $49 Minimum Order

List Price:

$295.00

Our Price:

$264.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

RC5M 100/PACK - Overview

REAN offers a wide range of XLR connections which is an industry standard since centuries. The range goes from ergonomic finger groove cable conntors, over right angeled version and robust metal receptacles to tiny XLR connections.

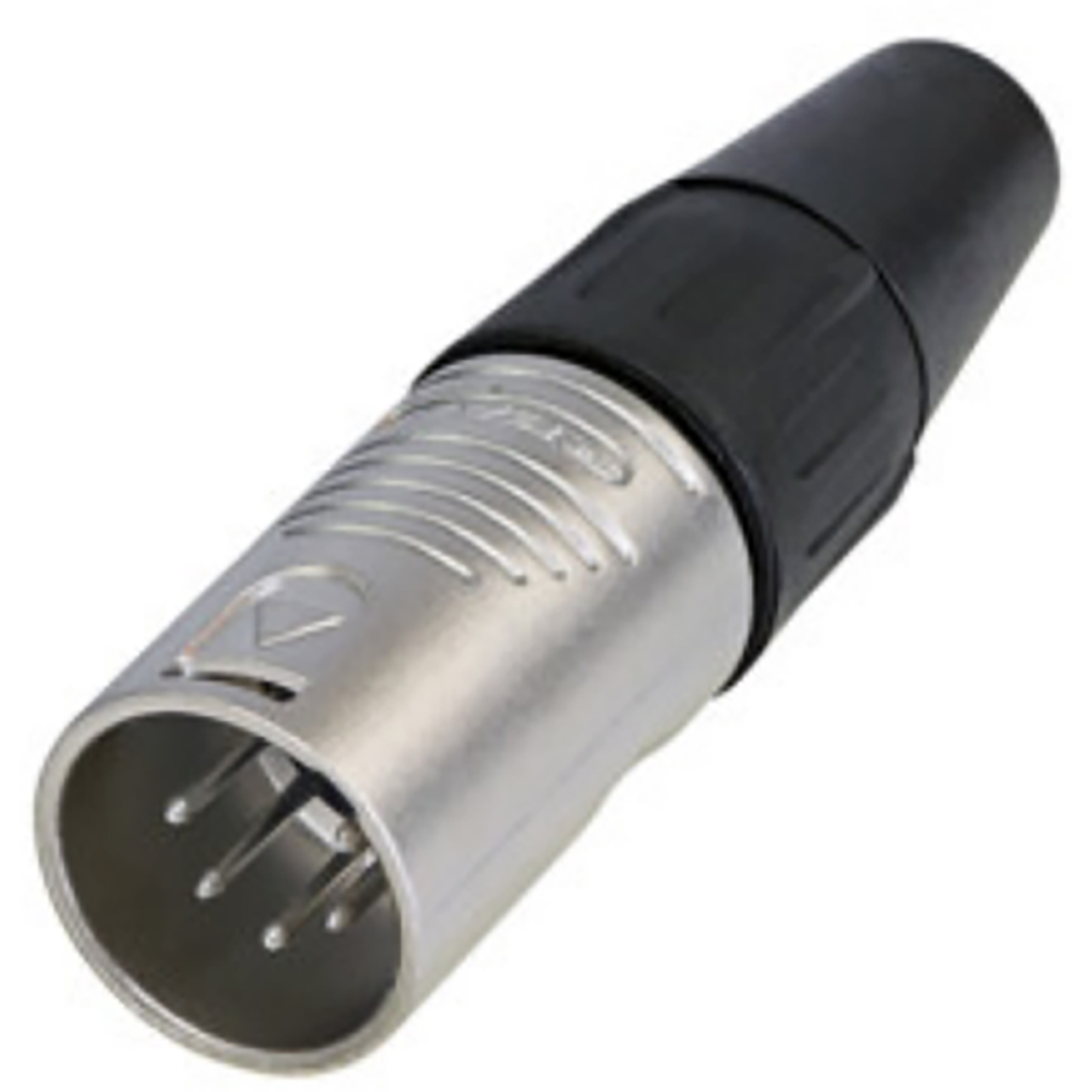

The REAN RC5M is a 5-Pin Male XLR Cable Connector with an ergonomic finger groove for valuable and best handling convenience.

  • Specifications:

    • Connection Type: XLR
    • Gender: Male
    • Insulation Resistance: >1.5GΩ
    • Contact Resistance: ≤5mΩ
    • Rated Current: 10A
    • Lifetime: >1000 Mating Cycles
    • Insertion Force: ≤30 N
    • Withdrawal Force: ≤20 N
    • Cable O.D.: 4mm - 7mm
    • Wiresize: 1.5mm²
    • Wiresize: 16 AWG
    • Housing: Zinc
    • Pin: Brass
    • Male Insert: PA6+30%GF
    • Ground Contact: Bronze
    • Chuck: POM
    • Bushing: PA6+30%GF
    • Push Ring: POM
    • Boot: PVC
    • Housing: Nickel Plating
    • Pin: Sliver Plating
    • Ground Contact: Tin and Cer


  • Item Includes:

    • 1x REAN RC5M Finger Groove 5-Pin Male XLR Cable Connector - Nickel Plated Housing & Silver Plated Contacts - 100/Pack
