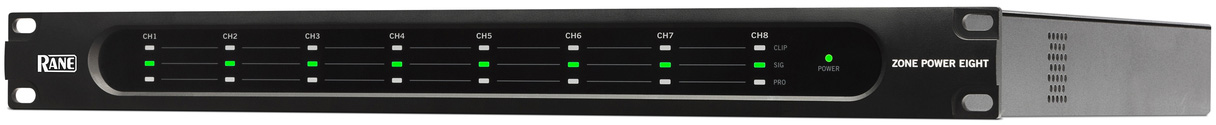

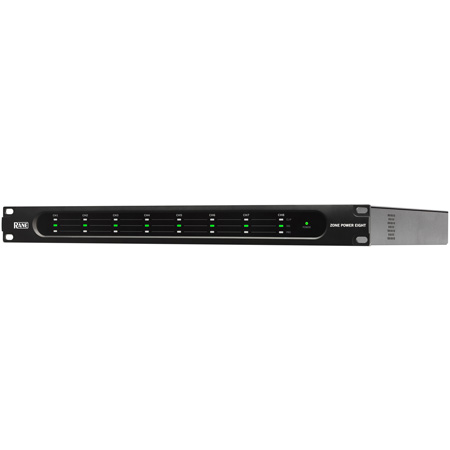

Rane Zone Power Eight 8-Channel Amplifier

ZONEPOWEREIGHTXUS - Overview

• Features:

  • 8-Channel Class-D amplifier designed for 70V/100V applications
  • 150W per channel

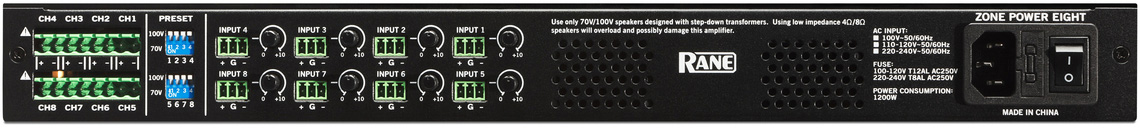

  • Euroblock inputs and outputs
  • Separate rear panel gain controls for each channel

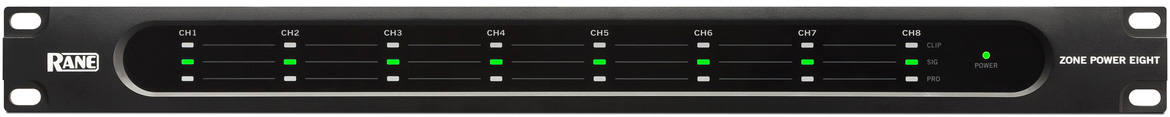

  • Signal, clipping and thermal interruption indicators on front panel
  • Open-circuit, short-circuit and thermal protection


• Specifications:

  • Connectors Frequency Response: 100 Hz - 15 kHz (0 ± 3 dB)
  • (8) Euroblock inputs
  • (8) Euroblock outputs
  • (1) IEC power cable input
  • Input Impedance: 20 kΩ balanced or 10 kΩ unbalanced
  • Input Sensitivity: 0.9 - 1.1 V (0 ± 1 dBV)
  • Total Harmonic Distortion: < 0.1%
  • Signal-to-Noise Ratio: > 95 dB
  • Channel Separation: > 70 dB
  • Damping Factor: > 200 (1k 8Ω)
  • Voltage Gain: 40 (± 1 dB @ 100V)

    Power
  • Connection: IEC
  • Voltage: 110-120 V or 220-240 V, 50/60 Hz
  • Consumption: 1200 W (150 W per channel)
  • Dimensions: (WxDxH) 19" x 14.2" x 1.7" (483 x 361 x 43mm)
  • Weight: 15.4Lbs (7 kg)


• GTIN:

  0694318024379
