The FSR-6601 series is capable of equalizing and reclocking all common serial digital signals. With support for both standard-definition and high-definition signals, the FSR-6601 series card is the ideal universal SDI distribution amplifiers.
The FSR-6601 series provides the ability to transport digital video baseband signals over a fiber optic link, allowing for longer transport distances. The optical to electrical conversions are done using video specific small form-factor pluggable (SFP) transceivers.

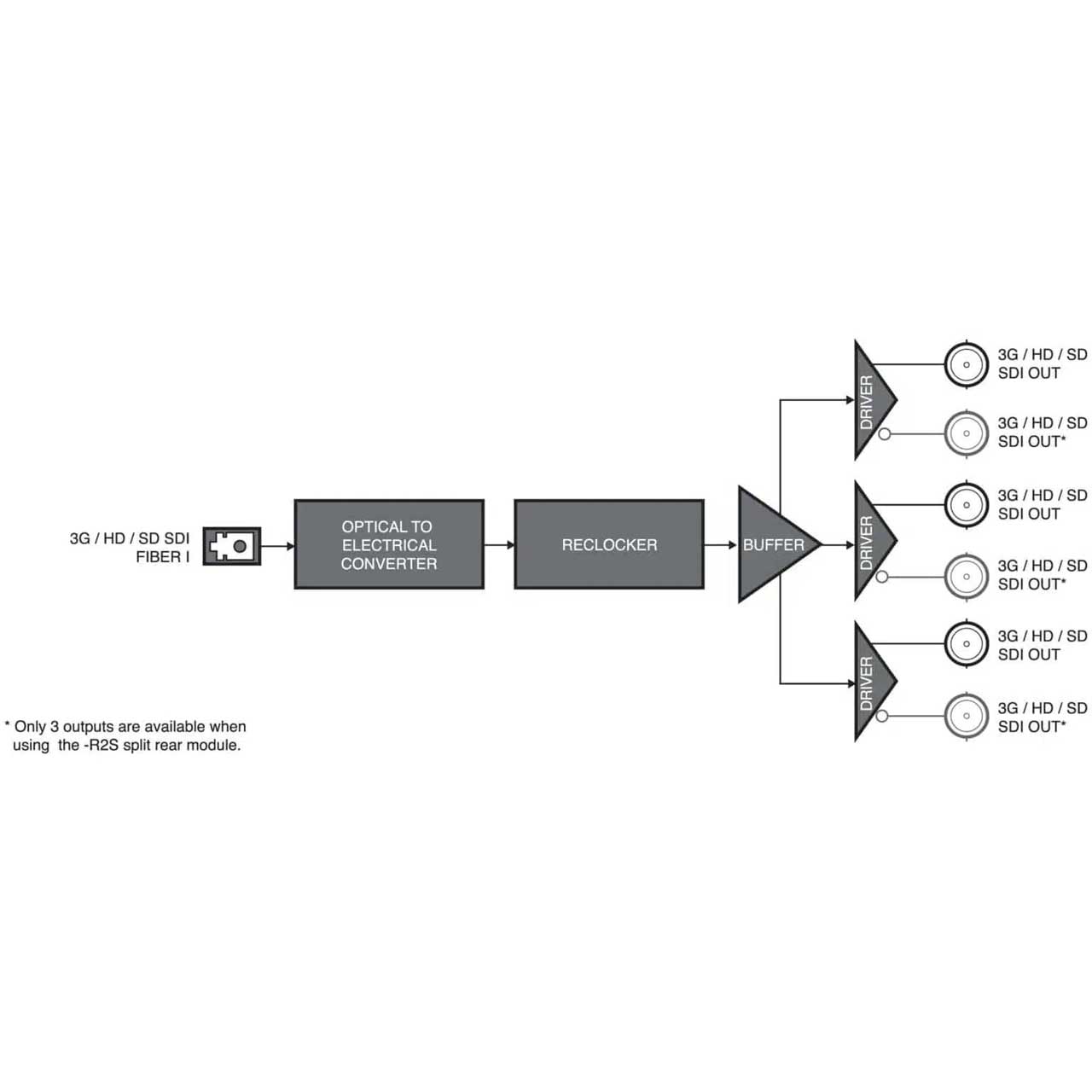

The FSR-6601 series equalizes the incoming SDI signal, then reclocks the signal with automatic rate detection for all popular data rates. LED indicators at the front of the card identify the presence of incoming video and the identified signal data rate.

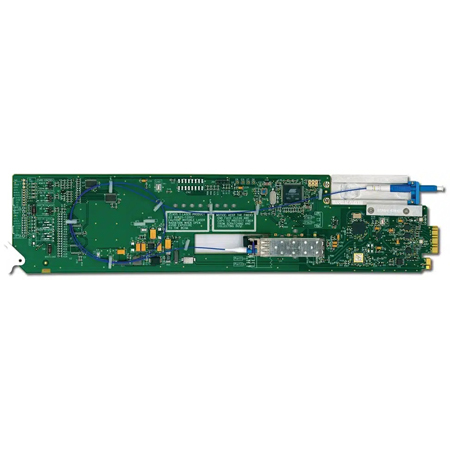

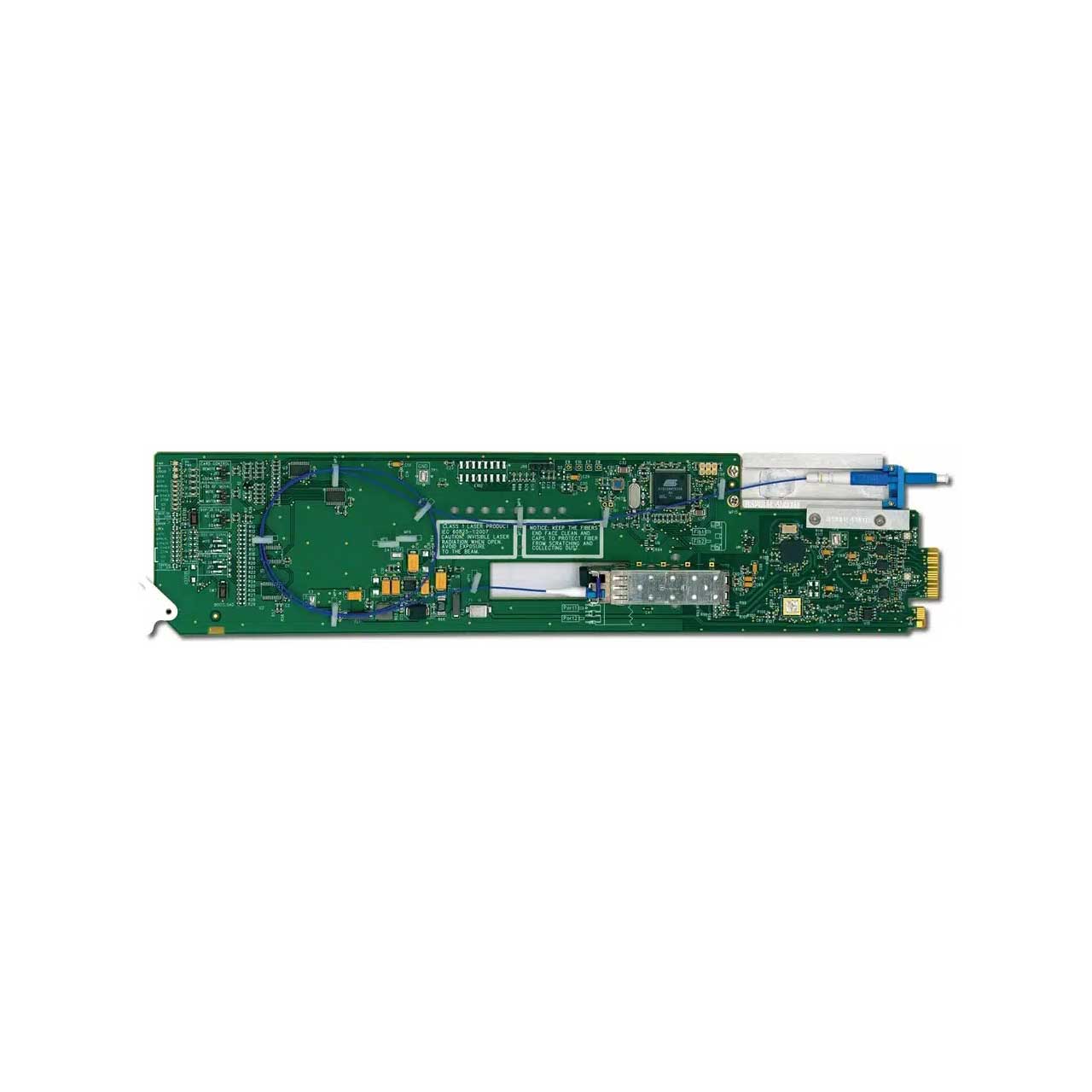

The FSR-6601 series is fully hot-swappable with all active components on the front removable module. No active components are installed on the rear module. This design greatly reduces down time eliminating any need for users to access the back of the frame.
The Ross FSR-6601-H is a version of the FSR-6601 that includes high sensitivity receive SFPs for increased link budget. The FSR-6601-H is compatible with standard 1310nm transmitters, and the CWDM transmitters from 1270nm to 1610nm (attenuation may be required to reduce optical power below -9dBm).
Note! An optical power source of greater than -9dBm can damage the FSR-6601-H. Before installing the FSR-6601-H, verify that the actual received optical power is between -9dBm and -28dBm.
