    OTT 1812 - Overview

    Dual Channel SD/HD/3G to Fiber Optic Transmitter (3G)

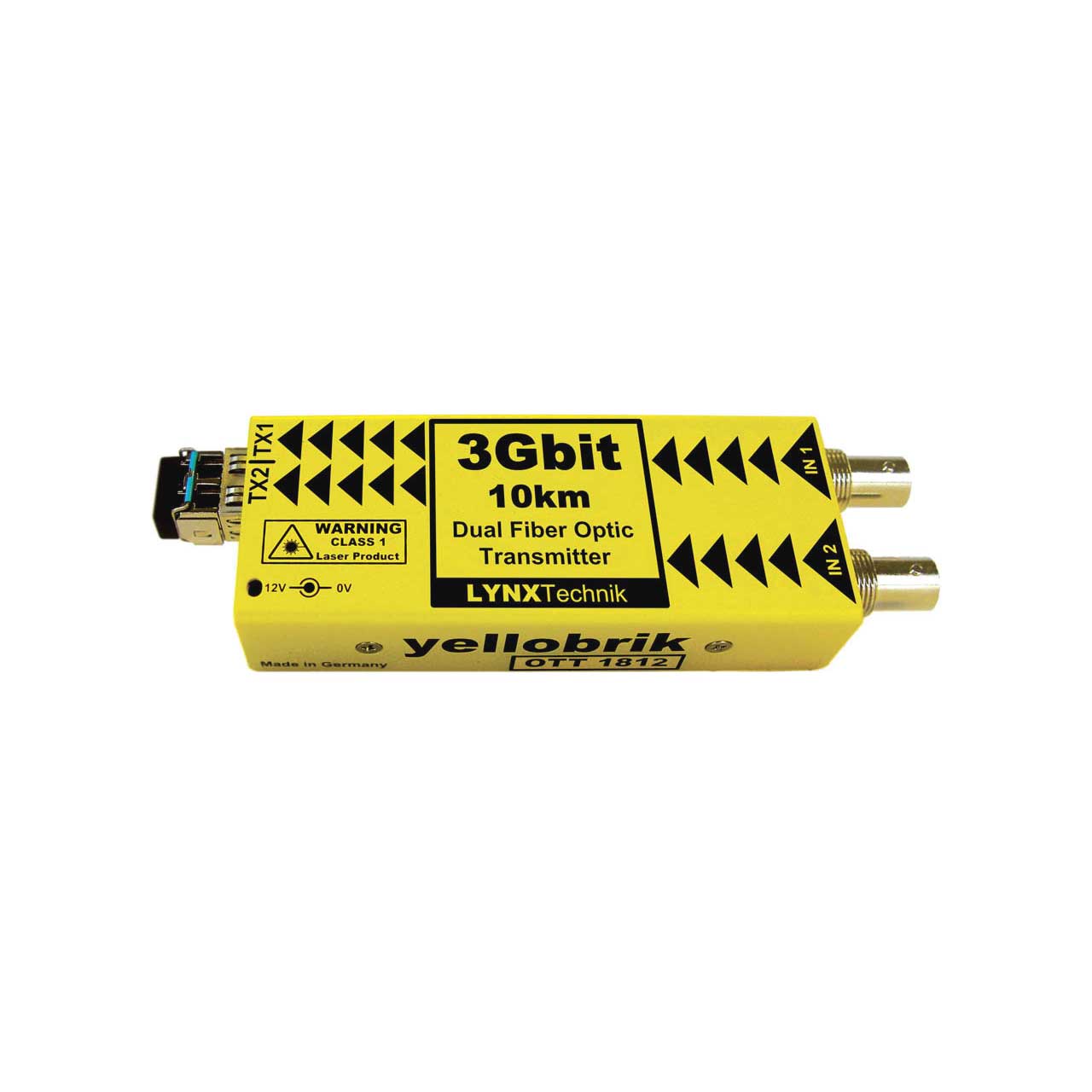

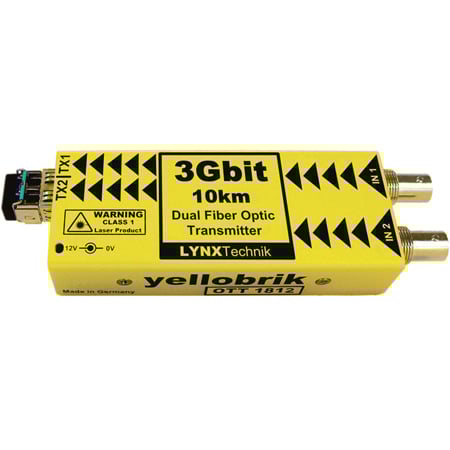

    The LYNX Technik OTT 1812 is a compact dual channel SDI to fiber optic transmitter designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.

    When paired with the dual channel fiber optic to SDI receiver (e.g. yellobrik ORR 1802) you have a very cost-effective dual channel optical transmission / receiver system for signals up to 1080p60 (3Gbit/s), while preserving full uncompressed quality.

    The OTT 1812 has two completely independent channels, and each will auto-detect and re-clock any 270Mbit / 1.5Gbit and 3Gbit SDI source prior to optical transmission. The module is fully compatible with 3Gbit Level A and Level B formats.

    • Features:

      • Dual channel
      • Supports SDI video inputs up to 3Gbit/s (1080p60)
      • 3Gbit Level A and Level B support (all formats)
      • Auto reclocking 270Mbit / 1.5Gbit / 3Gbit
      • Error free optical transmission
      • Up to 10km (6.2 miles) @ 3Gbit/s
      • Duplex LC/PC singlemode optical connection
      • Supports hot swapping and hot plugging

    • Specifications:

      • Input
      • 2 x SDI video on 75 Ohm BNC connector (two independent channels)
      • SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
      • Multi-standard operation from 270Mbit/s to 3Gbit/s
      • Multi-rate reclocking
      • 270Mbit/s - 1.5Gbit/s - 3Gbit/s
      • Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
      • Automatic cable EQ (Belden 1694A cable)
      • 340m @ 270Mbit/s, 150m @ 1.5Gbit/s, 120m @ 3Gbit/s

        Optical Outputs
      • 2 x fiber optic outputs (one for each channel)
      • Duplex (single mode) using LC/PC Connections
      • SMPTE 297M - 2006
      • Wavelength 1310nm (each channel)
      • Optical power -5dBm (each channel)
      • TX active LEDs on side of module
      • Max. distance approx.: 10km (6.2 miles) @ 3Gbit/s (Singlemode)

        Physical
      • Power: +12VDC @ 2.5W nominal - ( supports 7 - 16VDC input range )
      • Size: 140 x 42 x 22mm (5.51 x 1.65 x 0.86") including connectors
      • Weight: 125g (4.4oz)
      • Ambient: 41 - 104°F / 90% Humidity (non condensing)

    • Item Includes:

      • 1 x OTX 1812 Module
      • 1 x AC Power Supply
      • 2 x Module Mounting Brackets
      • 1 x LC Duplex Singlemode SFP

    • Options

      :

      • LC/ST DUP – Dual LC to ST Fiber connector adapter cable
      • LC/SC DUP – Dual LC to SC Fiber connector adapter cable
      • P-TAP 1000 – P-TAP battery power adapter lead
      • XLR-1000 – 4 Pin XLR camera battery power adapter lead
