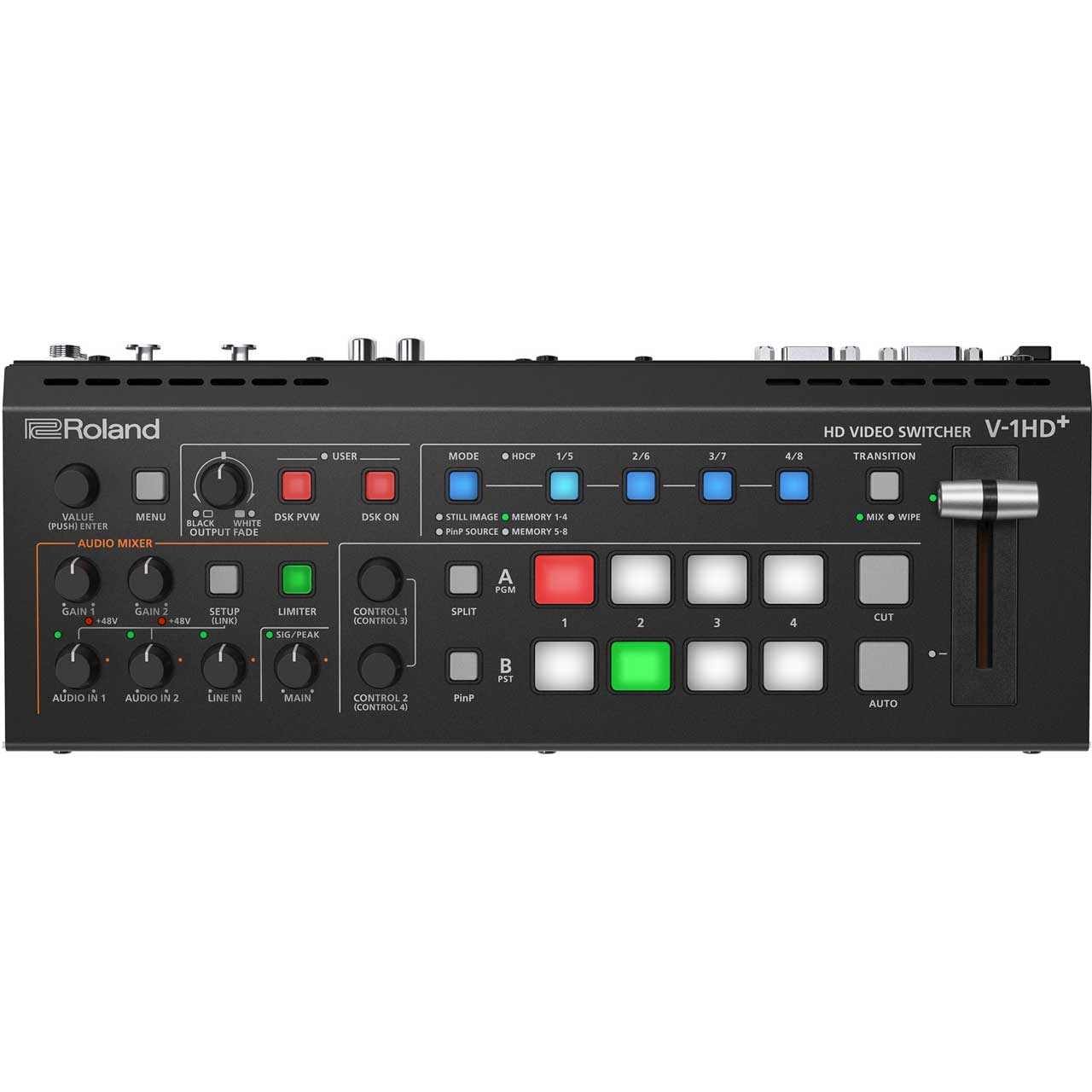

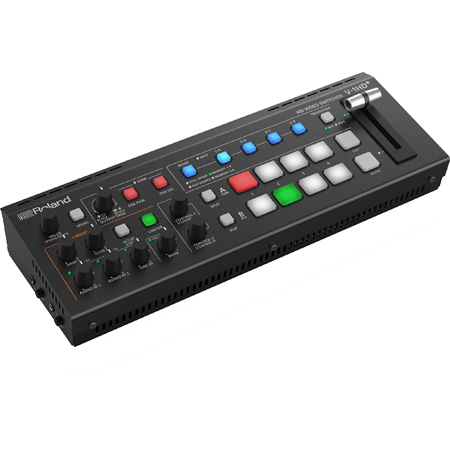

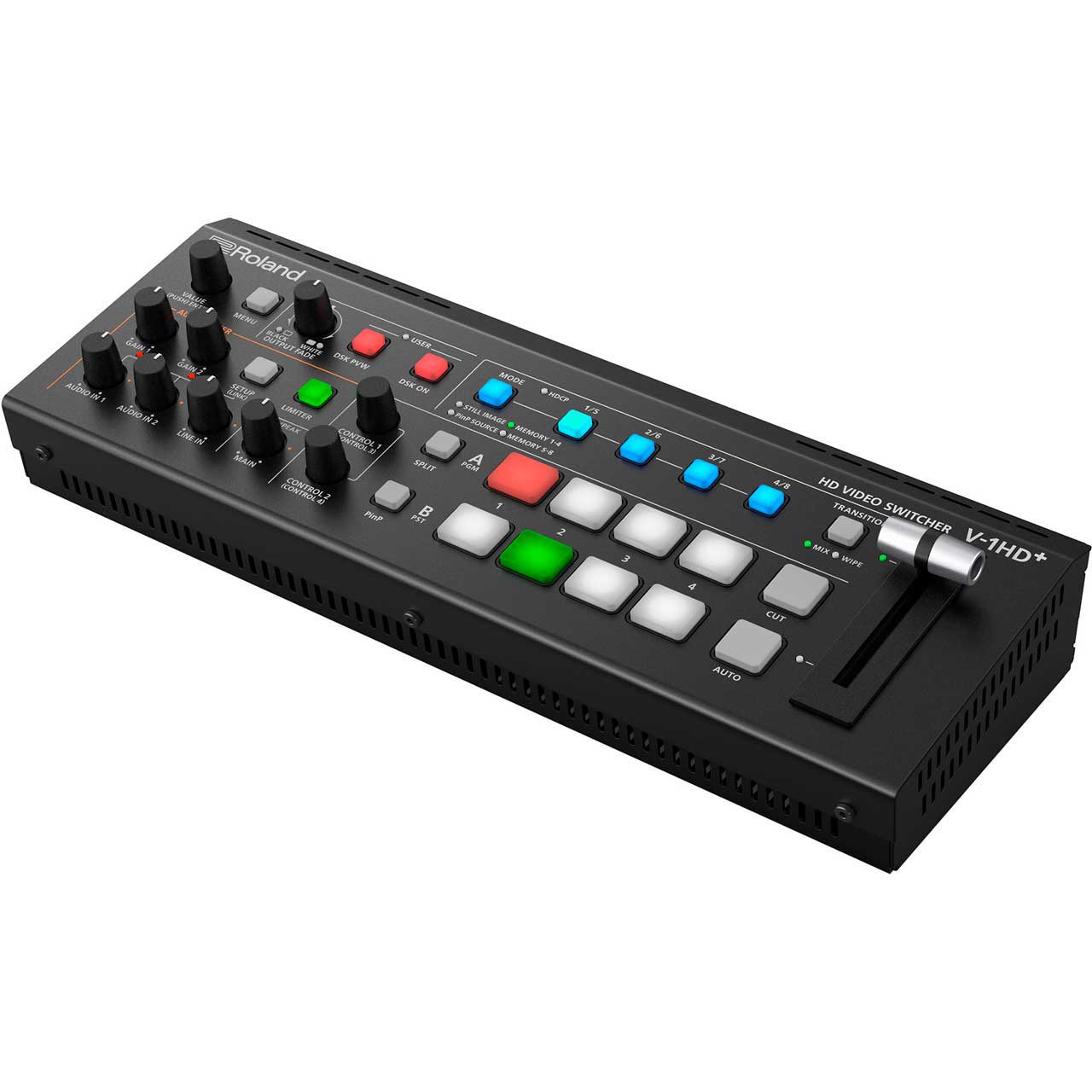

Roland Systems Group V-1HD+ Portable & Compact HD Video Switcher

ITEM #: ROL-V-1HD-PLUS MFG #: V-1HD-PLUS

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$699.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    V-1HD-PLUS - Overview

    The Roland V-1HD+ is the ultimate compact A/V switching solution for serious visual storytellers. Elevate your creative production process with versatile I/O, a familiar user interface, deep control, and essential monitoring tools that help keep your content looking great and sounding perfect. The V-1HD+ delivers the superior performance you want and the production-critical reliability you demand-plus the Roland support and training resources you deserve.

    Say Goodbye to Workflow Workarounds
    While many video switchers promise easy workflows, they often require workarounds for optimum results. Too often, those workarounds force you into technical compromises and purchasing extra gear. With its feature-rich design, the V-1HD+ provides the key tools you need to get the job done right.

    A Legacy of Success
    Since its release in 2015, the Roland V-1HD has been the most popular high-definition, four-channel HDMI video switcher available. The V-1HD+ extends this legacy with a deeper feature set for advanced applications-while still maintaining the simple operation, pro performance, and rugged reliability that's made the V-1HD a favorite of users around the world.

    Four Video Inputs and Onboard Scaling
    Four HDMI inputs with frame rate conversion let you mix a variety of sources, including cameras, presentation computers, tablets, and video game consoles. And when you have a troublesome source that won't display correctly, simply plug it into Input 4 and let the built-in video scaler sync and calibrate the image automatically.

    Two Video Outputs
    Two independent HDMI outputs can be assigned to display one of three different video busses, providing the versatility you need for pro production. For example, you can use one as your main program output for a recorder or livestream, and the second output to turn any HD video monitor into an "up-next" input preview display or expanded multiviewer with 10 windows.

    • Features:

      • Professional HD switching solution for live events, livestreaming, or both at once
      • Standalone video switcher and 14-channel audio mixer for single operators
      • Compact and portable for fast set up
      • Familiar interface that's quick to learn and easy to use
      • Technology-assisted automatic video switching
      • Four-layer effects and keying engine to engage audiences with graphics, lower thirds, and social callouts
      • Pro audio I/O with legendary Roland sound quality
      • Eight memory presets to recall visual layouts on cue

    • Specifications:

      • Video
      • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
      • Input Connectors: INPUT 1-3: HDMI type A x3 *HDCP Supported; INPUT 4: HDMI type A *HDCP Supported *Multi-format Supported
      • Output Connectors: OUTPUT 1-2: HDMI type A x2 *HDCP Supported
      • Input Formats: INPUT 1-3: 720/59.94p, 720/60p *1, *3; 720/50p *1, *4; 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3; 1080/50i, 1080/50p, 1080/25p *2, *4; 1080/23.98p, 1080/24p *2
      • * The input interlaced video signal is converted to progressive video signal by internal processing.
        *1 SYSTEM FORMAT = 720p
        *2 SYSTEM FORMAT = 1080i or 1080p
        *3 FRAME RATE = 59.94 Hz
        *4 FRAME RATE = 50 Hz
      • INPUT 4: 480/59.94i, 480/59.94p, 720/59.94p, 720/60p, 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1; 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2; 1080/23.98p, 1080/24p
        VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
        WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
        FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
        UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
        *The refresh rate is the maximum value of each resolution.
        *Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
        *1920 x 1200/60 Hz: Reduced blanking
        *The input interlaced video signal is converted to progressive video signal by internal processing.
        *1 FRAME RATE = 59.94 Hz
        *2 FRAME RATE = 50 Hz
      • Still Image:
        Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
        PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
        *It can be stored up to 24 files in the internal memory.
        *PNG alpha channel not supported.
      • Output Formats: OUTPUT 1-2: 720/59.94p *1, *4; 720/50p *1, *5; 1080/59.94i *2, *4; 1080/50i *2, *5; 1080/59.94p *3, *4; 1080/50p *3, *5
        *1 SYSTEM FORMAT = 720p
        *2 SYSTEM FORMAT = 1080i
        *3 SYSTEM FORMAT = 1080p
        *4 FRAME RATE = 59.94 Hz
        *5 FRAME RATE = 50 Hz
      • Video Effects:
        Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
        Composition: PinP (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer (Luminance key, Chroma key), DSK (Luminance key, Chroma key)
        Other: Flip horizontal, Flip vertical, Still image capture, Still image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output

        Audio
      • Audio Processing: Sample rate: 24 bits/48 kHz
      • Audio Formats: Linear PCM, 24 bits/48 kHz, 2 ch
      • Input Connectors:
        INPUT 1-4: HDMI Type A x4
        AUDIO IN 1-2: XLR-3-31 type (balanced, phantom power DC 48 V, 14 mA Max)
        LINE IN: RCA phono type

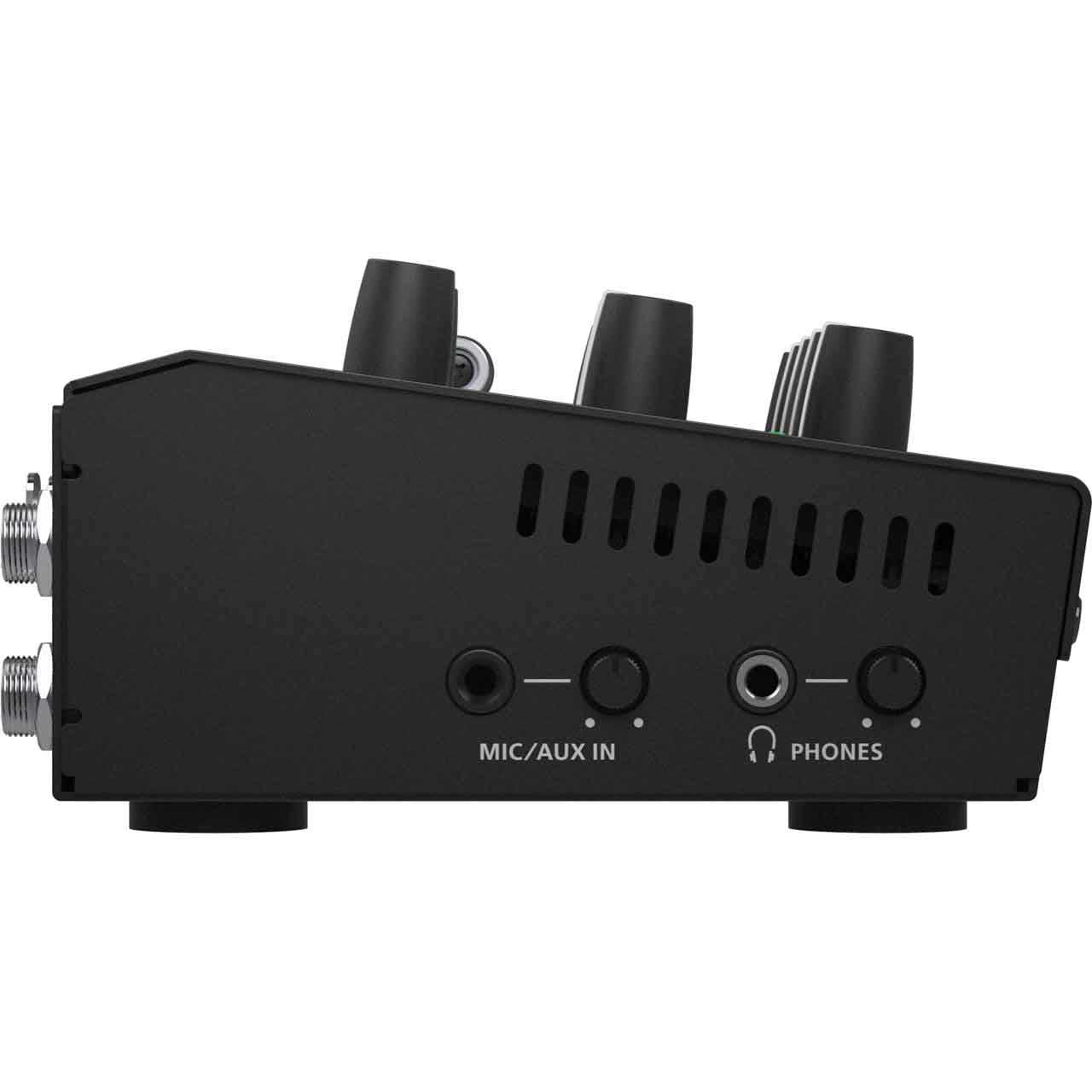

        MIC/AUX IN: Stereo miniature phone type (PLUG-IN power)
      • Output Connectors:
        OUTPUT 1-3: HDMI Type A x 2
        AUDIO OUT L, R: 1/4-inch TRS phone type
        PHONES: Stereo miniature phone type
      • Nominal Input Level:
        AUDIO IN 1--2: -60 to +4 dBu (Maximum input level: +24 dBu)
        LINE IN: -10 dBu (Maximum input level: +10 dBu)
        MIC/AUX IN: -51 to -10 dBu (Maximum input level: +10 dBu)
      • Input Impedance:
        AUDIO IN 1--2: 10 k ohms
        LINE IN: 15 k ohms
        MIC/AUX IN: 10 k ohms
      • Nominal Output Level:
        AUDIO OUT L, R: +4 dBu (Maximum output level: +24 dBu)
        PHONES: 72 mW + 72 mW (32 ohms load)
      • Output Impedance:
        AUDIO OUT L, R: 600 ohms
        PHONES: 10 ohms
      • Audio Effects: Delay, High pass filter, De-Esser, Compressor, Noise gate, Equalizer, Limiter, Reverb, Test tone output

        Others

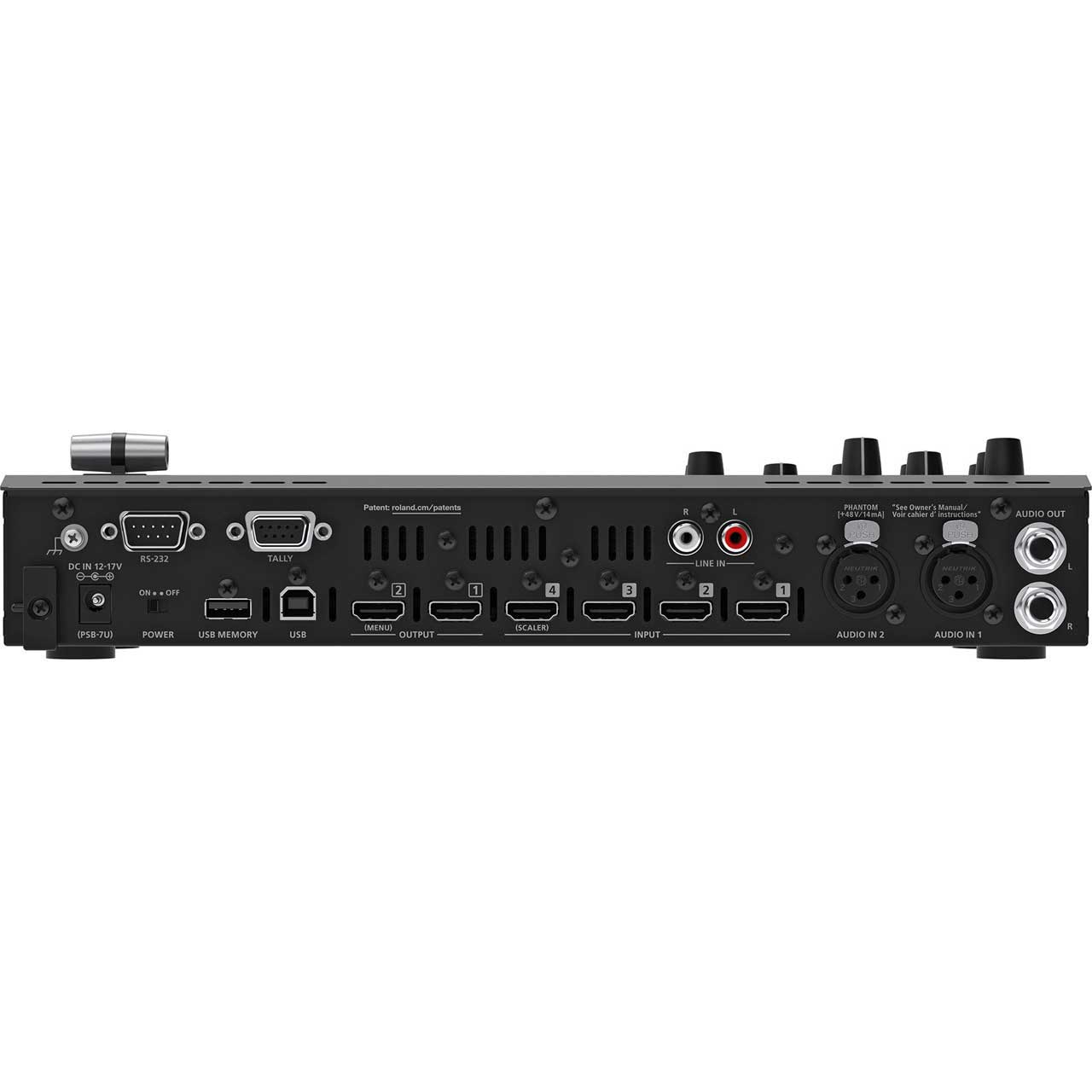

      • Other Connectors: USB MEMORY: USB A type (for USB flash drive) REMOTE: USB B type (for remote control) RS-232: DB-9 type (male, for remote control) TALLY: DB-9 type (female, for TALLY output)
      • Other Functions: Preset memory (8 types), Panel lock function, EDID emulator, Auto switching, Auto input detect
      • Power Supply: AC adapter
      • Current Draw: 2.1 A
      • Power Consumption: 25.2 W
      • Operation Temperature: 32° to 104°F (0° to 40°C)
      • Dimensions (WxDxH): 12.44 x 4.76 x 2.56"
      • Weight: 3Lbs

    • Item Includes:

      • 1x Startup Guide
      • 1x Leaflet "USING THE UNIT SAFELY"
      • 1x AC adapter
      • 1x Power cord

    • GTIN:

      0761294516928
