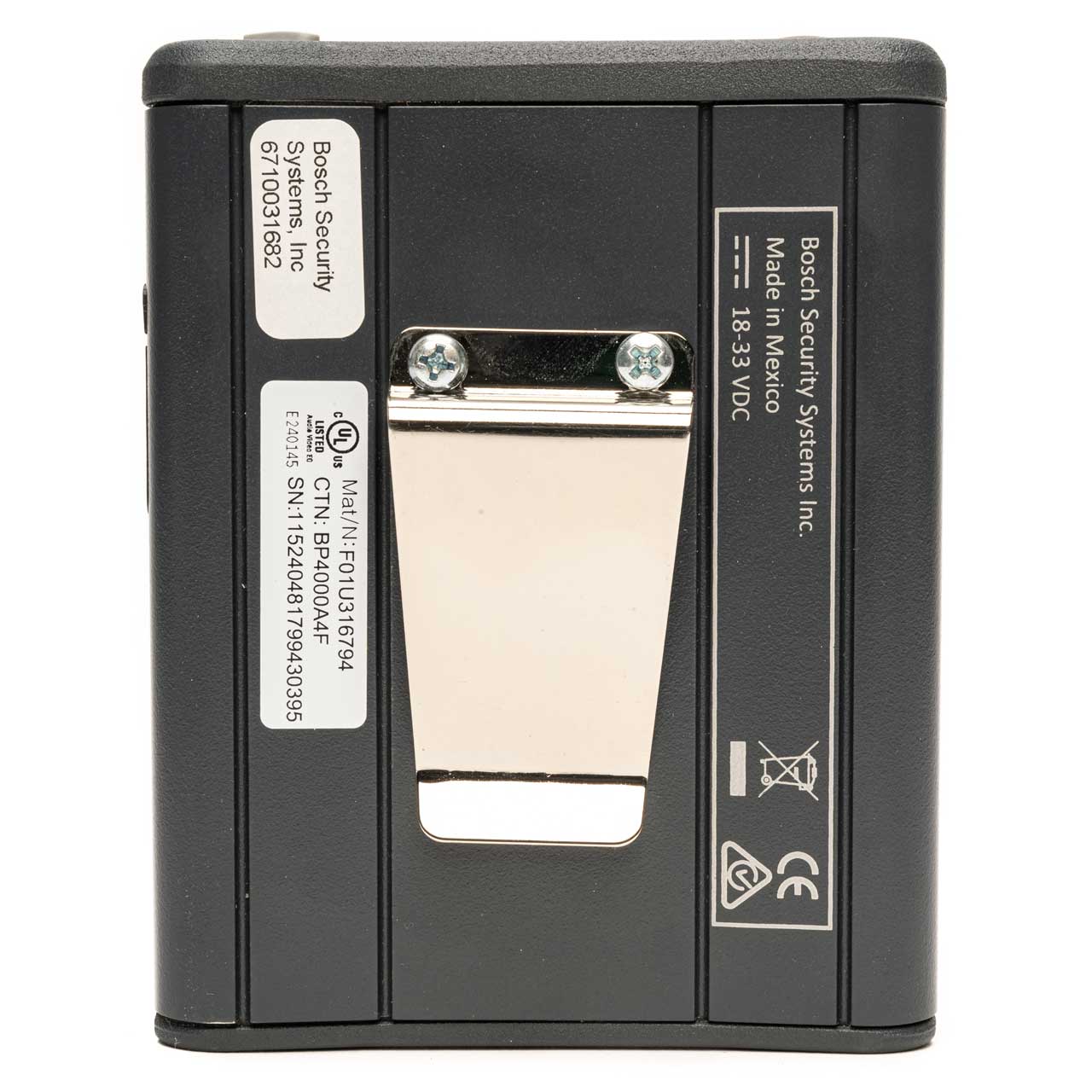

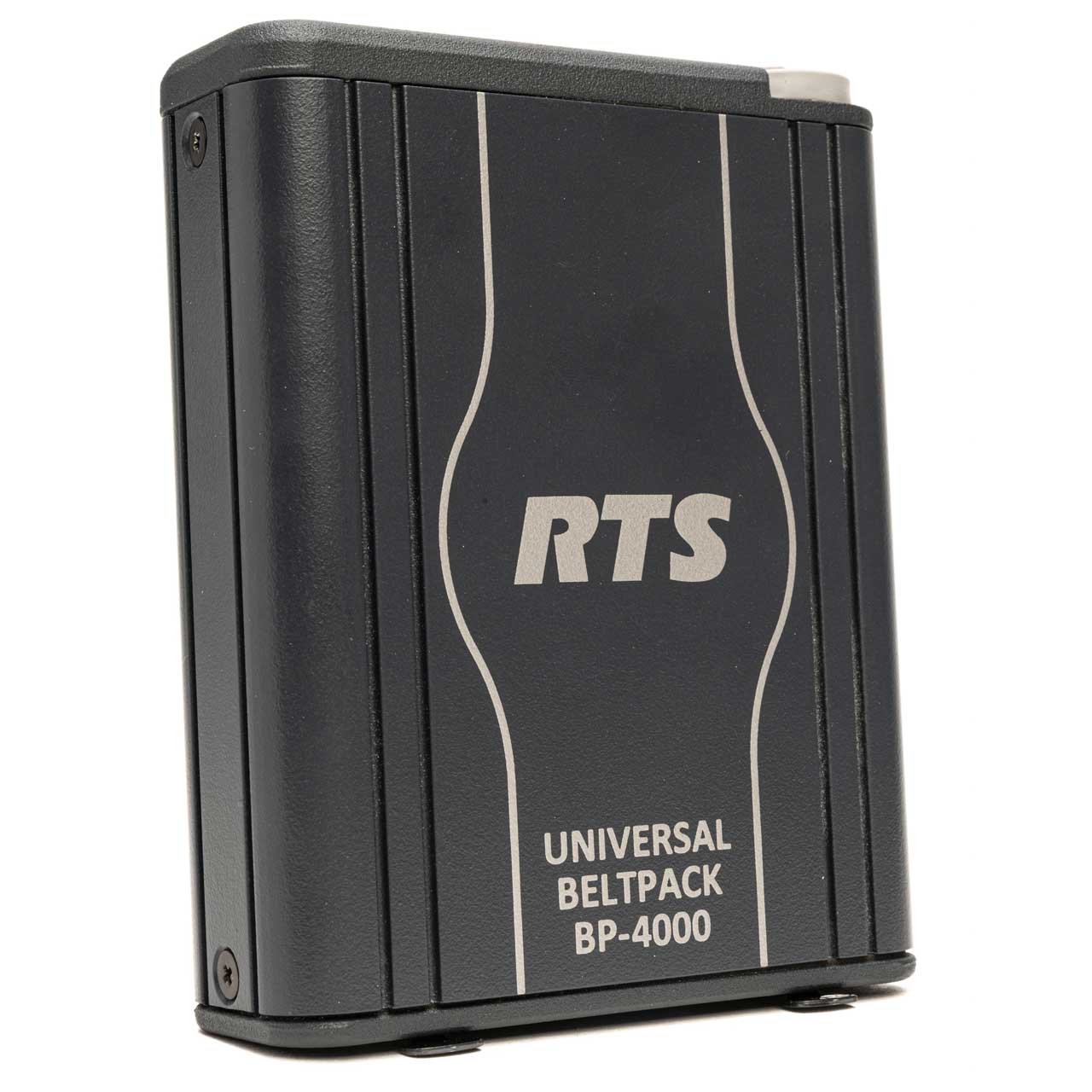

RTS BP4000 Universal Beltpack with 4-pin Female Connection - Bstock (Unit is new but missing packaging/manual)

ITEM #: RTS-BP4000A4F-BS MFG #: RTS-BP4000A4F-BS

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the RTS-BP4000A4F-BS

RTS-BP4000A4F-BS - Overview

The Universal Beltpacks are portable user stations compatible with RTS, Audiocom, and Clear-Com party line systems. They are available in 1-channel and 2-channel versions. Both have the mode-sensing system configuration, meaning the beltpacks can determine what type of system they are installed into and configure themselves according to that system.

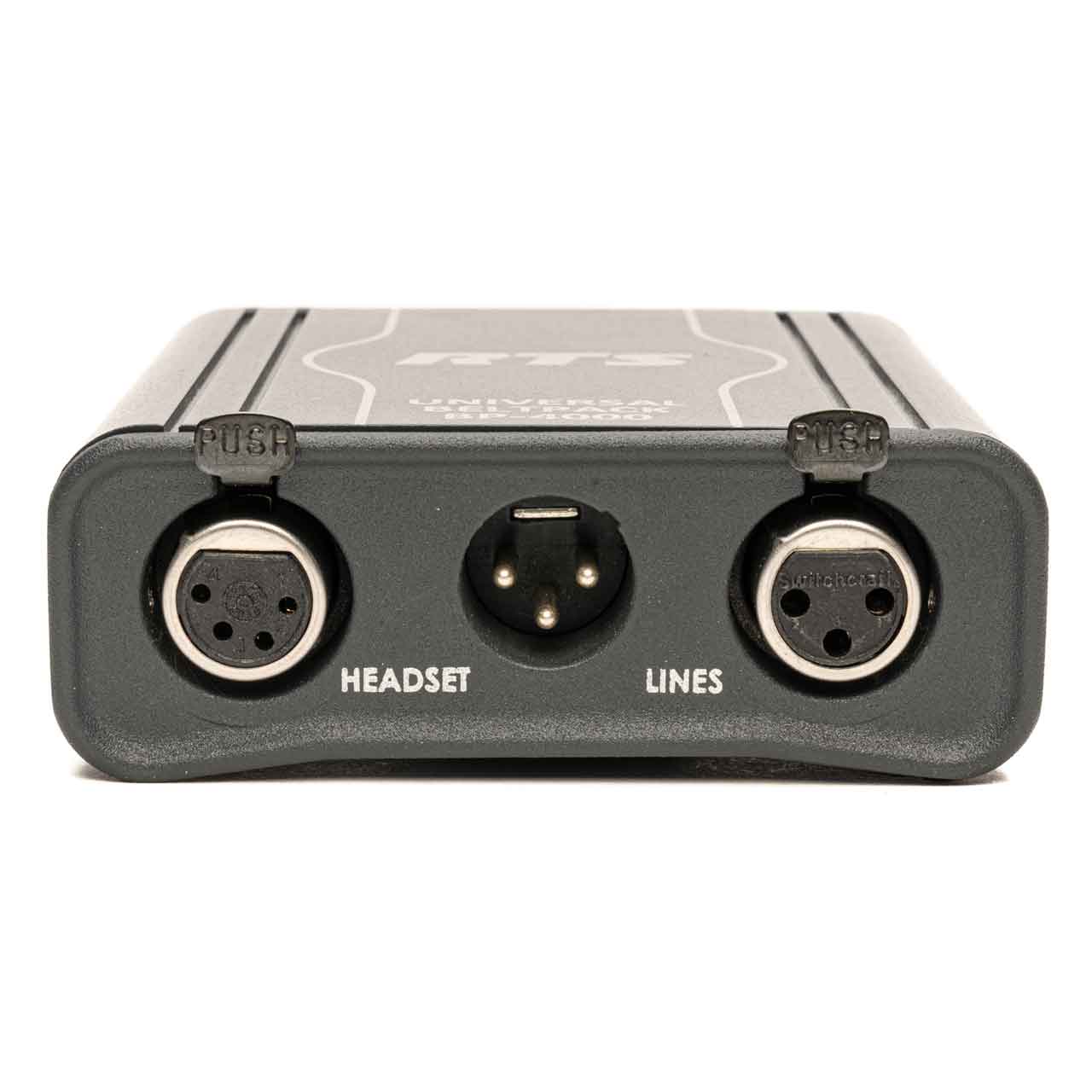

The BP-4000 and BP-5000 can be ordered with either a 4-pin male, 4-pin female, or a 5-pin female XLRconnector providing, a wide-range of headset options. Dynamic and electret headset microphones are supported.

Multiple programming options are available. To simplify programming, voice prompts guide the user through the menus. Beltpack are available in black only.

Once plugged in, the beltpacks automatically recognize the wiring scheme and configure the unit for either the Audiocom, RTS or Clear-Com format.

INTELLIGENT POWER MANAGEMENT
Due to a reduced power consumption up to 40 daisy-chained beltpacks can be powered by only one PS-20 power supply. A current pump circuit constantly monitors the cable length versus the actual current consumption to ensure the beltpacks receive the voltage they need.

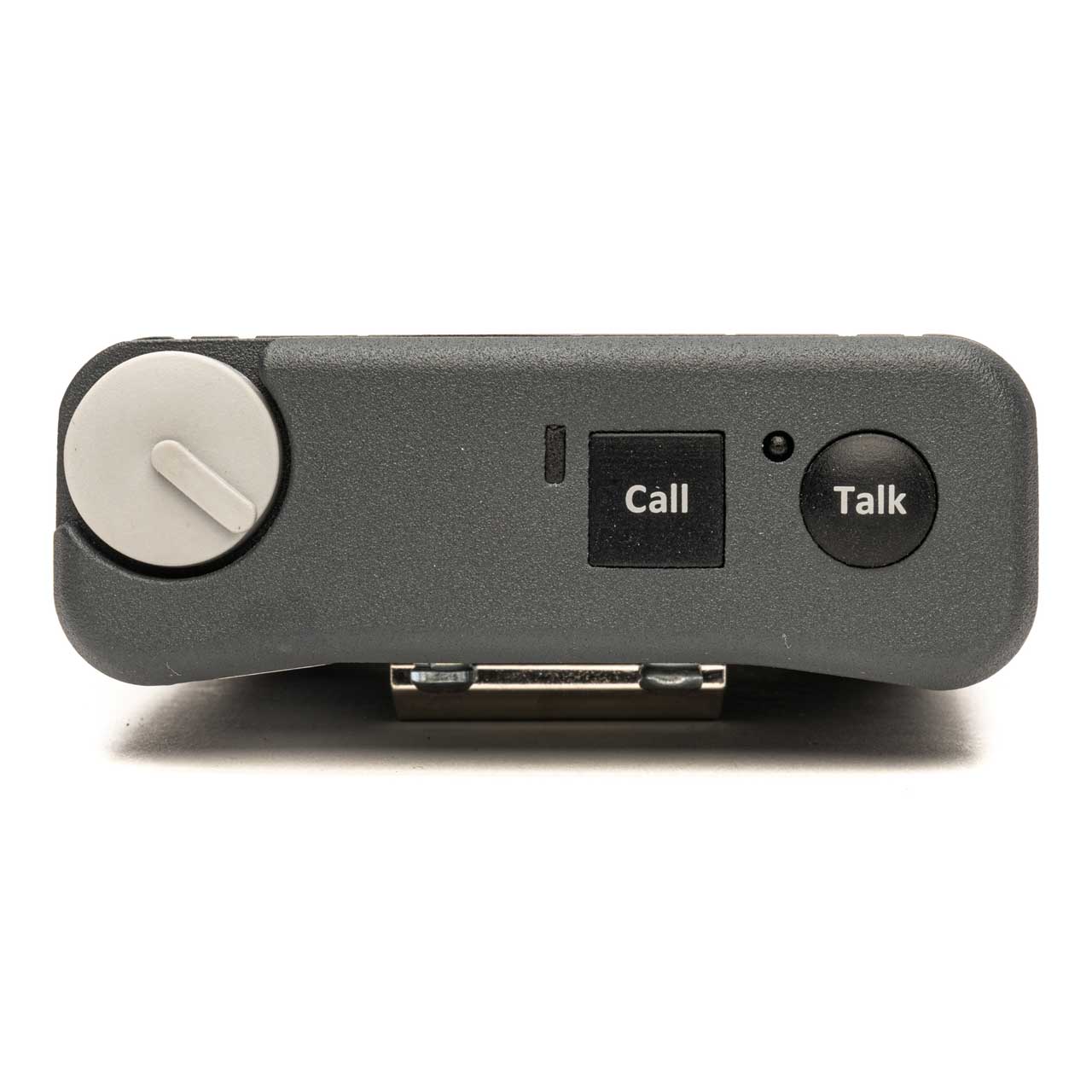

ENHANCED TALK BUTTON CONTROL -
Offers the choice between "always on", "always off" or "switching". In addition to a blinking incoming call lamp as visual feedback, the BP-4000 single-channel beltpack from RTS provides the user with immediate haptic feedback of an incoming call using a vibration alert.

REMOTE KILL FUNCTION -
Allows any user to send an inaudible "microphone kill signal" which instantly mutes every beltpack mic in the partyline. This feature can be useful when a user inadvertently left the mic open. It is also possible to override the mic-kill function.

VOICE GUIDANCE EASY FACTORY DEFAULT RESET -
Short voice prompts help the user navigating through the menu options eliminating the need to configure internal jumpers or switches. The devices can be easily reset to factory defaults.

Please Note: The unit has no manual or packaging but is in perfect working condition.

  • Features:

    • Voice prompts for simplified configuration
    • Remote Mic Kill turns off all active microphones, reducing background noise
    • Programmable TALK Button, (Always) On, (Always) Off, Switched, or Momentary
    • Mode-sensing System Configuration
    • Updated design for modern, sleek appearance
    • Reduced current draw allows for more beltpacks being powered by the power supply
    • Auto-sensing headset inputs, electret or dynamic
      Bstock - The unit has no packaging or manual but is in perfect working condition.

  • Specifications:

    • Max Operating Current (unbalanced): 45 mA
    • Max Operating Current (balanced): 52 mA
    • Channel Supplied: 18-33 VDC
    • Local Power: 18-33 VDC
    • Operating Temperature: 32° F to 131° F
    • Operating Humidity: 5% to 95%, non-condensing
    • Storage Temperature: -4° F to 158° F
    • Storage Humidity: 15% to 90%, non-condensing
    • Dimensions (W x D x H): 3.75" x 1.35" [1.55" D with beltclip] x 4.69" [4.79" H with top panel]
    • Headset: 50 to 200 Ω (dynamic); 1k to 13k Ω (electret)
    • Headphones: 50 to 600 Ω
    • Output Level: 0.0 dBu nominal
    • Noise Contribution: <-60 dBu
    • Total Harmonic Distortion: <1.0%
    • Balanced Impedance: 300 Ω
    • Bridging Impedance: >10k Ω
    • Call Signaling: Send - 20 kHz; Receive - 20 kHz
    • Mic Off Frequency: Send - 24 kHz; Receive - 24 kHz
    • Output Level: 0.0 dBu nominal
    • Terminating Impedance: 200 Ω
    • Noise Contribution: <-60 dBu
    • Total Harmonic Distortion: <1.0%
    • Headphone Amplifier Maximum Output: >140 mW into 150 Ω load
    • Frequency Response: 200 - 8 kHz ±2 dB
    • Audible Alert: 1 kHz
    • Sidetone: >20 dB dynamic range
