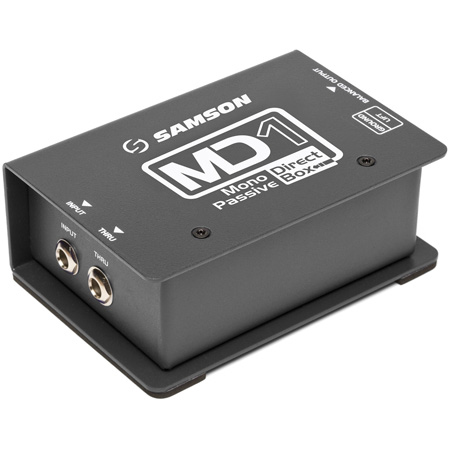

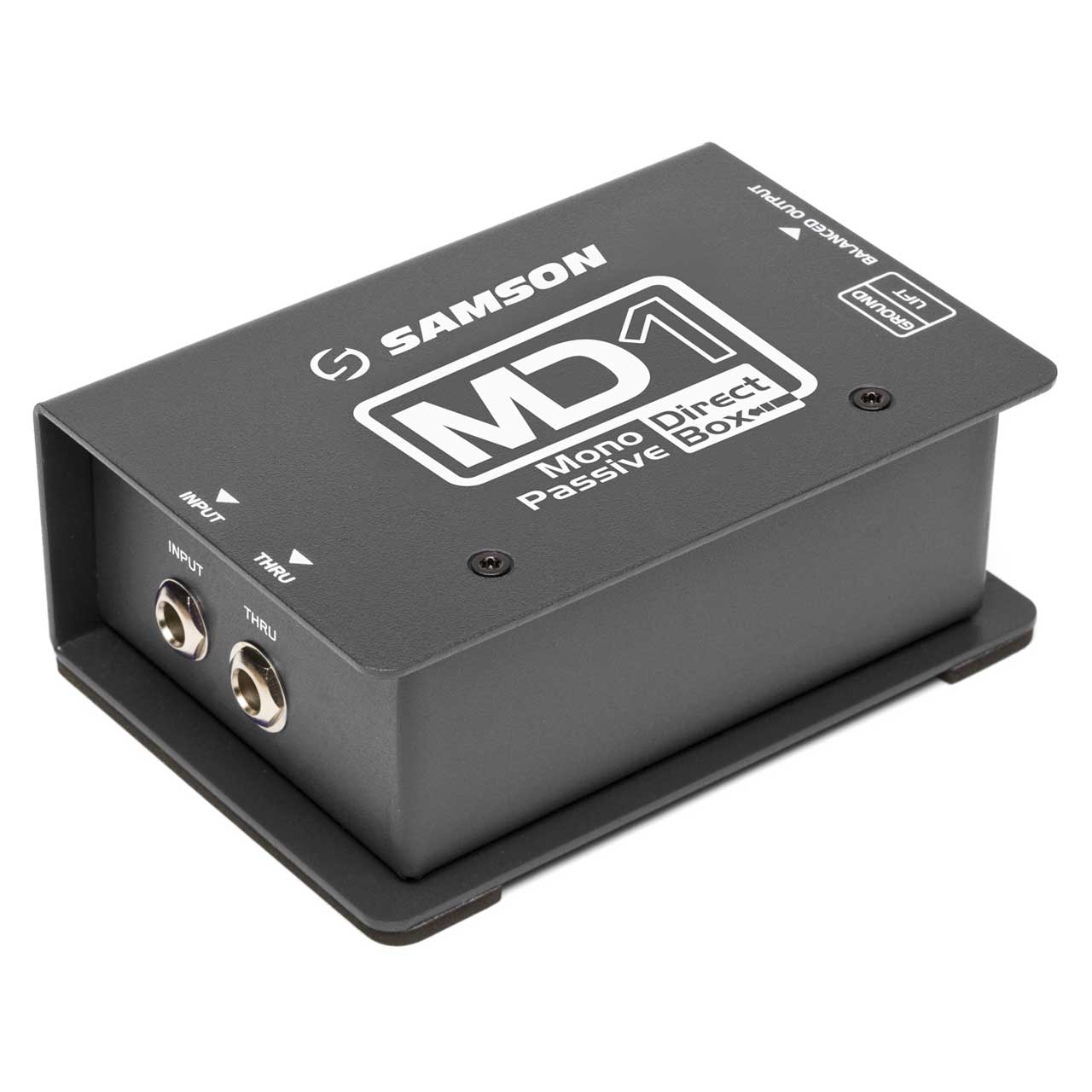

Samson MD1 Passive Mono Direct Box

ITEM #: SAM-MD1 MFG #: SAMD1

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$87.49

Our Price:

$49.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SAMD1 - Overview

    Samson's MD1 Mono Passive Direct Box combines premium sound circuitry with durable, roadworthy construction, providing high-quality signal connection solutions for a variety of live sound and recording applications. The MD1 allows clean, balanced lines to be sent from an unbalanced line or instrument signal to a microphone level balanced input.

    The MD1 features Samson's STL transformer that delivers an extended, flat frequency response with ultra-low distortion. The MD1's balanced output provides a clean signal that is less susceptible to noise than an unbalanced line, allowing for longer cable runs.

    The MD1's Thru jack enables you to tap off the signal from the input and pass the signal to an amplifier or monitor without affecting the original audio. This can eliminate the need for miking guitar amplifiers, which depending on your application may be preferable, especially as more musicians are using in-ear monitors.

    Housed in a 14-gauge steel chassis, the MD1 is built to withstand the abuse of the most demanding live tours. Its rigid outer shell protects all the MD1's internal connections, switches and solder joints from failure, ensuring quiet, reliable performance.

    • Features:

      • All-metal, impact resistant design
      • Samson STL transformer
      • Ground Lift switch

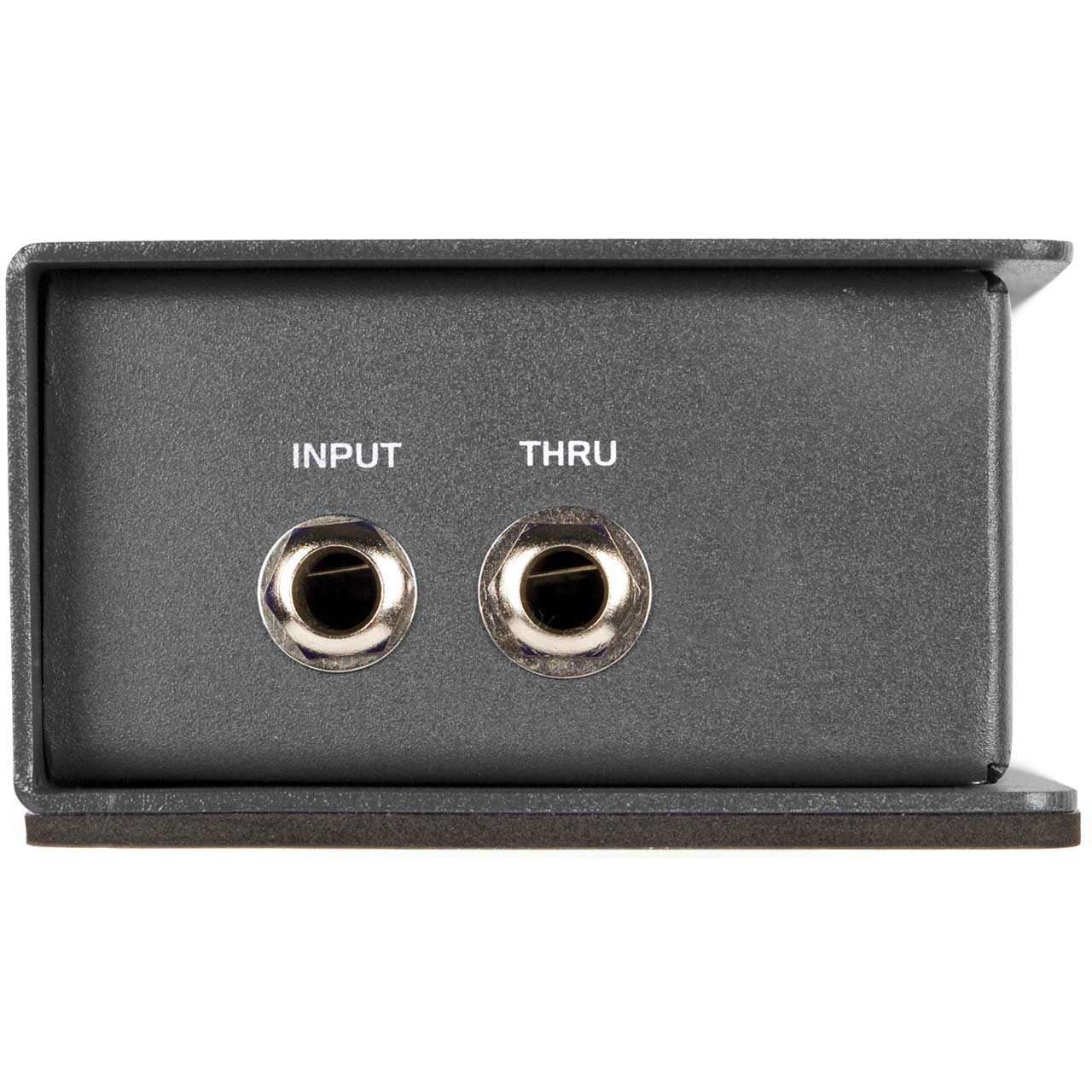

      • 1/4" Input and Thru
      • Balanced XLR output
      • No Phantom or Battery power required
      • Frequency response of 18Hz-40kHz

    • Specifications:

      • Type: Mono passive direct box
      • Frequency Response: 18Hz - 40kHz ±0.1dB
      • Maximum Input: +20dBu 0.35% THD
      • Dynamic Range: >100dB @ Balanced Output
      • Noise Floor: -117dB
      • Total Harmonic Distortion: <0.03% from 20Hz - 40kHz
      • Input Impedance: 400kΩ
      • Output Impedance: 250Ω ±20%
      • Transformer: Samson STL
      • Transformer Ratio: 15:1

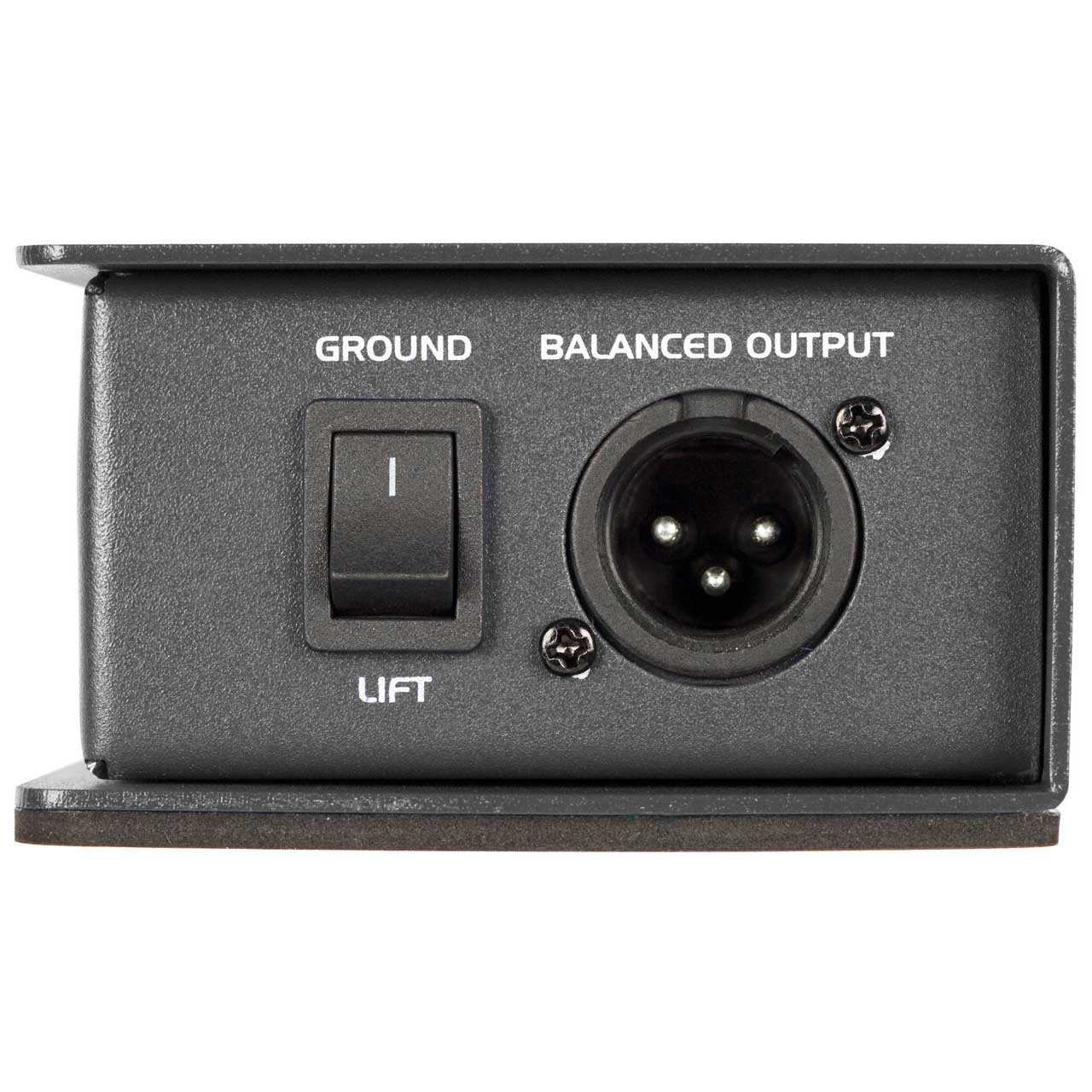

      • Ground Lift: Disconnects XLR pin-1 (Output)
      • Connectors: 1/4" unbalanced (In & Thru), XLR (balanced output)
      • Construction: 14-gauge steel chassis
      • Product Weight: 1.49lbs (680g)
      • Box Dimensions: 5.5" x 4.25" x 2.25" (140mm x 108mm x 57mm)
      • Box Weight: 1.64lbs (744g)

    • GTIN:

      0809164018681
