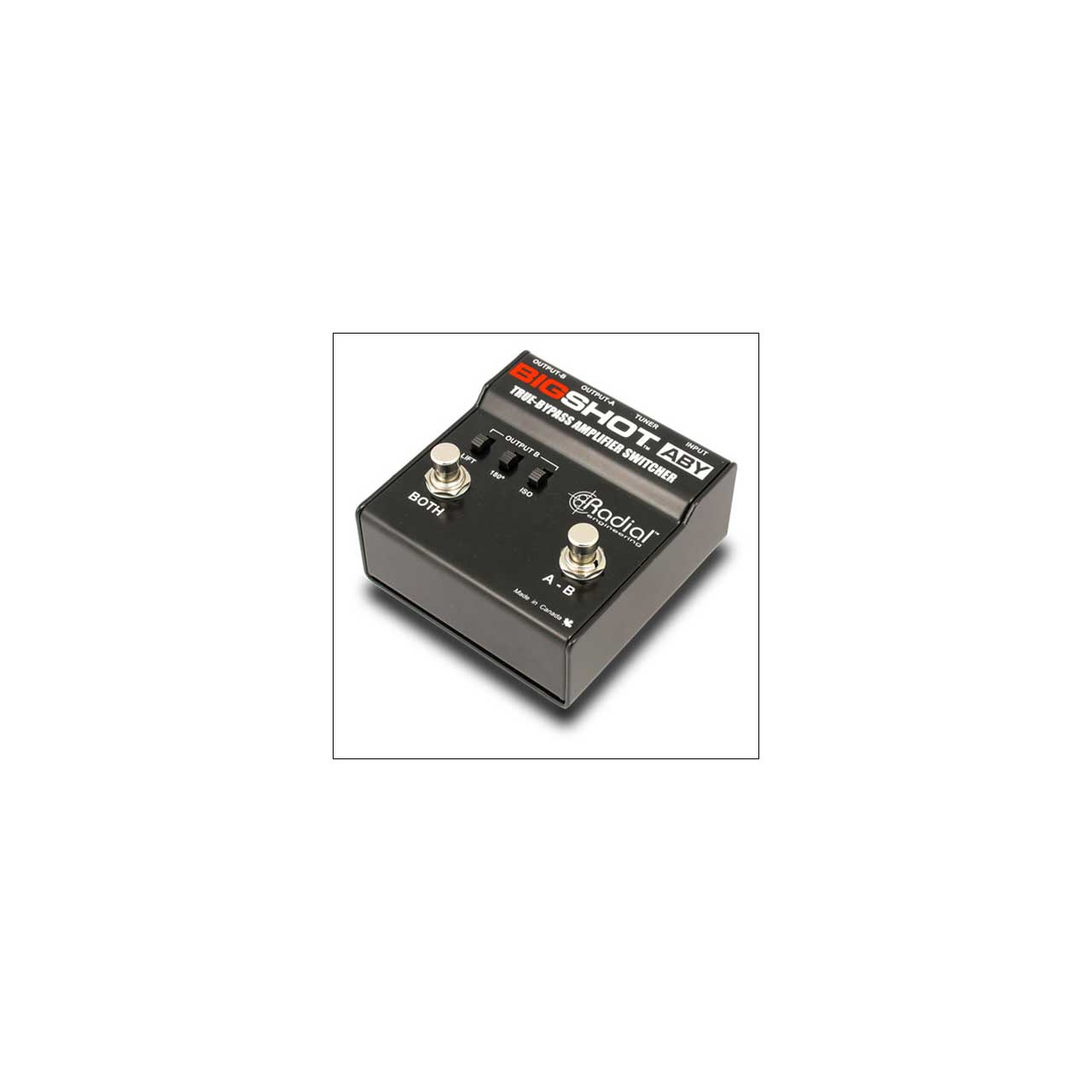

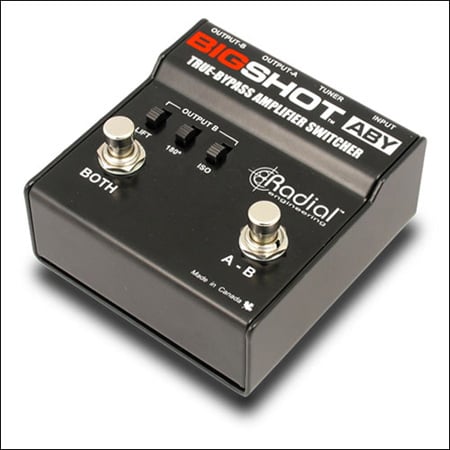

The Radial BigShot ABY is a compact ABY switcher that enables you to either switch between two amplifiers or combine the signal when you want both amps to play at the same time.
Designed for the purist, this true-bypass ABY switcher is completely passive meaning that there are no tone altering buffers in between the guitar and the amplifier. With the BigShot ABY, you get the pure tone from your guitar plugged direct into your amp! To add versatility, the BigShot ABY is also equipped with a separate tuner out. This 'always on' output feeds your tuner for constant monitoring while keeping it out of the signal chain. Should you experience hum and buzz problems due to ground loops, the BigShot ABY comes to the rescue with a ground lift switch and built-in isolation transformer. Once engaged, you can toggle the polarity of the second amplifier to ensure both amps play in absolute phase.
The compact yet ultra rugged design makes the BigShot ABY ideal for pedalboards where space is always at a premium. Furthermore, because it does not require any power to make it work, it eliminates the need for batteries and space hungry power supplies.
The BigShot ABY... the most versatile true-bypass switcher made today!
BigShot ABY Applications.
Combining two amps and a tuner
The BigShot ABY makes it easy to switch between two amps and with the built-in isolation transformer, hum and buzz caused by ground loops can be eliminated. A separate tuner out keeps this tone altering device out of the main signal path. (see fig 3 above).

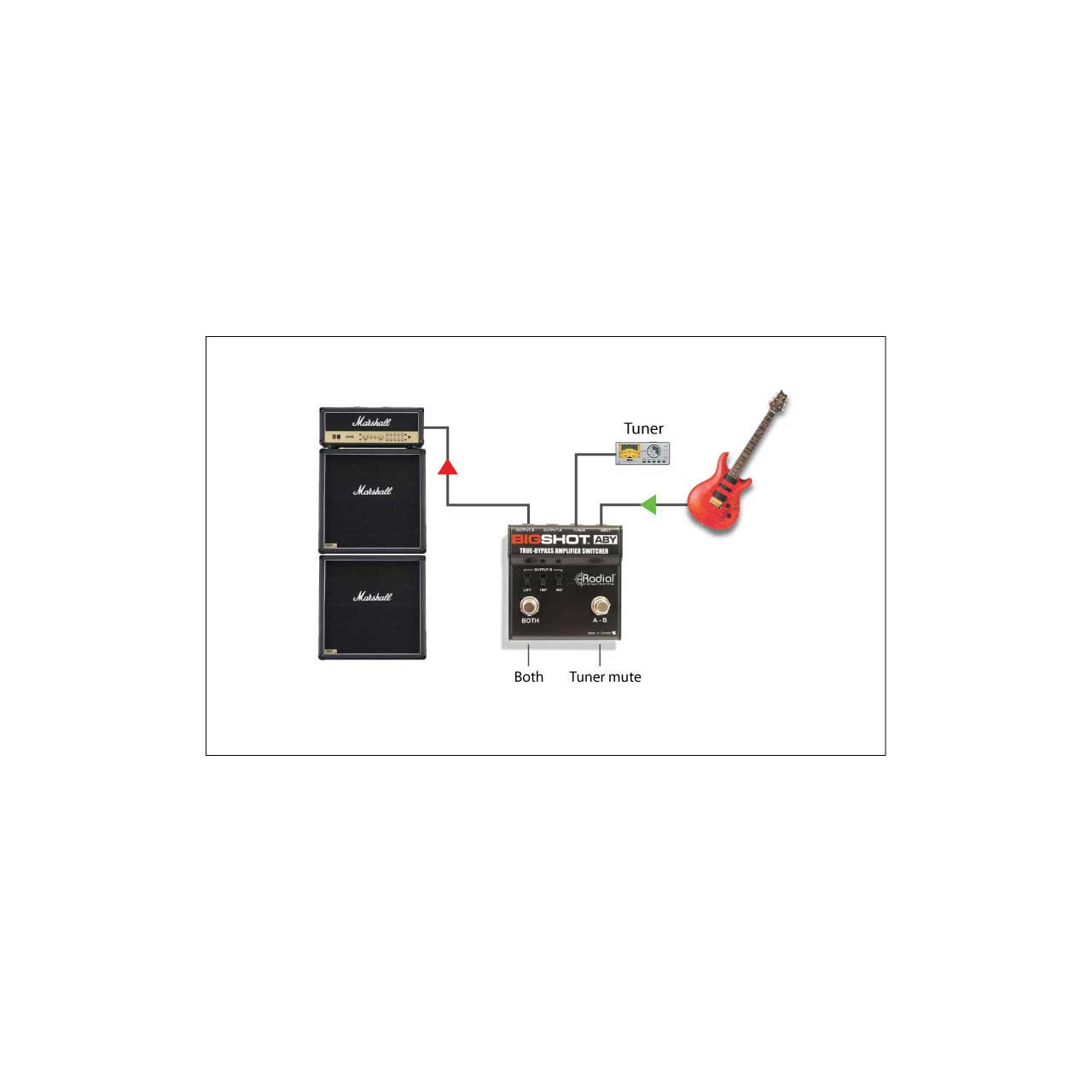

Using the BigShot ABY to mute your amp
You can use the BigShot ABY as a simple mute footswitch for quiet on-stage tuning. Simply depress the AB selector switch and the signal going to the amp is turned off. This keeps the signal going to the tuner output always on, allowing you to tune without bothering others. (see fig 4 above)

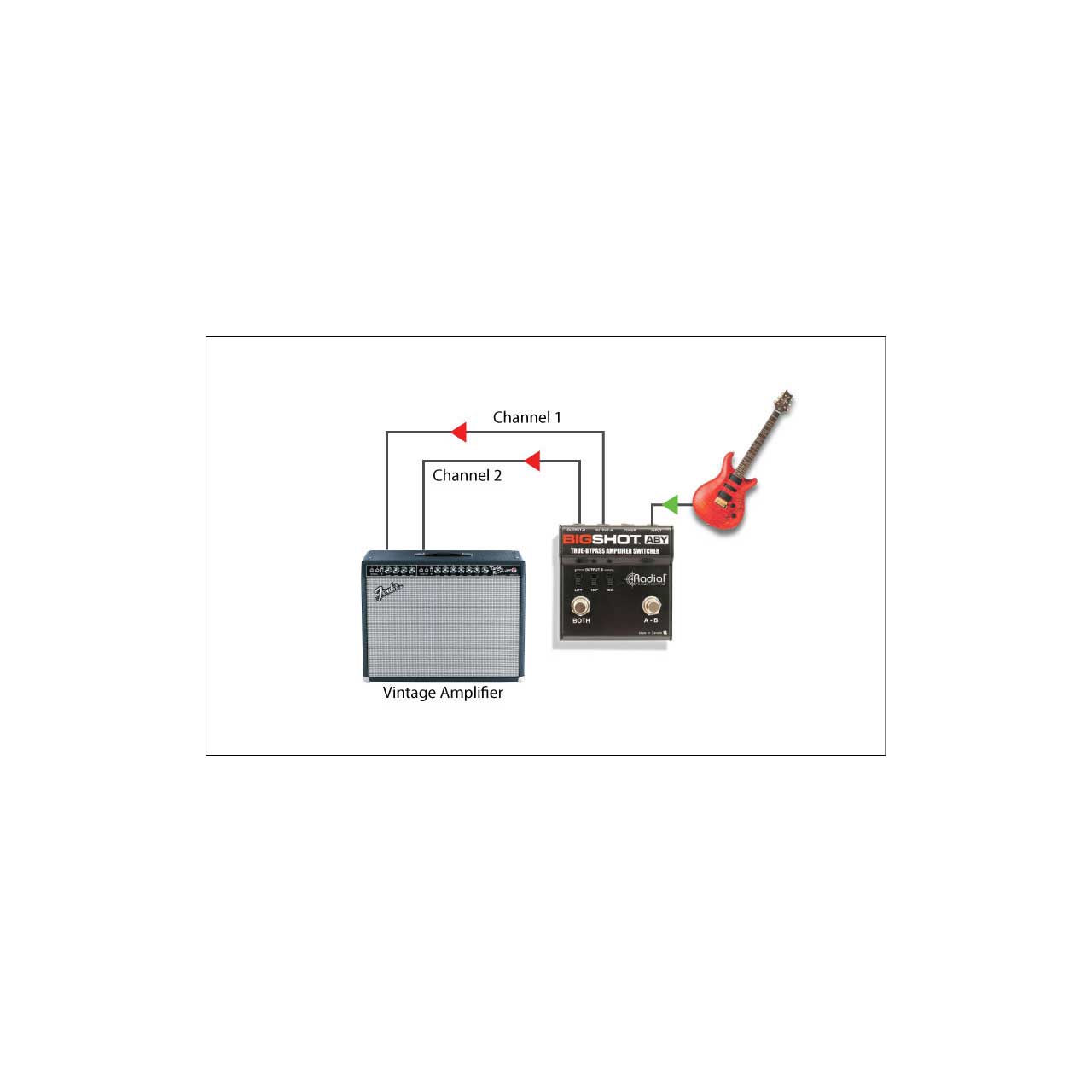

Using the ABY to switch channels on an amp.
The BigShot ABY can also be used to switch channels on older vintage amps that do not have remote switching. Simply send the OUT-A and OUT-B to the two channels on your amp and select channels as needed. (see fig 5 above)
