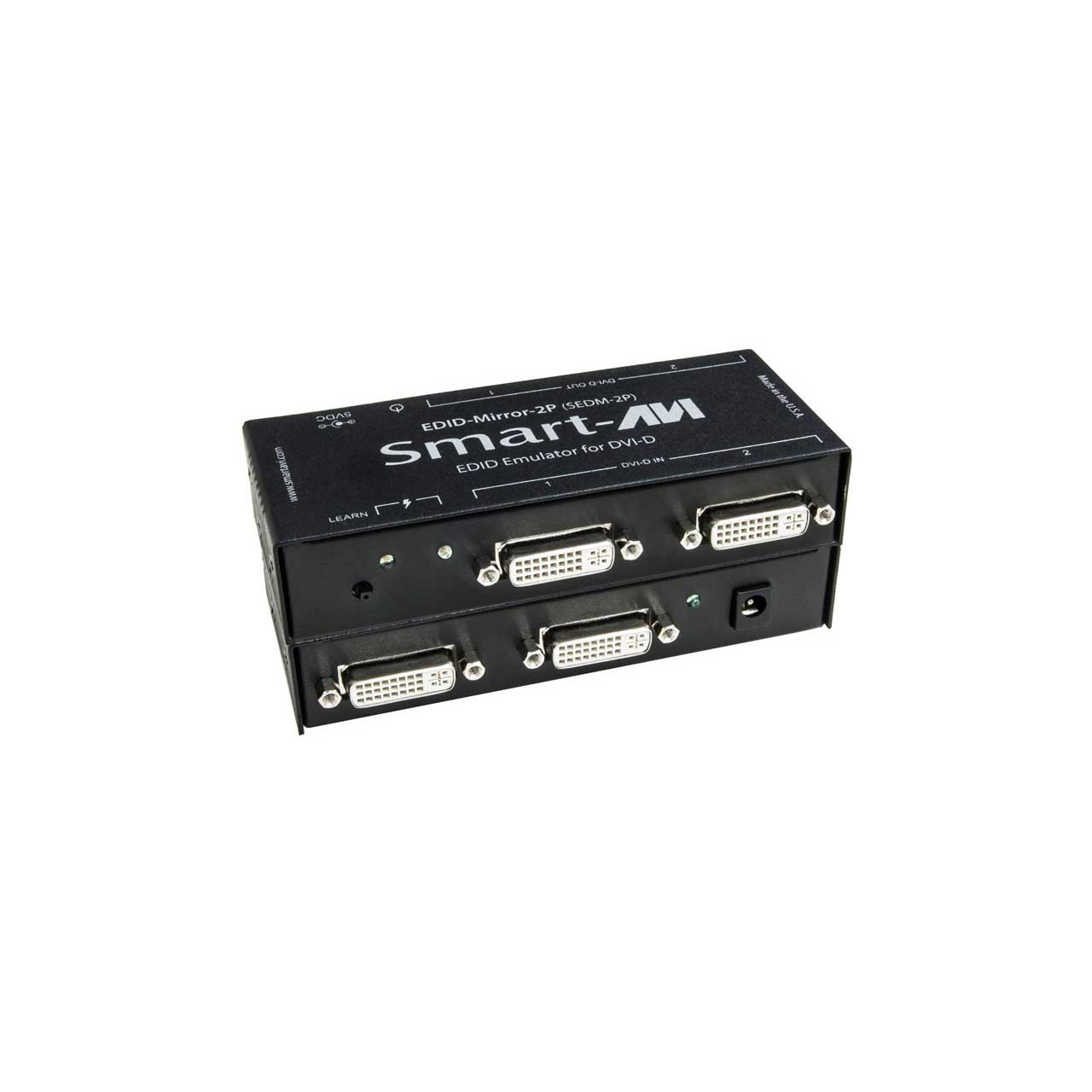

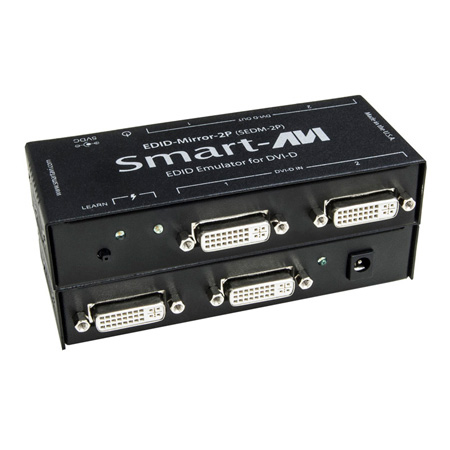

Smart-AVI EDID-Mirror-2PS EDID-Mirror 2-Port DVI-D EDID Emulator
  • Smart-AVI EDID-Mirror-2PS EDID-Mirror 2-Port DVI-D EDID Emulator
  • Smart-AVI EDID-Mirror-2PS EDID-Mirror 2-Port DVI-D EDID Emulator

Questions? Ask a Markertek Expert:
800-522-2025 Email

Smart-AVI EDID-Mirror-2PS EDID-Mirror 2-Port DVI-D EDID Emulator

Manufacturer: Smart-AVI

Item #: SAVI-EDID-M-2PS   •   MFG #: EDID-MIRROR-2PS



List Price:$229.00
Our Price:$185.95

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

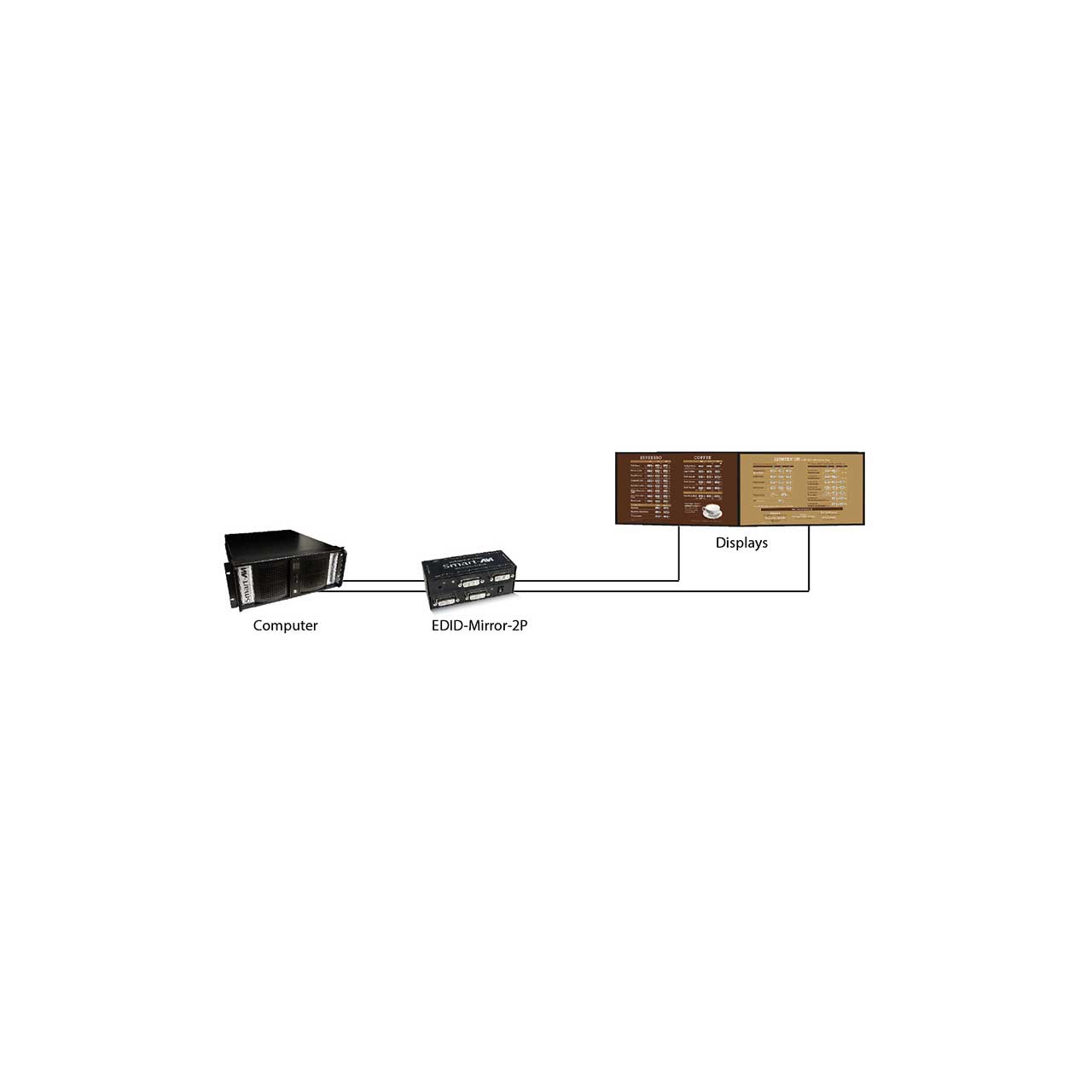

    Eliminate the Headache of Display Configuration and Auto-detection with SmartAVI’s EDID-Mirror. The EDID-Mirror prevents Windows7, XP and Linux from auto-configuring your displays if your computer is started up with the displays disconnected or turned off. Certain operating systems, especially Windows 7, have a display auto-detection feature that can reconfigure your displays if they are not powered on or connected at startup. This can lead to the frustrating task of reconfiguring your displays. The solution is the EDID-Mirror, a DVI-D EDID (Extended Display Identification Data) emulator that provides a constant signal to the computer, regardless of whether the displays are present or not. This ensures that the display configuration is not lost.


    • Features

      • Learn up to 2 EDID configurations at once
      • Stores EDID configuration in non-volatile memory so that the unit may be powered off and the configuration will not be lost
      • Displays can be disconnected as needed without losing EDID configuration
      • Uses standard EDID configuration standards
      • Compatible with most DVI-D displays and all Windows versions

    • Specifications

      • VIDEO
      • Format DVI-D Single Line
      • Maximum Pixel Clock 165 MHz
      • Input/Output Interface (2) DVI-D 29-pin female
      • Resolution Up to 1920 x 1200 @60Hz
      • DDC 5 volts p-p(TTL)
      • Input Equalization Automatic
      • Input Cable Length Up to 10 ft.
      • Output Cable Length Up to 10 ft.
      • OTHER
      • DDC Signal 5 Volts [peak-to-peak], TTL
      • TDMS Signal 1.2 Volts[peak-to-peak], TTL
      • Power External 100-240 VAC/5VDC2A @10W
      • Dimensions 5”W x 3”D x 1.75”H
      • Weight 0.3 lbs.
      • Approvals Device: UL, CE, ROHS Compliant

    • Item Includes

      • [EDID-Mirror-2P, PS5VDC2A.]
