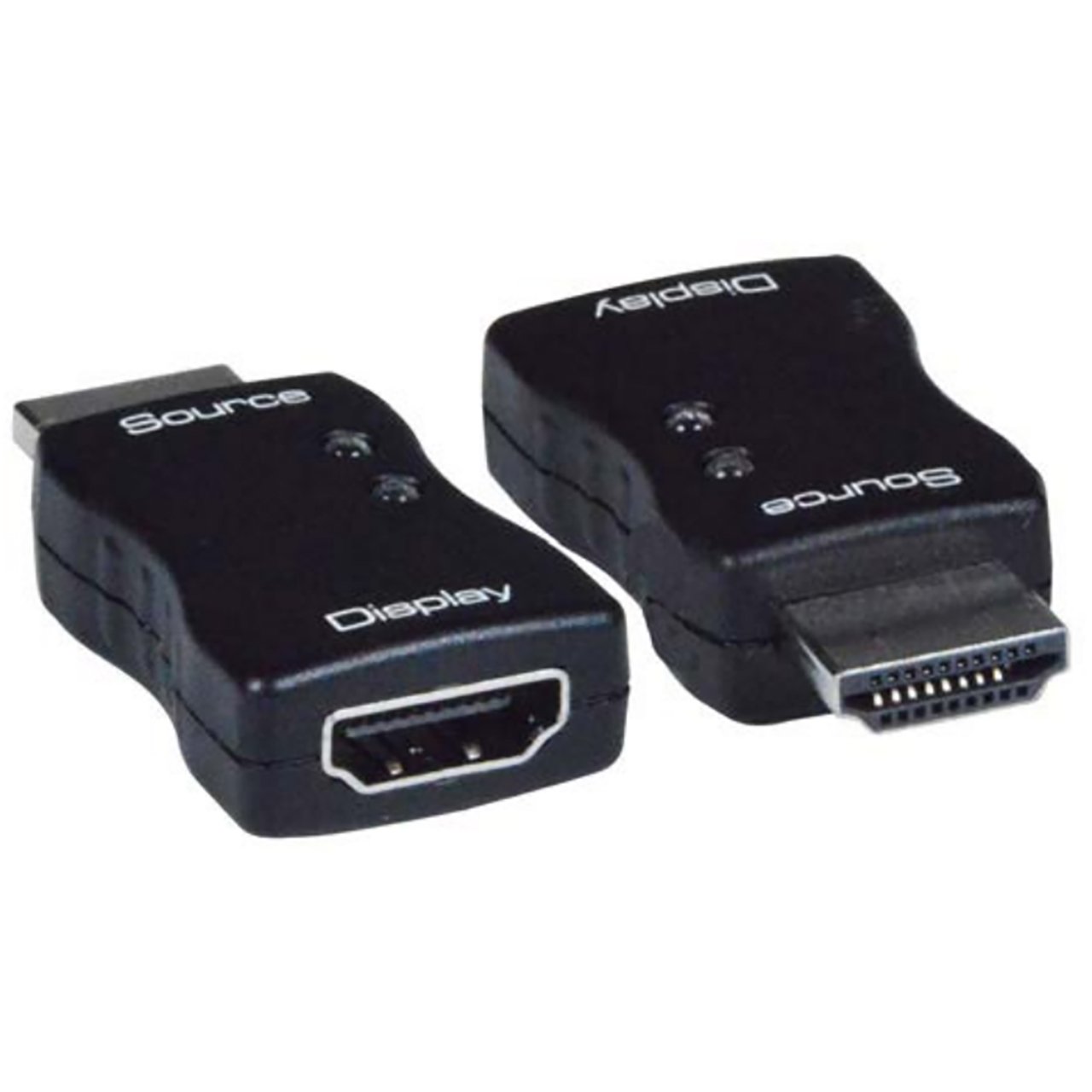

Network Technologies HD8K-EDID-EMLTR 8K 60Hz HDMI 2.1 EDID Emulator - Stores and Reproduces EDID Information

HD8K-EDID-EMLTR - Overview

Stores and Reproduces EDID Information for an 8K 60Hz HDMI Display

• Features:

  • Headless operation
  • Video pass-through
  • Supports Ultra-HD 8K resolutions to 7680x4320@60Hz YUV 4:4:4, Ultrawide 5K resolutions to 5120x2160@120Hz, UHD 4Kx2K resolutions to 3840x2160@120Hz 4:4:4, 2560x1440p (WQHD), HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
  • HDMI 2.1
  • Emulates an HDMI display (sink device) by providing Hot Plug Detect and EDID to the HDMI source device
  • HDCP 1.4/2.2 compliant
  • Supports Learning and Emulation modes
  • Pre-programmed with many standard resolutions with native set to 1080p
  • Compact design for easy installation and operation
  • No power supply - powered by video source

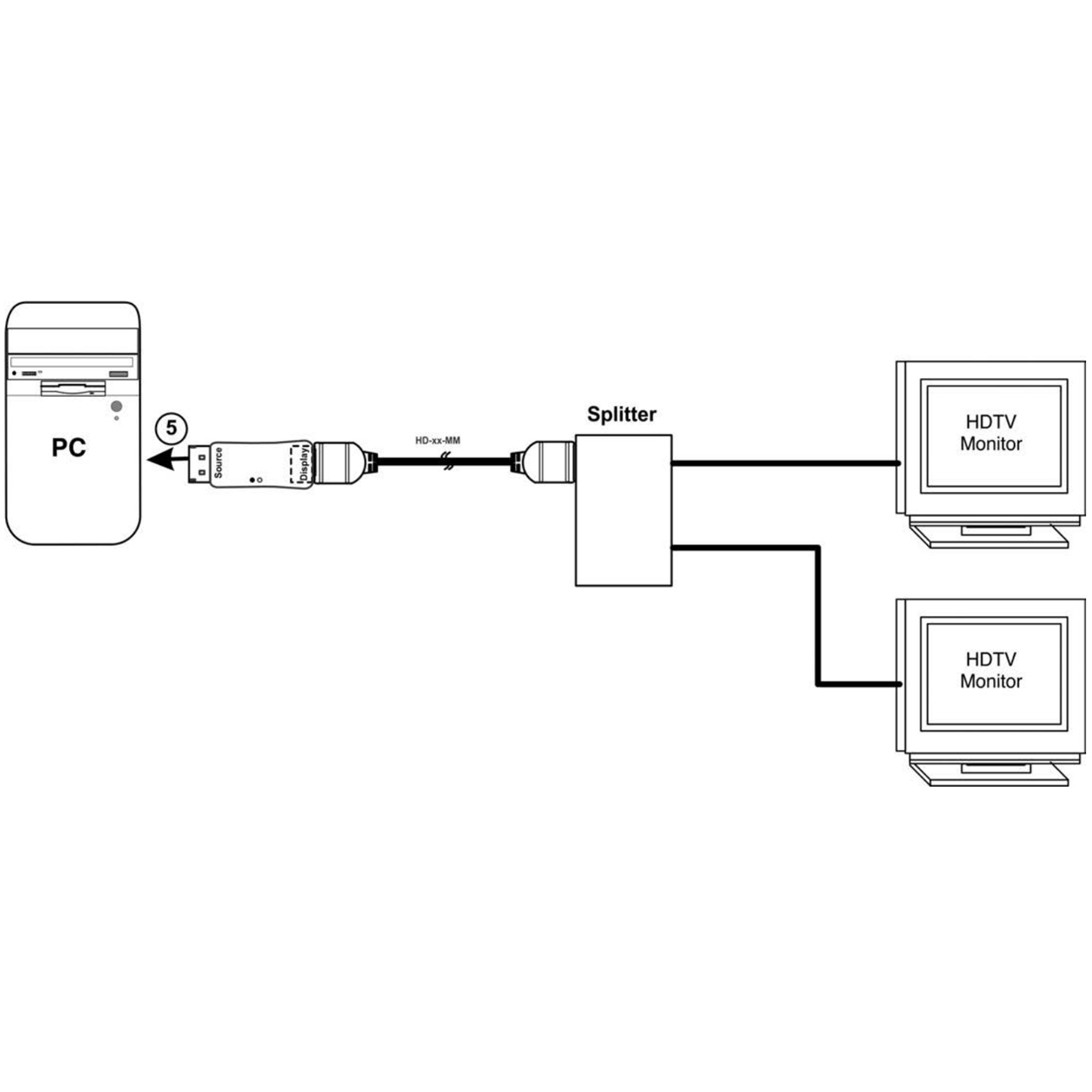

  • Use for resolving signal handshaking problems between a source and a display


• Specifications:

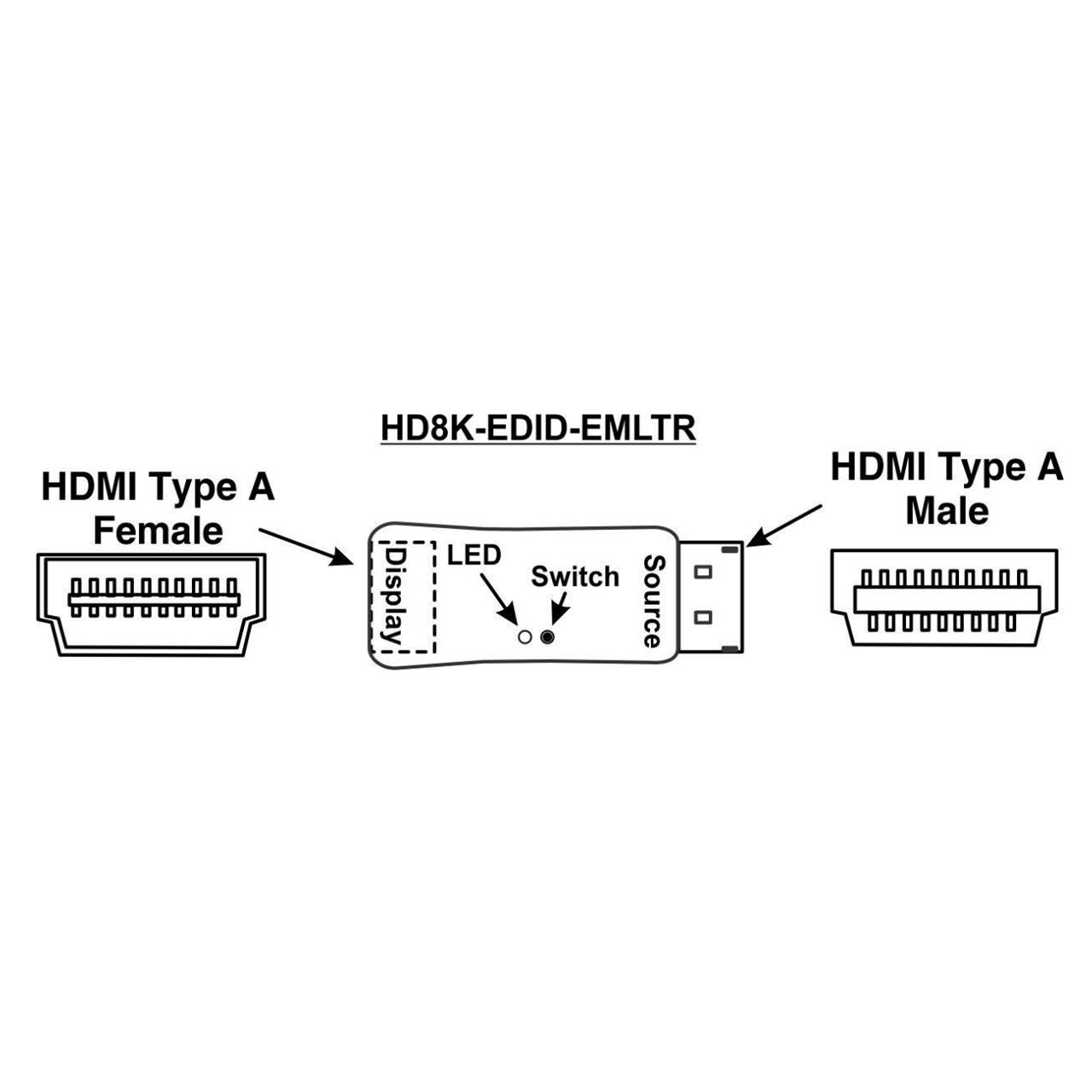

  Connectors
  • 1x female HDMI port for display connection
  • Supports:
    - Ultra-HD 8K resolutions to 7680x4320@60Hz YUV 4:4:4
    - Ultrawide 5K resolutions to 5120x2160@120Hz, UHD 4Kx2K resolutions to 3840x2160@120Hz 4:4:4, 2560x1440p (WQHD)
    - HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA)
  • Default Resolution: 1080p
  • 1x male HDMI port for source connection

    Power
  • Powered by video source

    Dimensions
  • WxDxH: 0.94" x 1.69" x 0.39" (24mm x 43mm x 10mm)

    Environmental
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Storage Temperature: -4°F - 176°F (-20°C - 80°C)
  • Operating Relative Humidity: Up to 85% non-condensing RH
  • Storage Relative Humidity: Up to 90% non-condensing RH
  • Regulatory Approvals: CE, FCC, RoHS, TAA Compliant


• Item Includes:

  • 1x Network Technologies HD8K-EDID-EMLTR 8K 60Hz HDMI 2.1 EDID Emulator - Stores and Reproduces EDID Information


• Warranty:

  • 2 Year Warranty
