Overcomes common EDID related issues when using ProAV devices and KVM Switches, Extenders, and splitters

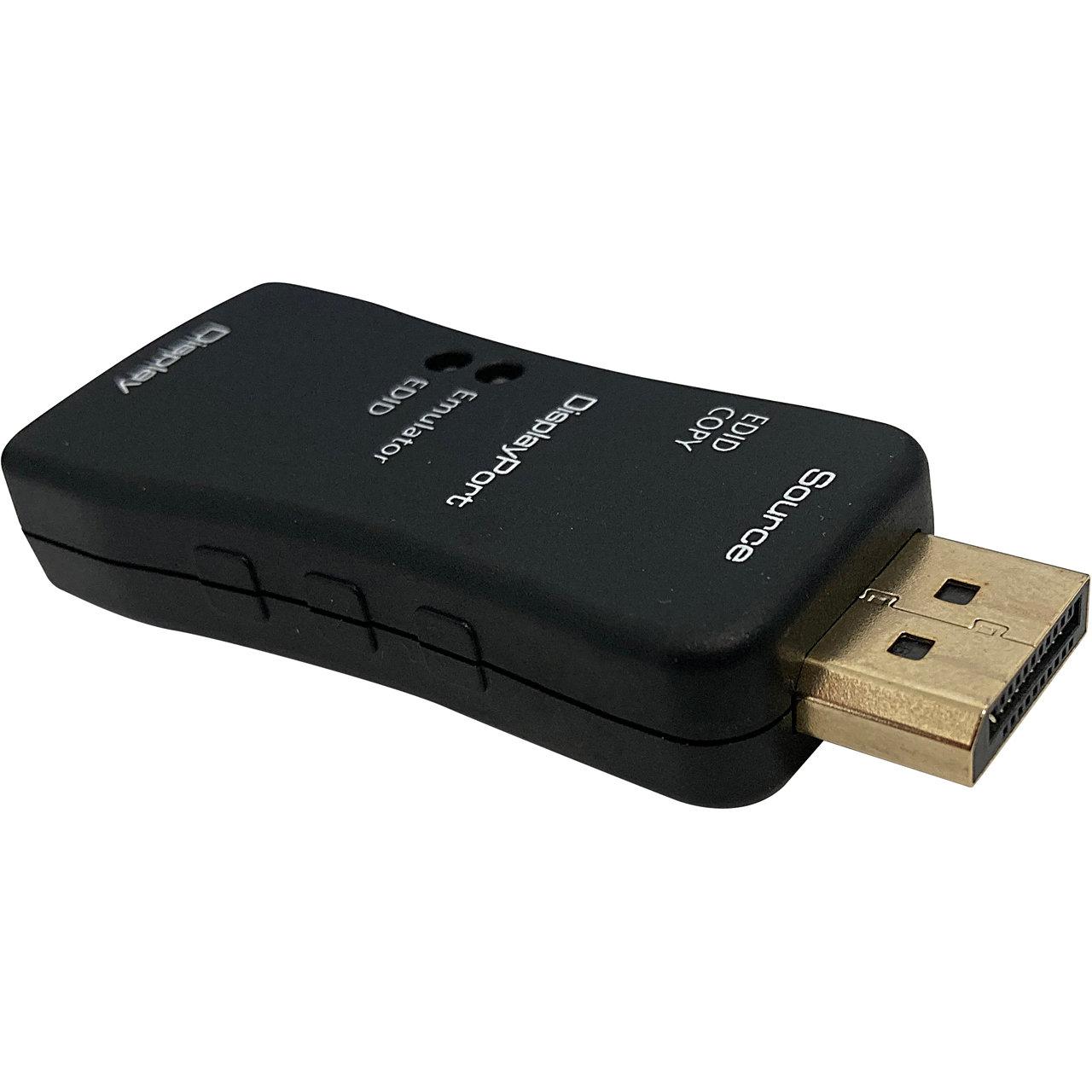

The Smart-AVI SM-EDP is a Displayport EDID Emulator that captures and stores a monitor's EDID so the source device always detects the correct display capabilities. It supports DisplayPort 1.1/1.2 and resolutions up to 3840x2160 @ 30Hz, and draws power directly from the DisplayPort source - no external power required!
-
- Designed to emulate and store the EDID of a video display
- DisplayPort 1.1/1.2 Compliant
- Supports HDTV resolution up to 4Kx2K@60Hz
- Supports Learning and Emulation mode
- Slide switch designed to select Default (EDID) or Emulation (COPY)
- LEDs indicator built-in to easily identify the EDID mode
- Include default resolution at 1080p
- Powered from DisplayPort source device without selfpower required
-
- Format: DisplayPort 1.1 and 1.2
- Maximum Pixel Clock: 275MHz
- Input Interface: DisplayPort (male)
- Output Interface: DisplayPort (female)
- Resolution: Up to 3840 x 2160 @ 30 Hz
- DDC: Via AUX
- Input Equalization: Automatic
- Input & Output Cable Length: Up to 15ft
