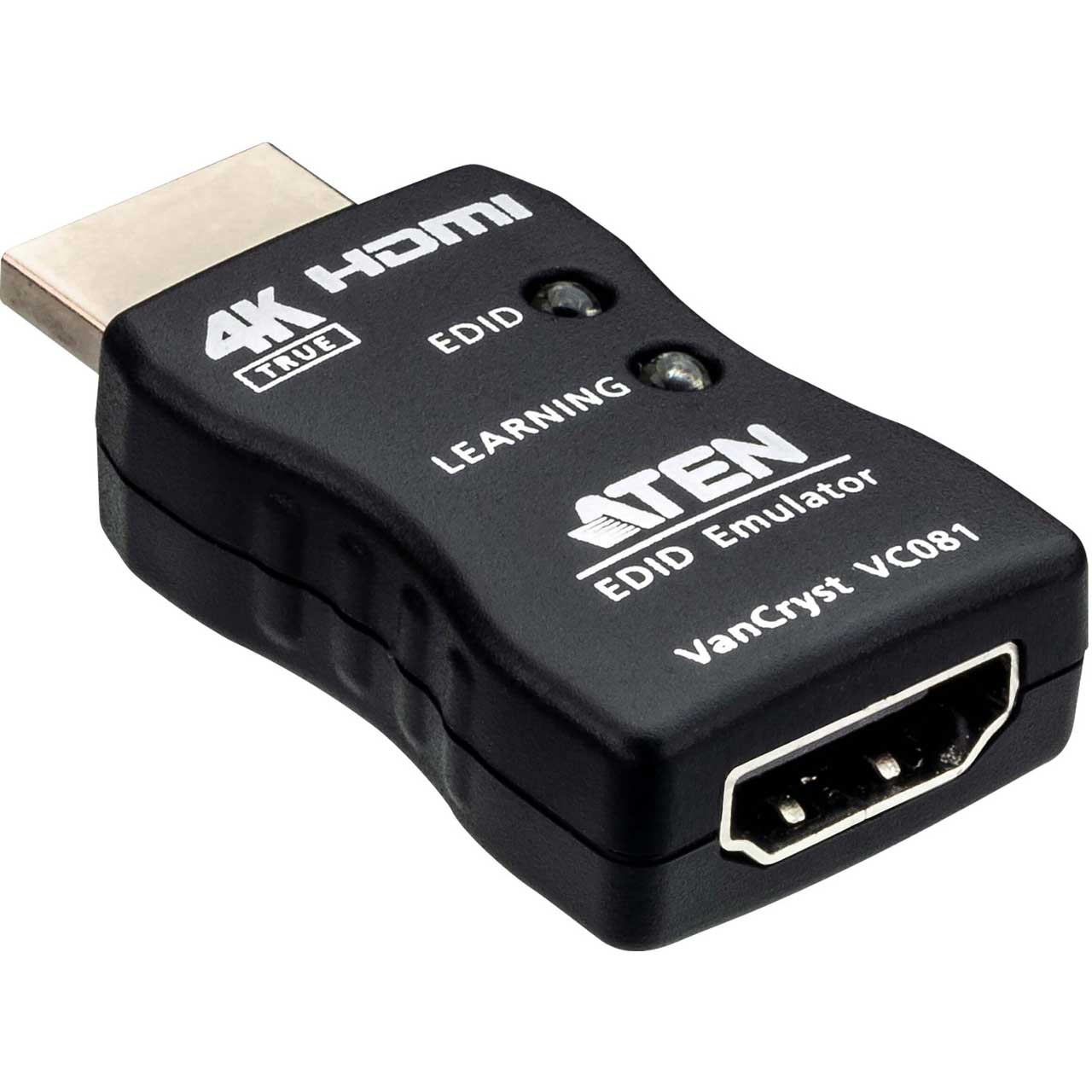

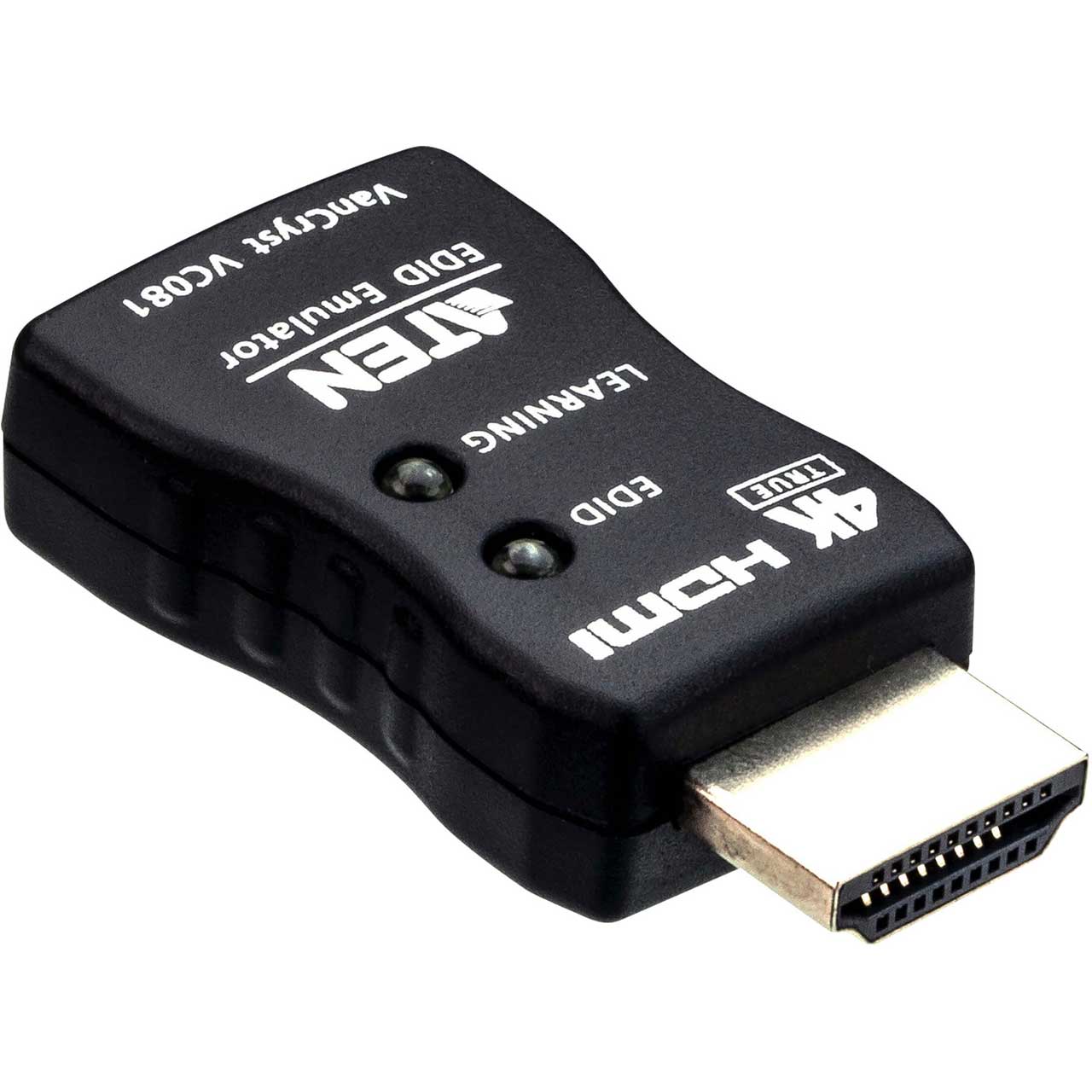

ATEN VC081A True 4K HDMI EDID Emulator

ITEM #: ATEN-VC081 MFG #: VC081

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$70.55

Our Price:

$67.03

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    VC081 - Overview

    The VC081 True 4K HDMI EDID Emulator is designed to overcome EDID related problems which can occur when used with AV or KVM extenders, switches, and splitters. By learning the EDID from the HDMI display and relaying it to the video source, the VC081 can effectively resolve video communication problems that occur when EDID data between the HDMI video source and display are not correctly synchronized. Moreover, after the display's EDID is learned, the VC081 can be used in place of a monitor to keep a PC or Server awake for remote access via IP.

    • Features:

      • Manages EDID communication between connected devices
      • Effectively learn the EDID from the HDMI display and relay it to the video source
      • HDMI 2.0 (3D, Deep Color, True 4K); HDCP 2.2 compliant
      • Superior video quality - up to True 4K (3840 x 2160 @ 60Hz 4:4:4)
      • LED indicators to show device status
      • Powered by HDMI source
      • Compact and lightweight design

    • Specifications:

      • LEDs
      • Power: Power status (Green x 1)
      • Status: Learning (Blue x 1)

        Video Input
      • Interfaces: 1 x HDMI Type A Male (Black)
      • Impedance: 100 Ω

        Video Output

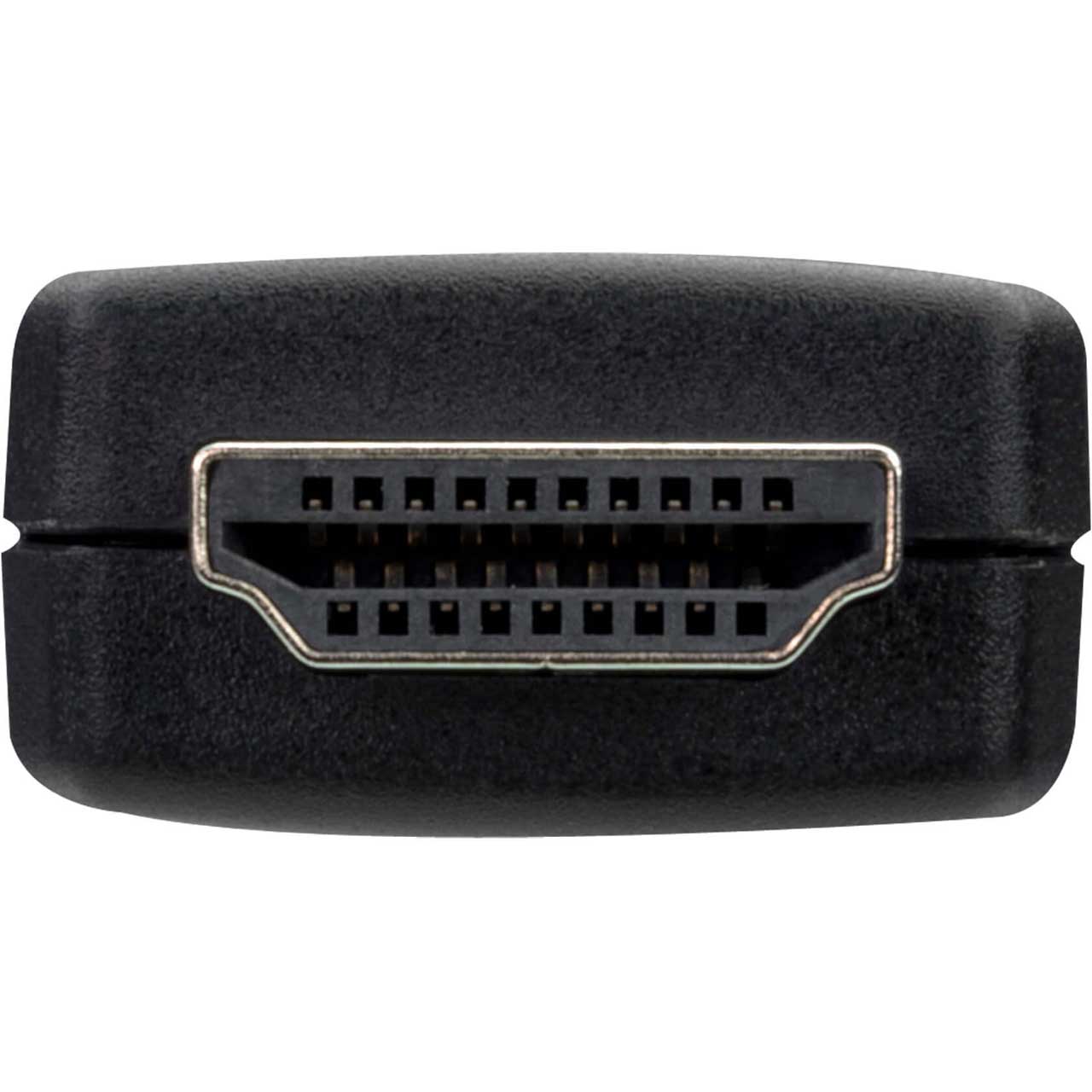

      • Interfaces: 1 x HDMI Type A Female (Black)
      • Impedance: 100 Ω

        Video
      • Compliance: HDMI 2.0 (3D, Deep Color)
      • HDCP: 2.2 Compatible
      • Consumer Electronic Control (CEC)
      • EDID Settings: EDID Mode: Default / Learning

        Connectors
      • Power: Bus-powered (5 VDC from source device)
      • Power Consumption: 240MWBTU

        Environmental
      • Operating Temperature: 0 - 50 °C
      • Storage Temperature: -20 - 60 °C
      • Humidity: 0 - 80% RH, Non-Condensing

        Physical Properties
      • Housing: Plastic (ABS)
      • Weight: 0.18 Lbs
      • Dimensions (LxWxH): 1.73 x 0.94 x 0.46 Inches
      • Carton Lot: 20 pcs

    • GTIN:

      0672792009709
