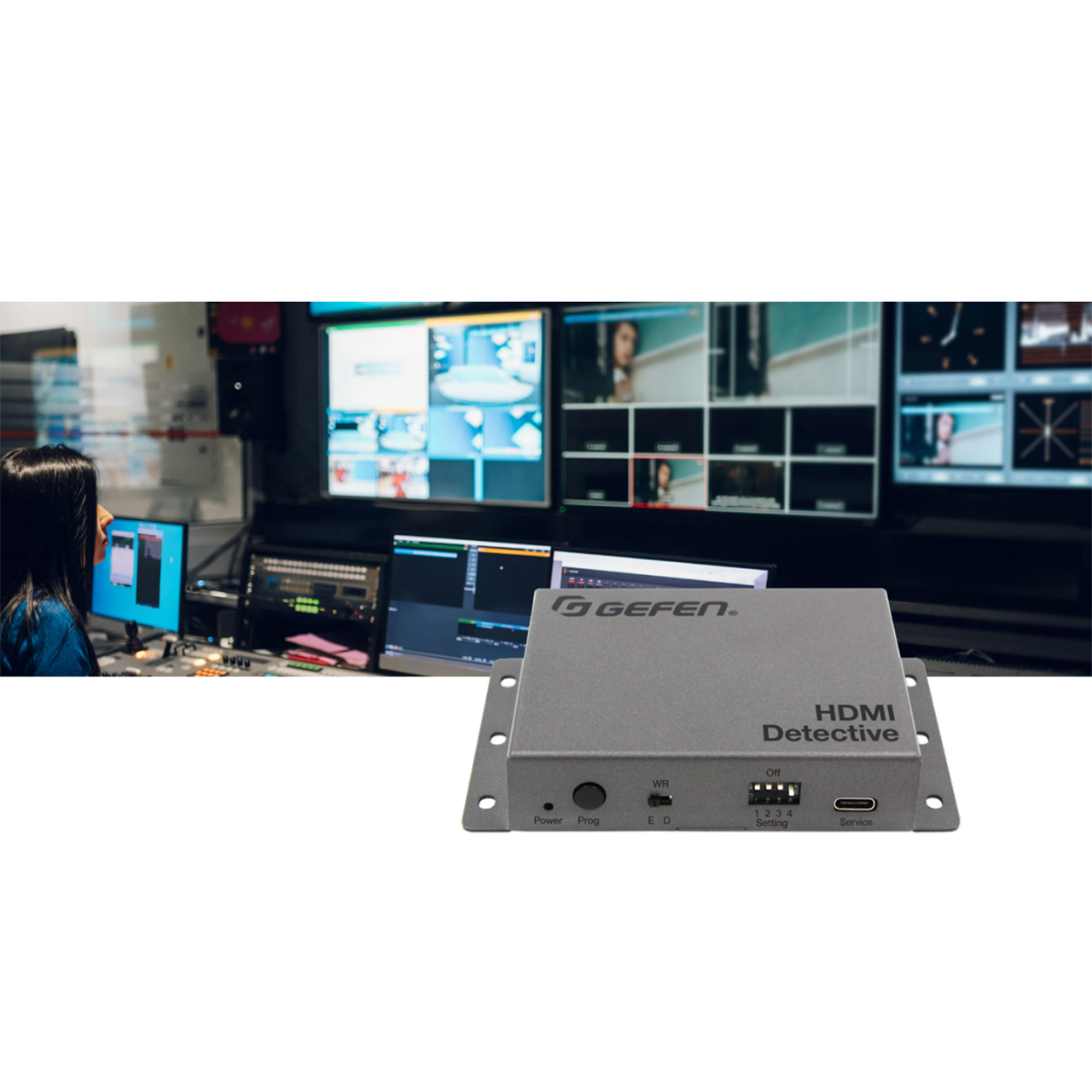

The Gefen GF-EDD-HD HDMI EDID Detective eliminates display communication disruptions by storing and emulating your display's EDID (Electronic Display Identification Data), ensuring consistent signal handshakes even when displays are powered off or switched. This professional HDMI EDID emulator maintains reliable communication up to 8K@60Hz and 4K@120Hz with full HDMI 2.1 compliance and 48Gbps bandwidth. Supports HDR10, HDR10+, Dolby Vision, and HLG formats while preserving immersive audio including Dolby Atmos and DTS:X. Programmable EDID management via USB-C enables flexible setup for studios, control rooms, and digital signage networks. HDCP 2.3/2.2 compatible with compact metal construction for reliable AV signal management in mission-critical installations.
Supports High Resolutions and HDR
Handles resolutions up to 8K@60Hz and 4K@120Hz with full HDMI 2.1 compliance and 48Gbps bandwidth, including HDR10, HDR10+, Dolby Vision, and HLG formats, for stunning video quality and future-proof performance.
Immersive Audio Support
Preserves high-quality audio formats like Dolby Atmos® and DTS:X™, ensuring a complete audio-visual experience for professional and home theater applications.
Advanced EDID Management

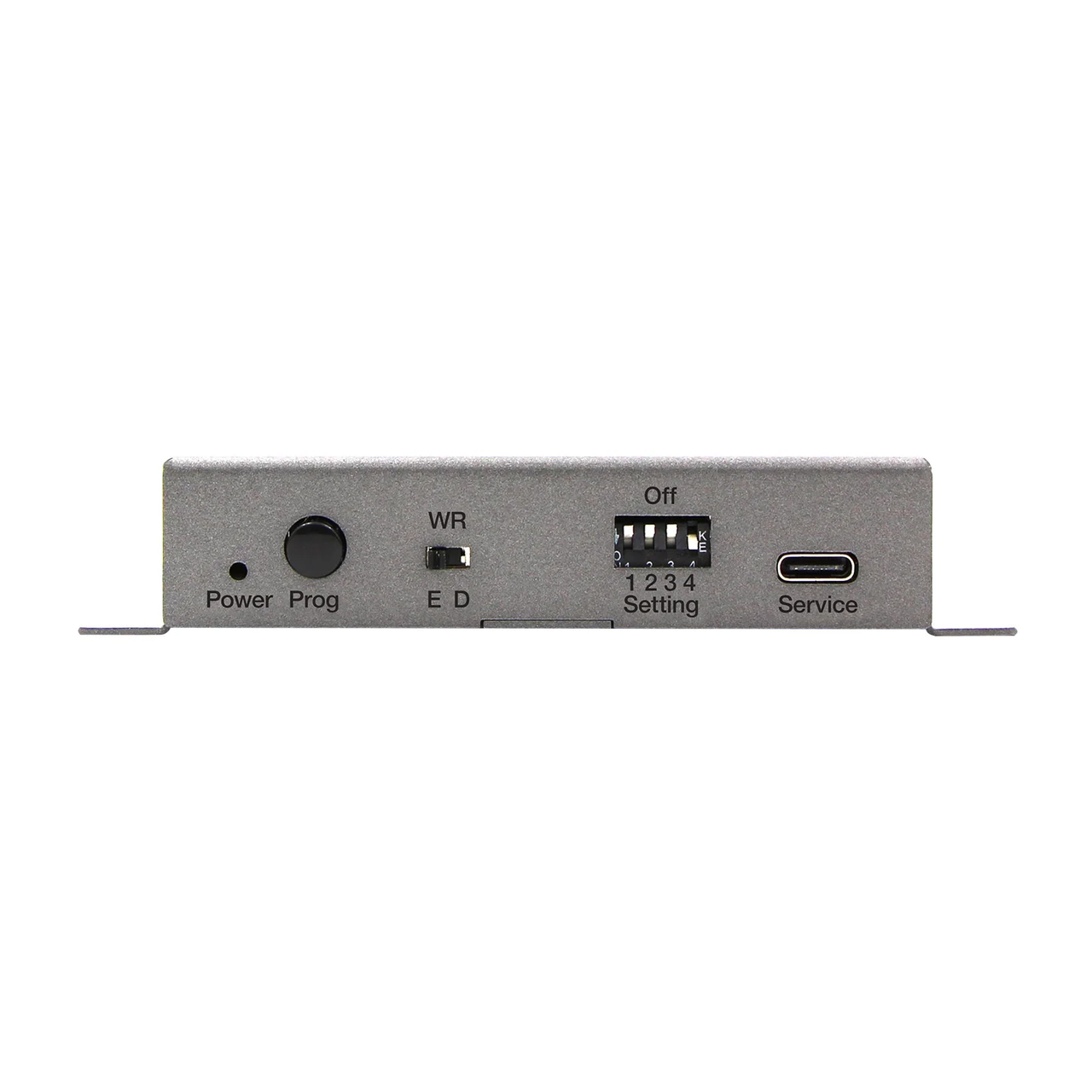

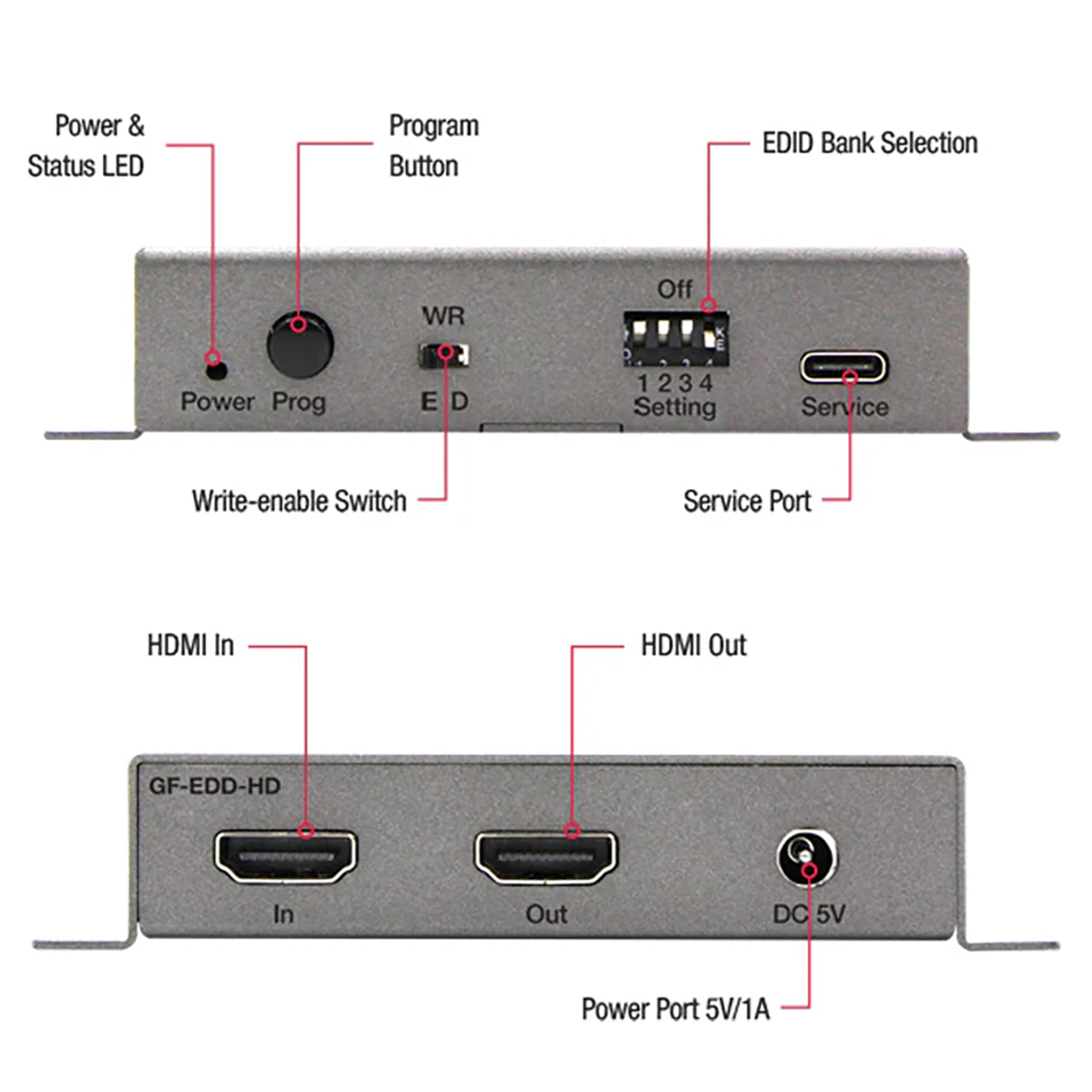

Features five factory-loaded EDID profiles and three user-programmable banks for maximum flexibility in any AV setup. Features recessed DIP switches for settings configuration and write-enable control, designed for field installations and system integrators.
Signal Stability
Employs DDC re-clocking and active HPD (Hot Plug Detect) management to maintain a stable connection and prevent signal interruptions, even when displays are powered off, disconnected, or switched to another input.
Field-Upgradable
A USB-C port allows for easy firmware updates and EDID management from any workstation, future-proofing your investment. Write-protect switch locks stored EDIDs to prevent accidental changes during operation.

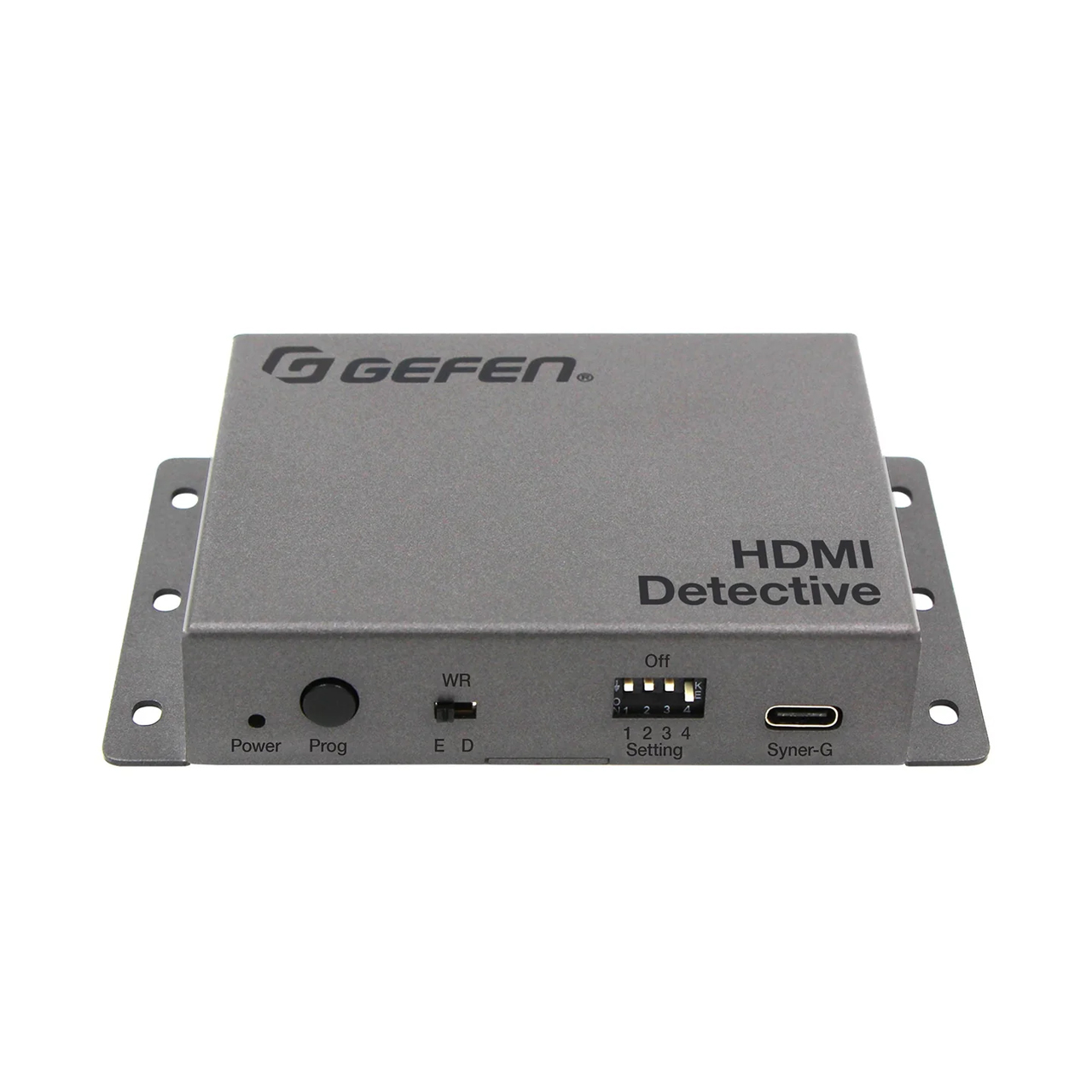

Robust and Compact Design
The durable metal enclosure is ideal for both rack-mounted and field applications, ensuring reliable performance anywhere. Low power consumption (<3W) and 50,000-hour MTBF deliver long-term dependability with 3-year warranty coverage.
How It Works:

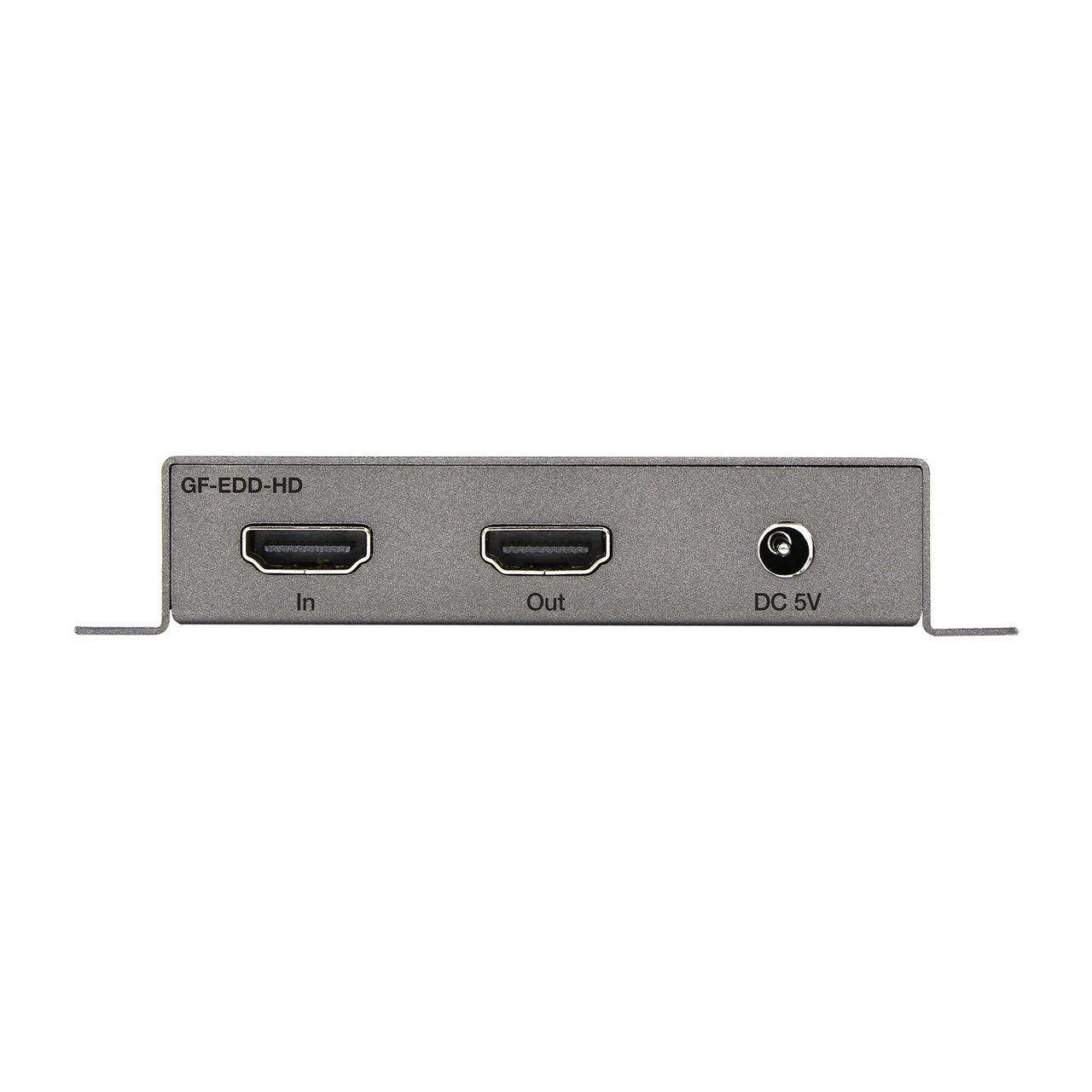

The Gefen GF-EDD-HD HDMI Detective is a plug-and-play solution that ensures reliable communication between your video source and display. Simply connect it between your source (like a computer or media player) and your HDMI cable that runs to the display. The device will then learn and store the display's EDID information, ensuring that the source always receives the correct display parameters, even if the display is powered off, disconnected, or switched to another input. For custom setups, the device can be programmed via its USB-C port, allowing you to load and manage different EDID profiles using factory presets or your own custom configurations. The built-in DIP switches allow for settings configuration and write-protection control directly on the unit, making it perfect for permanent installations where reliability is critical.
Ideal For:
• Broadcast Studios & Post-Production
• Control Rooms & Command Centers
• Digital Signage Networks
• Corporate Conference Rooms
• Education & Training Facilities
Problems Solved:
• Blank Screens on Startup
• Resolution Mismatches
• Signal Interruptions
• EDID Negotiation Failures
• Multi-Display Inconsistency
