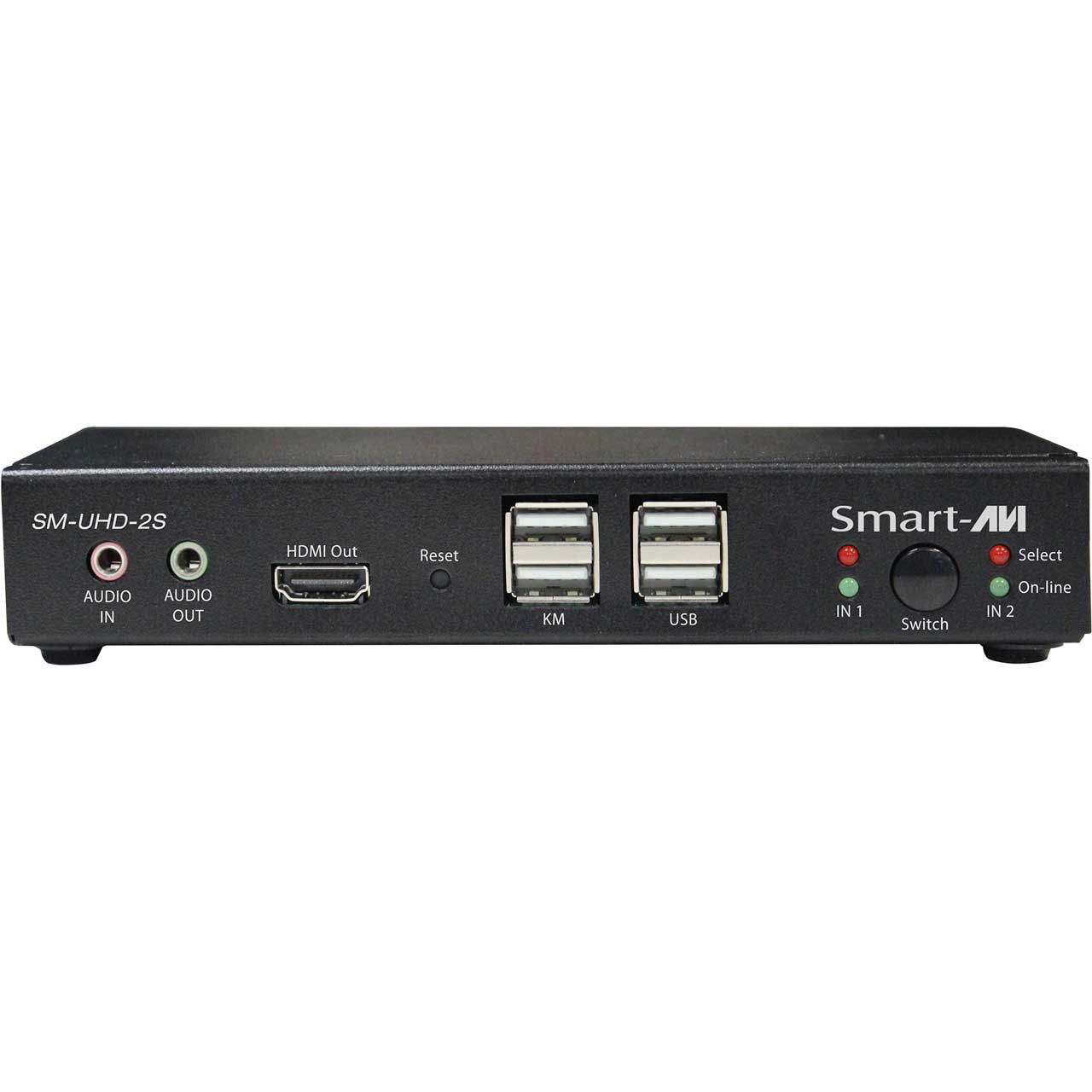

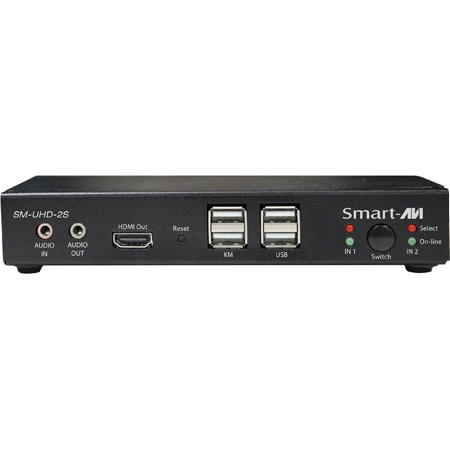

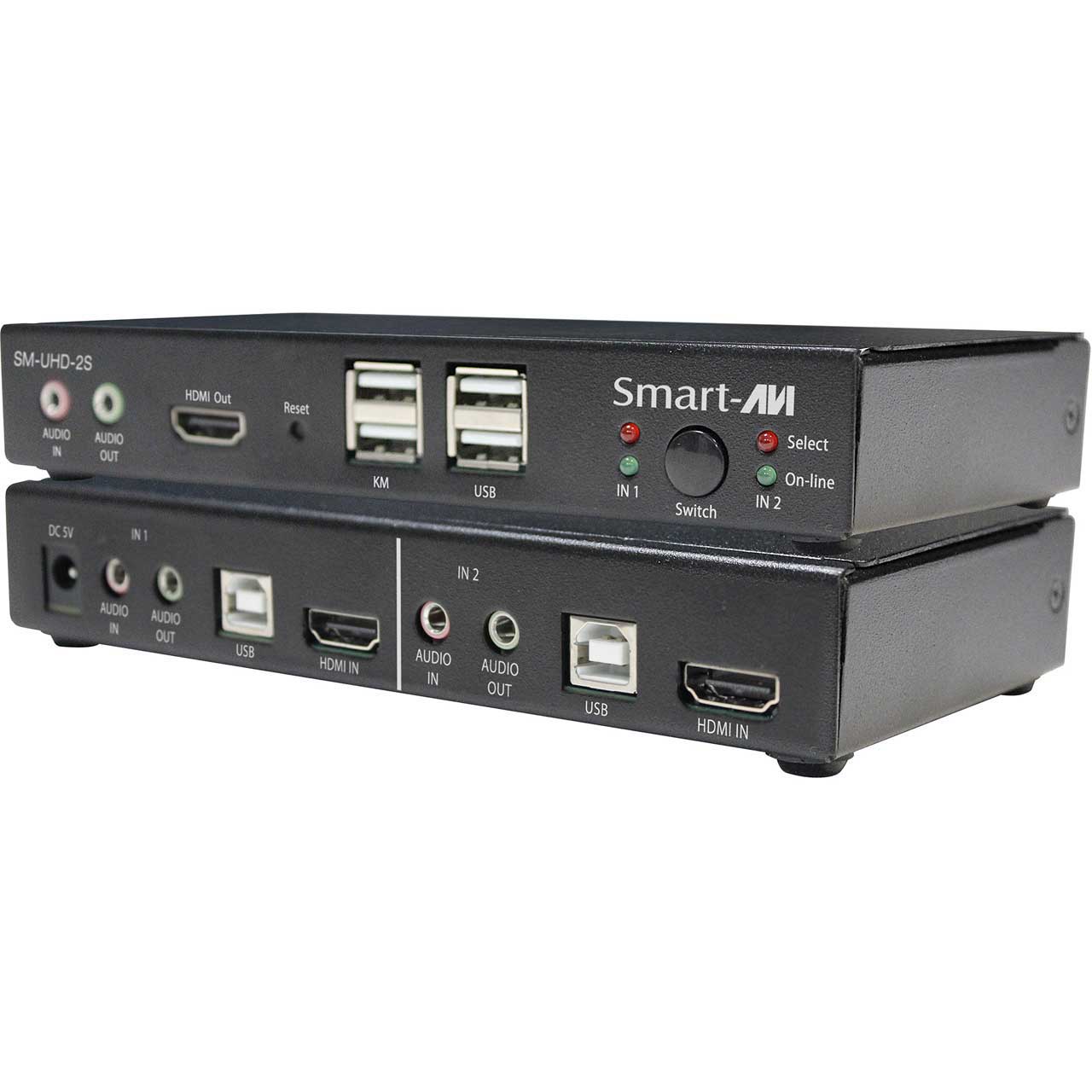

Smart AVI SM-UHD-2S HDMI KVM Switch with Audio and USB 2.0 Support - 2 Port

SM-UHD-2S - Overview

• Features:

  • Control two computers via one USB console
  • Support the computer with resolution up to 4K UHD (3840 x 2160 @ 60 Hz) single-head HDMI video output
  • HDMI 2.0 & HDCP 2.2 compliant
  • Flexible and easy switching
  • Computers and devices can be unplugged and re-plugged without having to shut down the KVM switch
  • Indicate the connected computers' statuses clearly
  • Control the computer conveniently & easily
  • USB transparency suitable for variety of peripherals
  • Support the computer's audio line in/out
  • Perform under no software installation


• Specifications:

  • System
  • Console Port:
    (1) HDMI female for output
    (2) USB Type A female for HID devices
    (2) USB Type A female for USB 2.0 hub
    (2) 3.5-mm audio phone jack

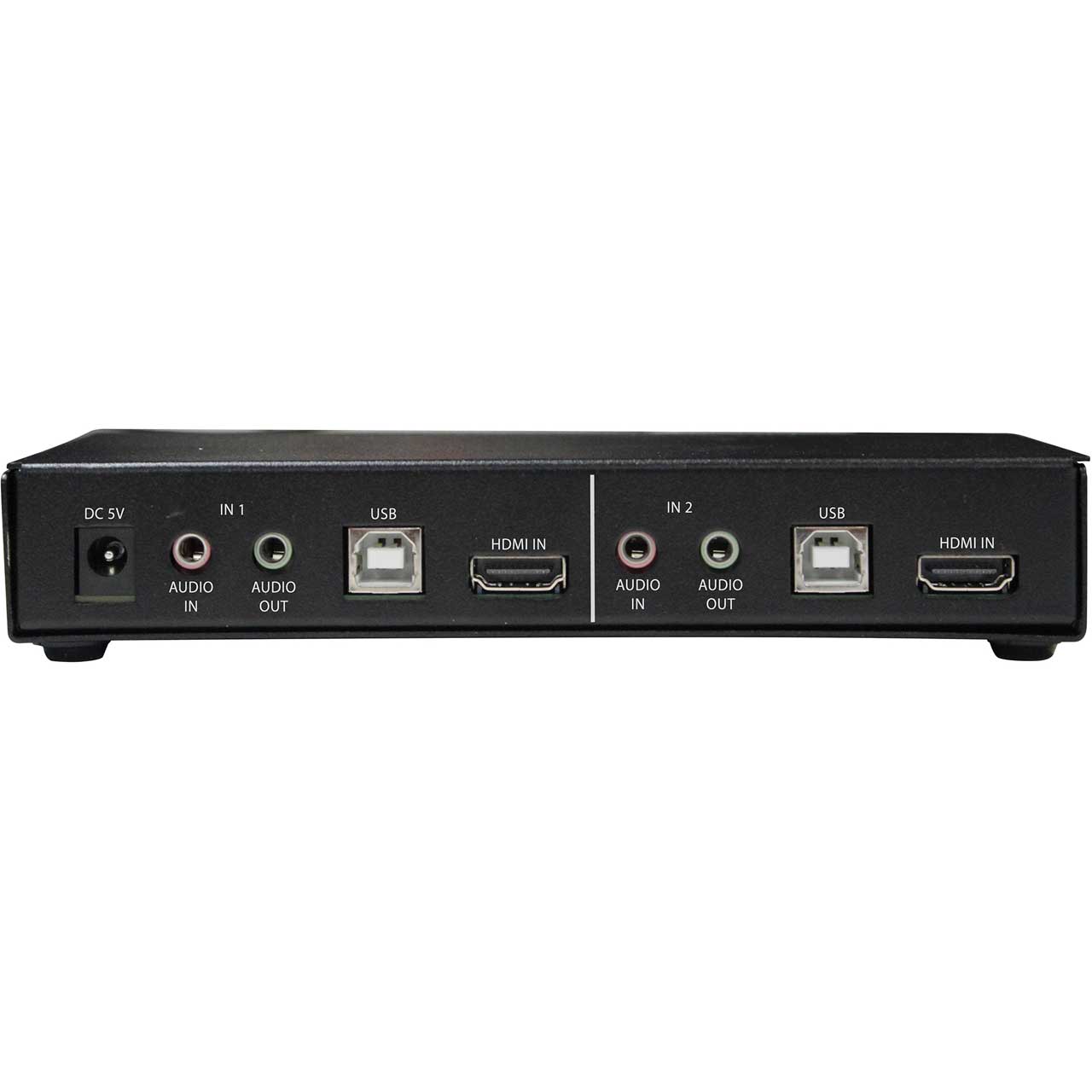

  • PC Port:
    (2) HDMI female for input
    (2) USB Type B female
    (4) 3.5-mm audio phone jack
  • Other: 2.1-mm barrel plug for power
  • Console x PC: 1 x 2
  • PC Port switch interface: 1 x push button
  • LED interface: Clock frequency beyond 165Mpix/second
  • Format: To show PC port selection status and connection status

    Other
  • Power Supply: Input: 100-240 VAC, 50/60Hz, 0.4A;
  • Output: 5V, 2A
  • Dimension: 6.57"W x 3.31"D x 1.26"H, (16.7 x 8.4 x 3.2 cm)
  • Weight: 0.200 kg
  • Storage Temperature: -20°C ~ 60°C
  • Operating Humidity: 0% ~ 80% RH
