Science Image SI-STUDIOEDGE6-G 6-Channel 1U Rack-mount 4K SDI/HDMI Full NDI Converter with Genlock and Cross Conversion

Name: Science Image SI-STUDIOEDGE6-G 6-Channel 1U Rack-mount 4K SDI/HDMI Full NDI Converter with Genlock and Cross Conversion
Brand: Science Image
SKU: SCI-STUDIOEDGE6G
Price: 8995.00 USD
Availability: PreOrder

ITEM #: SCI-STUDIOEDGE6G MFG #: SI-STUDIOEDGE6-G

Science Image

Channels:

Channels

Our Price:

$8,995.00

Add to Wish List Leasing Options

Availability: Preorder

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

SI-STUDIOEDGE6-G - Overview

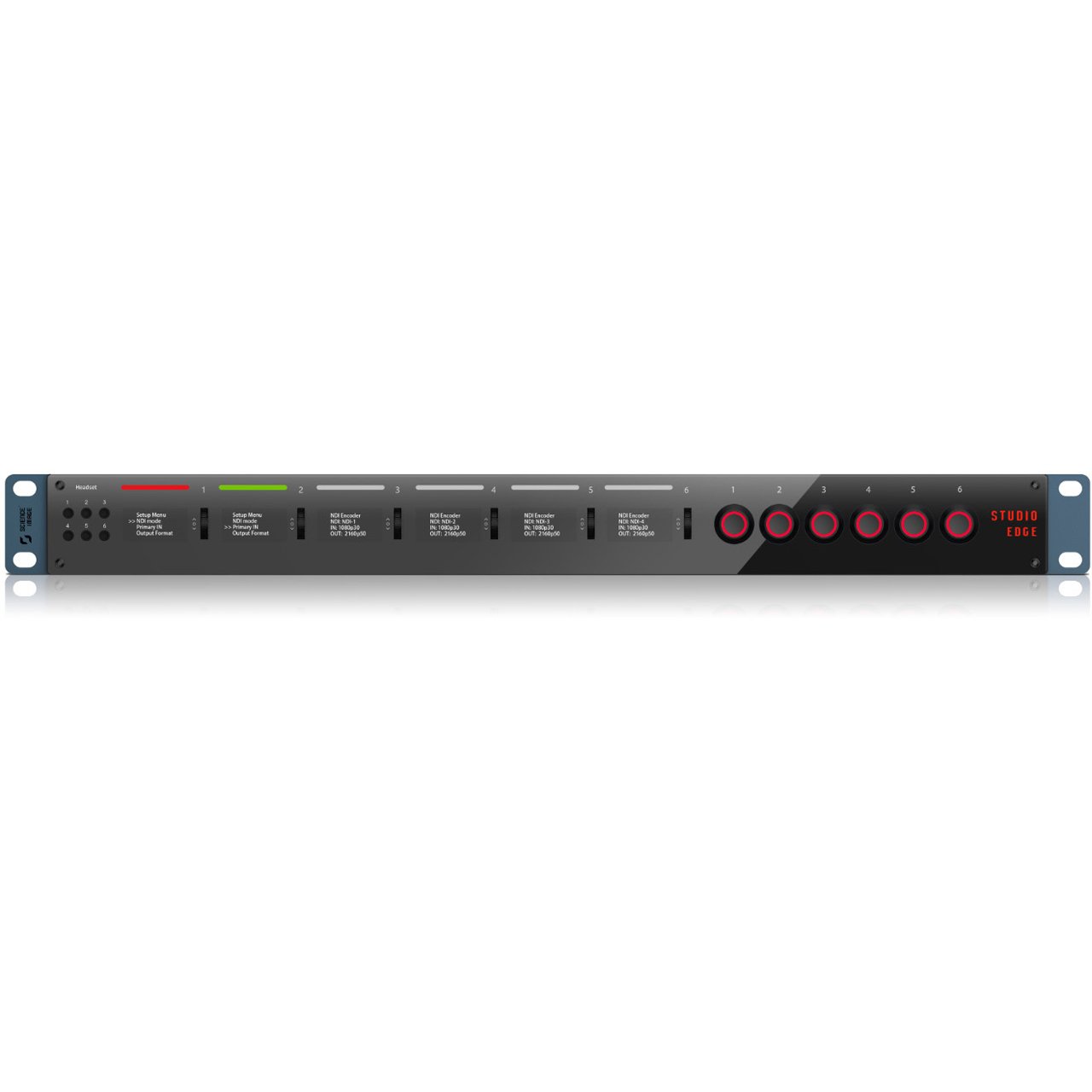

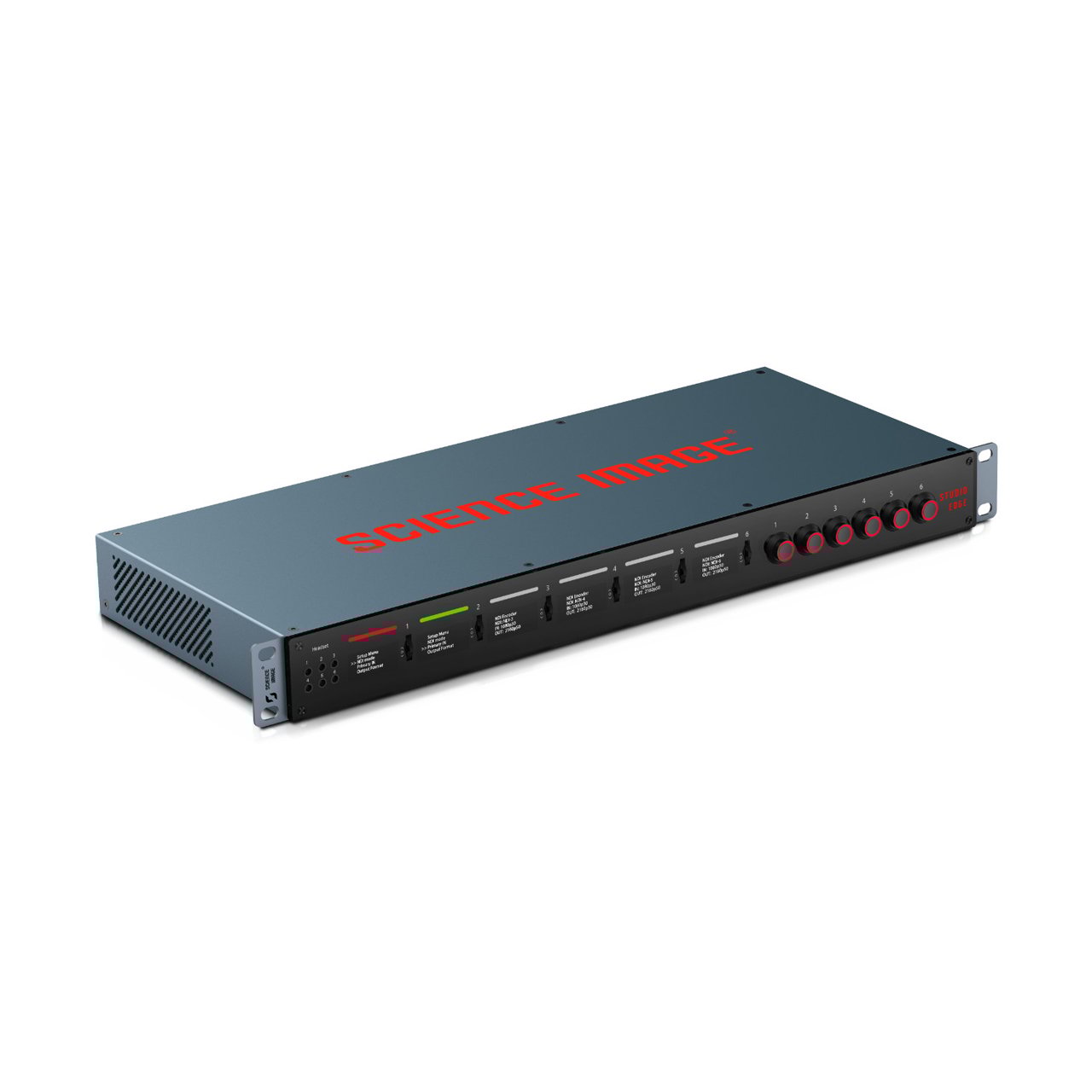

The Studio Edge SI-STUDIOEDGE6-G is a high-density, multi-channel NDI converter in a compact 1U rack enclosure. A powerful combination of connectivity and performance is great for studios that need to manage many NDI sources and destinations in a single device. The Studio Edge series can also function as a display management system for digital signage, utilizing its integrated fiber connections to send and receive video and audio over long distances with no signal loss.The Studio Edge series delivers all the same connectivity as those devices in a rack-mountable chassis with a single power supply. Each channel features an independent power switch, LED display, tally light, video inputs and outputs, network connections, and audio ports. The Studio Edge G series adds a Genlock sync input to each channel, making it perfect for multi-camera studios.

Features:
- 6-Channel Rack-Mount
- Full NDI Converter with Fiber TX/RX and Analog Audio In/Out
- Up/Down/Cross Conversion of 27 Formats
- OLED Display
- Video Formats up to 4K60
- HDMI, 12G-SDI & RJ45 NDI Connectivity
- Dedicated LED Screen for Each Channel
- Independent Switch at Disposal
- VISCA & PELCO-P/D Protocol Support
- 1 RU Short-Depth Chassis
- Audio Embedded/De-Embedded/Intercom
Specifications:
- Dimensions: 20" x 12" x 6" (50.8cm x 30.5cm x 15.2cm)
- Weight: 8lbs (3.6kg)
- Rack Form Factor: 1U

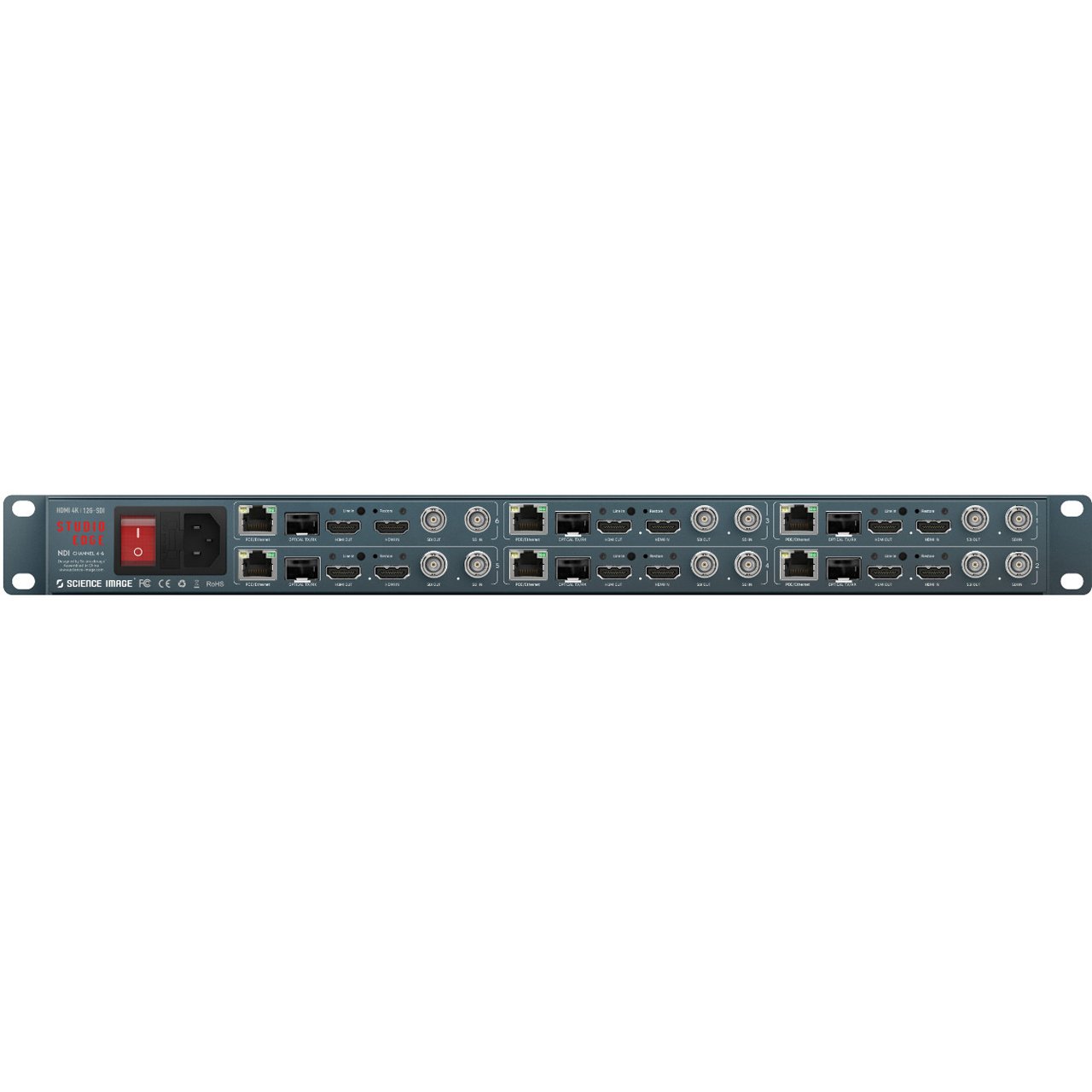

  Interfaces
- MIC Input/Output Interfaces: 6x Mic 3.5mm audio input/output interfaces meant for audio output after de-embedding SDI and HDMI video sources as well as the audio input/output of intercom.
- RJ-45 Gigabit Ethernet Interface: 6x RJ-45 Gigabit interfaces
- Optical Fiber: 6x SMPTE optical fiber/SFP optical fiber sockets
- Line-in Audio Input Port: 3.5mm LINE IN audio input ports for external analog audio embedding.
- HDMI Video Output: 6x HDMI 2.0 Outputs
- HDMI Video Input: 6x HDMI 2.0 Inputs
- SDI Video Output: 6x 3G/6G/12G-SDI Outputs
- SDI Video Input: 6x 3G/6G/12G-SDI Outputs
- Genlock input: 6x Genlock BNC Connectors
- Power Supply: 3-in-1 AC socket, wide voltage input ranging from 100V - 240V, centralized power supply, built-in leakage protection and independent switch for each channel.

  Channel Parameters
- SDI/HD/HDMI Video Formats: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
- 6G/12G-SDI/Ultra HD/4K Video Formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- SDI Standards: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE2082-1, SMPTE 2082-10
- Display: 1.3" OLED screen
- High-Bandwidth NDI Encoding: Supports NDI encoding ranging from HD/3G-SDI to 4K60/12G-SDI
- Scroll Wheel Button: Supports configuring NDI encoding/decoding mode, SDI/HDMI input priority and output's resolution format, as well as optical transceiver
- High-Bandwidth NDI Decoding: Supports NDI decoding ranging from HD/3G-SDI to 4K60/12G-SDI
- Optical Transceiver: T1 optical module required to jointly function as transmitting end or receiving end; transmitting/receiving mode configurable via scroll wheel button/WebUI/DynaControl; remotest transmitting range up to 20KM.
- Network Configuration: Support the inter-conversion among TCP (multi-connection), TCP (single connection), UDP and RUDP.
- Tally: TALLY status display in real time: green as PVW and red as PGM.
- Camera PTZ Control: Protocols supported: VISCA, PELCO-P and PELCO-D
- Firmware Upgrading: Firmware upgrading via Web UI.
Item Includes:
- 1x SI-STUDIOEDGE6-G 6-Channel 1U Rack-mount
Warranty:
- 1 Year Limited Warranty
GTIN:
0601961419957
