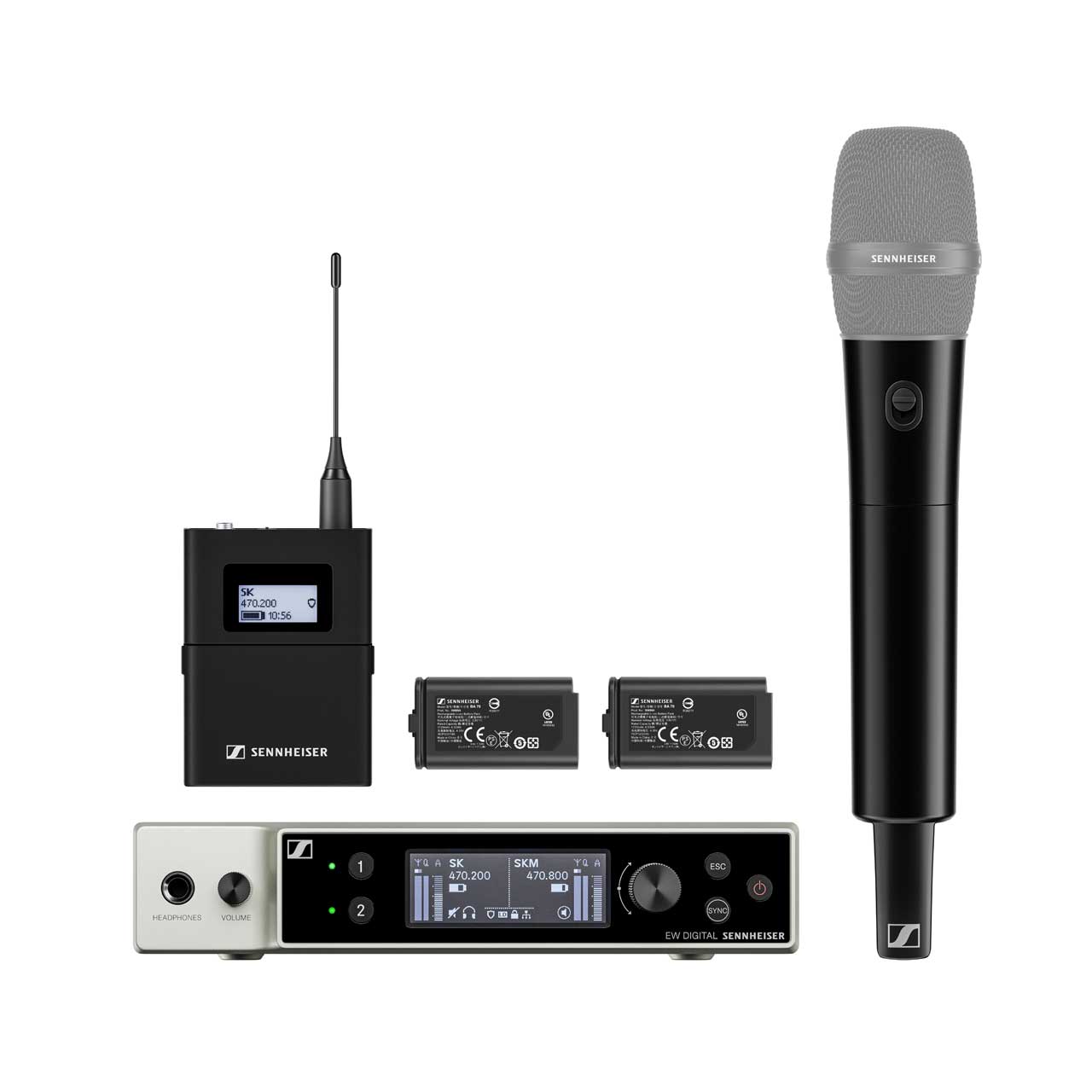

Sennheiser EW-DX SK/SKM-S BASE SET Q1-9 Digital Wireless Microphone Base Set - Frequency 470.2 - 550 MHz

509462 - Overview

• Features:

  • EW-DX EM 2
  • 2 channel half rack (9.5’)
  • Up to 88 MHz switching bandwidth
  • PoE IEEE 802.3af Class 3
  • Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
  • Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
  • Clear and easy focused user interface with OLED display
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure AES 256 encryption
  • External PSU 12V/1A
  • All-metal housing

    EW-DX SK
  • 3,5 mm jack
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch - customize the device depending on your professional needs
  • Extended runtime with lithium ion batteries - up to 12 hours operation time
  • Mic input trim control
  • Metal housing

    EW-DX SKM-S
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
  • Function buttons - control all the transmitter settings directly from handheld microphone
  • Extended runtime with lithium-ion batteries - up to 12 hours operation time
  • Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
  • Mic input trim control
  • Metal housing


• Specifications:

  • System
  • Audio Link Frequency Ranges
    Q1-9: 470.2 - 550 MHz
    R1-9: 520 - 576 MHz
    V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65MHz
  • Bluetooth® Low Energy (BLE) Frequency Range: 2402 - 2480 MHz
  • Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
  • Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
  • Dynamic Range: 134 dB
  • System Latency: 1.9 ms
  • Operating Temperature: -10°C - +55°C (14°F - 131°F)
  • Relative Humidity: 5 - 95 % (non-condensing)

    EW-DX EM 2 (Rack Receiver)
  • Input Voltage: 11 - 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher)
  • Input Current: ≤ 1 A
  • Transmit Power (Radiated): BLE: max. 10 mW EIRP
  • Audio Output Power: 18 dBu max.
  • Headphone Output: 2x 70 mW @ 32Ω
  • Ethernet: RJ-45 socket, IEEE802.3, 100Base-TX (half+full duplex), 10Base-T (half+full duplex), (CAT5e or higher)
  • Dimensions: 212 x 44 x 189mm (8.35 x 1.73 x 7.44")
  • Weight: approx. 1000g (2.2Lbs) (without antennas and power supply)

    EW-DX SK (Bodypack Transmitter)
  • Input Voltage: 2.0 - 4.35 V
  • Input Current: < 300 mA
  • Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Occupied Bandwidth: 200 kHz
  • Transmit Power (Radiated):
    Audio Link: 10 mW ERP (Range Y1-3: 12 mW ERP)
    LD Mode: 10 mW ERP
    BLE: max. 10 mW EIRP
  • Dimensions (Without Antenna): 2.5 x 3.35 x 0.79" (63.5 x 85 x 20mm)
  • Weight (Without Batteries): approx. 0.26-0.27Lbs (115-120g)

    EW-DX SKM-S (Handheld Transmitter)
  • Input Voltage: 2.0 - 4.35 V
  • Input Current: < 300 mA
  • Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Occupied Bandwidth: 200 kHz
  • Transmit Power (Radiated): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP
  • Dimensions (ø x l):
    (Incl. MMD 835 Microphone Module): 50 x 268mm (1.97" x 10.55")
    (Without Microphone Module): 40 x 200mm (1.57" x 7.87")
  • Weight (Without Batteries):
    (incl. MMD 835 microphone module): approx. 304g (0.67Lbs)
    (without microphone module): approx. 195g (7.14Lbs)


• Item Includes:

  • 1x EW-DX EM 2 rack receiver
  • 1x EW-DX SK bodypack transmitter
  • 1x EW-DX SKM-S handheld transmitter
  • 2x 2 rod antennas
  • 1x Power supply with country adapters
  • 1x GA 3 rackmount set
  • 4x Rubber feet
  • 2x BA 70 rechargeable battery packs
  • 1x quick guide
  • 1x safety guide
  • 1x manufacturer declaration sheet


• GTIN:

  0615104372290
