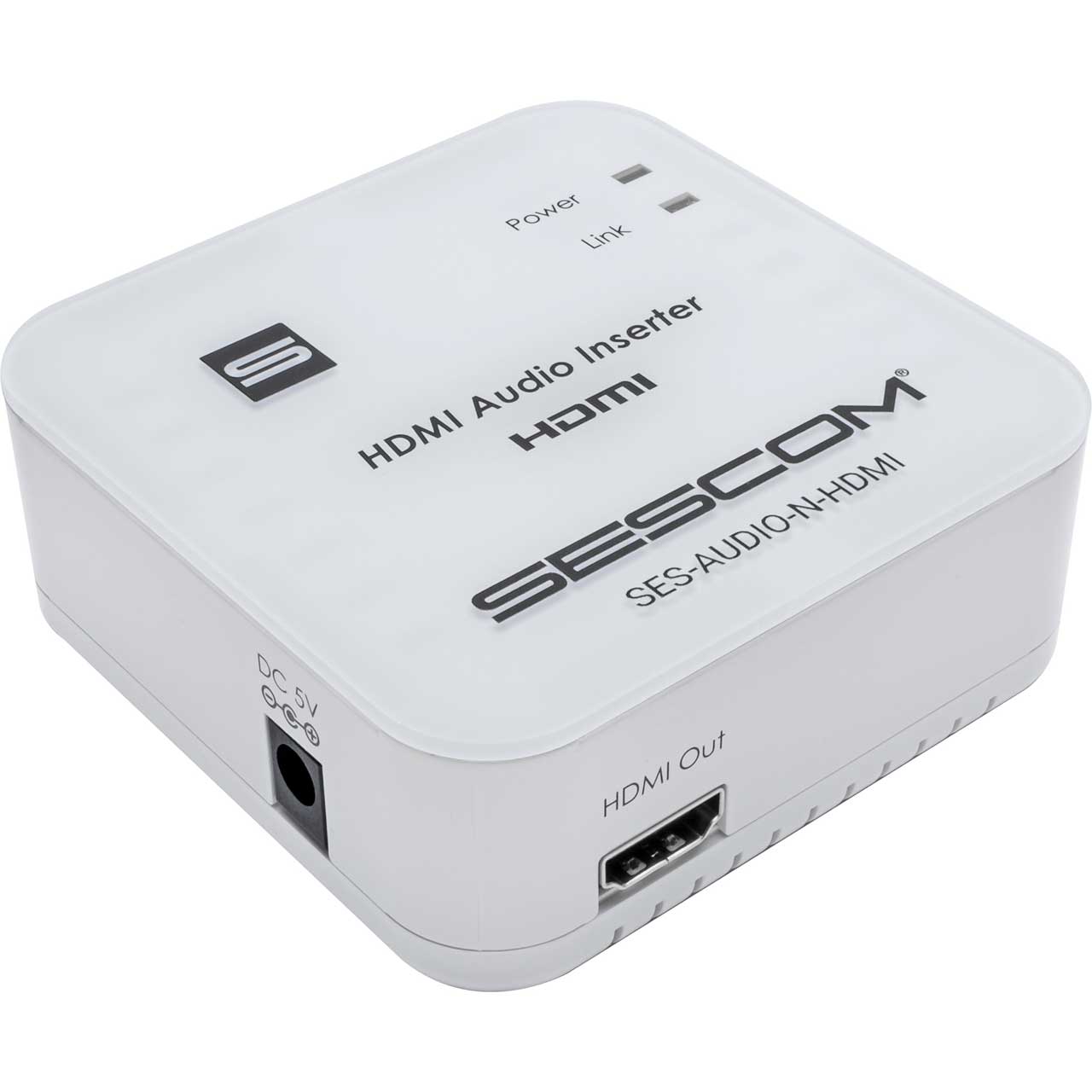

Sescom L/R RCA Analog Audio & Toslink to HDMI Audio Inserter

ITEM #: SES-AUDIO-N-HDMI MFG #: SES-AUDIO-N-HDMI

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$162.49

Our Price:

$155.49

Availability: In Stock
iAvailability Description Popup


    SES-AUDIO-N-HDMI - Overview

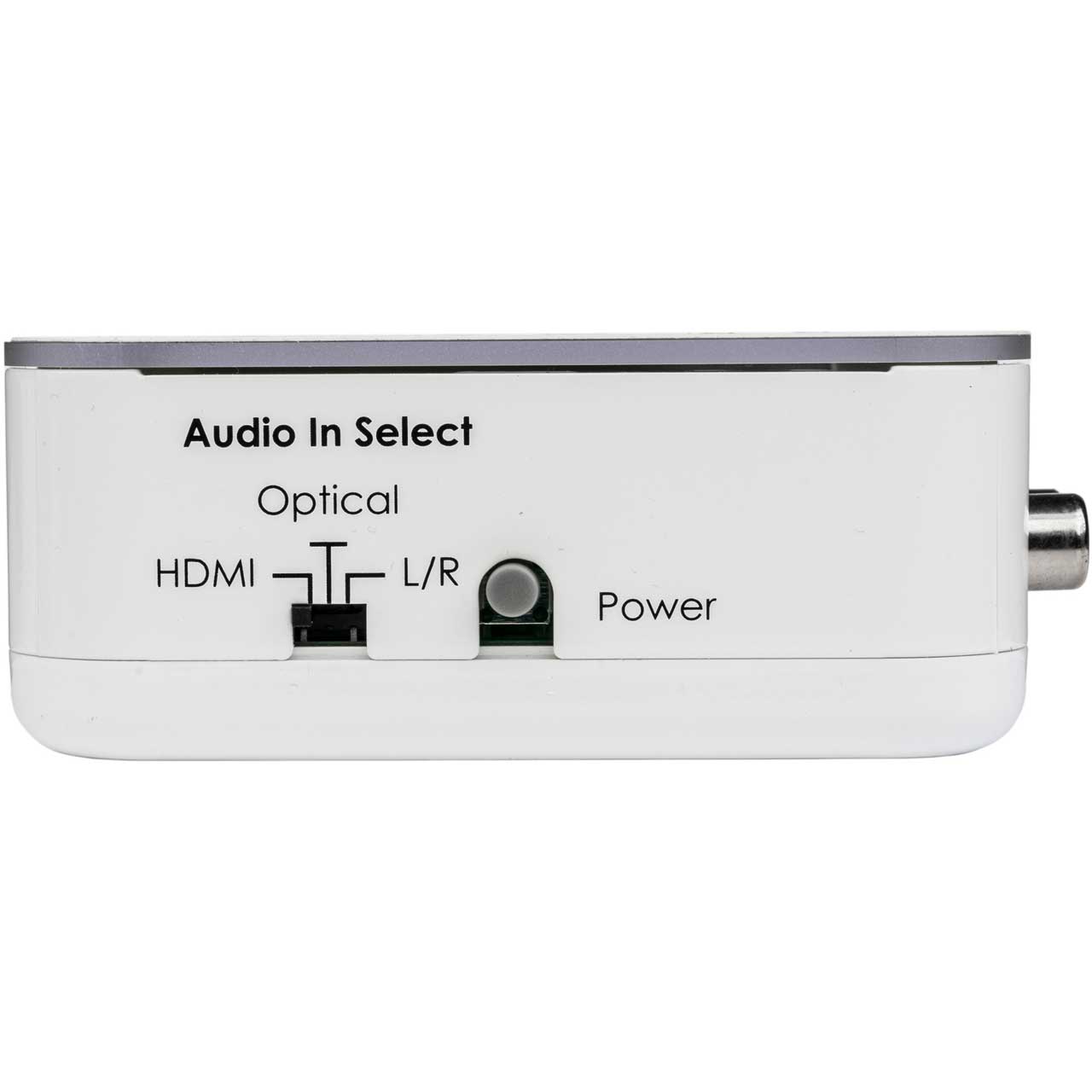

    Insert an external audio signal into an HDMI or DVI signal path with the Sescom SES-AUDIO-N-HDMI Audio Inserter. Using the Audio IN Select feature, switch among three different audio input options: HDMI, Optical, and L/R Analog. Insert stereo and multi-channel surround sound signals while extending the HDMI signal.

    Embeds external L/R analog or optical audio into HDMI signal
    Integrates audio and DVI video to HDMI signal output
    Replaces audio in the original HDMI signal with other input sources

    Please note that this unit requires that the incoming HDMI signal contain existing embedded audio to embed new audio over. It will not function properly if no audio is present on the incoming HDMI signal.

    • Features:

      • Compliant with HDMI, HDCP 1.2 and DVI 1.0
      • Supports HDMI audio sampling rates up to 192 kHz
      • Supports Optical S/PDIF audio sampling rate up to 48 kHz
      • Supports TMDS clock frequency up to 225 MHz
      • Supports high-bit-rate (HBR) audio

    • Specifications:

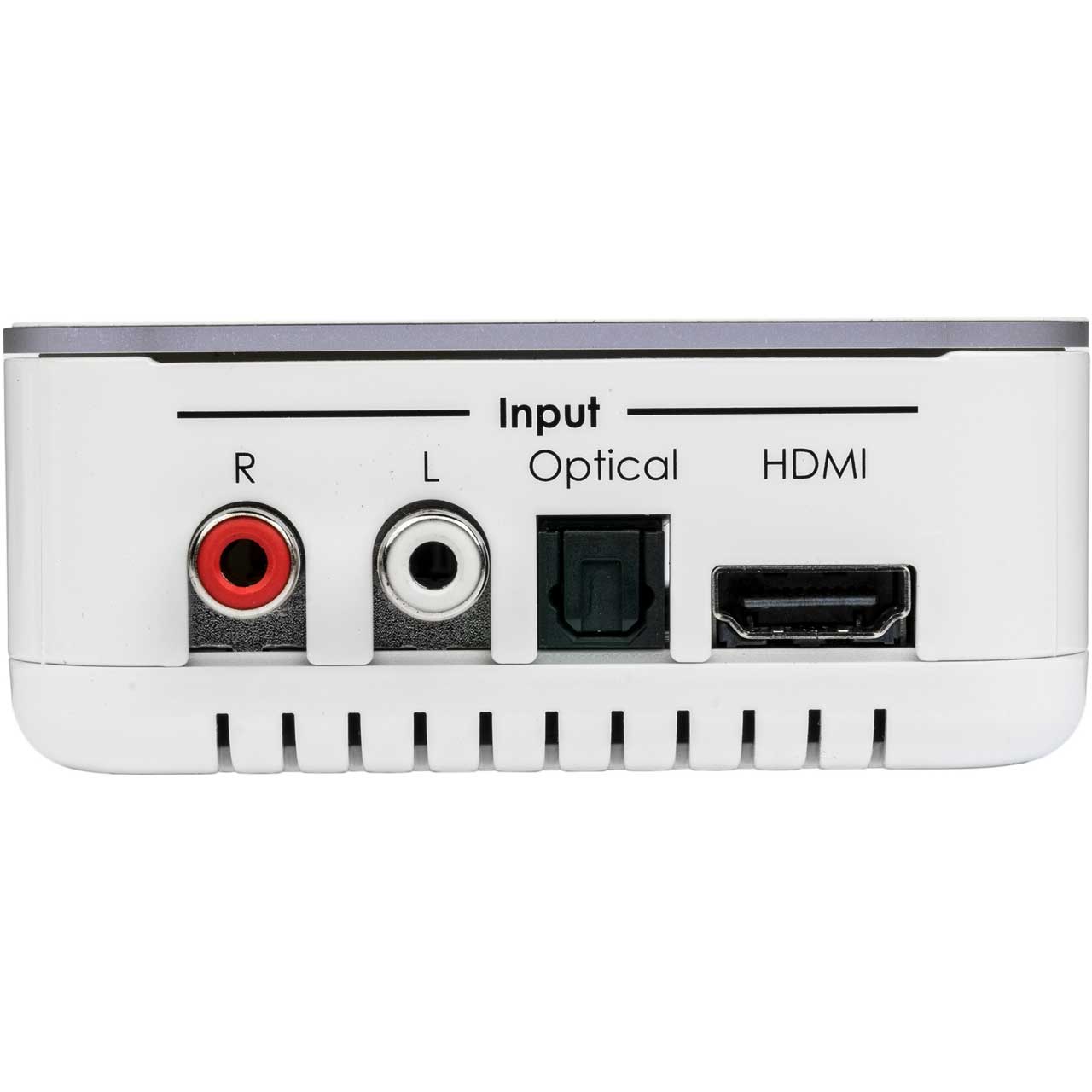

      • Input Ports: 1xHDMI, 1xOptical (Digital Audio), 1xL/R (Analog Audio)
      • HDMI Audio Sampling Rate Up to 192 kHz
      • Optical Audio Sampling Rate Up to 48 kHz
      • Output Port 1xHDMI
      • HDMI Cable I/O Distance 10 meter, 1080p@12-bit 15 meter, 1080p@8-bit
      • HDMI Audio Format LPCM 2/5.1/7.1, Dolby 5.1, DTS 5.1, Dolby Digital+, Dolby TrueHD & DTSHD Master Audio
      • Optical Audio Format LPCM 2, Dolby Digital & DTS Digital Audio 5.1
      • Dimensions (WxDxH): 3.6 x 3.4 x 1.3 inches
      • Weight: 3.77 oz

    • Warranty:

      • 1 Year
