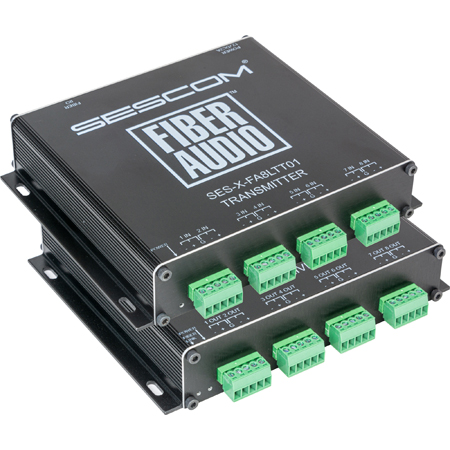

Sescom SES-X-FA8LTT01 Audio Fiber EXTENDER:8 CH Bal Line Level Audio - 5-Pin to XLR Breakouts - B-Stock (Refurbished)

ITEM #: SES-X-FA8LTT01BS MFG #: SES-X-FA8LTT01BS

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SES-X-FA8LTT01BS

SES-X-FA8LTT01BS - Overview

The professional cost effective solution for sending 8 channels of balanced line level audio over a one single mode fiber cable is the Sescom X-FA8LTT01. It supports 24-bit digitally encoded analog audio and maintains a broadcast quality audio signal at distances up to 12.4 miles on single mode fiber.

Utilizing a Sescom X-FA8LTT01 extender ensures the purest signal transmission as fiber based systems are superior to traditional copper at rejecting ground loop noise & suppressing EMI. The transmitter and receiver feature four 5-pin phoenix jacks for balanced audio connection via bare leads or use our included XLR to phoenix adapters. Professional bayonet style ST connectors ensure a consistent, uninterrupted signal. The complete transmitter and receiver kit is perfect for Stadiums, Live Event Stages, Broadcast TV, Theme Parks, Distance Surveillance and Professional AV.

Please note: Refurbished in-house, cannot be sold as new.

  • Features:

    • 8-Channel XLR Audio to Fiber Transmission
    • Phoenix 5-Pin Connectors
    • 12-Inch Breakout Adapters: Phoenix 5-Pin to XLR Connectors
    • ST Fiber Connector
    • 24-Bit Digitally Encoded Analog Audio
    • Transmission Distance: Multimode Fiber up to 984 feet / Single Mode Fiber up to 12.4 miles
    • No Loss in Signal Quality
    • Rejects Ground Loop Noise & Suppresses EMI
    • Adjustment-Free Plug & Play Operation
    • Enable Cascaded Audio Setups
    • Line Level Balanced Audio Operation
    • Indicator LEDs Monitor Fiber Link and Power
    • Housed in Rugged Aluminum Enclosures
    • FCC, CE, & RoHS Certified
    • Please note: Refurbished in-house, cannot be sold as new.

  • Specifications:

    • Unity Gain: 0dB
    • Sample Rate: 48kHz, 24K bit rate
    • Frequency Response: 20Hz - 20kHz
    • Signal to Noise Ratio > 90dB Ref. 4dBu, A Weighting
    • Total Harmonic Distortion <0.05%
    • Maximum Balanced Input Signal: 18dBu
    • Optical Wavelength: 1310nm
    • Max Input/Output Voltage: 17.4Vp-p
    • Input Power: 12VDC/1A
    • Power Consumption: < 1W per unit
    • Weight: TX 13.7 oz / RX 13.7 oz
    • Overall Dimensions (LxWxH): 6.25 x 6.25 x 1.25 inch with flanges/plugs

  • Item Includes:

    • 1-8CH Transmitter with Phoenix 5-pin Connectors & 1-8CH Receiver with Phoenix 5-pin Connectors
    • 2-12VDC/2A Power Supplies
    • 4- 12 Inch Phoenix 5-Pin Break Out Adapters to 2 XLR Female Neutrik Connectors
    • 4- 12 Inch Phoenix 5-Pin Break Out Adapters to 2 XLR Male Neutrik Connectors
    • 1-Meter 9u/125u Single Mode Fiber Optic Patch Cable

  • Warranty:

    • 1 Year
