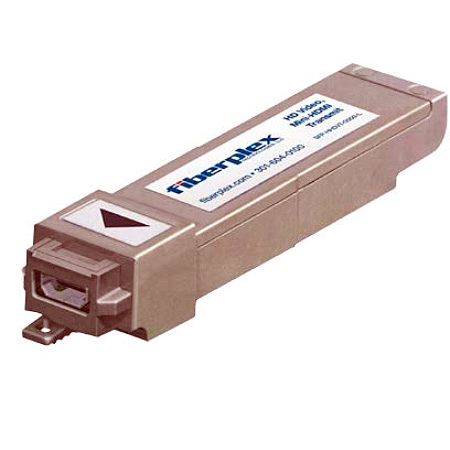

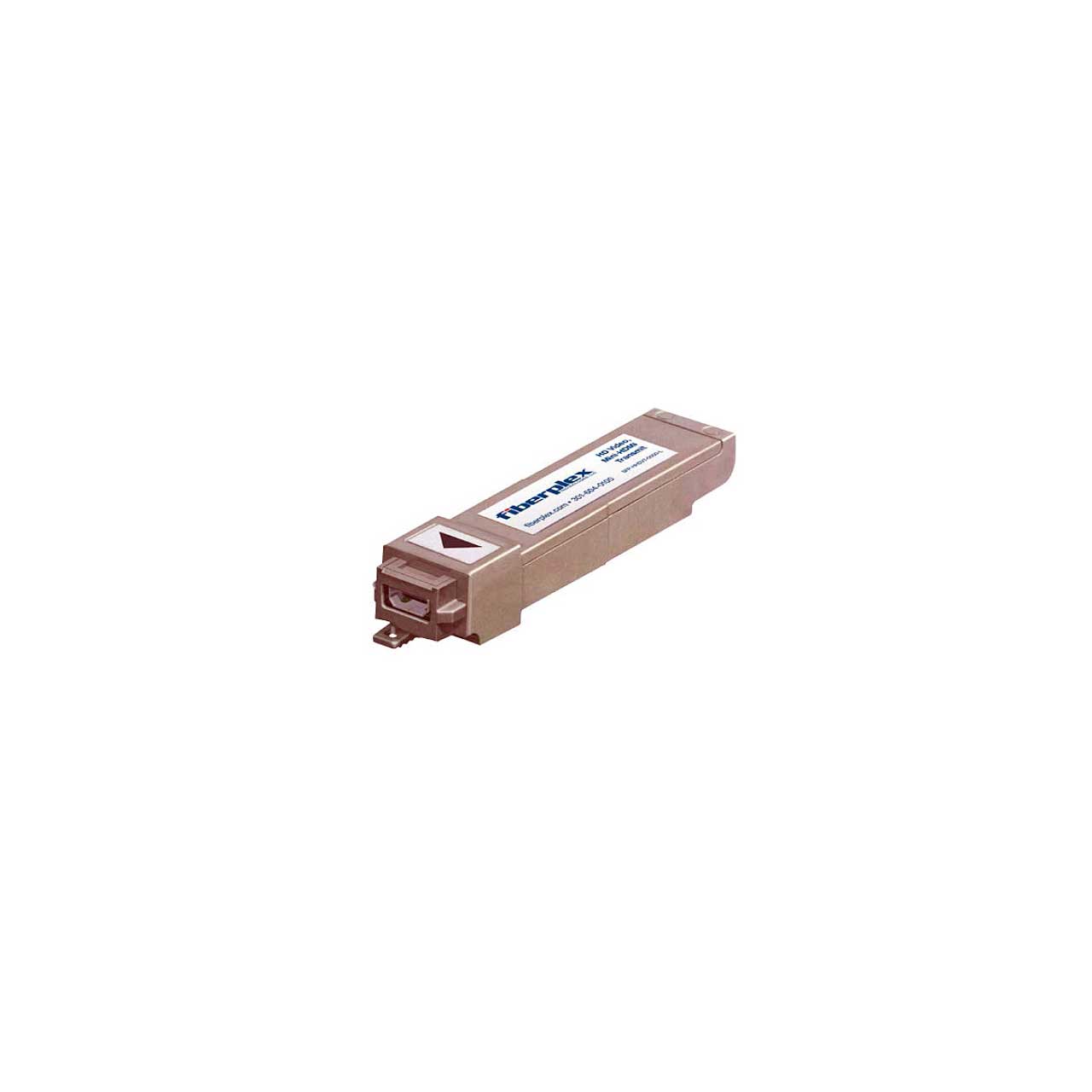

Fiberplex SFP-HHDVT-0000-M HDMI 1.4 HD Video Transmitter SFP

Item #: SFP-HHDVT-0000-M   •   MFG #: SFP-HHDVT-0000-M




Required Accessories

    Show More

The SFP-HHDVT-0000-M is an electrical SFP transmitter module designed to convert SDI signals to an HDMI/DVI output without scaling artifacts. A copy of the reclocked SD/HD/3G-SDI source is loopback to the host. Up to 8 channel of audio is supported and embedded in the HDMI signal.
The SFP-HHDVT-0000-M provides module identification information, configuration and diagnostic monitoring through a 2 wire serial interface. It is also a hotpluggable solution for field system upgrade and maintenance.
The SFP-HHDVT-0000-M is interchangeable with other MSA optical video SFP, coaxial SFP and SFP converter improving product flexibility. Ganged cages, belly-to-belly and superposed cage mountings are supported. The module provides reduced development risk and cost.

The SFP-HHDVT-0000-M is Pb-free and ROHS compliant.
Summary of Benefits
Flexibility: Build a totally optimized system by mixing electrical SDI, NTSC/PAL converter, HDMI/DVI and optical video SFP.
Cost:Design cost effective system.
Modularity: Allow hot scalability and replacement of critical components wherever possible.
Density: Highest density ever achieved for SDI to HDMI/DVI and HDMI/DVI to SDI converters.
Interchangeable: Fully compatible with existing MSA video optical SFP, SDI SPF and SFP converters
Hot-Pluggable: Swap without affecting system behavior.
Advanced Packaging: Support ganged cages, belly-to-belly and superposed cages mounting.
Green: The SFP-HHDVT-0000-L is Pb-free and ROHS compliant.

  • Features

    • SMPTE 424M, 292M and 259M compliant.
    • SDI Reclocked Loopback to host connector.
    • Supported format: 525/625, 720p/1080i (50/59.94/60Hz), 1080p (23.98/24/15/29.97/30/50/59.94/60Hz).
    • HDMI/DVI Output: ?24 bit (3x8 bits).
    • RGB 4:4:4, YCbCr 4:2:2, YCbCr 4:4:4.
    • BW = 150Mhz.
    • RGB Range (Full/SMPTE).
    • Up to 8 channel audio de-embedding (PCM).
    • HDMI 1.4 Type D connector.
    • HDMI Type D plug with retention.
      Control via serial interface including:
    • Voltage & Temperature Monitoring.
    • HDMI/DVI interface configuration.
    • EDID reading, Audio mapping.
    • Module Information.
  • Specifications

    • Low Power Consumption Single Supply +3.3V
    • 58.5mm x 13.4mm x 8.6mm SFP Package
    • Operating temperature: 0°C to 70°C
