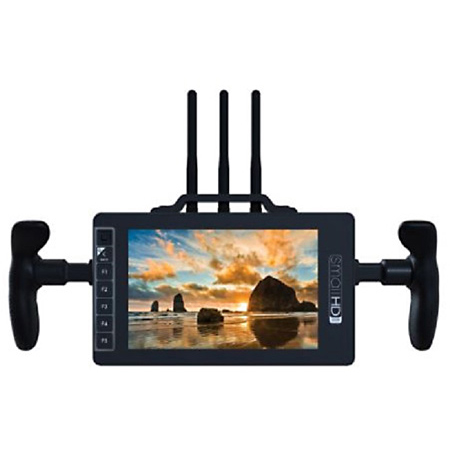

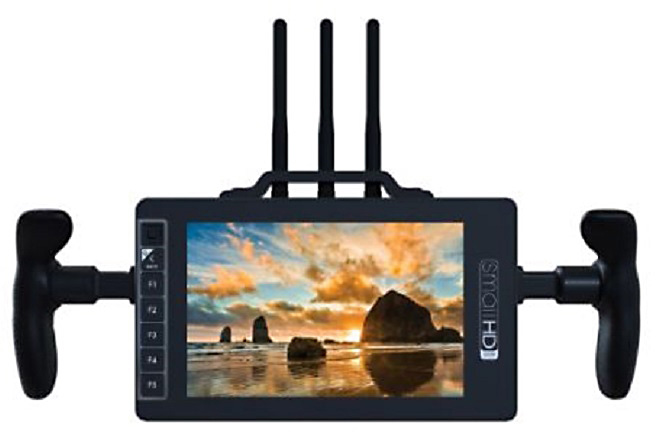

Small HD MON-703BOLT-GM 7-Inch Full HD Monitor/Receiver with Directors Handles and Gold Mount Battery Plate
  • Small HD MON-703BOLT-GM 7-Inch Full HD Monitor/Receiver with Directors Handles and Gold Mount Battery Plate
  • Small HD MON-703BOLT-GM 7-Inch Full HD Monitor/Receiver with Directors Handles and Gold Mount Battery Plate
  • Small HD MON-703BOLT-GM 7-Inch Full HD Monitor/Receiver with Directors Handles and Gold Mount Battery Plate

Questions? Ask a Markertek Expert:
800-522-2025 Email

Small HD MON-703BOLT-GM 7-Inch Full HD Monitor/Receiver with Directors Handles and Gold Mount Battery Plate

Manufacturer: SmallHD LLC

Item #: SMHD-MON703BLTGM   •   MFG #: MON-703BOLT-GM




Our Price:$4,199.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

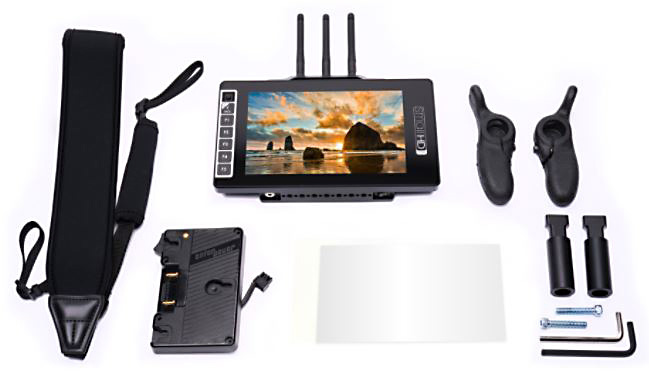

    The MON-703BOLT-GM is a 3000 nit daylight viewable monitor and receiver bundle that includes directors Handles and a gold mount battery plate. This unit is compatible with Teradek Bolt 500, 1000, and 3000 transmitters.

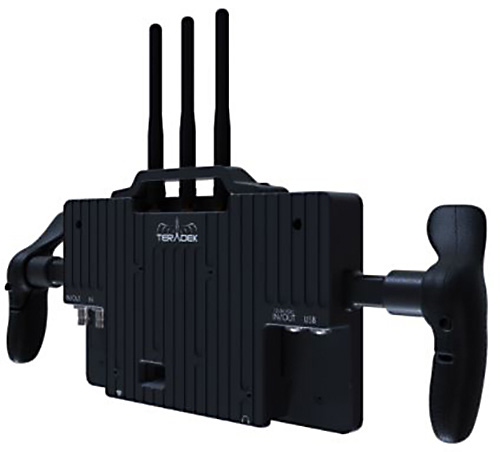

    SmallHD and Teradek have joined forces to create a wireless monitoring device that's easy to see, easy to power and easy hold. Easily pair the 703 Bolt with Teradek Bolt 500, 1000, or 3000 transmitters. Equipped with a built-in wireless receiver and cutting edge software tools like real-time 3D LUTs, the 703 Bolt is the ultimate kit for any director (no cage required). With Teradek wireless technology inside, the 703 Bolt can easily be used as an untethered focusing tool. Its display is tack sharp, and software features like peaking, focus assist, and pixel zoom are easily accessible.


    • Features

      • 1920x1080 Resolution
      • 3000 Nits Bright
      • 300 Foot Range Wireless Receiver
      • 2x SDI Input
      • 1x SDI Output

    • Specifications

      • Display
      • Panel Type: IPS LCD
      • Resolution: 1920 x 1080
      • Pixel Density (PPI): 323 ppi
      • Aspect Ratio: 16:9
      • Active Area: 7.02
      • Brightness: 3000
      • Contrast: 1150:1
      • Color Gamut: 70% NTSC
      • Color Depth: 10-bit
      • Viewing Angle: 178 Degrees (CR<10)
      • Backlight Type: White LED

        Input Signal Types/Formats
      • 3G-SDI: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
      • HD-SDI: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
      • SD-SDI: YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
      • Audio: SDI - Monitor through Headphone Jack - Metering up to 8 channels

        Output Signal Types/Formats
      • 3G-SDI: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
      • HD-SDI: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
      • SD-SDI: YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
      • Audio: SDI - Incoming Audio Stream is sent downstream via SDI connection

        Connector Type
      • SDI: 2x 3g Input, 1x 3g Output
      • HDMI: Not Supported
      • Component: Not Supported
      • Composite: Not Supported
      • Audio: 1x ?" Headphone Jack
      • Power In: 1x Locking LEMO 2-pin Connectors Power Input
      • USB: 1x Proprietary Locking LEMO 5-pin Connectors Power Input

        Controls
      • Primary Control Interface: Joystick Navigation, Dedicated Back/Power Button. 5 Additional User Assignable Function Buttons

        Data I/O
      • Storage SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving.
      • USB: USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving.

        Power
      • Connector Type: 1x Locking LEMO 2-pin Connectors Power Input
      • Voltage With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 - 34V 14.4V Nominal With Lemo Input: 12 - 34V Max
      • Power Consumption: TBD
      • Recommended Power Supply: Included
      • Overload Protection: Yes

        Environmental
      • Compliance: FCC, IC, CE, RoHS
      • Operating Temperature: 0 - 100 degrees F
      • Storage Temperature: -4 - 120 degrees F
      • Screen Protection: AR Coated Gorilla Glass Optical Bonding on Panel
      • Width: 1.21" (3.07cm)
      • Depth/Length: 8.4" (21.34cm)
      • Weight (Item Only without battery): 32oz (907.18g)
      • Weight (Packaged): 44.2oz (1253.05g)
      • Mount Points: 1x ¬"-20 Thread on left and right side of Monitor, 7x ¬"-20 Thread on Bottom of Monitor, 7x ¬"-20 Thread on Top of Monitor
      • Note: 5-inches high without antennas, 9.0 with antennas

        Software
      • Pixel Zoom (type): 2x & 4x Zoom with smooth pan via joystick
      • Frame Guides: Yes Preset Aspect Ratios & Customizable
      • DSLR Scale: Canon 5DMkii & Canon 7D
      • Custom Scale: Yes (Underscan Only)
      • Anamorphic De-Squeeze: Yes 1.33x, 1.5x, 1.66x, 2.0x
      • Image Rotate(Manual/Automatic): Yes - Automatic or Manual Control
      • Image Flip (Manual/Automatic): Yes - Automatic or Manual Control
      • Focus Assist (Colors): Yes - User Adjustable Color Style and Intensity
      • Peaking: Yes - User Adjustable Intensity
      • False Color: Yes - Rainbow & Arri Style
      • Zebra: Yes - Dual - User Configurable
      • Waveform: Yes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
      • Vectorscope: Yes
      • RGB Parade: Yes - Fully User Customizable
      • Histogram: Yes - Luma & RGB Style
      • Image Capture: Yes - With Dedicated Button
      • Custom LUTS: Yes - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
      • LUT Downstream: Yes - Available on SDI Out. Applied on Output Preview Page.
      • LUT Import: via SD Card or USB Storage Device
      • Image Overlay: Yes with Opacity Slider and Blink Setting
      • Audio Meters: Yes - up to 8 channel

    • GTIN:

      0850324007281
