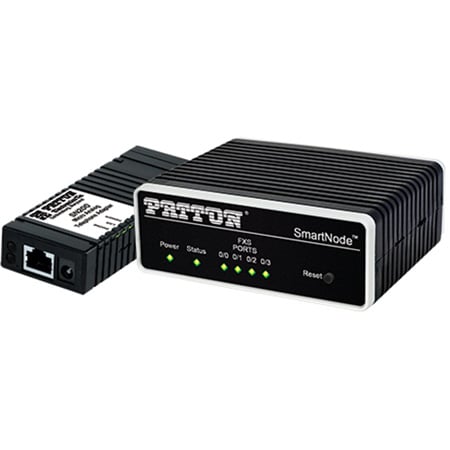

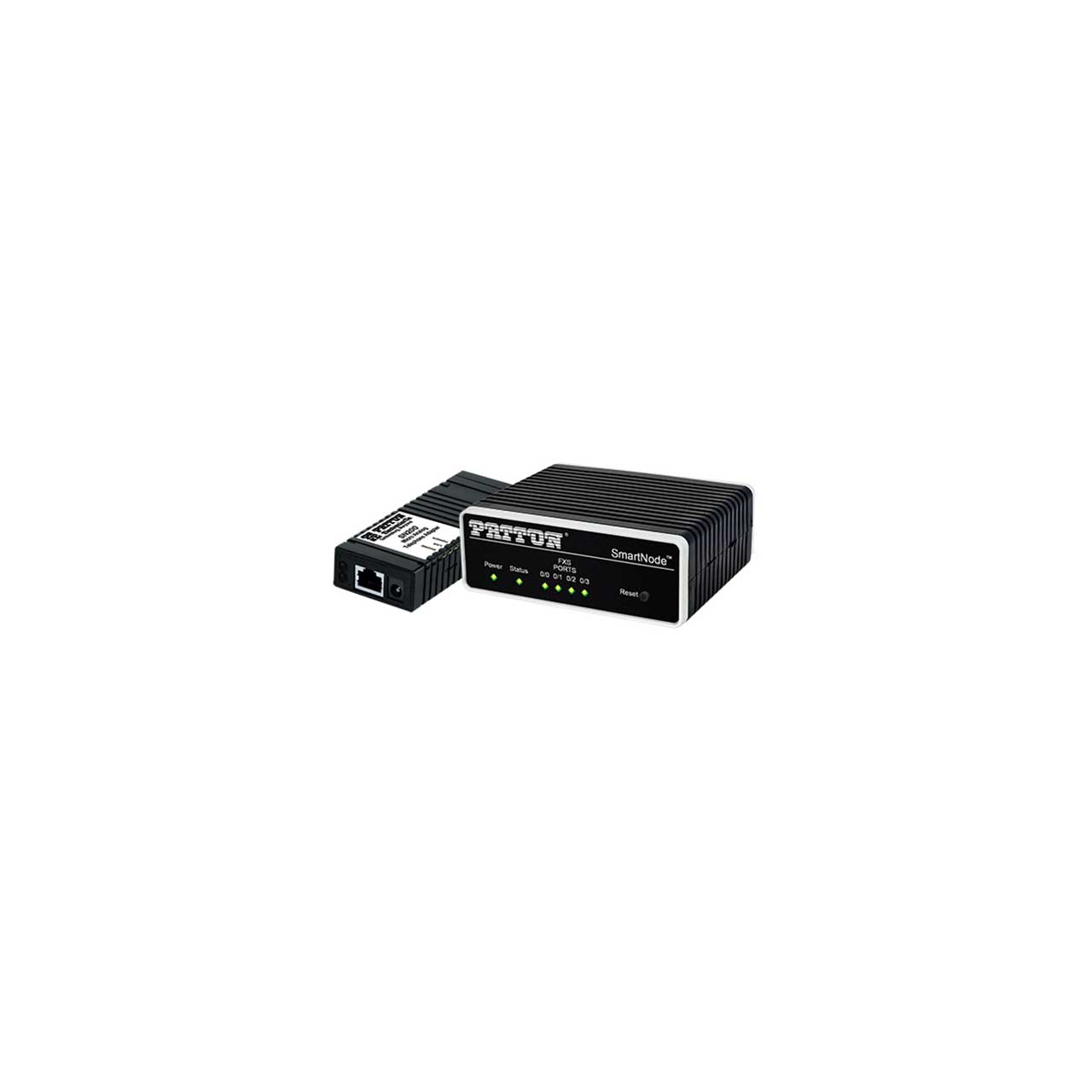

Patton SmartNode SN200/1JS1/EUI Micro Analog Telephone or Fax to SIP Adapter

ITEM #: SN200-1JS1V-EUI MFG #: SN200/1JS1V/EUI

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:


Availability: In Stock
iAvailability Description Popup

    SN200/1JS1V/EUI - Overview

    The Patton SN200/1JS1V/EUI SmartNode 200 Series of Analog Telephone Adapters and Gateways support up to four telephone connections, integrating legacy Phones and Fax machines in to a UCC Environment. High quality voice and reliable fax over any IP network. All-IP does not end when analog terminals have to be integrated. Security and quality guaranteed.

    Connect with confidence using the SmartNode SN200 Series, legacy telephony equipment to nowadays common SIP trunk and hosted services. The SN200 Series support a variety of telephony interfaces, from 1 to 4 simultaneous calls. Depending on the model, there are FXS and FXO ports available for survivability or number portability during the All-IP migration phase.

    Designed for professional network deployments, the SN200 provides Telco Operators and Enterprise users a cost-effective solution integrating legacy phones, fax and metering machines in to an All-IP Network.

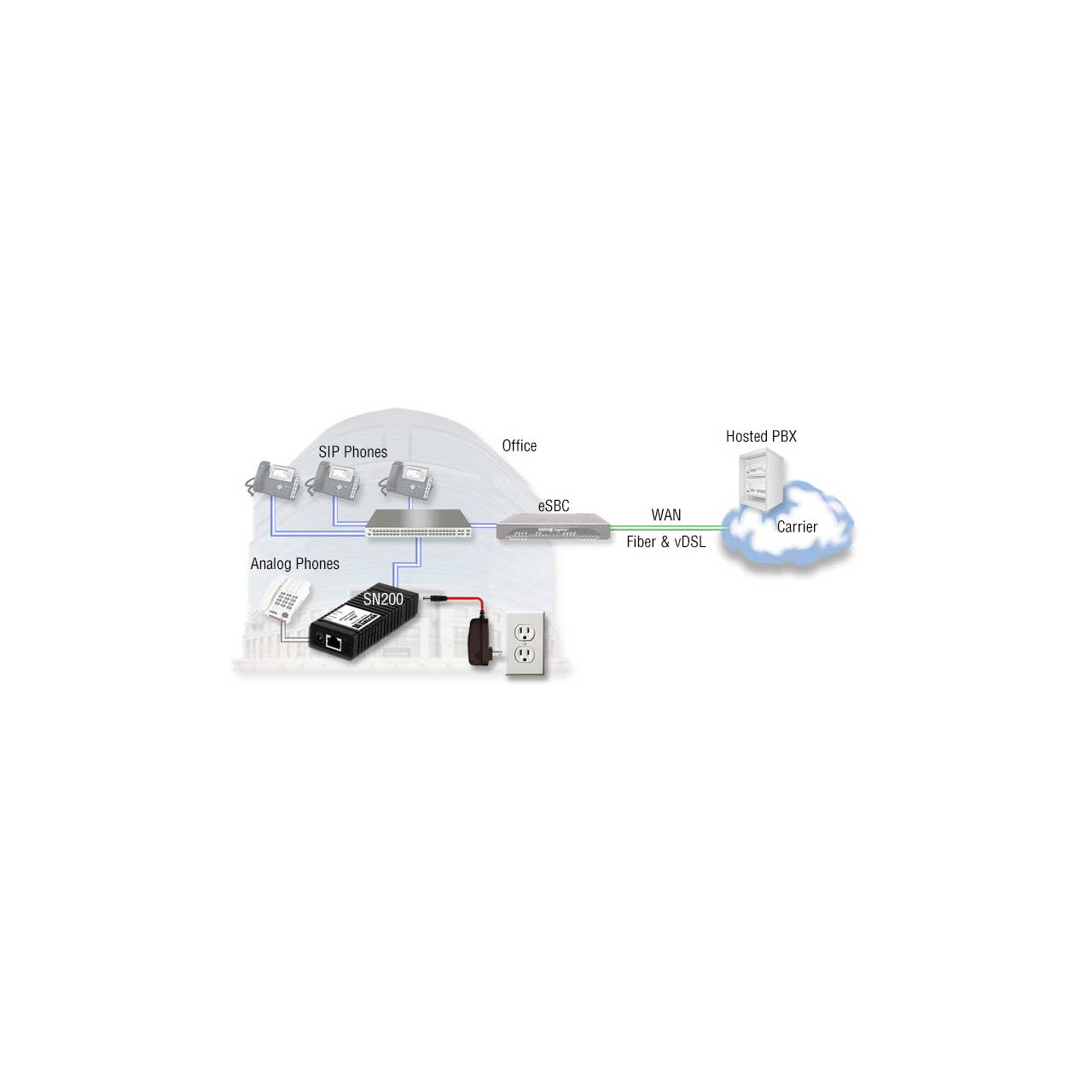

    Whether used as an ATA, connecting legacy telephones to an IP PBX or as a VoIP Gateway integrating legacy fax machines into a hosted UC environment, the SN200 adapts to every use-case.

    Thanks to the Power over Ethernet option, there is no need for a power plug at the remote location.

    Operated, managed, and administrated through the Patton Cloud proactive notification in case of a customer network problem, helps to reduce service downtimes and increase customer satisfaction.

    • Features:

      • Up to 4 Analog Interfaces (FXS/FXO)
      • Advanced Calling Features
      • Full VoIP protocol support
      • Lowest OPEX
      • Survivability & Local Breakout
      • Easy Management & Provisioning
      • Small Form Factor & PoE Powered
      • Outstanding Interoperability
    • Specifications:

      • Capacity: Up to 4 simultaneous low- bandwidth voice or HD calls with SRTP or T.38 fax calls
      • Voice Signaling:
        SIPv2 / SIPv2 over TLS(B2BUA capable, multi instance, simultaneous support of multiple
        registrars and direct IP dialing)
        SIPv2 over IPv6
        SIP call transfer, redirect
        DTMF in-band & out-of-band
        All tones programmable (dial, ringing, busy)
      • Voice Processing
        G.723.1 (6.4 kbps)
        G.729, 729a, 729ab (8 kbps)
        G.726 (16 ,24, 32, 40 Kbps)
        AMR-NB (4.75, 5.15, 5.9, 6.7, 7.4, 7.95, 10.2, 12.2kbps)
        iLBC at 13.33 kbps (SIP-SIP only)
        G.168-2004 echo cancellation (128 ms)
        Up to 8 simultaneous low-bandwidth voice or T.38 fax calls
        Up to 8 HD calls with SRTP
        Up to 200 SIP to SIP calls
        Up to 4 SIP transcoded calls
        Silence suppression and comfort noise
        Adaptive and configurablede jitter buffer
        Configurable RTP packet length
      • Call Switching and Services
        Regular expression based call routing and number manipulation
        Number blocking
        Digit collection, distribution and hunt groups
        Transparent line extension
        Fallback Routing: Soft fall back to alternative route(s)
      • FXS Connectivity
        2-wire Loopstart on RJ-11/12
        EuroPOTS (ETSI EG201188)
        Programmable AC impedance, feeding, ring and onhook voltage
        Caller-ID FSK and ITU V.23/Bell 202 generation
        Long Reach FXS 10 km @ 3REN load - 24AWG wire (0.205mm2)
        Secondary Surge Protection (optional)
      • FXO Connectivity
        2-wire Loopstart RJ11/12
        Programmable impedance
        Ring detection, tone detection
        Caller ID detection (FXS, DTMF)
        Disconnect supervision
      • Connectivity
        One or two 10/100/1000Base-T Ethernet ports
        USB 2.0 host port (/2ETH port version only)
        DHCP Client
        PPPoE Client (multi-session)
        IP Multi-Netting, VLAN, Secondary IP
        IPv4 and IPv6 - Dual Stack
        Dynamic and static NAT and NAPT
        ACL, Stateful Firewall
        DNS, DynDNS
        DHCP Server
        SNTP Client
      • Quality of Service
        Patton Cloud network monitoring
        Voice priority, DownStreamQoS™
        Traffic Management, shaping policing
        IEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion/deletion), TOS, DiffServ Labeling
      • Management
        Patton Cloud Orchestrated
        Customizable WebWizard, Web-based GUI, CLI Telnet and HTTP access
        TR-069, TFTP, HTTP, HTTPS configuration up- and download
        TR-069, TFTP, HTTP, HTTPS firmware upgrade, Dual Image
        SNMPv3 agent - MIB II and private MIB
        Separate config domain (LAN side config and WAN side config)
        Built-in diagnostic tools
        Secure Auto-Provisioning with built in root CA
      • Power Consumption: < 10W
      • Packaging: Desktop/Wall-mount plastic chassis
      • Dimensions: 8.2W x 1.3H x 6.5D Inches
      • Weight: 0.99 Lbs
      • Operating Temperature: 32 to 104°F
      • Operating Humidity: up to 90%, non-condensing)
      • EMC compliance: EN55022 and EN55024
      • Safety compliance: EN 60950
