LRC® Snap-N-Seal® "F" Series Male, RCA Male, and BNC Compression Connectors

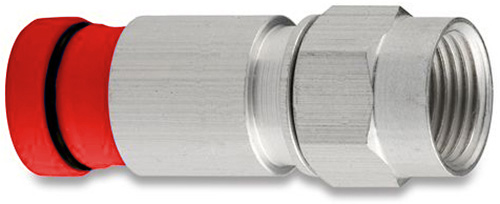

The Belden SNS1P6U is a Snap-N-Seal F Male Compression Connector with tin-plated beryllium copper contacts. It is coaxial compression RF (radio-frequency) connector for broadband and CATV Installations.
-
- One connector for 6 Series SCTE specification drop cables including 60% braid, tri-shield and quad shield.
To reduce assembly time and simplify installation, the plastic sleeve is pre-positioned and detachably coupled to the connector body.
The plastic sleeve's separability from the connector body further simplifies difficult installations.
True 360 degree compression onto cable ensures superior RF shielding performance.
Installation requires one-step 1/4 inch to 1/4 inch cable preparation.
Quad sealed system prevents moisture from migration.
Incorporates an iridescent chromate finish plus UV resistant plastic and - O-rings to provide a reliable, environmentally sealed product.
Cable retention exceeds 40 lb. minimum as specified by the SCTE.
-
