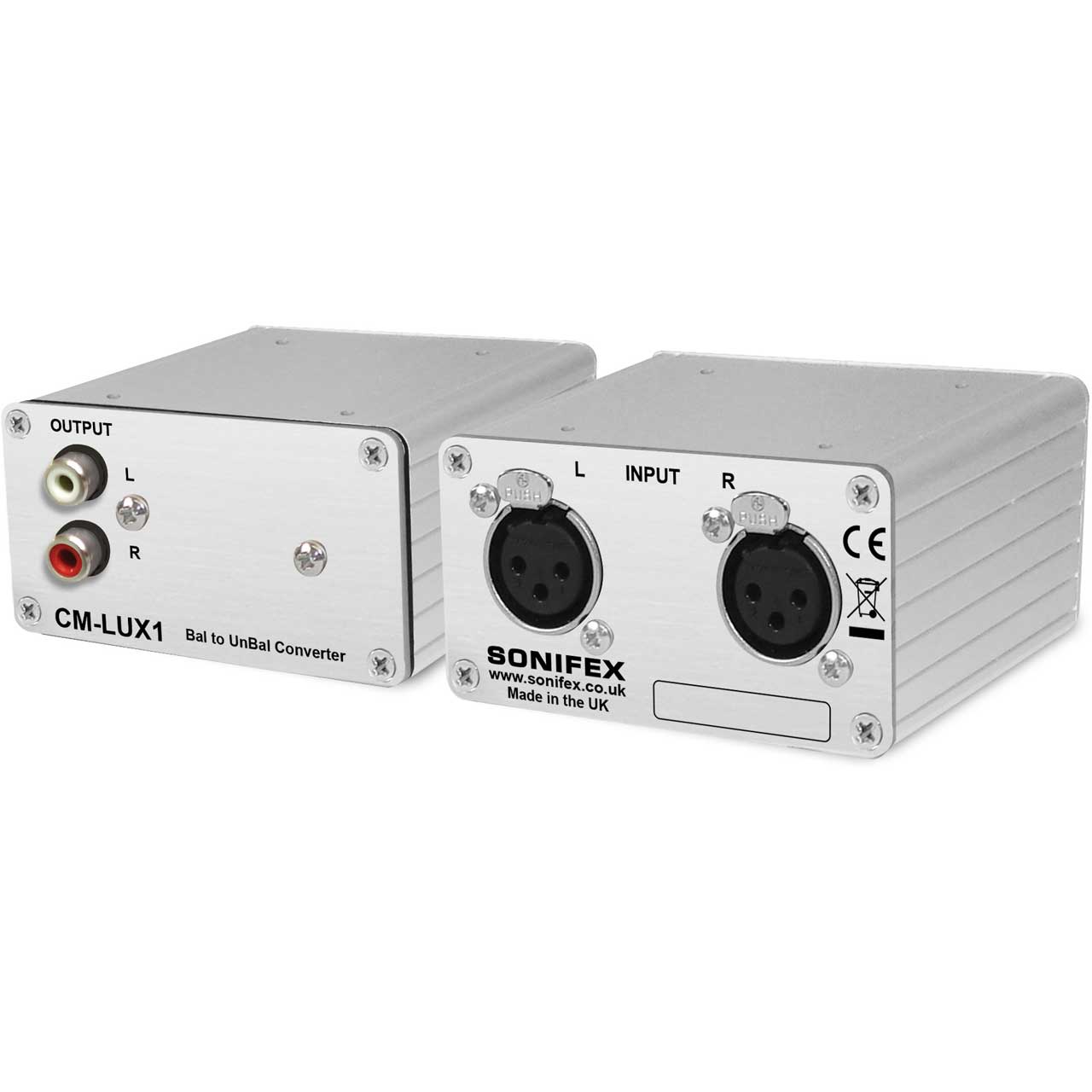

Sonifex CM-LUX1 Balanced to Unbalanced Converter Passive - XLR to Phono
  • Sonifex CM-LUX1 Balanced to Unbalanced Converter Passive - XLR to Phono
  • Sonifex CM-LUX1 Balanced to Unbalanced Converter Passive - XLR to Phono
  • Sonifex CM-LUX1 Balanced to Unbalanced Converter Passive - XLR to Phono

Questions? Ask a Markertek Expert:
800-522-2025 Email

Sonifex CM-LUX1 Balanced to Unbalanced Converter Passive - XLR to Phono

Manufacturer: Sonifex Ltd.

Item #: SON-CM-LUX1   •   MFG #: CM-LUX1




Our Price:$248.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!





    The Sonifex CM-LUX1 passive balanced to unbalanced audio convertor connects a balanced stereo line input via female XLR using the StudioHub pinout to an unbalanced stereo phono output. Transformer balanced with a 2:1 ratio you get an additional 6DB of attenuation to help interfacing with pro and consumer devices. The CM-LUX1 provides an alternative to specialized cables when interfacing a balanced output to an unbalanced input and is particularly useful where a shared balanced audio feed needs to be interfaced to an unbalanced input on one or more pieces of equipment, galvanically isolating the audio without compromising the feed.


    • Specifications

      • Audio Specification
      • Input/Output Level Ratio: 2:1
      • Input/Output Impedance Ratio: 4:1
      • Max Input Level: +28dBu
      • Max Output Level: +22dBu
      • Frequency Response: 20Hz to 20kHz, +0/-0.5dB
      • Noise: <-115dBu A-wgtd
      • Distortion Ref +8dBu (Output): <0.01%
      • Common Mode Rejection: >80dB

        Connections

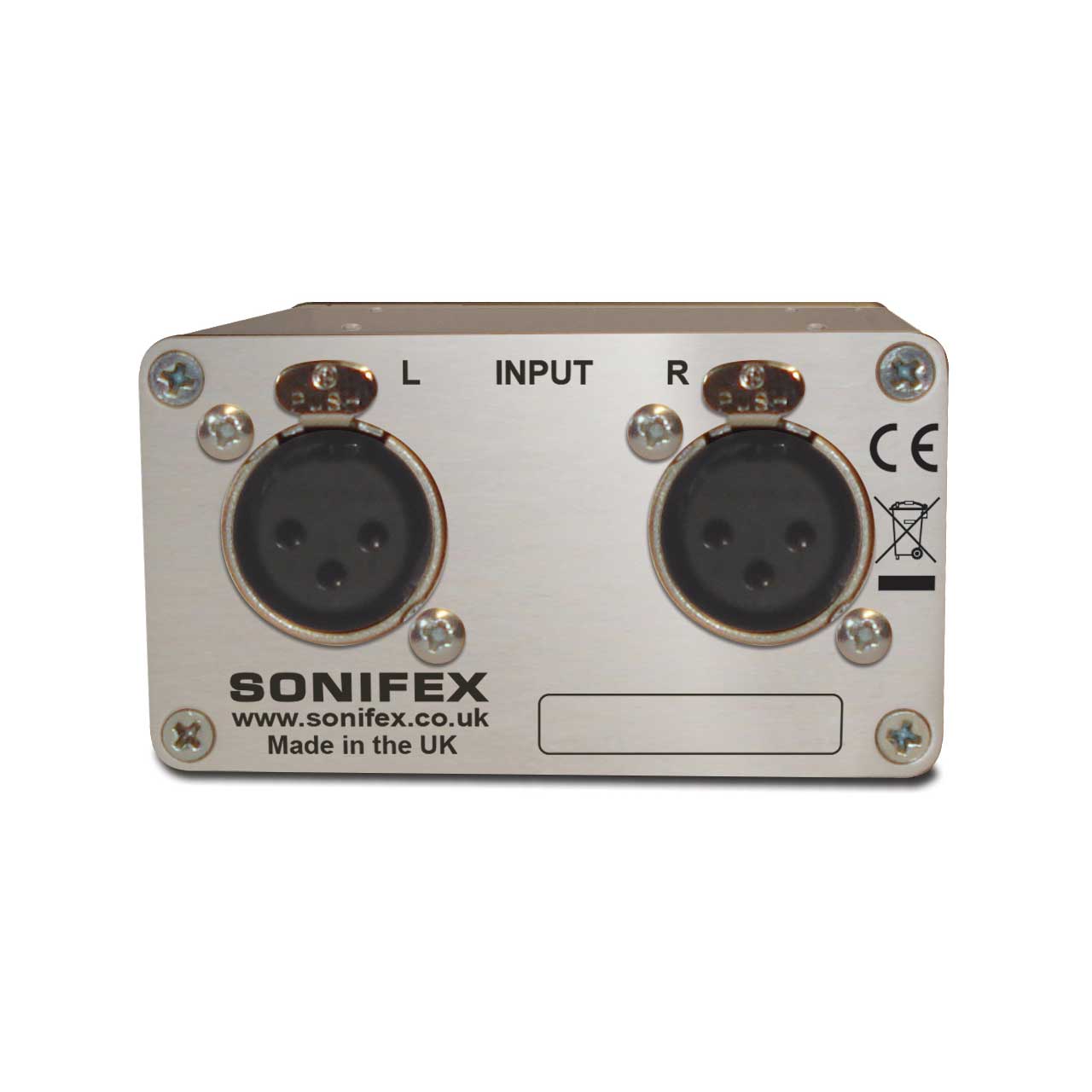

      • Balanced Line Input: 2 x female XLRs

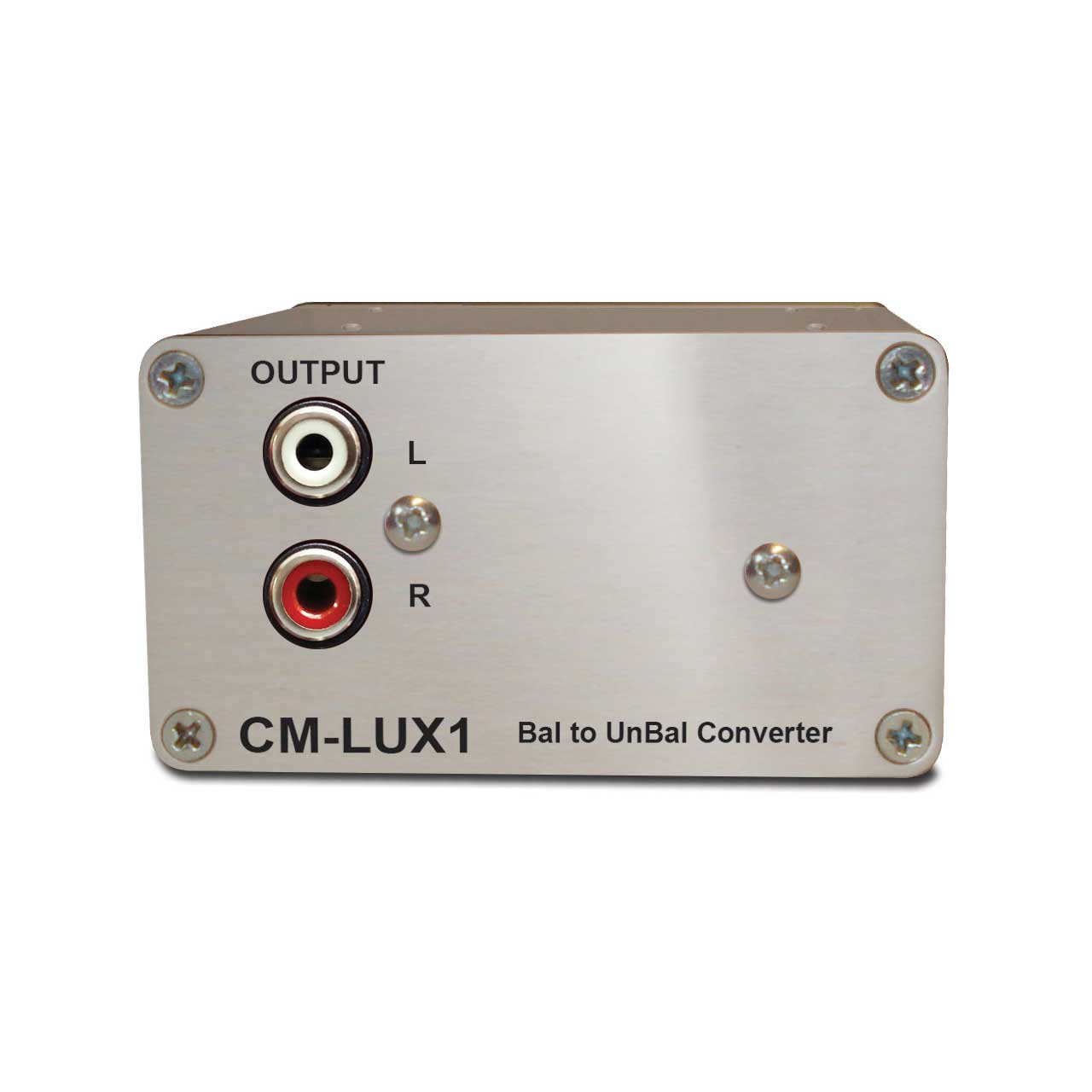

      • Unbalanced Line Output: 2 x RCA phono connectors

        Physical Specification
      • Dimensions (W x D x H): 3.0 inch x 3.3 inch x 1.7 inch (7.7cm x 8.3cm x 4.2cm)
      • Weight Nett: 0.49lbs Gross: 0.73lbs
