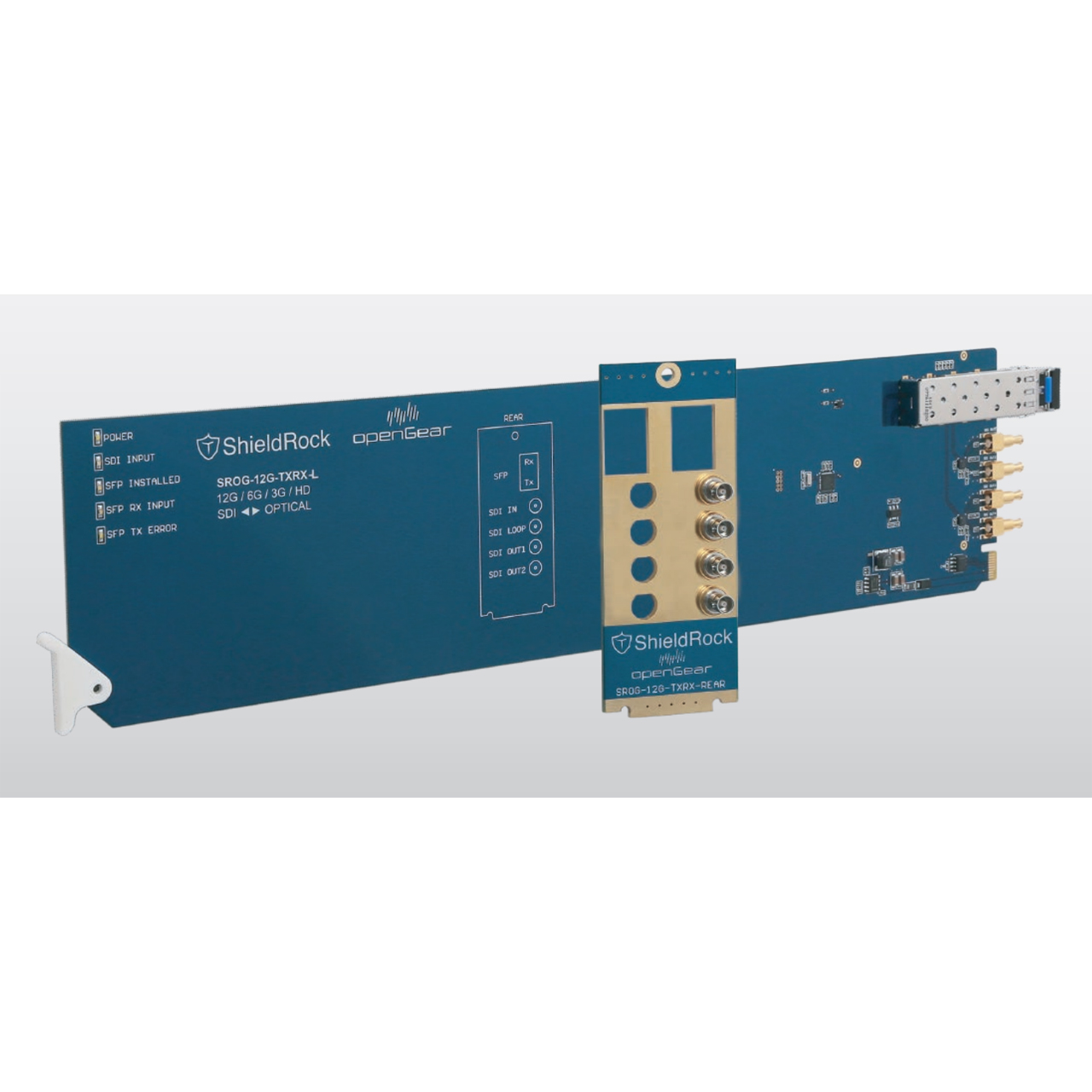

ShieldRock SROG-12G-TXRX-L openGear 12G-SDI Optical Extender w/ Bullet-Style HD-BNC/SFP+ Transceiver and RM - SM/MM - LC

ITEM #: SRK-SROG12GTXRXL MFG #: SROG-12G-TXRX-L

Primary Image
ShieldRock Inc.
Free Shipping with $49 Minimum Order

Our Price:

$695.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SROG-12G-TXRX-L - Overview

The ShieldRock SROG-12G-TXRX-L is a 12G-SDI Optical Extender with a Singlemode/Multimode Fiber LC transceiver. It includes a multi-use rear module and supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SD-SDI with auto switching.

  • Features:

    • SM/MM Fiber LC transceiver, 1310nm, 6.2 Miles (10km)
    • Input loop-out, and (2) matching outputs
    • Bullet style 12G-SDI HD-BNC mating couplers
    • Includes multi-use rear module (double or single slot use)
    • 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (auto switching)
    • Pathological pattern support
    • Automatic reclocking
    • Front-end indicator LEDs (Inputs present, SFP, Fault)
    • Hot-swap capable
    • Monitoring via openGear Dashboard
    • Under 2.0 Watts


  • Specifications:

    • SDI Support: 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (auto switching)
    • Fiber Connector: LC
    • Type of Fiber: Singlemode/Multimode
    • Weight: 0.5 lbs (230g)


  • Item Includes:

    • 1x ShieldRock SROG-12G-TXRX-L 12G-SDI Optical Extender
    • 1x Singlemode/Multimode Fiber LC SFP+ Transceiver
    • 1x Rear Module


  • Warranty:

    • 1-Year Limited Warranty


  • GTIN:

    0685239811995
