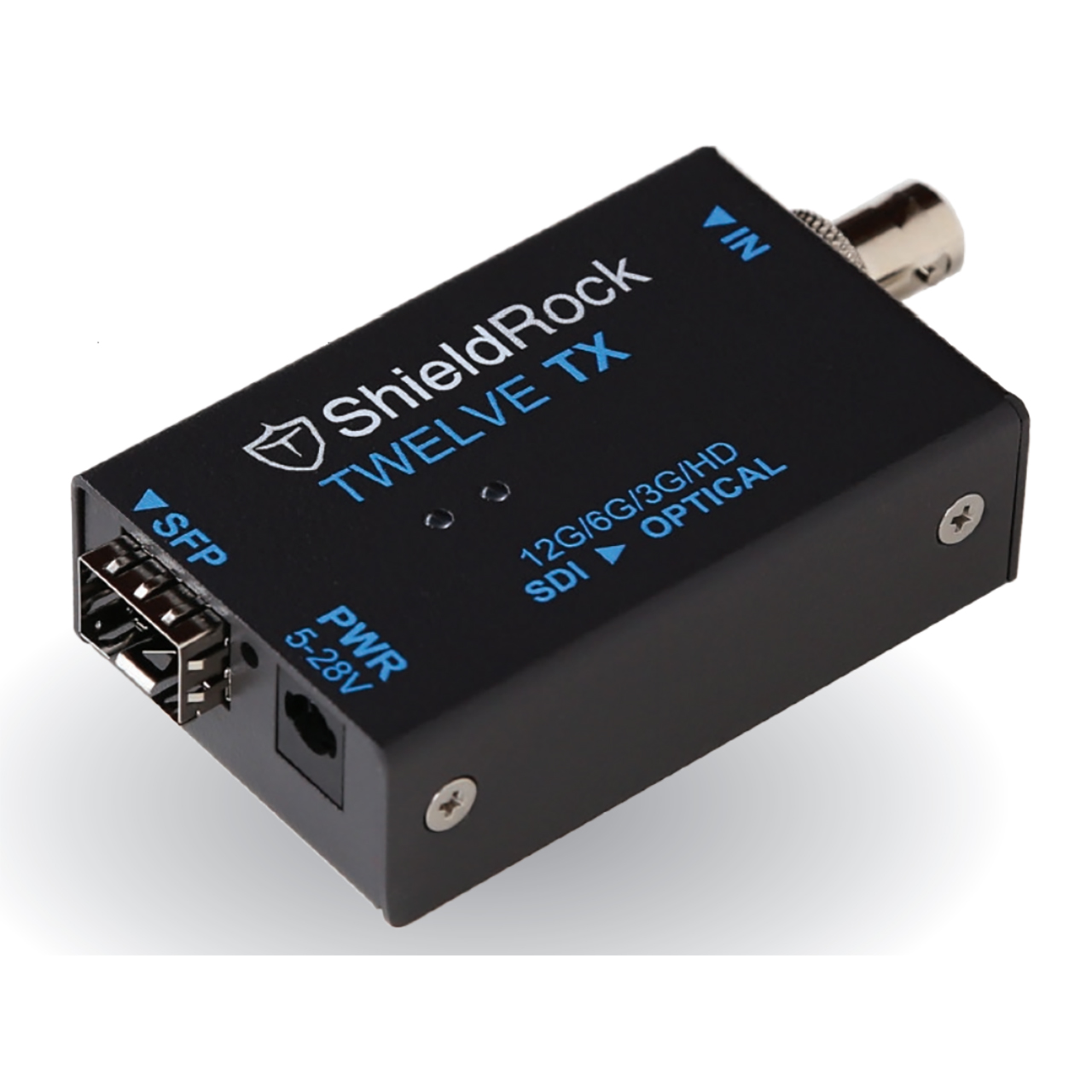

ShieldRock TWELVETX 12G-SDI Optical Extender Transmitter - LC - 6.2 Mile Range

ITEM #: SRK-TWELVETX MFG #: SRBMC-TWLVTX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
ShieldRock Inc.

We are an authorized dealer for this series; however, applicable tariffs and final pricing must be confirmed before order acceptance. Please contact a sales engineer at 1-800-522-2025 for further assistance.

Availability: Sold Out
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SRBMC-TWLVTX - Overview

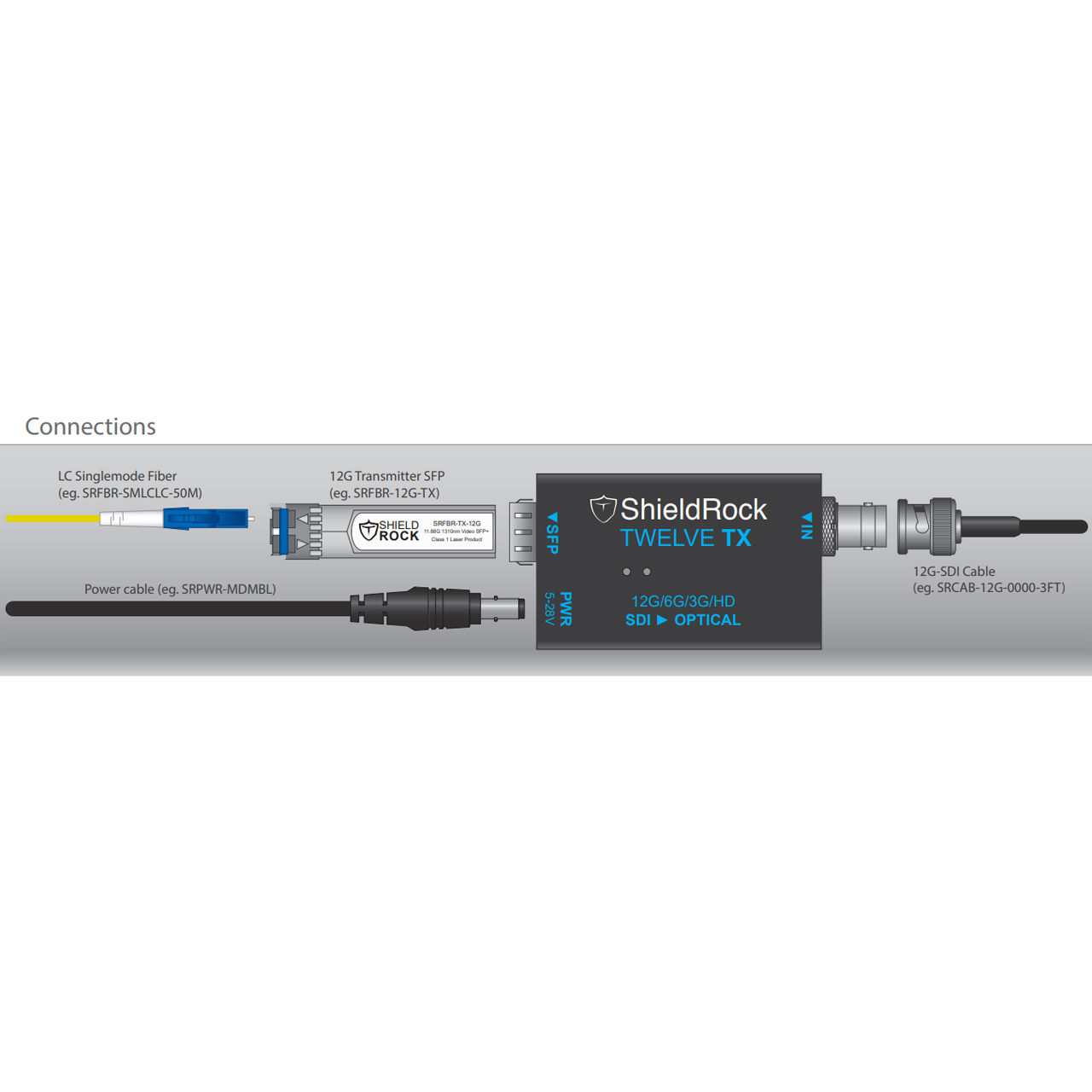

Transmit SD, HD, and Ultra HD formats up to 2160p60 over optical fiber converting from SDI over coaxial cable using the ShieldRock TWELVETX. The wide voltage input, and minimal power consumption allows for ease of integration and ability to lock the barrel connector in place. This small and lightweight module features rugged powder coated aluminum construction.

  • Features:

    • Compact and lightweight
    • Supports AES10 multi-channel (MADI) audio
    • Features rugged powder coated aluminum construction


  • Specifications:

      Video Interface
    • 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (auto switching)
    • SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082

      Video Format
    • 4K/UHD 2160p: 23.98/24/25/29.97/30/48/50/59.94/60
    • 2K/HD 1080p: 23.98/24/25/29.97/30/48/50/59.94/60
    • 1080i: 50/59.94/60
    • 1080PsF: 23.98/24/25/29.97/30
    • 720p: 23.98/24/25/29.97/30/48/50/59.94/60
    • SD: 525i29.97 NTSC, 625i25 PAL

      Electrical
    • Input: 5V - 28V DC
    • Power: 1W max

      Mechanical
    • Dimensions: 3.77" x 1.75" x 0.86" (95.9mm x 44.4mm x 21.9mm)
    • Weight: 0.16lbs (75g)


  • Item Includes:

    • 1x ShieldRock TWELVETX Optical Extender Transmitter - LC


  • Warranty:

    • 1 Year Limited Warranty


  • GTIN:

    0685239811827
