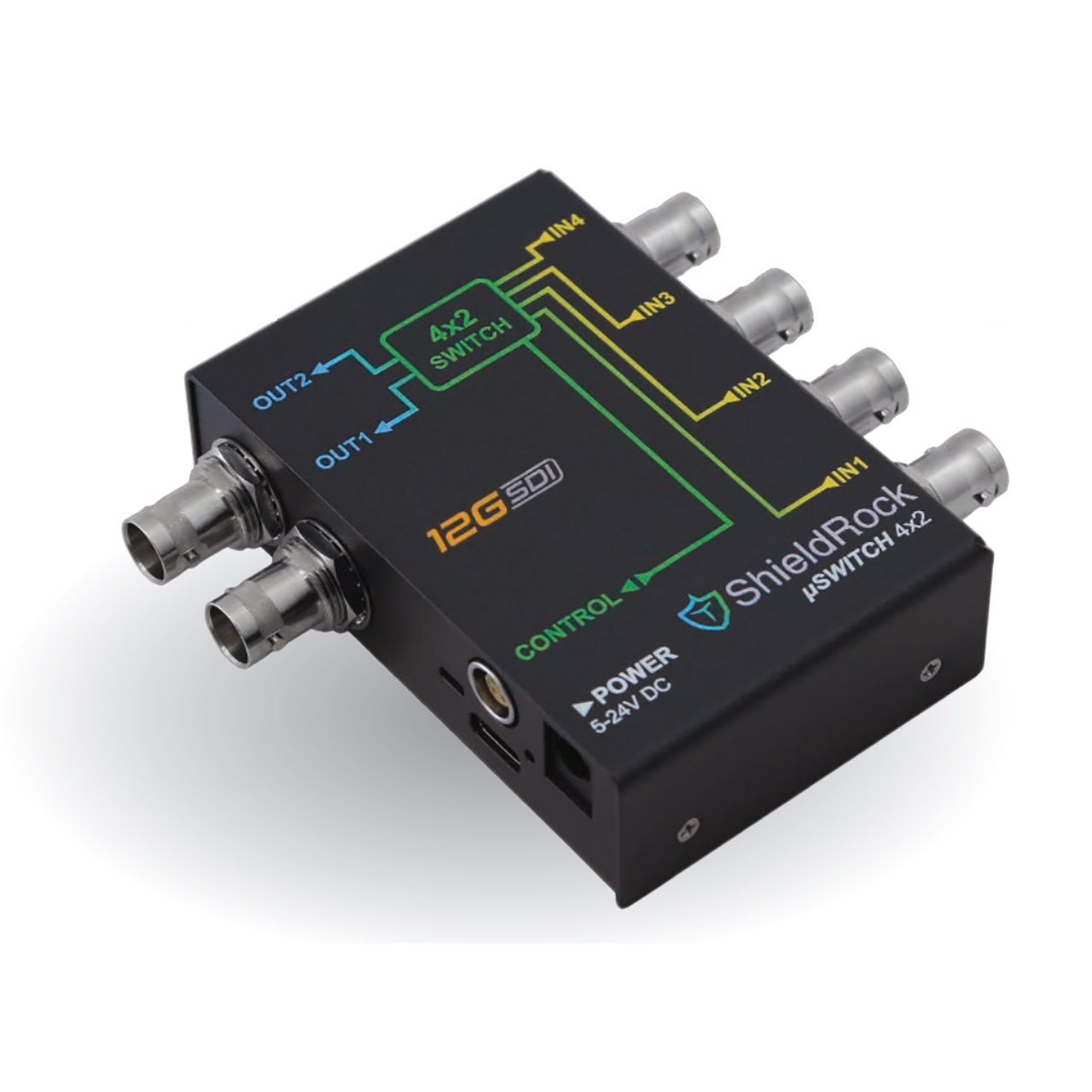

ShieldRock uSwitch 4x2 4-Input/2-Output 12G-SDI Switch with RS232 and USB-C

SRBMC-USW4X2 - Overview

• Features:

  • Versatile 12G-SDI 4x2 Switch
  • Serial and USB-C Control


• Specifications:

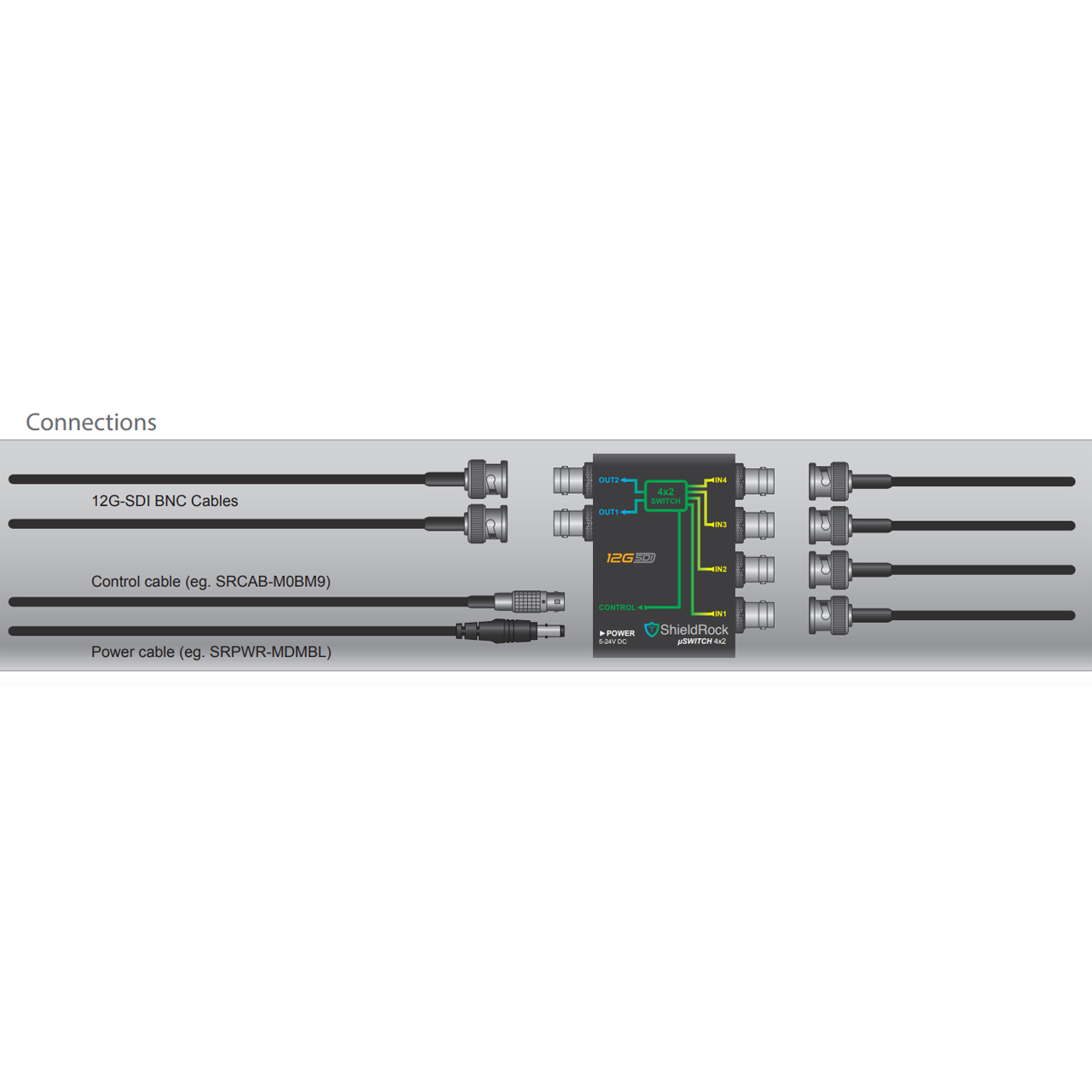

  • Control Interfaces
  • USB-C: Power and control with OSX, Windows, or Linux systems
  • 4-pin Lemo: Control from an RS232 interface or button panel
  • Use FGG.0B.304 style cable, switch supplies 3.3V, 300mA

    Video Interface
  • 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (auto switching)
  • SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M
  • Supports AES10 multi-channel (MADI) audio

    Video Format
  • 4K/UHD 2160p: 23.98/24/25/29.97/30/48/50/59.94/60
  • 2K/HD 1080p: 23.98/24/25/29.97/30/48/50/59.94/60
  • 1080i: 50/59.94/60
  • 1080PsF: 23.98/24/25/29.97/30
  • 720p: 23.98/24/25/29.97/30/48/50/59.94/60
  • SD: 525i29.97 NTSC, 625i25 PAL

    Electrical
  • Input: 5-24 VDC
  • Power: 1W max

    Mechanical
  • Dimensions: 3.64" x 3.48" x 1.0" (92.5mm x 88.4mm x 25.4mm)
  • Weight: 0.33 lbs (150g)


• Item Includes:

  • 1x ShieldRock uSwitch 4x2 4-Input/2-Output 12G-SDI Switch with RS232 and USB-C


• Warranty:

  • 1-Year Limited Warranty


• GTIN:

  0685239811964
