Phabrix SX2E 12G-SDI Handheld Analyzer / Generator and Monitor with EYE Pattern Analysis - Li-Ion Battery Included

ITEM #: SX2E MFG #: SX2E

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Phabrix
Free Shipping with $49 Minimum Order

Our Price:

$14,568.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

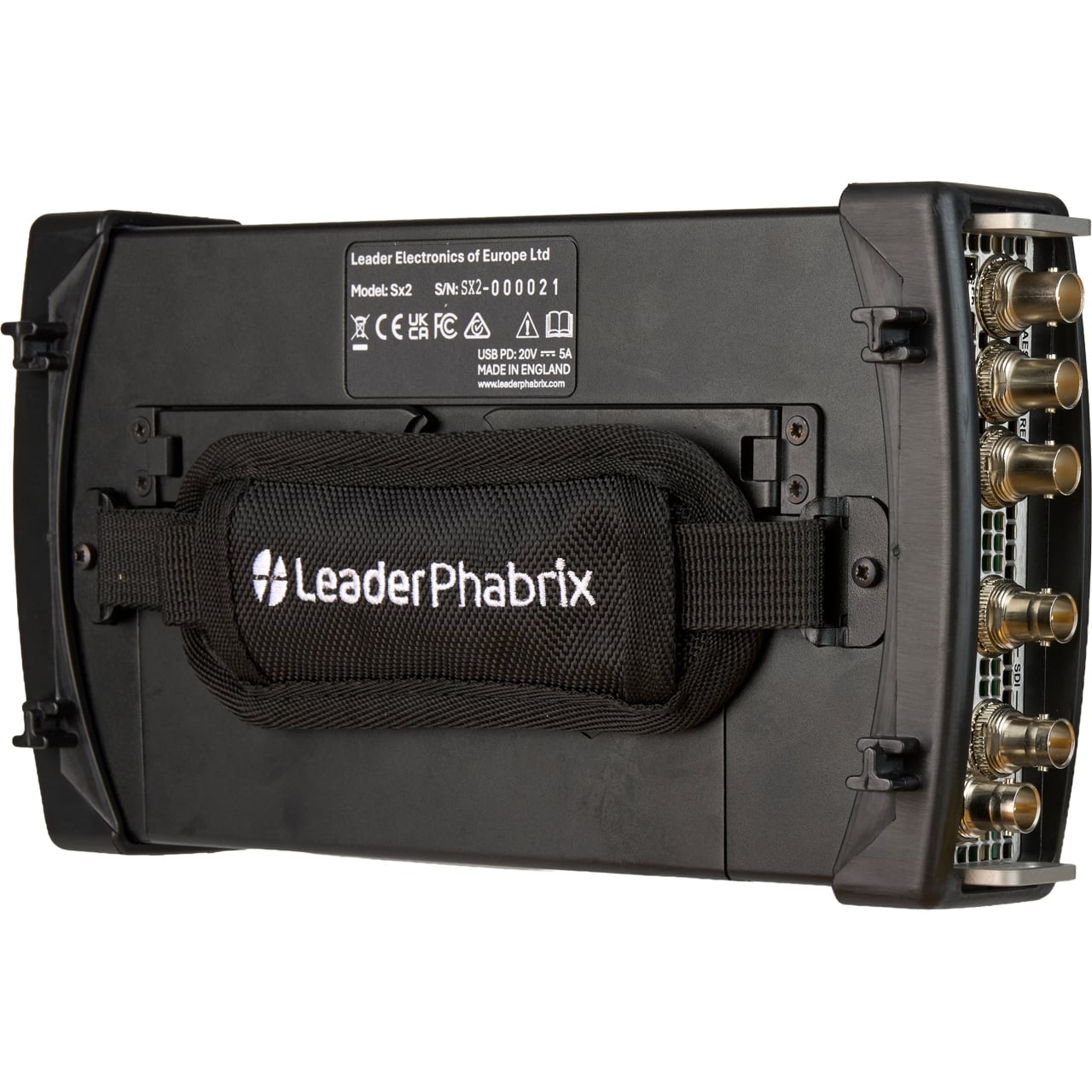

SX2E - Overview

Advanced generation toolset including extensive test patterns!

The Phabrix Sx2 Series brings 12G-SDI test and measurement into a handheld instrument. Signal generation, analysis and monitoring sit in one unit built for the field, the machine room and the OB truck.

Two models make up the series. The Sx2 covers 12G, 6G, 3G, 1.5G and 270M-SDI generation and analysis across 4K, UHD, HD and SD. The Sx2E adds SDI physical layer analysis with RTET Real-Time Eye technology, jitter measurement and a 12G loop out. Full 4K UHD analysis runs over a single coaxial interface, so setup stays simple and signal integrity stays intact. A 1920 x 1200 touchscreen, precision rotary control and saveable presets put every toolset within reach.

The Sx2 Series is built on the engineering heritage of both Leader and PHABRIX. The renowned handheld design elements from PHABRIX products meet Leader's record for precision, accuracy and reliability.

Support For High-Performance 12G-SDI Workflows
The Sx2 delivers the bandwidth required for high-resolution media workflows. Full 4K UHD signal analysis runs over a single coaxial interface, so you cut cabling and setup time without losing accuracy. Support spans 12G, 6G, 3G, 1.5G and SD-SDI, covering 4K, UHD, HD and SD.

Handheld HDR Measurement And Analysis
The optional SX2-HDR toolset adds HDR measurement to a handheld form factor. BT.709, BT.2020, BT.2100 HLG, PQ, Sony S-Log3 and SR Live are all supported. A Cd/m² nits graticule, BT.2408 diffuse white markers and a seven-band programmable heatmap give you the precision to evaluate luminance, color gamut and transfer characteristics.

Multi-Channel Audio Analysis
Meter 16 channels at a time from selectable SDI audio groups, drawn from up to 128 embedded channels depending on SDI format. Two AES and two analog input channels are also metered. Dolby E, Dolby Digital, Dolby Digital Plus and Dolby ED2 detection is included as standard.

SDI EYE Analysis

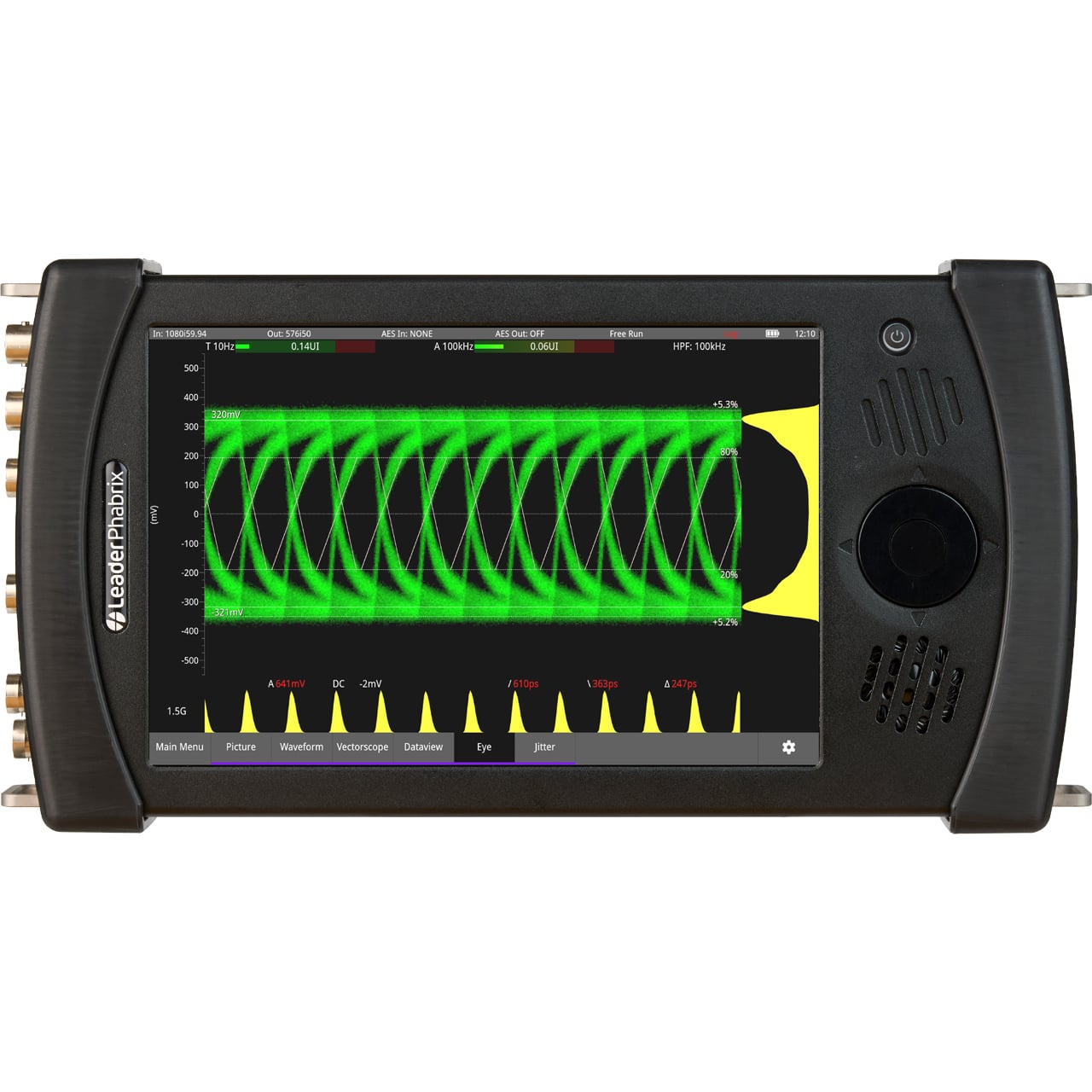

The Sx2E includes SDI EYE Analysis with Real-Time Eye for testing SMPTE compliance with indication of DC offset. It takes automatic measurements of a variety of data including DC level, amplitude, rise and fall time, rise/fall overshoot and visual rise time indication.

  • Features:

    • Handheld 12G-SDI 4K UHD instrument for video/audio signal generation, analysis and monitoring
    • 12G/6G/3G/1.5G/270M-SDI, 4K/UHD/HD/SD Analysis and Generation
    • User-swappable lithium-ion rechargeable battery and USB-C charging port
    • Intuitive and responsive touchscreen interface, plus precise rotary control
    • Operating configurations can be saved as presets, enabling instant recall of preferred setups for different applications and test scenarios
    • Built-in speaker and headphone jack
    • As standard Video Analysis Toolset includes: Picture View, Waveform Monitor, Vectorscope, Ancillary data monitoring, ANC status, on-screen decoding of OP47, CTA-608 embedded within CTA-708, and native CTA-708 closed captions, plus Ancillary Time Code (ATC) display
    • 16 channel audio metering from selectable SDI audio groups (Groups 1-4 or 5-8), for up to 128 audio channel analysis depending on SDI format, and 2 channel AES & Analog input metering
    • Remote access and control via its REST API
    • LeaderPhabrix soft carry case, hand and shoulder strap included as standard
    • Optional backup batteries, external battery charger and VESA mounting plates can be purchased
    • SDI EYE Analysis
    • SDI Jitter Analysis


  • Specifications:

      Monitor
    • Display Resolution: 1920 x 1200 pixels
    • Display Type: Capacitive touchscreen LCD
    • Control: Touchscreen, rotary control and D-pad
    • Screen Layouts: Quad split, up to 8 user templates of 3 or 4 instruments
    • External display: USB-C DisplayPort, fixed 1920 x 1200 output
    • Processing: All digital

      Video

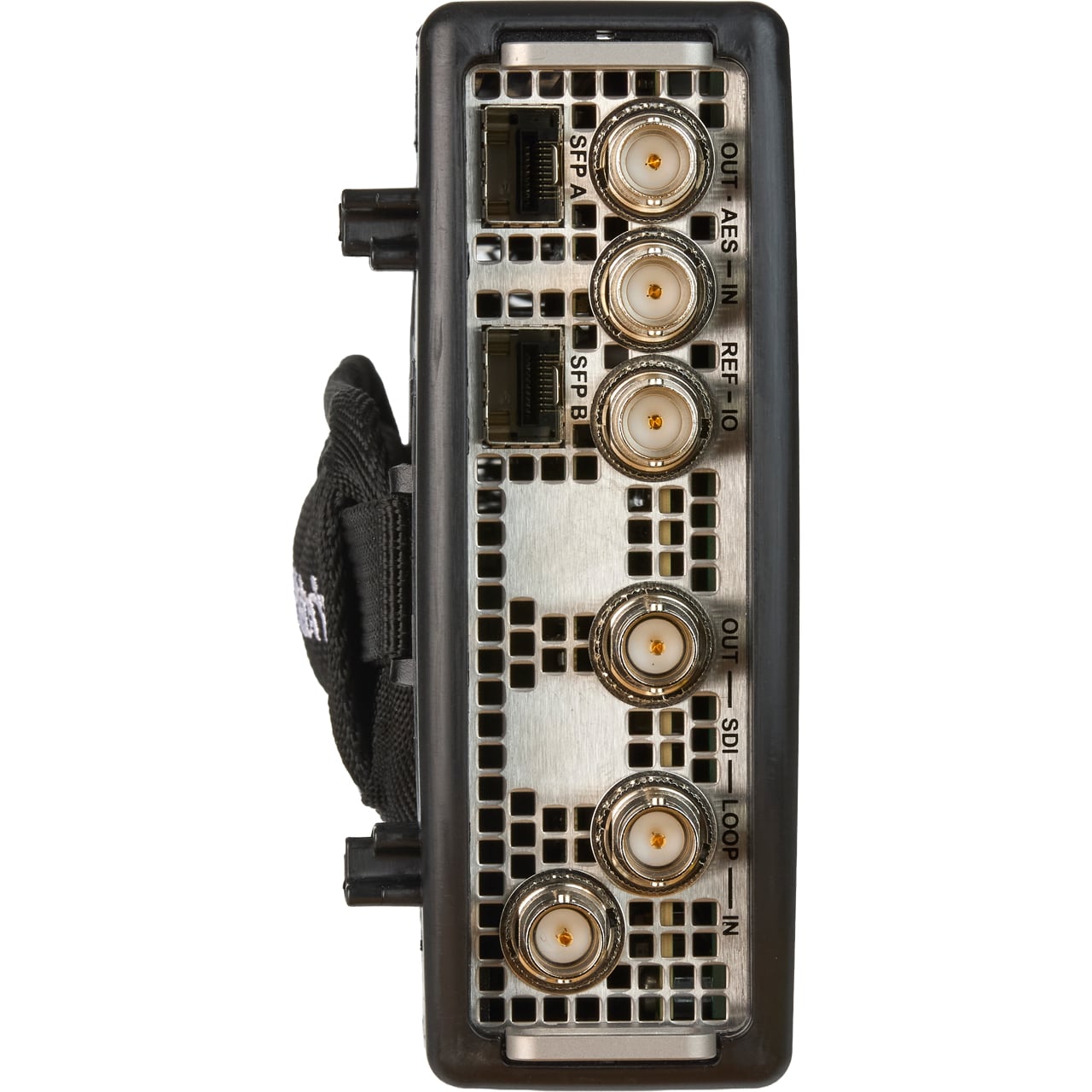

    • SDI: 12G-SDI, 6G-SDI, 3G-SDI, 1.5G-SDI, 270M-SDI
    • Formats: 4K, UHD, 2K, HD, SD analysis and generation
    • SDI Input: Up to 12G, 1x 75Ω BNC
    • SDI Generator Output: Up to 12G, 1x 75Ω BNC
    • SDI Loop Out: Up to 12G, 1x 75Ω BNC
    • Reference Input: 1x 75Ω BNC
    • Genlock: Free Run, External Reference or SDI
    • Adjustable Timing: Generator output offset adjustment
    • Text Ident: Yes, overlaid on the active picture
    • Colour Spaces: Rec. 709, Rec. 2020, DCI-P3

      Video Test Signal
    • Sampling: 4:2:2 YCbCr, 4:4:4 YCbCr/RGB, 4:2:2:4 and 4:4:4:4
    • Resolution: 10 bit and 12 bit
    • Link Structure: Single Link, 2SI, Level A and Level B
    • Static Test Patterns: 30+ system patterns including pathological
    • Moving Test patterns: Yes, bouncing box
    • User defined: TIFF import, including HDR/WCG graphics
    • HDR patterns: ITU-R BT.2111-0 HDR Colour Bars, ITU-R BT.814-4 PLUGE (SX2-HDR licence)
    • Formats: To be supplied on request

      Physical Layer (Sx2E)
    • Eye Bit Rates: 12Gbps, 6Gbps, 3Gbps, 1.485Gbps, 270Mbps
    • Eye Measurements: Amplitude, DC offset, rise and fall time, delta, rise and fall overshoot
    • Eye Display: 1 to 20 eyes, heat-map overlay, infinite persistence
    • Jitter: SMPTE specification filters at 10Hz, 100Hz, 1kHz, 10kHz, 100kHz
    • Jitter Range: ±0.25 to ±64 UI vertical scale
    • Jitter Thermometers: Alignment, Timing

      Audio
    • Internal Speaker: Yes, built in
    • Headphone Socket: 3.5mm stereo jack socket
    • Embedded Audio Metering: 16 channels from selectable groups 1-4 or 5-8
    • Embedded Audio Analysis: Up to 128 SDI audio channels, depending on SDI format
    • AES Output/Input: 1x 75Ω BNC each
    • Analog Audio Input/Output: 15-way high-density D-type socket, breakout cable required
    • Bitstream Detection: Dolby E, Dolby Digital, Dolby Digital PlusT, Dolby ED2
    • Ballistics: PPM-I, PPM-II, Vu, Vu-Fr, Fast
    • Scales: dBFS, dBu, BBC, DIN45406, NordicN9
    • dBFS Reference: -18, -20 or custom

      Audio Test Signal
    • Tone Generation: Fixed tones or chromatic scale
    • Frequency Selection: Hertz or musical pitch, across all audio channels
    • Levels: Fixed or ramp
    • Audio Groups: Up to 8 groups, 32 channels, depending on video standard
    • Sub Image Duplication: Yes
    • Channel Control: Mute or unmute individual channels

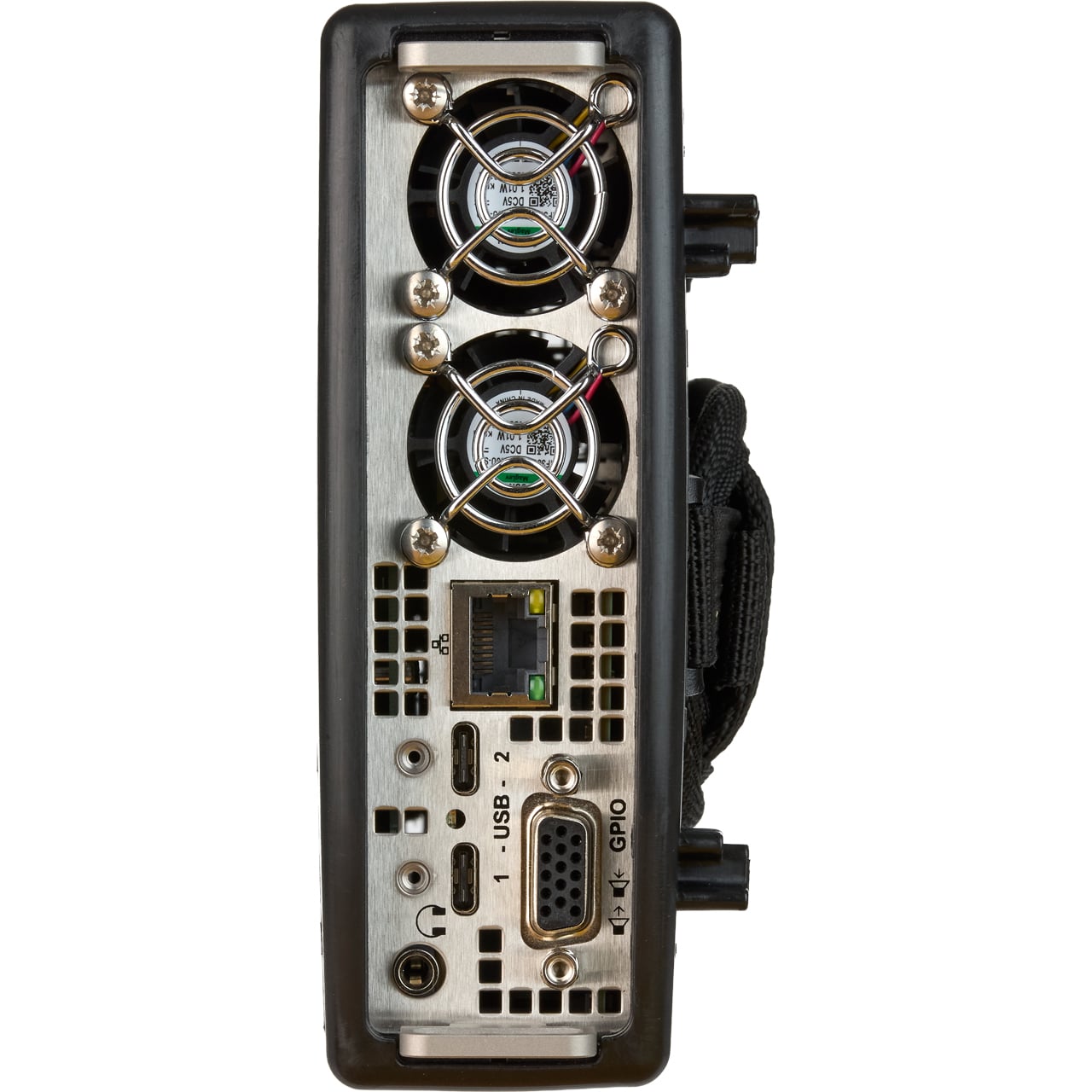

      General
    • Navigation: Touchscreen menu bar, rotary control with centre select, D-pad
    • Integral Battery Supply: User-swappable lithium-ion smart battery, included
    • Charging: USB-C
    • Remote Control: REST API, web browser interface, SFTP
    • Ethernet: 1000 BASE-T
    • USB: USB-C for power, charging and memory sticks
    • External Display: USB-C DisplayPort, fixed 1920 x 1200 output
    • AC Power Supply: Not included
    • Size (WxHxD): 10.3" x 5.3" x 2.2" (261mm x 135mm x 57mm)
    • Weight: 3.3lbs (1.5kg)(Sx2 including battery and hand strap)


  • Item Includes:

    • 1x LeaderPhabrix Soft Carry Case
    • 1x Hand Strap
    • 1x Shoulder Strap
    • 1x Sx2 Handheld Analyzer with EYE Pattern Analysis


  • Warranty:

    • 1 Year
