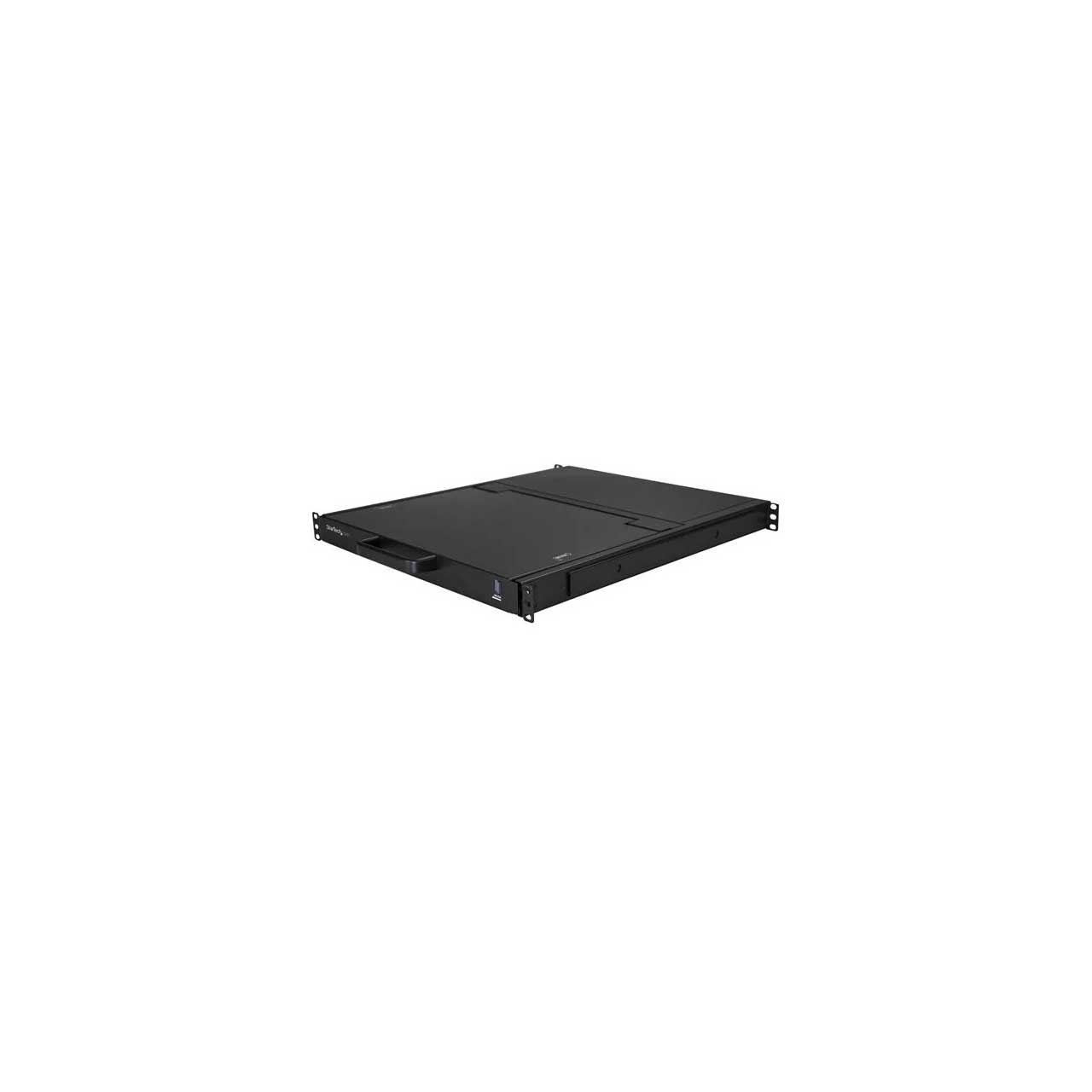

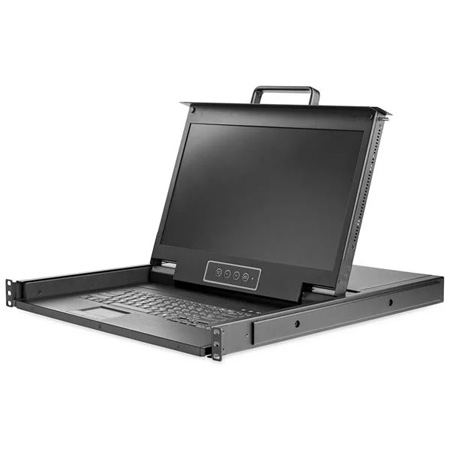

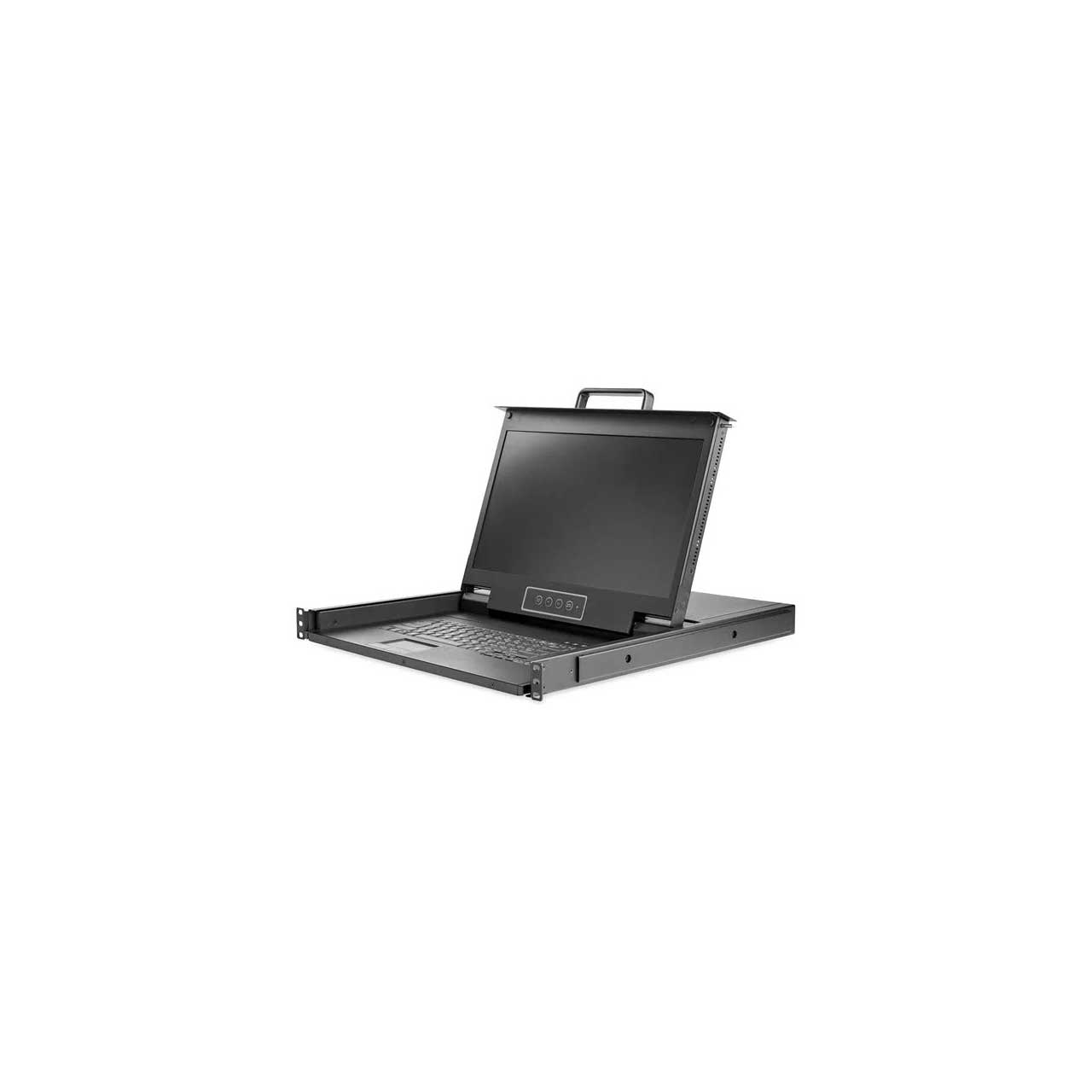

StarTech RKCONS17HD 1U 17 Inch HD Rackmount KVM Console - 1 Port
  • StarTech RKCONS17HD 1U 17 Inch HD Rackmount KVM Console - 1 Port
  • StarTech RKCONS17HD 1U 17 Inch HD Rackmount KVM Console - 1 Port
  • StarTech RKCONS17HD 1U 17 Inch HD Rackmount KVM Console - 1 Port
  • StarTech RKCONS17HD 1U 17 Inch HD Rackmount KVM Console - 1 Port
  • StarTech RKCONS17HD 1U 17 Inch HD Rackmount KVM Console - 1 Port
Questions? Ask a Markertek Expert:
800-522-2025 Email

StarTech RKCONS17HD 1U 17 Inch HD Rackmount KVM Console - 1 Port


Item #: ST-RKCONS17HD   •   MFG #: RKCONS17HD


List Price:$1,066.99
Our Price:$995.00

free ship
Direct Ship from manufacturer, contact us for availability
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

    California Residents:
    Cancer and Reproductive Harm -


    The Startech RKCONS17HD is a High-Definition LCD Monitor that provides centralized control of a single PC or dozens of servers. This HD rackmount KVM console also gives you easy access to and visibility of your system while it's mounted in a server rack or cabinet.

    The 1080p KVM console's monitor is 17.3" and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.

    Connect to your servers through a separate KVM switch (sold separately), the StarTech RKCONS17HD LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.

    Clutter-Free Monitoring

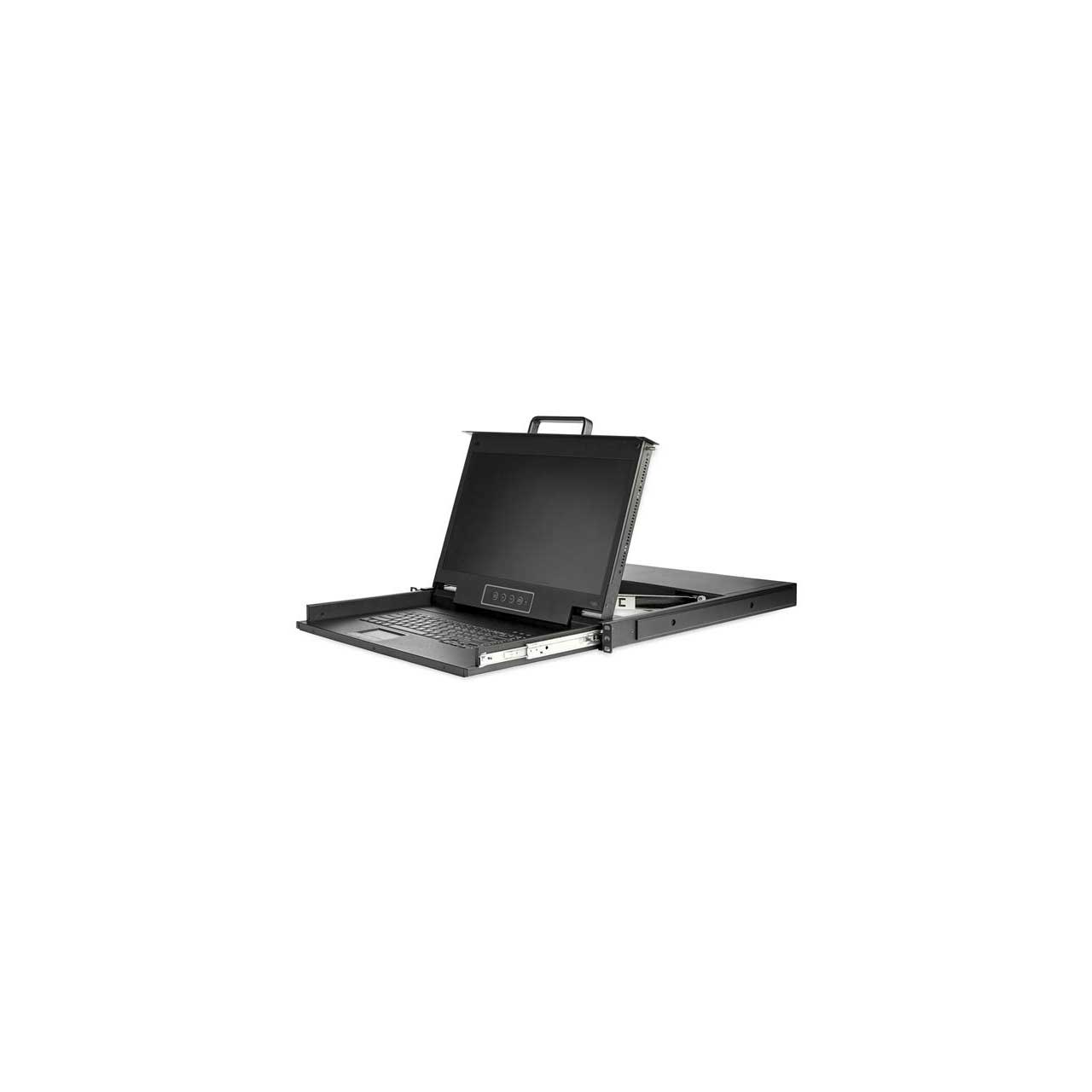

    The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.

    Simple Setup

    This single-port KVM console comes with everything you need to set up!

  • 1x Audio Cable
  • 1x Set of KVM Cables (VGA)
  • 2x Rear Mounting Brackets
  • M5 Cage Nuts and Screws
  • Cost Effective Solution
  • This KVM console provides all the essential controls you'll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display.

    StarTech offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This rackmount KVM console is backed by a 2-year warranty and free lifetime technical support.


  • Large server farms
  • Colocation facilities
    • Features

      • Save money and reduce hassle with a cost-effective rack-mount LCD console
      • Crystal-clear picture quality and maximum screen space with support for resolutions up to 1080p
      • Reduce your server room clutter with a 1U rack-mount design
      • Intuitive system integration with direct support for a single server or KVM switch
      • Built-in touchpad and keyboard
    • Specifications

      • Hardware
      • Audio: No
      • Cables Included: Yes
      • Daisy-Chain: No
      • Display Size: 17.3"
      • KVM Ports: 1
      • Number of Monitors Supported: 1
      • Panel Type: Active Matrix TFT LCD
      • PC Interface: USB
      • PC Video Type: VGA
      • Rack-Mountable: Yes
      • U Height: 1U

      • Aspect Ratio: 16:9
      • Brightness: 300 cd/m²
      • Color Depth: 6-bit, 262144 colors
      • Contrast Ratio: 800:1
      • IP Control: No
      • Maximum Analog Resolutions: 1920x1080
      • Maximum Number of Users: 1
      • MTBF: 50000 Hours
      • Pixel Pitch Support: 0.1989 x 0.1989 mm
      • Supported Resolutions: Resolutions up to 1920x1080 @ 60Hz
      • Viewing Angle: 170° (H), 170° (V)

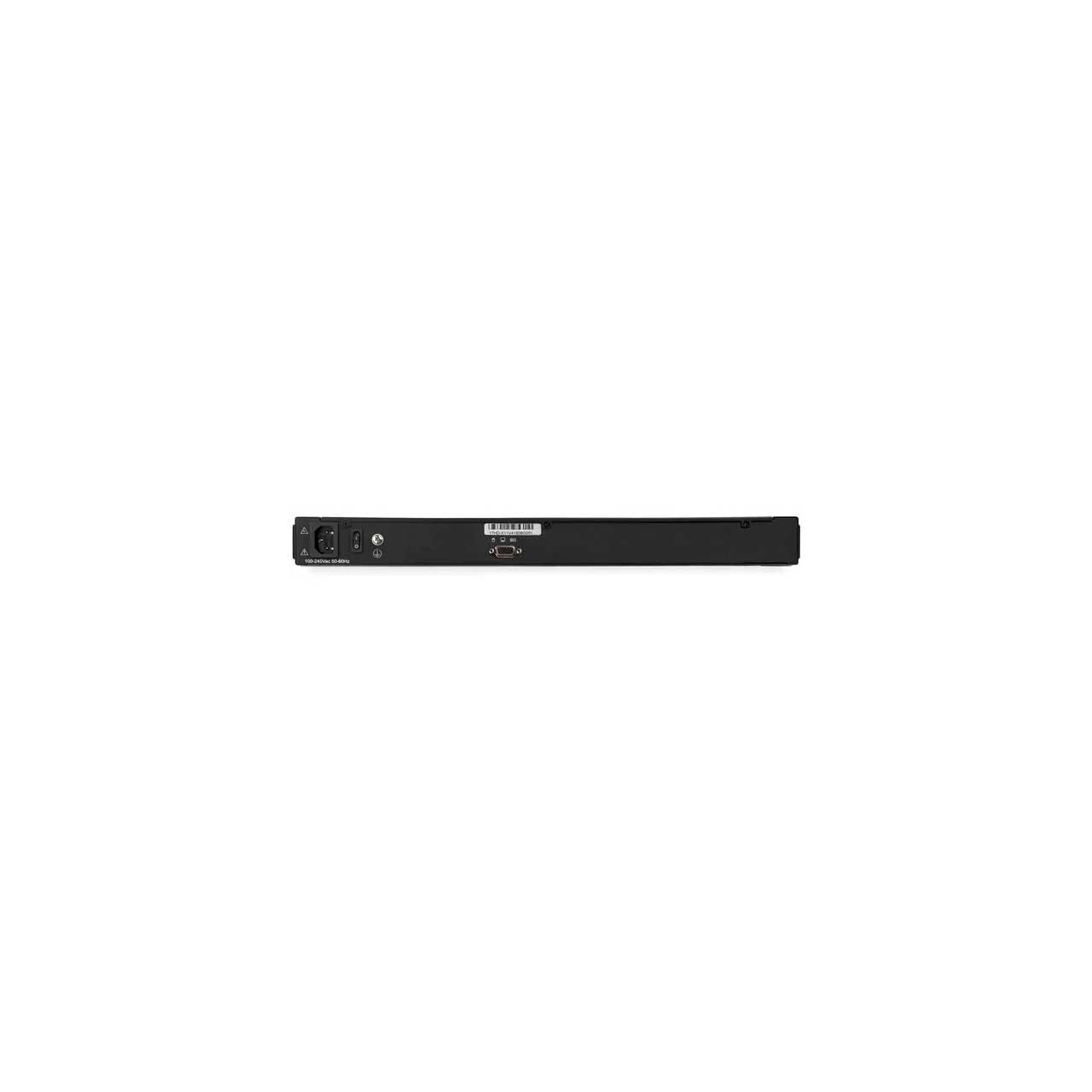

      • Host Connectors: 1 - HD15 (15 pin, High Density D-Sub) Female Input
      • Other Interface(s): 1 - IEC 60320 C14 Power Female Input

      • LED Indicators: 1 - Power / Status LED

      • Input Current: 1.5A
      • Input Voltage: 100 - 240 AC
      • Power Consumption (In Watts): 13W
      • Power Source: International Power Cords

      • Humidity: 10 ~ 80% RH
      • Operating Temperature: 0°C to 40°C (32°F to 104°F)
      • Storage Temperature: -20°C to 60°C (-4°F to 140°F)

        Physical Characteristics
      • Cable Length: 1.8 m
      • Color: Black
      • Material: Steel
      • Maximum Mounting Depth: 33.5 in [85 cm]
      • Minimum Mounting Depth: 20.1 in [510 mm]
      • Product Height: 1.7 in [4.3 cm]
      • Product Length: 22.2 in [56.5 cm]
      • Product Width: 19 in [48.3 cm]
      • Weight of Product: 30.3 lb [13.7 kg]

        Packaging Information
      • Package Height: 7.3 in [18.5 cm]
      • Package Length: 30.1 in [76.5 cm]
      • Package Width: 24.2 in [61.5 cm]
      • Shipping (Package) Weight: 35.4 lb [16 kg]

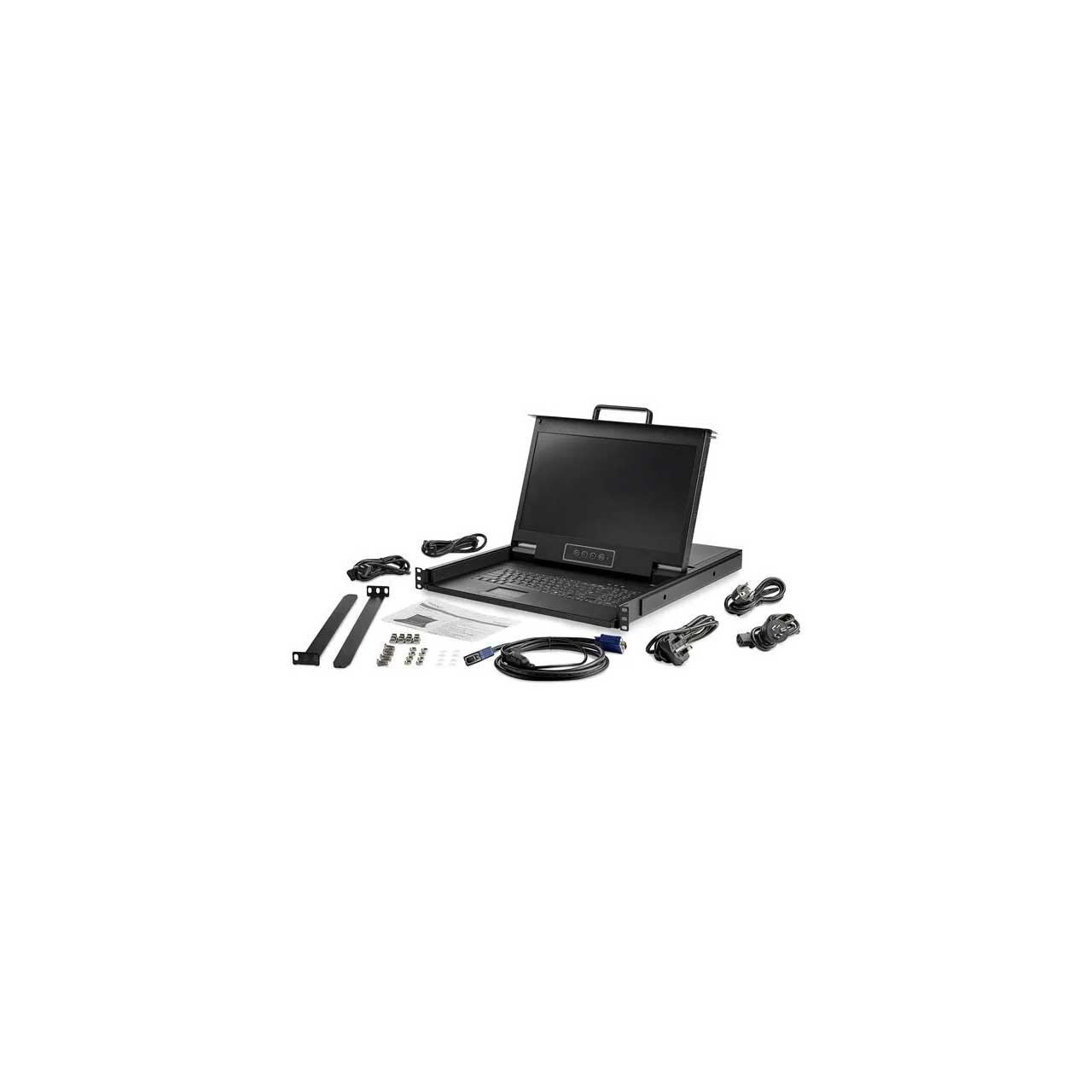

    • Item Includes

      • 1x KVM console
      • 1x KVM cable
      • 8x M5 cage nuts
      • 8x M5 screws
      • 5x regional power cords (NA, JP, UK, EU, ANZ)
      • 1x quick-start guide
      • 2x mounting rails
    • Warranty

      • 2 Years
