StarTech SV565FXDUSA USB DVI KVM Console Extender w/ Serial & Audio Over MM Fiber - 2km

ITEM #: ST-SV565FXDUSA MFG #: SV565FXDUSA

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$2,029.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    SV565FXDUSA - Overview

    The SV565FXDUSA USB DVI KVM Console Extender w/ Serial & Audio Over MM Fiber (2km) lets you control a server, computer or multiple computers (connected through KVM Switch) over a multi-mode fiber link, at distances of up to 2000m (6562 ft) away.

    By transmitting the digital DVI video (or HDMI with a DVI to HDMI adapter) over a multi-mode optical fiber link there is no loss of signal quality, so the video is as sharp and vivid as if the monitor was connected directly to the PC.

    For added convenience, the Console/KVM extender supports USB computer connections, and is compatible with any brand of USB KVM Switch.

    • Features:

      • Maximum supported distance of 2000m (6562 ft)
      • Fully compatible with DVI-D and HDMI standards by DDWG
      • Extends multiple signals: USB keyboard and mouse, RS232 serial, digital video (DVI/HDMI), and audio
      • High definition resolution support up to 1920 x 1200 (and HD 1080p)
      • 30m (98ft) Multimode fiber cable included
      • Completely free of Electromagnetic interference (EMI)
      • Digital video transmission allows for zero signal loss, and 100% true picture at destination even over long distance

    • Specifications:

      • Audio: Yes
      • Daisy-Chain: No
      • KVM Ports: 2
      • Multi-Monitor: No
      • PC Interface: USB
      • PC Video Type: DVI
      • Rack-Mountable: Yes
      • DVI Support: Yes - Single Link
      • IP Control: No
      • Max Transfer Distance: 2 km (1.2 mi)
      • Maximum Digital Resolutions: 1920 x 1200 (1920 x 1080 widescreen - 1080p)
      • Port Selection Support: Push Button and Hotkeys
      • Wide Screen Supported: Yes
      • OS Compatibility: OS independent; No software or drivers required
      • Note: Supports most combo keyboard and mouse sets (including Wireless)

      • Console Interface(s)
      • 2 - DB-9 (9 pin; D-Sub) Male
      • 2 - DVI-I (29 pin) Female
      • 4 - 3.5 mm Mini-Jack (3 Position) Female
      • 4 - USB A (4 pin) Female

      • Host Connectors
      • 2 - DB-9 (9 pin; D-Sub) Female
      • 2 - DVI-I (29 pin) Female
      • 2 - USB B (4 pin) Female
      • 4 - 3.5 mm Mini-Jack (3 Position) Female
      • Other Interface(s)
      • 2 - Fiber Optic SC Duplex Female

      • LED Indicators
      • 1 - Local Indicator
      • 1 - Remote Indicator
      • 1 - Status Indicator (Green - Powered On, Blue - Powered On and Connected)
      • 2 - Serial Indicators (RX/TX status)
      • Center Tip Polarity: Positive
      • Input Current: 0.5A
      • Input Voltage: 110 ~ 240 AC
      • Output Current: 1.5A
      • Output Voltage: 12 DC
      • Plug Type: M
      • Power Source: 2 AC Adapters Included
      • Humidity: 0~80% RH
      • Operating Temperature: 0°C to 40°C (32°F to 104°F)
      • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
      • Color: Black
      • Enclosure Type: Steel
      • Product Depth: 5.3 in [135 mm]
      • Product Height: 1.7 in [44 mm]
      • Product Weight: 36.4 oz [1030 g]
      • Product Width: 8.7 in [220 mm]

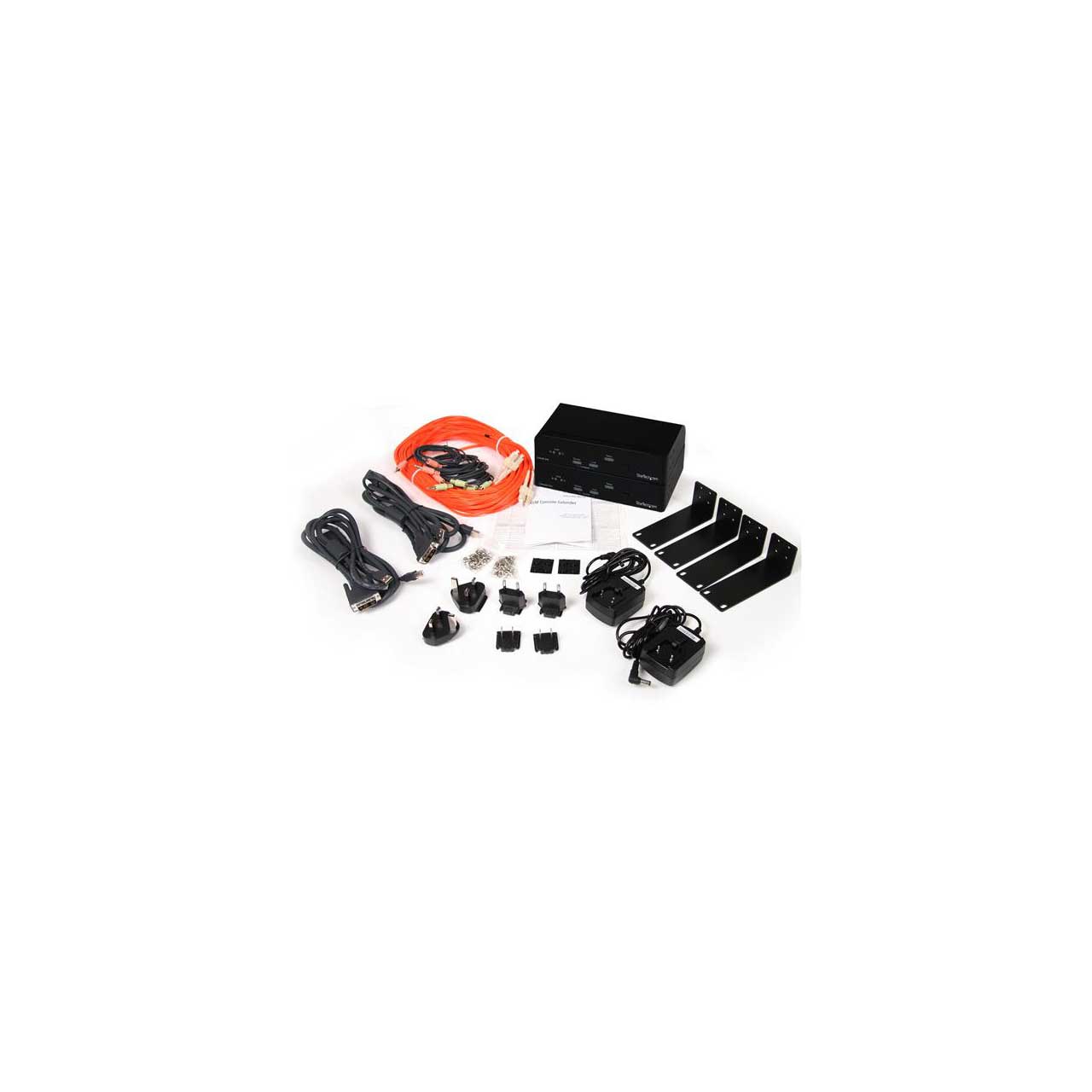

    • Item Includes:

      • 1 - Local Extender Unit
      • 1 - Remote Extender Unit
      • 4 - Rackmount Brackets
      • 1 - 30m (98ft) MM Fiber cable
      • 2 - Sets of DVI USB and Audio cables
      • 1 - Rubber feet
      • 2 - Universal Power Adapter (US/UK/EU)
      • 1 - Manual

    • Warranty:

      • 3 Years

    • GTIN:

      0065030839426
