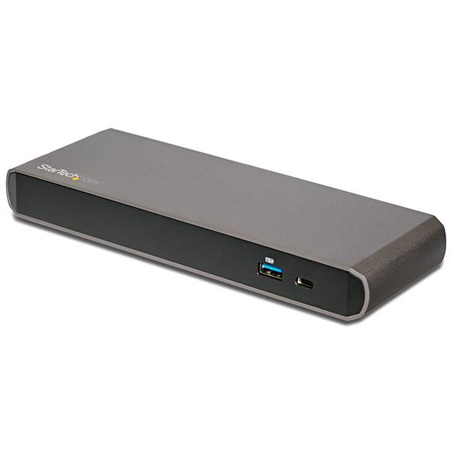

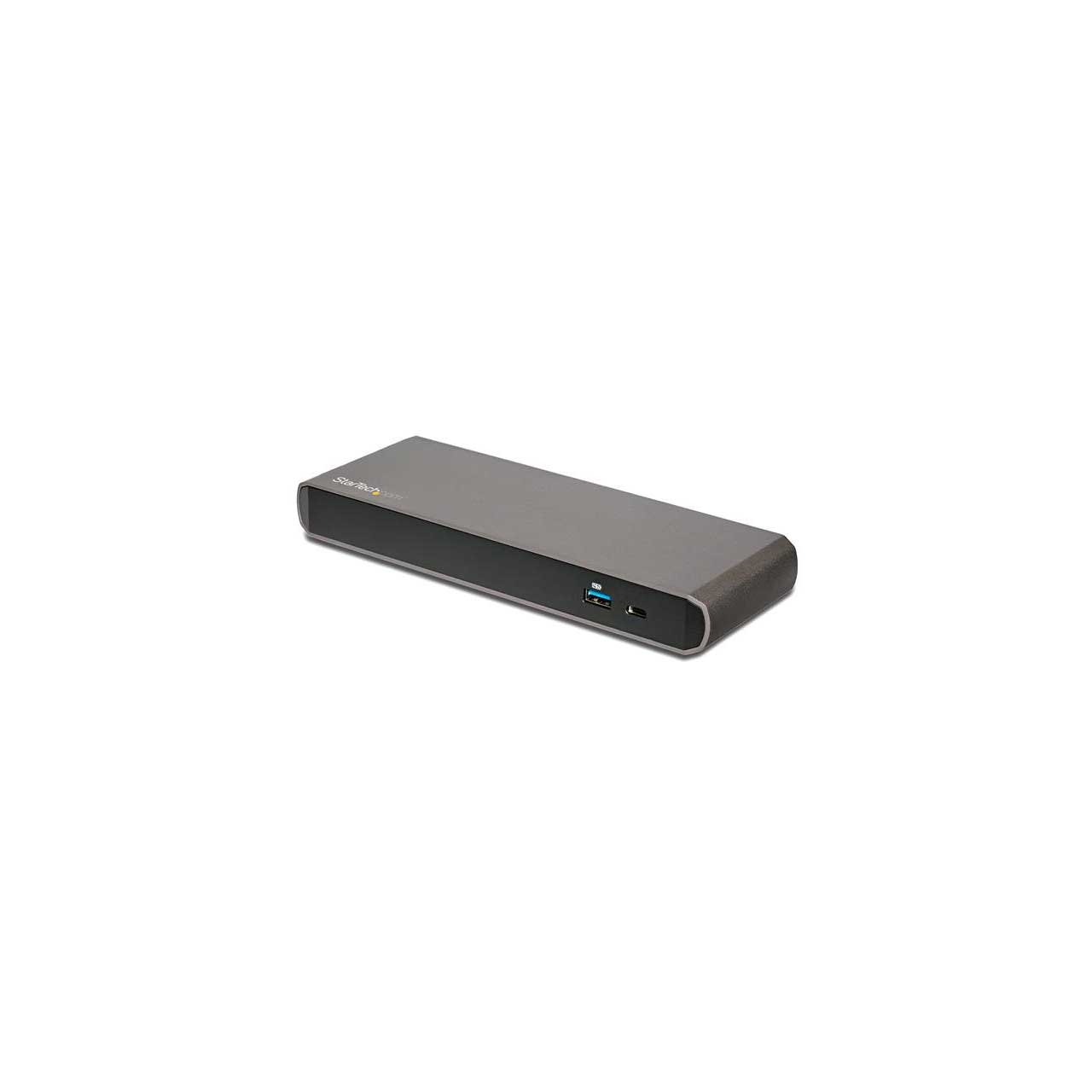

StarTech TB3DK2DPPD Dual 4K Thunderbolt 3 Dock - Mac/Windows - 85W Power Delivery

TB3DK2DPPD - Overview

• Features:

  • Thunderbolt 3 Certified Dock: 40Gbps video/data bandwidth, dual 4K 60Hz DP & TB3 (USB-C) video outputs, 85W PD, USB 3.0 5 Gbps Hub w/ 2x USB-A (1 Front Fast-Charging) & 1x USB-C, GbE, 3.5mm audio/mic
  • 85W Power Delivery: This Thunderbolt 3 Docking Station will power and charge laptops & ultrabooks such as MacBook Pro 13 & 16, MacBook Air, HP, Lenovo ThinkPad, & Dell XPS using macOS, Windows & Linux
  • Easy To Set Up & Deploy: This universal Thunderbolt 3 Dock has automatic driver setup; includes Thunderbolt 3 host cable and USB Type-C to DisplayPort cable to connect your second DP monitor
  • Flexible Thunderbolt 3 Port: Thunderbolt 3 port replicator with a downstream TB3 port that supports 3 modes of operation: a second monitor, daisychain TB3 peripherals, or connect USB-C accessories
  • Daisychain Up To 5 Thunderbolt 3 Devices: Connect additional TB3 devices to this TB3 dock including monitors, external hard drive bays, card readers, or an external GPU; using the downstream TB3 port.


• Specifications:

  • Hardware
  • 4K Support: Yes
  • Bus Type: Thunderbolt 3
    Chipset ID:
  • Intel - Alpine Ridge DSL6540
  • Fresco - FL1100EX
  • Texas Instruments - PCM2912A
  • Intel - WGI210AT
  • Texas Instruments - TPS65983


  • Displays Supported: 2
  • Fast-Charge Port(s): Yes
  • Industry Standards: Thunderbolt 3, USB Battery Charging Specification Rev. 1.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 - Backward compatible with USB 2.0 and 1.1

    Performance
  • Auto MDIX: Yes
  • Compatible Networks: 10/100/1000 Mbps
  • Full Duplex Support: Yes
    Maximum Data Transfer Rate:
  • 40 Gbps (Thunderbolt 3)
  • 10 Gbps (USB 3.1 Gen 2)
  • 5 Gbps (USB 3.0)
  • 2 Gbps (Ethernet; Full-Duplex)
    Maximum Digital Resolutions:
  • Single display - DisplayPort - 4096 x 2160p / 3840 x 2160p
  • Single Display - Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p
  • Dual displays - DisplayPort 4096 x 2160p / 3840 x 2160p and Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p
  • Type and Rate: Thunderbolt 3 - 40 Gbit/s
  • UASP Support: Yes

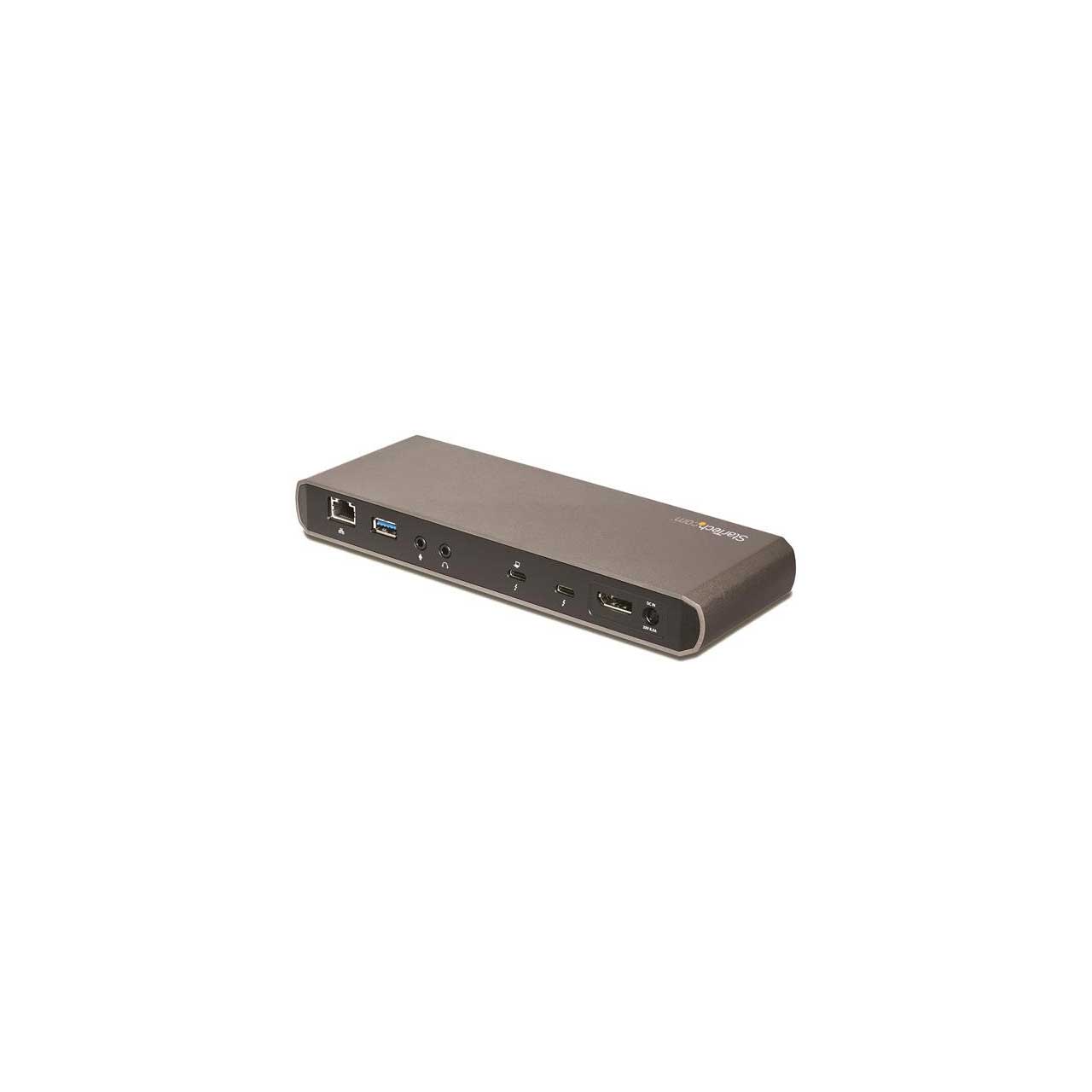

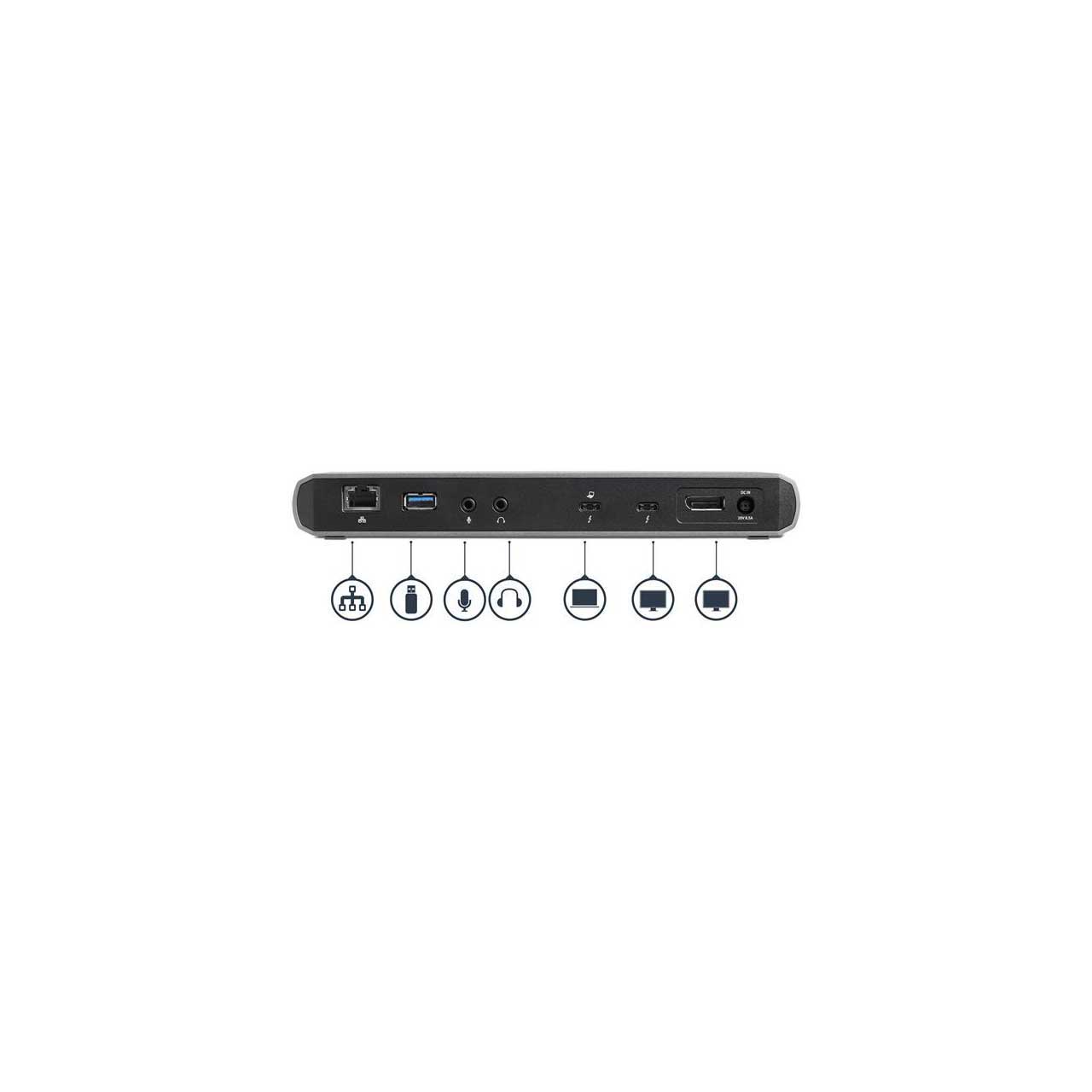

    Connector Type(s)
  • 2 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps) Female
  • 1 - DisplayPort (20 pin) Female
  • 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female

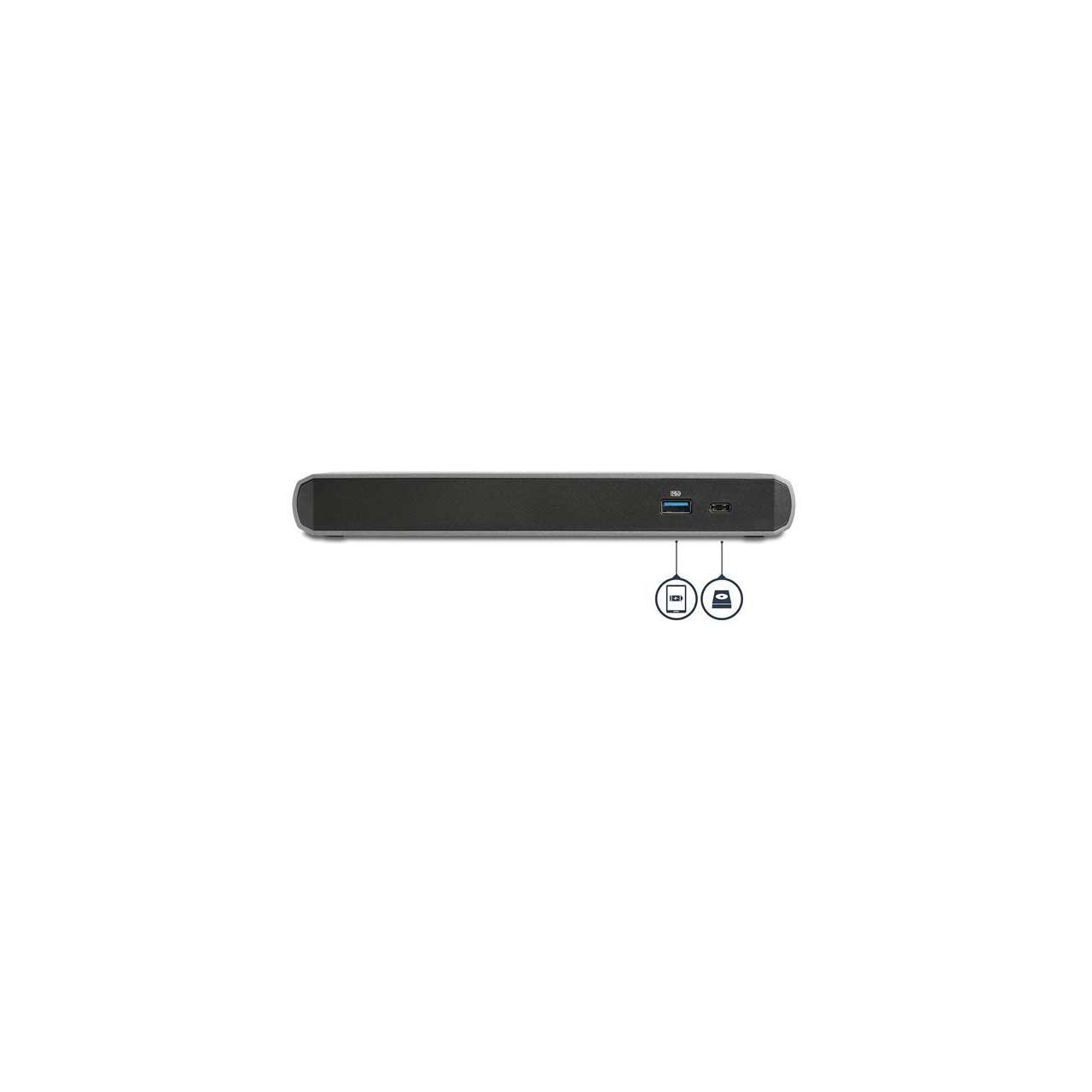

  • 1 - USB 3.0 A (Fast-Charge, 9 pin) Female
  • 1 - USB Type-A (9 pin) USB 3.0 Female
  • 2 - 3.5 mm Mini-Jack (3 Position) Female
  • 1 - RJ-45 Female

    Software - OS Compatibility
  • Windows® 8, 8.1, 10
  • macOS 10.12 - 10.15

    Notes
  • A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
  • Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz).
  • When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display.
  • USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps.
  • System and Cable Requirements: Thunderbolt 3 equipped computer with a Thunderbolt 3 port. Your laptop's Thunderbolt 3 port must support USB Power Delivery 2.0 in order to power and charge your laptop.

    Power
  • Input Current: 2.5 A
  • Input Voltage: 100 - 240 AC
  • Output Current: 8.5 A
  • Output Voltage: 20V DC
  • Plug Type: CP (OD:7.4/ID:5.1/CPD:0.6)
  • Power Consumption (In Watts): 170
  • Power Delivery: 85W
  • Power Source: AC Adapter Included

    Environmental
  • Humidity: 5~95% RH (Non-condensing)
  • Operating Temperature: 5°C to 40°C (41°F to 104°F)
  • Storage Temperature: -40°C to 70°C (-40°F to 158°F)

    Physical Characteristics
  • Cable Length: 20.5 in [520 mm]
  • Color: Gray and Black
  • Material: Aluminum and Plastic
  • Product Height: 1.1 in [2.7 cm]
  • Product Length: 8.7 in [22 cm]
  • Product Width: 3.1 in [80 mm]
  • Weight of Product: 15.9 oz [450 g]

    Packaging Information
  • Package Height: 3.5 in [88 mm]
  • Package Length: 9.8 in [24.8 cm]
  • Package Width: 5.8 in [14.8 cm]
  • Shipping (Package) Weight: 3.3 lb [1.5 kg]

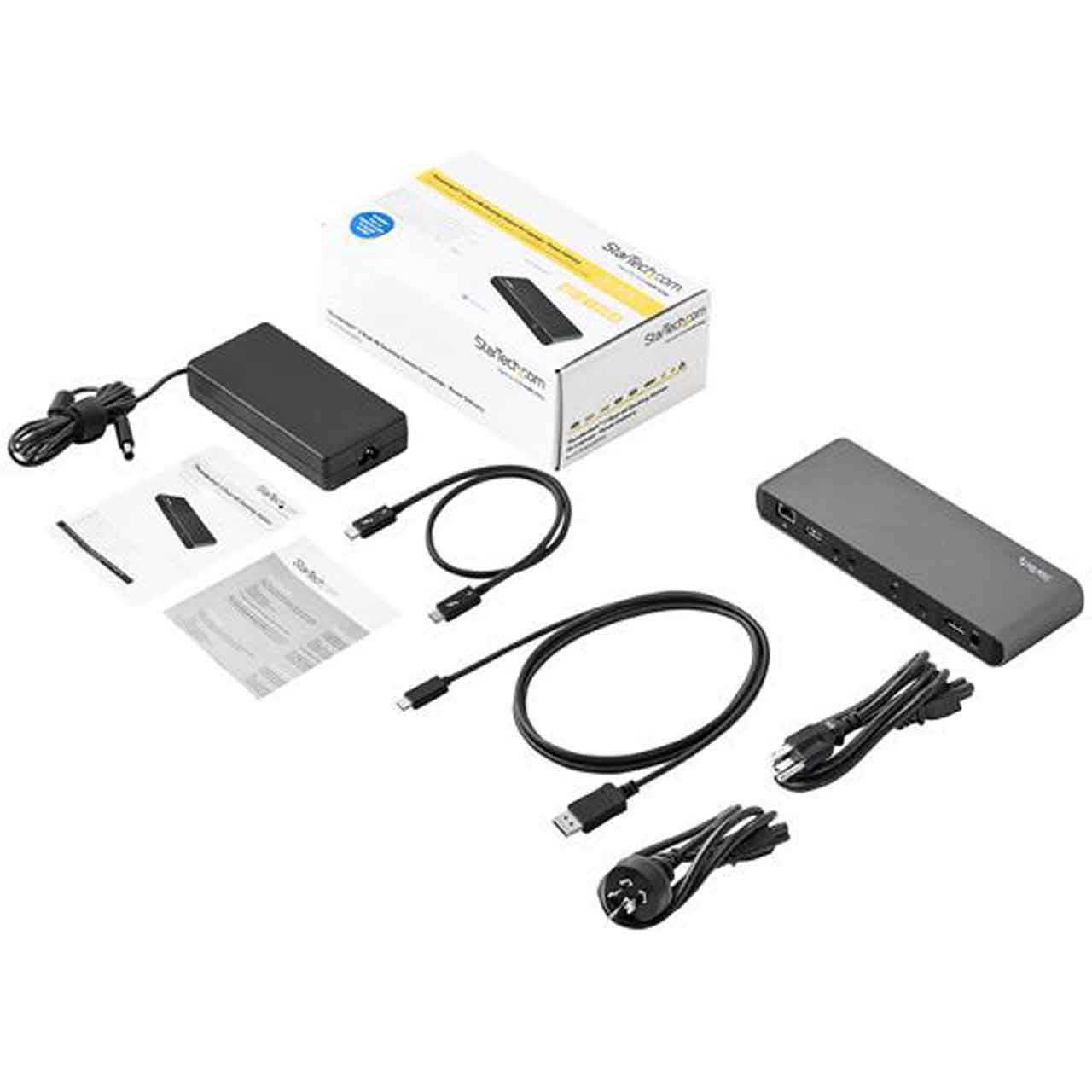

• Item Includes:

  • 1x Docking Station
  • 1x 1.7 ft. [520 mm] Thunderbolt 3 Cable
  • 1x 6 ft. [1.8 m] USB-C to DP Cable
  • 1x Universal Power Adapter
  • 1x Power Cords (NA/JP, ANZ)
  • 1x Instruction Manual


• Warranty:

  • 3 Years


• GTIN:

  0065030868426
