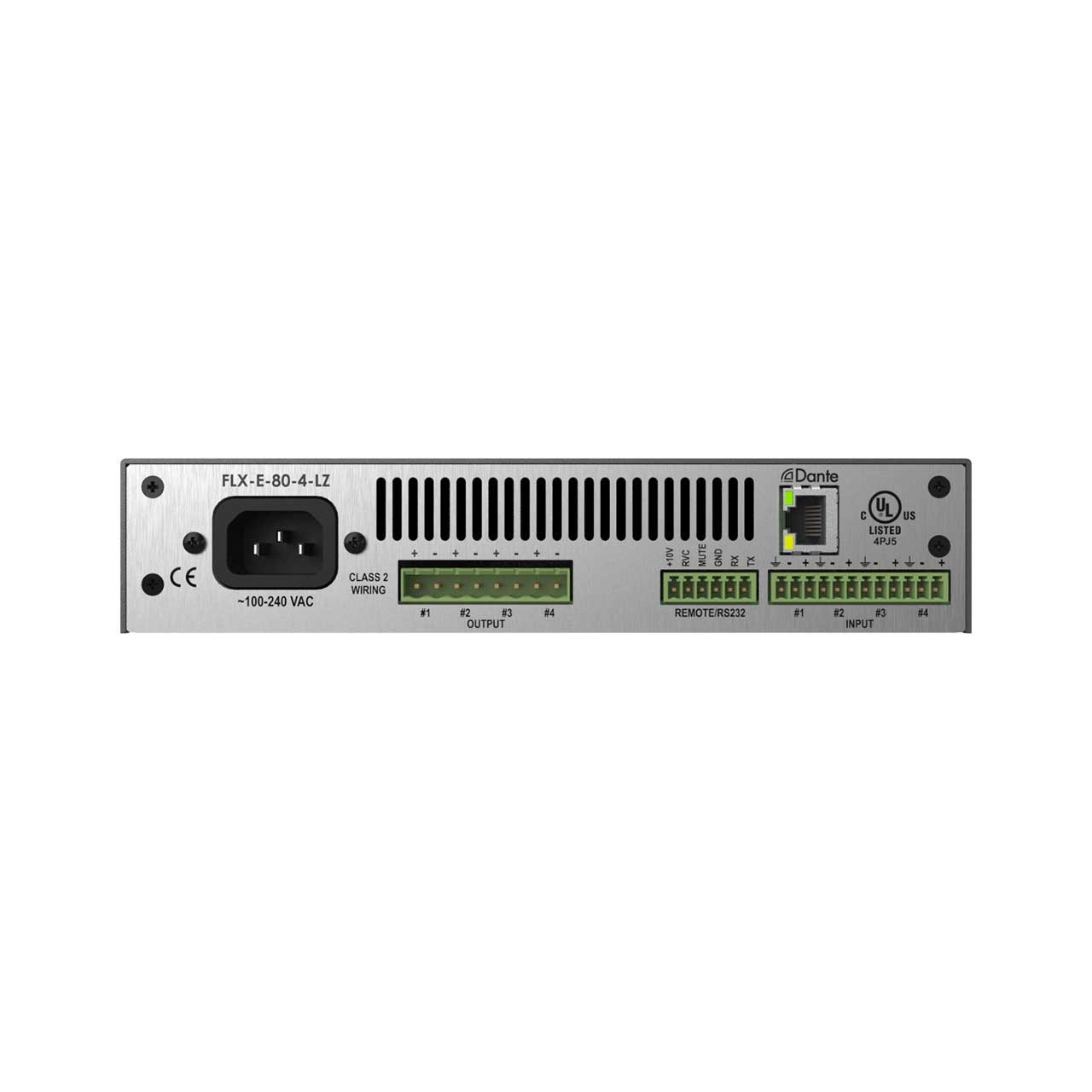

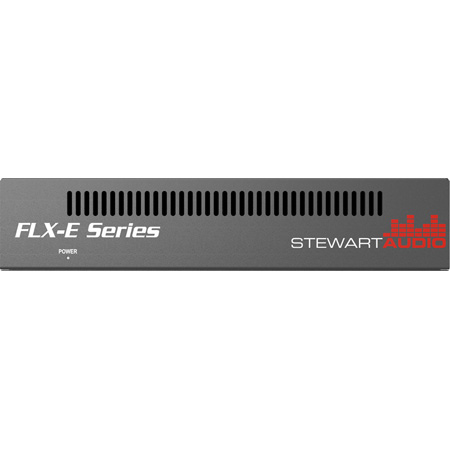

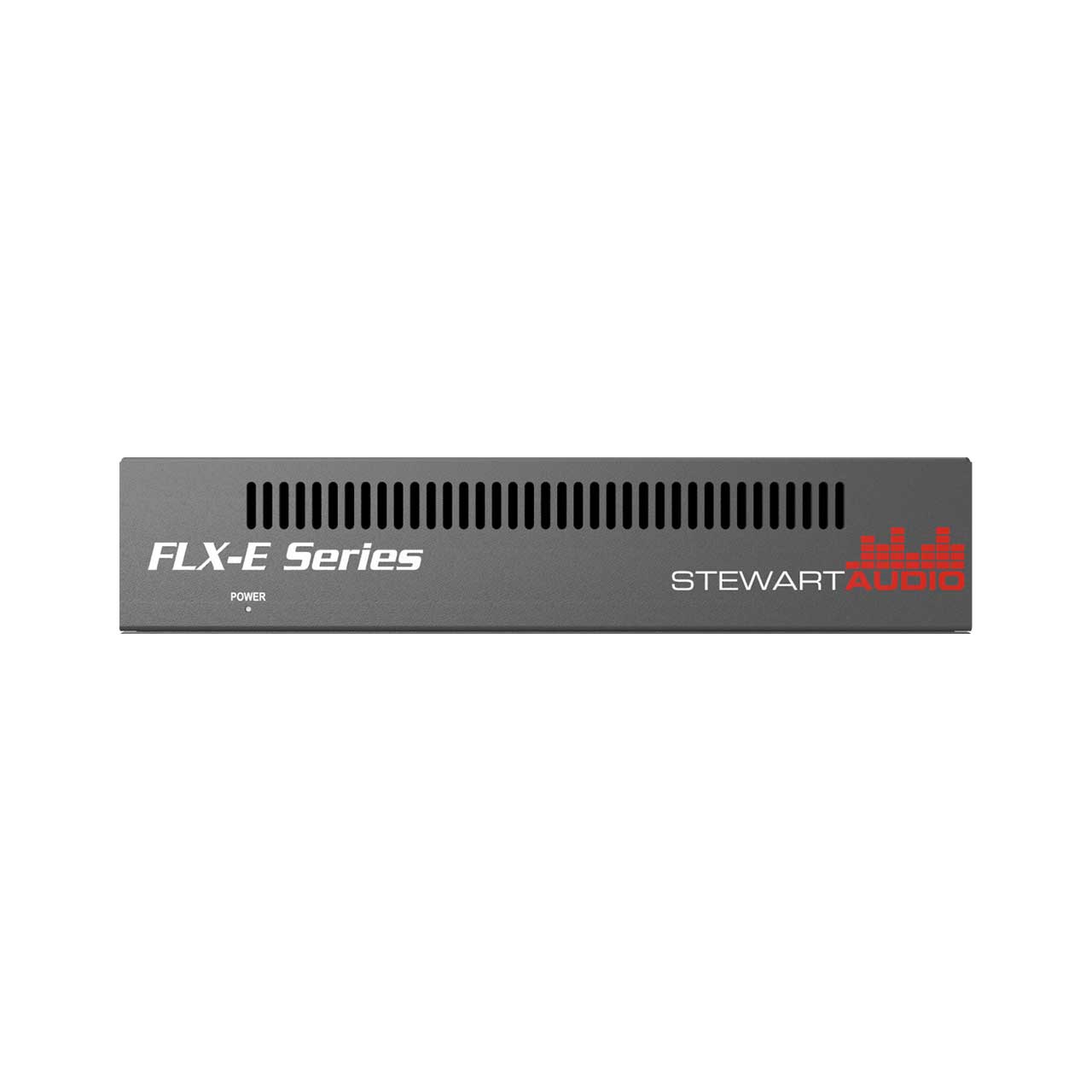

Stewart Audio FLX-E-80-4-LZ-D 80w @4ohm / 40w@8ohm x 4 Channel - Digital Matrix Proc - 4x4 Dante I/O 4x4

FLX-E-80-4-LZ-D - Overview

• Features:

  • Onboard DSP for signal routing and filtering
  • Ethernet configuration, control & reporting
  • Pre-mix level control
  • 4 analog inputs (4 line/mic; 2 w/ phantom power)
  • 4x4 Break in/Break out Dante™ channels


• Specifications:

  • Output Power
    FLX-E-80-4 LZ: 80/40W x 4 @ 4/8 Ohms
    FLX-E-80-4 CV: 80W x 4 @ 70.7V/100V
    FLX-E-160-2 LZ: 160W x 2 @ 4 or 8 Ohms
    FLX-E-160-2 CV: 160W x 2 @ 70.7V/100V
    FLX-E-320-1 CV: 320W x 1 @ 70.7V/100V
  • Frequency Response (+0, -3dB): 20 Hz-20 kHz (4 Ohms), 100 Hz-20 kHz (70.7/100V)
  • THD+N: <0.05% @ 6dB below clipping
  • Signal-to-Noise Ratio: >95dB
  • Input Sensitivity: 1V (0 dBV)
  • Input Impedance (Balanced/Unbalanced/Phantom): 7.2k Ohms/3.6k Ohms/2.4k Ohms
  • Power Consumption - Idle, 1/8 Power: 12W, 60W
  • Amplifier Class: D
  • Remote Volume: 0-10V
  • Channel to Channel Isolation: >60dB FLX-E-80-4 CV/LZ, >85dB FLX-E-160-2 CV/LZ
  • Input Connectors: 3.5mm Euroblock; 24V Phantom Power on 2 channels
  • Output Connectors: 5mm Euroblock
  • LED Indicators: Power
  • Controls: Ethernet, RS-232 & RVC
  • Network Audio (optional): Dante/AES67
  • Power Supply Input: 100-240 VAC 50/60Hz (PFC Universal Input)
  • Construction: Aluminum Chassis
  • Mounting: Rack-Mountable, Single and Dual
  • Cooling: Convection-Cooling - No Fans
  • Dimensions: 1.7 x 8.3 x 10.7 Inches
