MultiDyne SilverBack-VB Camera Back Transceiver - 12G-SDI - opticalCON DUO- Gold Mount

SVB-C4KB-D2RJ-5CAA - Overview

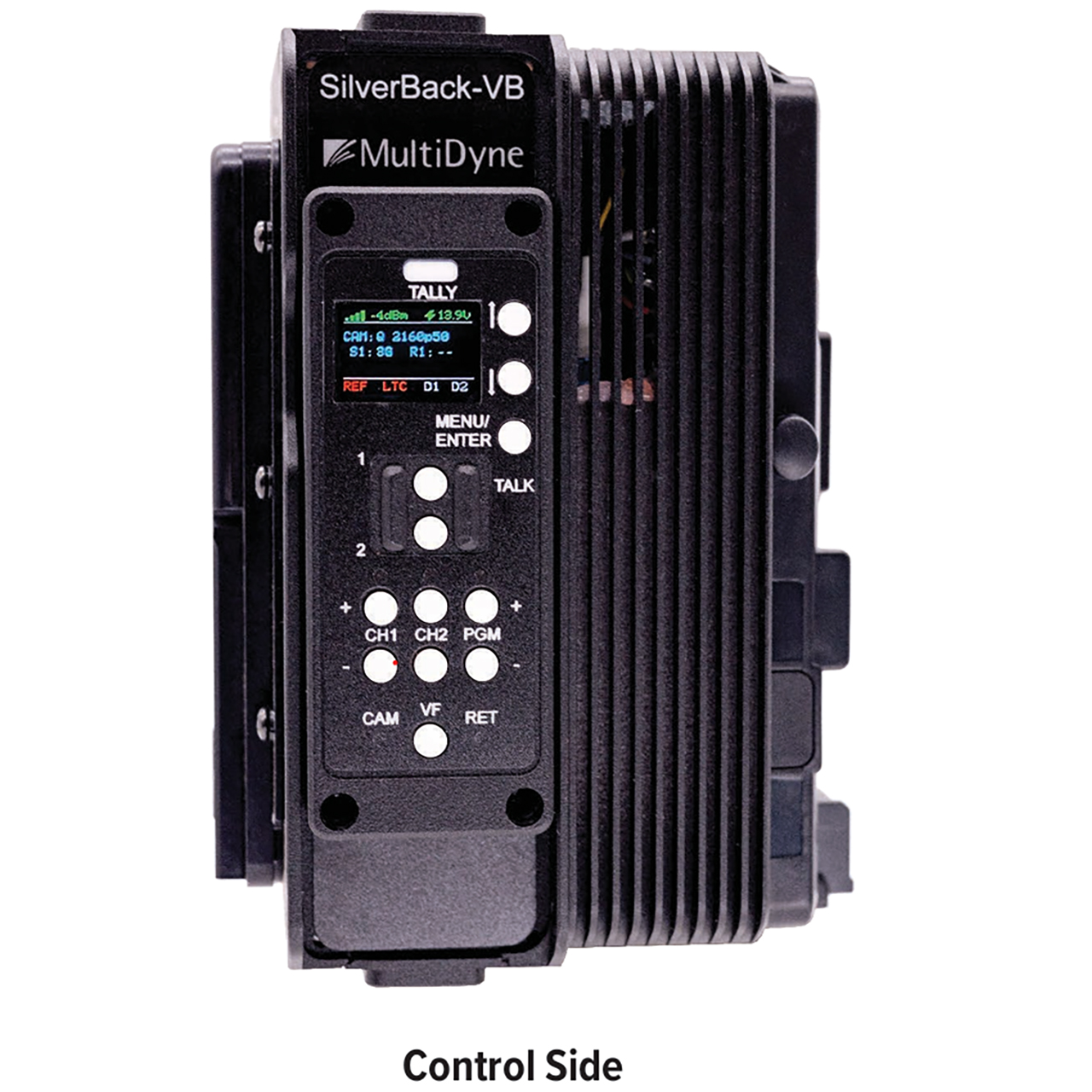

Multipurpose your 12G/4K & HD/3G Cameras

• Features:

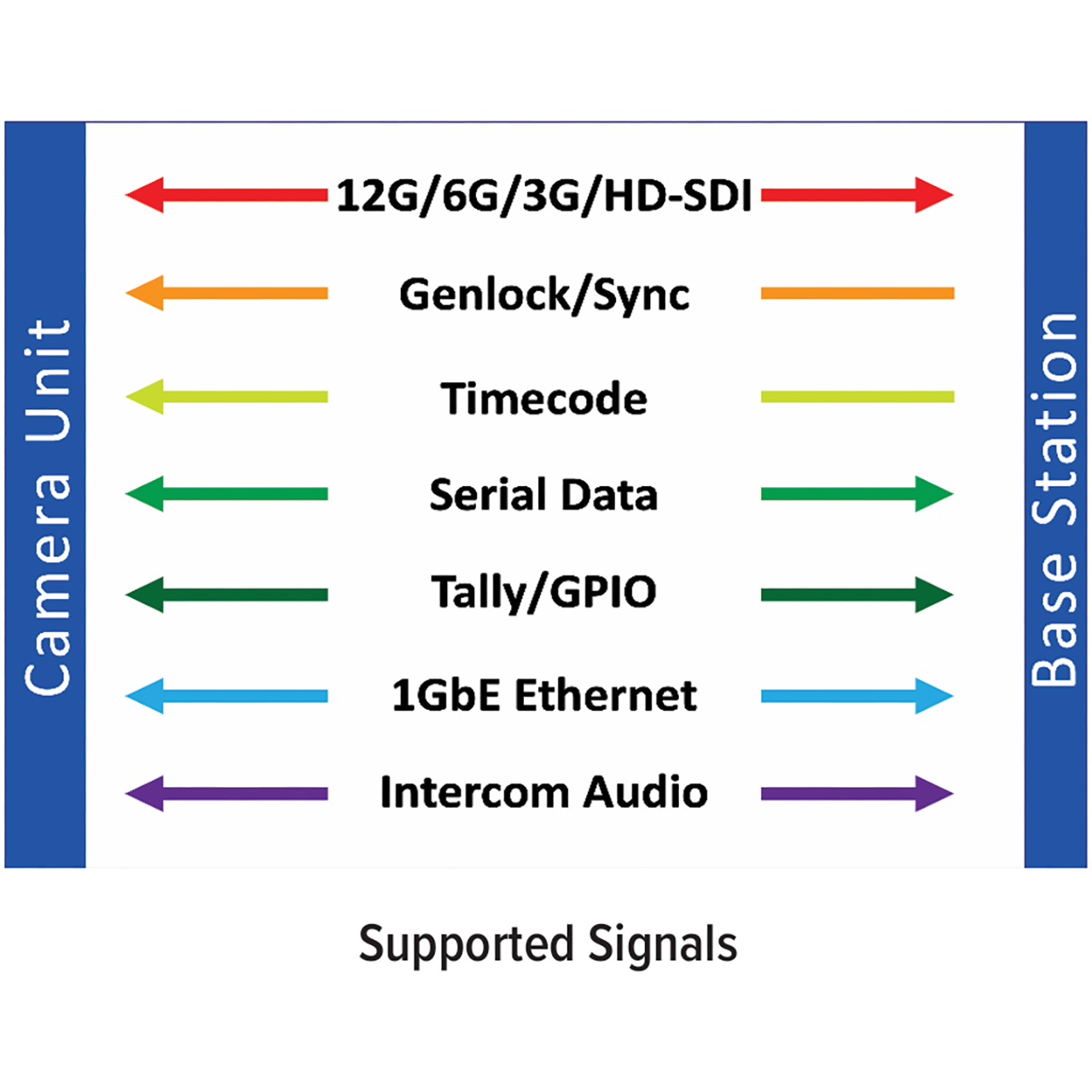

  • All Signals on ONE Cable
  • Bi-Directional 12G-SDI & Bi-Directional 3G-SDI
  • 10+Km Operation
  • 4-Wire Intercom Interface
  • Anton-Bauer or "V-mount" Battery Option
  • Integrated Tally Indicator
  • Camera RCP Control
  • 1 Additional Data Path (232/422)
  • Optical Connector on Integrated Swivel
  • Top & Bottom Dovetail Plates with 1/4"-20 & 3/8"-16 Taps for Mounting Accessories
  • Optional Tally/GPIO Cable
  • Optional Tally Light Accessory
  • Rugged Lightweight, Low-profile Design


• Specifications:

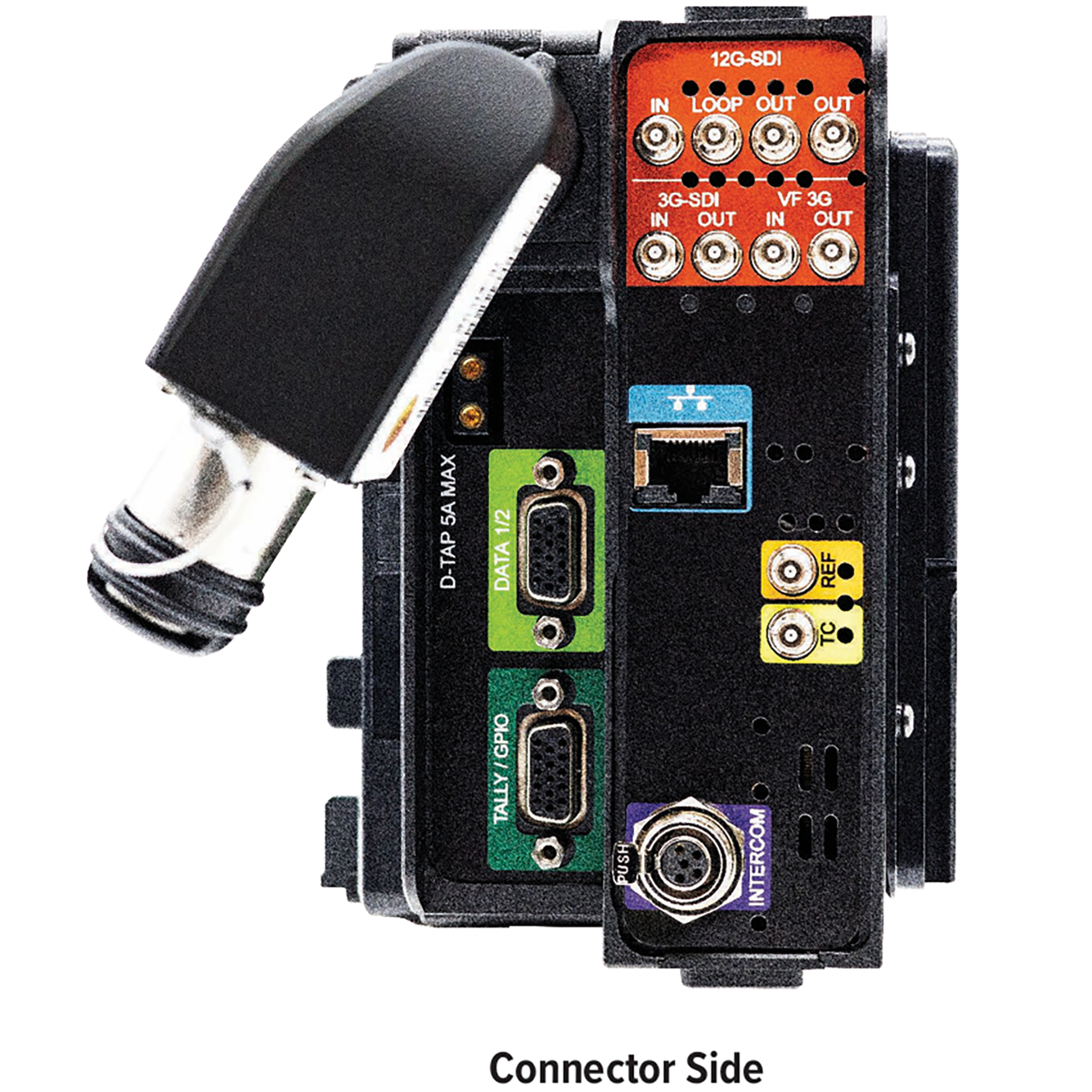

  SDI Video
  • Interface: SMPTE ST259, ST292, ST425, ST2081, ST2082
  • Data Rate: 270Mbps, 1.5Gbps, 3Gbps, 6Gbps, 12Gbps
  • Number of Channels (Cam to Base): 1 to 2, depending on particular model ordered
  • Number of Channels (Base to Cam): 1 to 2, depending on particular model ordered
  • Input/Output Level: 800mVp-p
  • Input/Output Impedance: 75Ω
  • Connector, Camera Unit: HDBNC
  • Connector, Base Unit: BNC
  • Embedded Audio Supported: Yes

    Video, Genlock
  • Type: Analog Black Burst, HD Tri-Level
  • Impedance: 75Ω
  • Level: 1Vp-p
  • Connector, Camera Unit: HD-BNC
  • Connector, Base Unit: BNC

    Intercom
  • Number of Channels: 2
  • Interface: 4-Wire
  • Headset MIC Type: Dynamic
  • Headset MIC Impedance: 200Ω nominal
  • Level, 4-Wire: +4dBu nominal, +24dBu max.
  • Connector, Headset: miniXLR-5
  • Connector, Base Unit: MDR Connector Supplied With Unit (Break Out to XLR Available)

    Serial Data (Control)
  • Type: RS232, RS422, LANC
  • Number of Channels (bidirectional): 2
  • Data Rate: 1Mbps max
  • Connector, Camera Unit: HD15
  • Connector, Base Unit: HD15

    Ethernet
  • Data Rates: 10/100/1000 Base-T
  • Connector: RJ45 Cat5e

    Tally/GPIO
  • Number of Channels (Base to Cam): 2
  • Number of Channels (Cam to Base): 2
  • Input type: Short to GND or TTL Low to Activate
  • Output Type: Relay Contact Closure (30V, 2A max)
  • Connector, Camera Unit: HD15
  • Connector, Base Unit: HD15

    Timecode
  • Type: SMPTE/EBU LTC
  • Input: Unbalanced, 15Vp-p max
  • Output: Unbalanced, 3Vp-p max
  • Connector, Camera Unit: HD-BNC
  • Connector, Base Unit: BNC

    Electro-Optical
  • Operating Wavelengths: 1271nm - 1611nm
  • TX Laser Output Power: 0dBm (Class 1 Laser)
  • Receiver Sensitivity: -24dBm (1.25G), -20dBm (3G), -14dBm (12G)
  • Optical Budget*: 16dB (3G models), 10dB (12G models)(The number, quality, and cleanliness of all fiber cables and interconnection points in the fiber path will affect the maximum usable cable length.)
  • Fiber Compatibility: Singlemode
  • Available Optical Connector Types: opticalCON DUO, SMPTE 304M, ST, LC

    Power
  • Power Input, Base Unit: 2.5mm Jack Center Pin Locking Connector
  • Power Consumption, Base Unit: TBD

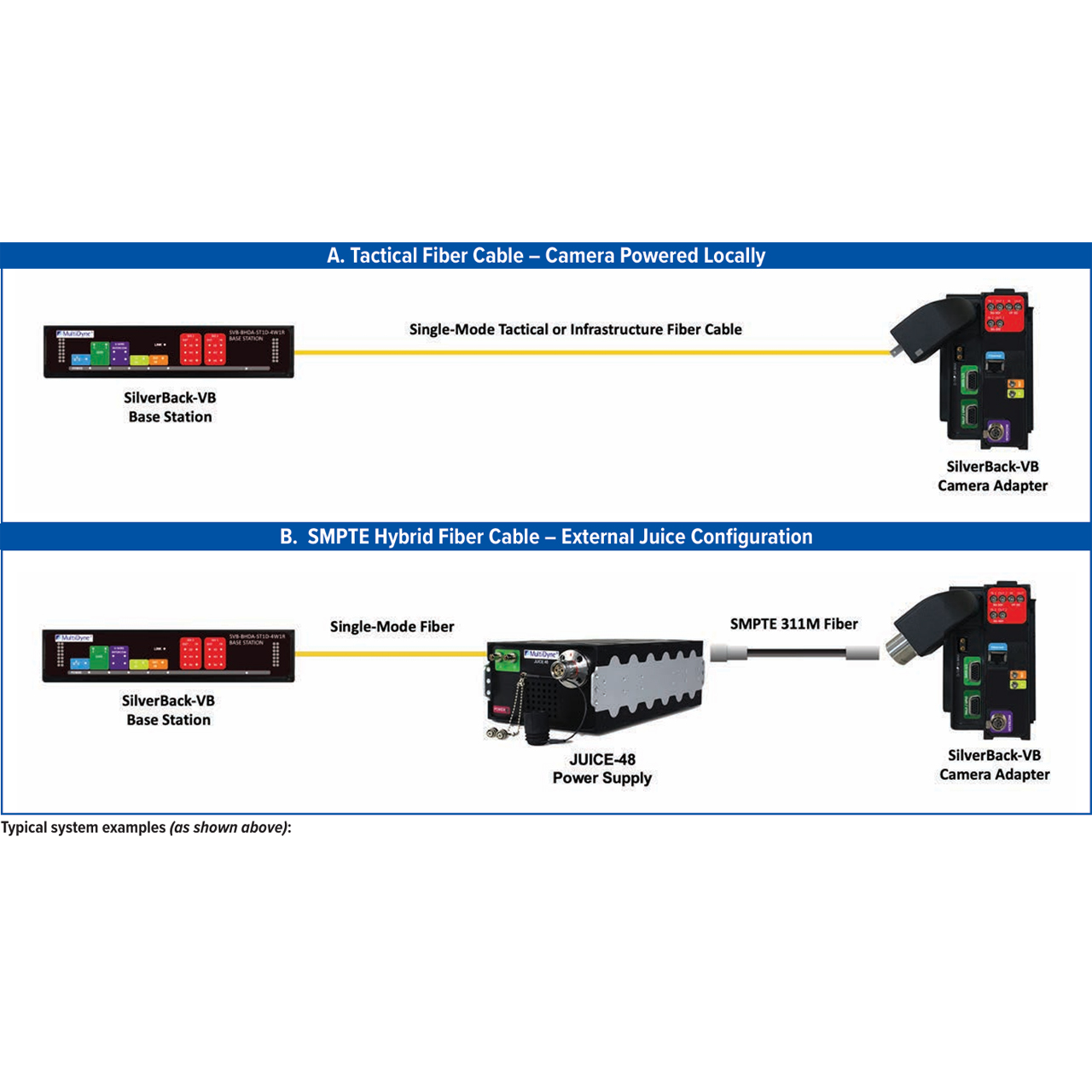

  • Power Input, Camera:
    - Remote Power: Hybrid Fiber Connector, 54VDC From JUICE-48
    - Local Power: Battery Mount (Anton Bauer or V-Mount), 11V - 17VDC
  • Power Consumption, Camera Unit: 30W max

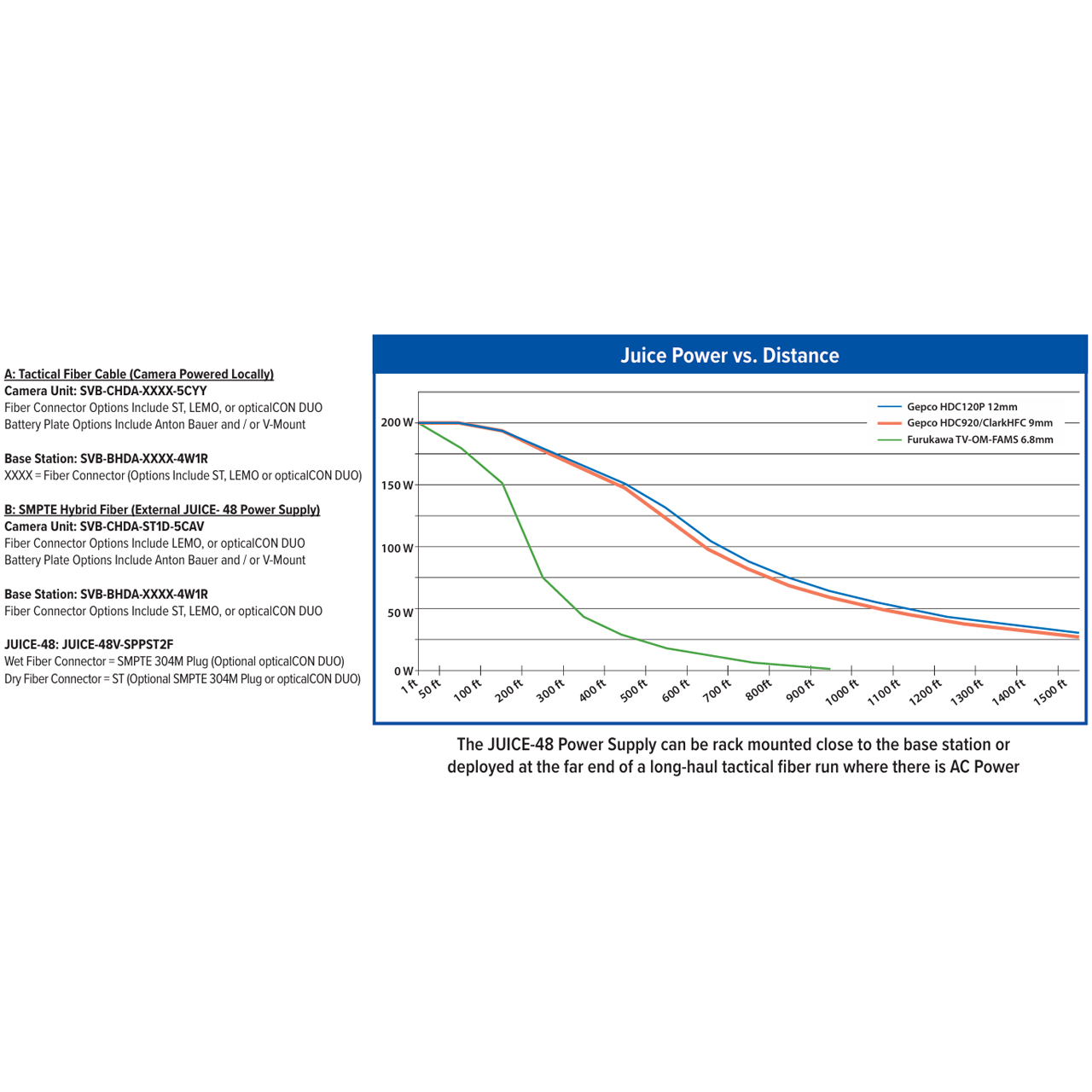

  • Total Power Available From Camera Unit via Hybrid Fiber for Camera & Accessories*: 14V (nominal), 150W max When used with the JUICE-48 (Maximum powered Hybrid Fiber distance varies and is determined by the size of the hybrid cable and the overall system power requirements. Power consumption of the camera, viewfinder, lens, and any other accessories will effect maximum available power at any given distance.)
  • Auxiliary Power Outputs From Camera Unit: 2
  • Connector Type: D-Tap
  • Power Output: 14V (nominal), 5A max (each)

    Mechanical/Environmental
  • Dimensions (LxWxH):
    - Camera Unit: 6" x 7" x 4"
    - Base Unit: 7.25" x 8.62" x 1.75" 1RU Tall
  • Shipping Weight: 10lbs
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Operating Humidity: 0% - 95% RH, non-condensing.


• Item Includes:

  • 1x SilverBack-VB Camera Back Transceiver


• Warranty:

  • 3 Year Limited Warranty
